B4A app to control inputs and outputs of Arduino connected to Bluetooth module HC-05. Arduino sends 9 bytes, first byte=129 to mark the start and then 8 bytes 7 bits each of data. B4A sends 2 bytes. Update is every second.
HC-05 is set to 9600 Baud rate.



Attachments

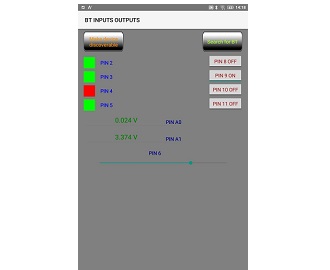

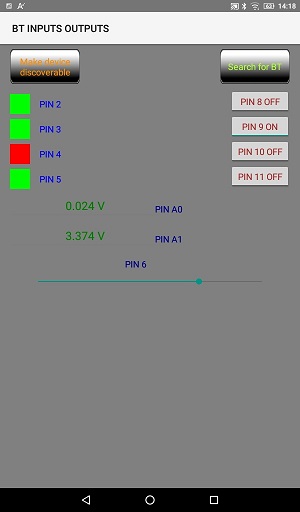

  • io_bt330.jpg
    9.8 KB · Views: 132

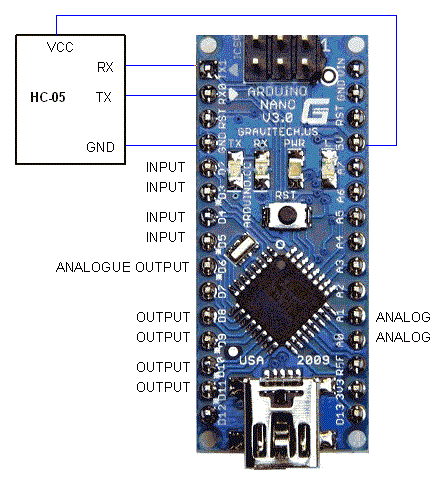

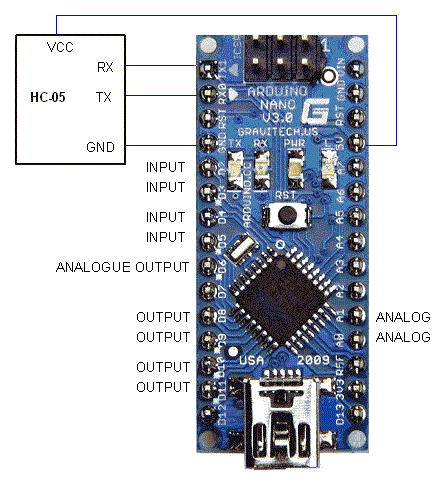

  • io_BT.gif
    53.3 KB · Views: 131
  • io_BT_b4r.zip
    1.3 KB · Views: 148
  • io_BT_b4a.zip
    10.1 KB · Views: 192
