Share My Creation ANDROID CNC MACHINE MONITOR EXPERIMENT-MTCONNECT

Hi
wanted to share , how easy it is to make something like this :eek:
Since the whole world is about data and monitoring what machines do ..here it is ..
All B4A and it is based on

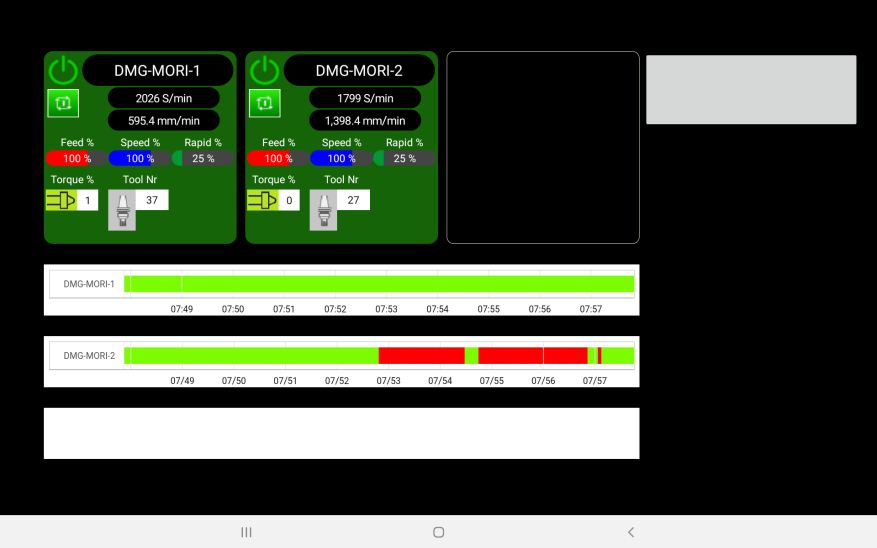

https://www.b4x.com/android/forum/threads/add-charts-with-google-charts-service.39197/#content for the graph (timeline)
Each machine has is own class so they can work independent ..
android2.png is with mysql
AH


Attachments

  • android.png
    53.1 KB · Views: 2,683

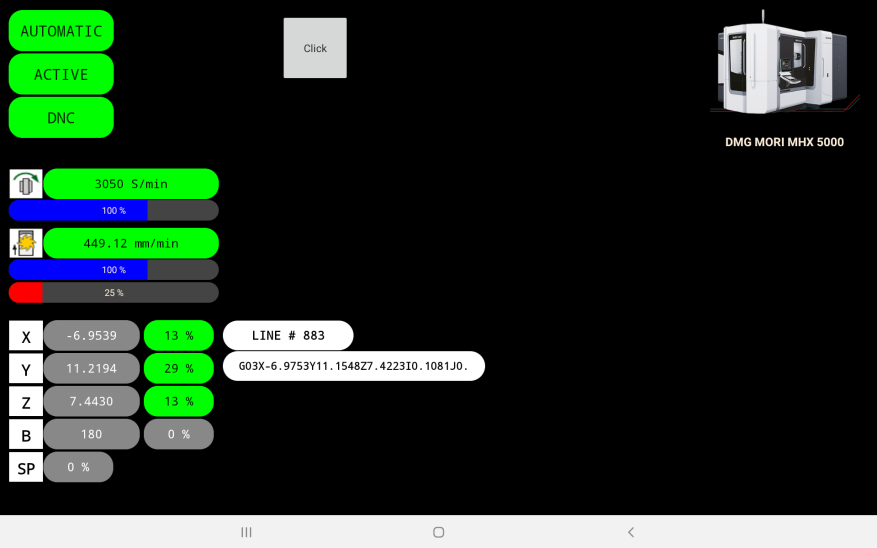

  • android1.png
    59.6 KB · Views: 315
  • android2.png
    62.2 KB · Views: 299
