iOS Question AutoScaleRate not full screen

[bromie2008]

When i used AutoScaleRate to (1.0) its not fill my screen Left/Right have space?

AutoScaleRate(1.0)
AutoScaleAll
Panel1.HorizontalCenter(50%x)



[Erel]

You shouldn't change the scale rate. This is not the purpose of AutoScaleAll.

The background panel should fill the entire screen width as it is anchored to both sides.



[bromie2008]

If i'm not using AutoScale All my icon not scale to my iPAd



[Erel]

You should use AutoScaleAll. But don't change the scale rate and don't count on it to make the views fill the entire area. It will not work.



[bromie2008]

How to scale my button to big size for iPad? Its look the AutoScaleAll only increase a bit



[Erel]

Can you upload the layout or project?



[bromie2008]

Attached here with my layout file.



[klaus]

I would do it that way.
Set both anchors of the background ImageView to BOTH, this you already have.
Add a transparent Panel and move all views onto this Panel and center it on the screen in the Script.
In Scripts-General add:
AutoScaleRate(0.5)
AutoScaleAll
Panel1.HorizontalCenter= 50%x
Panel1.VerticalCenter = 50%y
Then you can play with the AutoScaleRate.
With AutoScaleRate(0.7) you fill almost an iPad screen.

When you change the AutoScaleRate click on Run (F5) to see the result in the Anstract Designer.

Attached your modified project, I added a new layout file keeping yours for comparison.



[bromie2008]

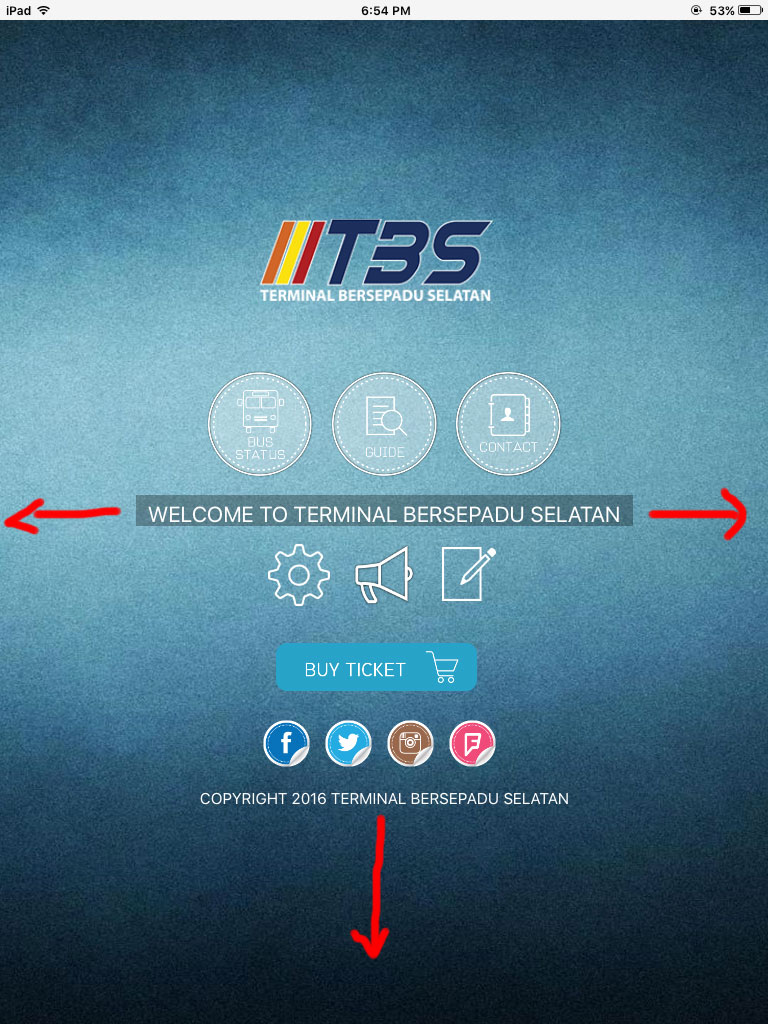

Thanks @klaus. But its seem like the scale not full screen on the scroller and the footer text. Attached here my screenshot on my iPad



[klaus]

I was not aware that you really wanted these views full size horizontally.
You should reset the parent of lblScroll back to Main and keep the horizontal anchor with BOTH.
You'll need to reposition lblScroll vertically in the Script according to the views above and below.



[bromie2008]

Thanks a lot @klaus & @Erel for support. It work!

'All variants script
AutoScaleRate(0.8)
AutoScaleAll
Panel1.HorizontalCenter= 50%x
Panel1.VerticalCenter = 50%y
lblScroll.VerticalCenter = 57%y
lblFooter.Bottom = 100%y
