B4J Question B4J color B4XView

[ivanomonti]

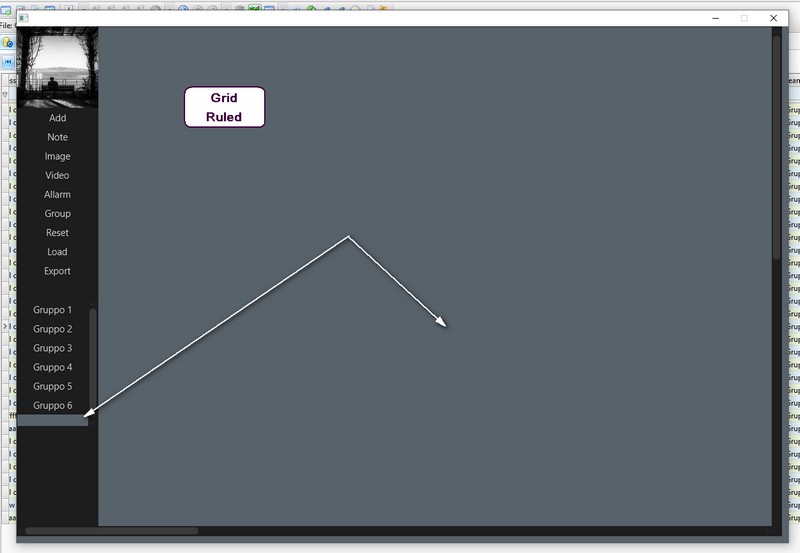

I am creating a dynamic menu using B4Xview panels as per code, but I would like them to keep the colors inherited or set from the primary panel (dark)

Also I was wondering if I can use the B4XView with more B4XCanvas, as if the B4XCanvas themselves were tissue but I find it difficult

example

panel (B4XView)
first layer (B4XCanvas) grid
second layer (B4XCanvas) ruler
third layer (B4XCanvas) DrawLine...

So you can draw only on the third layer without having to regenerate grid and righ

        Dim pnTeam As B4XView = Main.xui.CreatePanel("")
        pnTeam.Color  = Main.xui.Color_ARGB(255,29,29,29)
        pnTeam.Width=128
        pnTeam.Height=30
        Dim svTeam As ScrollPane
        svTeam.Initialize("")
        svTeam.InnerNode=pnTeam
        svTeam.SetVScrollVisibility("ALWAYS")
        svTeam.SetHScrollVisibility("NEVER")
        menuTools.AddView(svTeam,0,428,128,200)



[Erel]

Why are you making things more complicated than they should be...
You should use xCLV here.
If you want the list to be transparent: https://www.b4x.com/android/forum/t...d-and-scrollbar-visibility.101740/post-638776

You can put a panel over another one (not inside) and add a B4XCanvas to each one.



[ivanomonti]

Why are you making things more complicated than they should be...
You should use xCLV here.
If you want the list to be transparent: https://www.b4x.com/android/forum/t...d-and-scrollbar-visibility.101740/post-638776

You can put a panel over another one (not inside) and add a B4XCanvas to each one.

so you're telling me that if I want to make a grid, a ruler, a canvas where I can create lines I have to use three panels where each panel has its own canvas and superimpose all the panels as if it were shiny paper (transparent)



[Erel]

You don't need to "superimpose" anything. Just use each panel as a separate layer.



[ivanomonti]

Thank Erel
