Bug? B4J empty form in VmWare OSX 10.13 and later


Licensed User
Longtime User
Good morning,
I'm testing B4J projects to run on MAC OSX operating systems.
I have created 3 VM with vmWare 14 (osx 10.11.6, 10.13.6, 10.14.4), but in version 10.13 and 10.14 all the forms are empty inside (no objects inside).
Only in osx 10.11 works fine.
I used Java JDK 8u211 and B4J 7.31 (on Windows 10).
Does anyone know how to fix the empty form created with B4J running on VM 10.13 and later?
I know that on real MAC all works fine, but I need to test and run on VM machine.

This is the example code:

#Region Project Attributes
#MainFormWidth: 600
#MainFormHeight: 600
#End Region

Sub Process_Globals
Private fx As JFX
Private MainForm As Form
Private Label1 As Label
End Sub

Sub AppStart (Form1 As Form, Args() As String)
MainForm = Form1
MainForm.RootPane.LoadLayout("test01") 'Load the layout file.
Label1.Text = "v 1.16"
End Sub

'Return true to allow the default exceptions handler to handle the uncaught exception.
Sub Application_Error (Error As Exception, StackTrace As String) As Boolean
Return True
End Sub

Sub Button1_Click
'some code ...
End Sub

working on Windows 10:

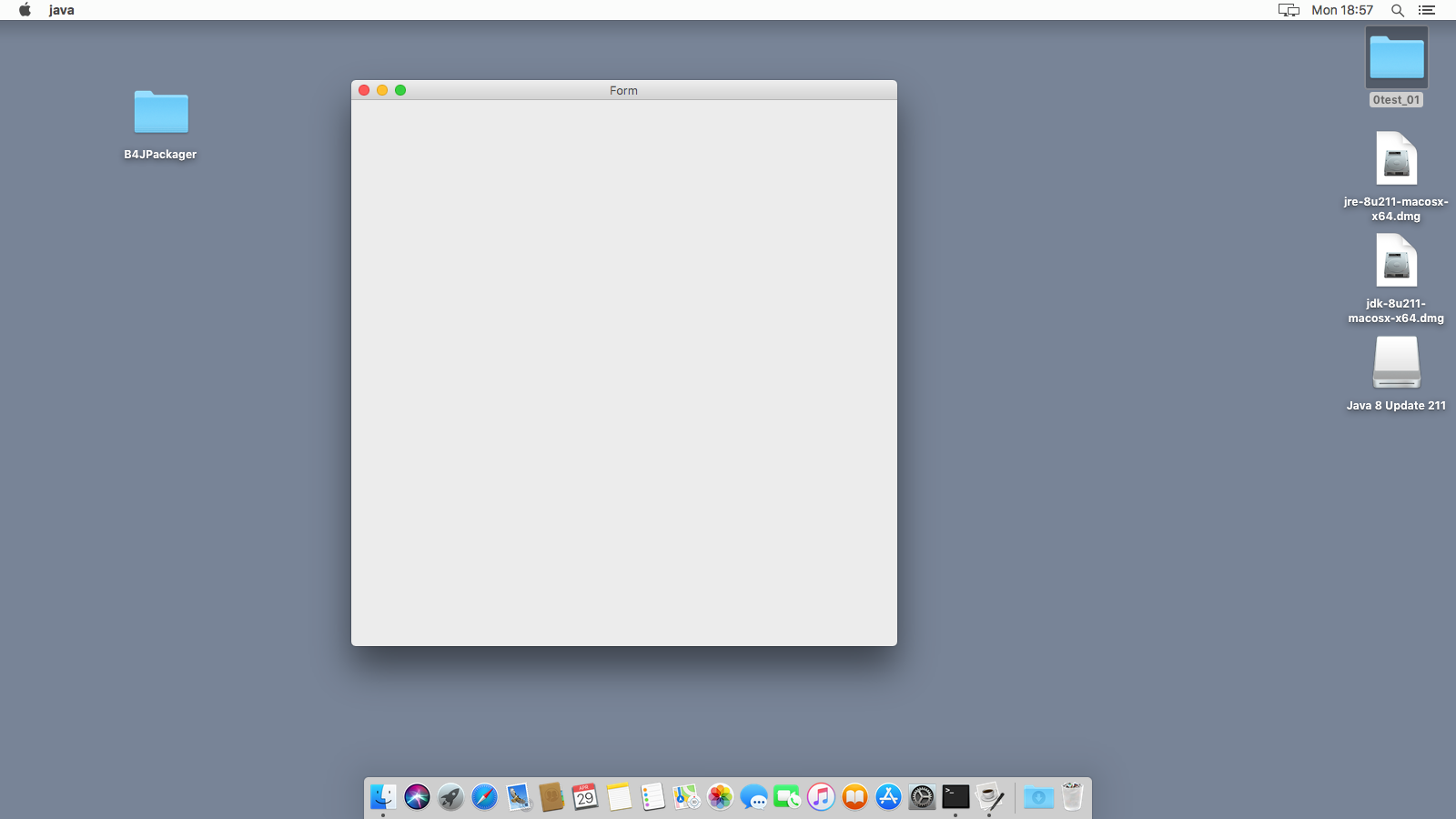

empty (not working) on VM OSX:
b4J form macOS 10.13 empty.png


Licensed User
Longtime User
Opening the Java console, it report the following error on my java example (but seems the bug is for all app using JavaFx):
2019-04-29 22:54:47.338 java[713:13086] CGLChoosePixelFormat error: 10002
2019-04-29 22:54:47.338 java[713:13086] CGLCreateContext error: 10002

Searching on internet, seems a JavaFx bug/incompatibility with VmWare OSX 10.13 VM and above.
Some posts resolve the issue editing a file called "GlassView3D.m". But I can't do it.

Anyone has same problem ?
