B4J Question [B4X] BCTextEngine - Background color to a piece of text is possible ??

[Juan Perz]

Hi.
Is it possible to put background color to a piece of text?



[Erel]

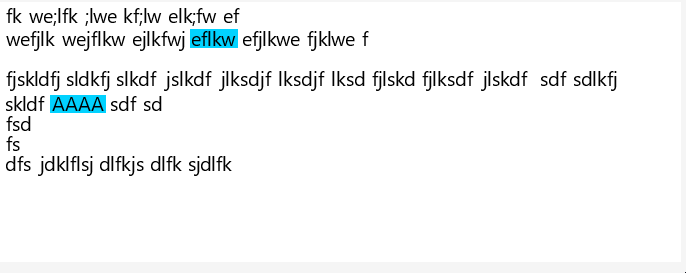

(The screenshot doesn't show anything. Better to remove it)

There is no built-in support for background colors, but it is possible with some work:

1. You need to disable lazy loading in the designer.
2.
Process_Globals:

Private WordsToHighlight As B4XSet

3.

WordsToHighlight = B4XCollections.CreateSet2(Array("AAAA", "eflkw"))
    BBCodeView1.Text = $"fk we;lfk ;lwe kf;lw elk;fw ef
wefjlk wejflkw ejlkfwj [plain]eflkw[/plain] efjlkwe fjklwe f

fjskldfj sldkfj slkdf jslkdf jlksdjf lksdjf lksd fjlskd fjlksdf jlskdf  sdf sdlkfj skldf [plain]AAAA[/plain] sdf sd
fsd
fs
dfs jdklflsj dlfkjs dlfk sjdlfk  "$
    AddBackgroundPanels
End Sub

Sub MainForm_Resize (Width As Double, Height As Double)
    AddBackgroundPanels
End Sub
Private Sub AddBackgroundPanels
    For Each x As B4XView In BBCodeView1.sv.ScrollViewInnerPanel.GetAllViewsRecursive
        If x.Tag = "background" Then
            x.RemoveViewFromParent
        End If
    Next
    Dim scale As Float = TextEngine.mScale
    For Each line As BCTextLine In BBCodeView1.Paragraph.TextLines
        For Each un As BCUnbreakableText In line.Unbreakables
            For Each s As BCSingleStyleSection In un.SingleStyleSections
                If WordsToHighlight.Contains(s.Run.Text) Then
                    Dim pnl As B4XView = xui.CreatePanel("")
                    pnl.Color = 0xFF00D2FF
                    pnl.Tag = "background"
                    BBCodeView1.sv.ScrollViewInnerPanel.AddView(pnl, BBCodeView1.Padding.Left + s.AbsoluteStartX / scale - 2dip, _
                     BBCodeView1.Padding.Top + (line.BaselineY - s.MaxHeightAboveBaseLine) / scale - 2dip, _
                        s.Width / scale + 4dip, (s.MaxHeightBelowBaseLine + s.MaxHeightAboveBaseLine) / scale + 4dip)
                    pnl.SendToBack
                End If
            Next
        Next
    Next
End Sub



[Juan Perz]

Perfect. !!!
Thanks Erel.



[Juan Perz]

Hello,
The first AAAA and the last AAAA should not have a Background Color, or am I doing something wrong?
The AAAA from the medium comes out correctly.

    WordsToHighlight = B4XCollections.CreateSet2(Array("AAAA", "eflkw"))
    BBCodeView1.Text = $"AAAA[plain]eflkw[/plain]AAAA fk we;lfk ;lwe kf;lw elk;fw ef
wefjlk wejflkw ejlkfwj [plain]eflkw[/plain] efjlkwe fjklwe f

fjskldfj sldkfj slkdf jslkdf jlksdjf lksdjf lksd fjlskd fjlksdf jlskdf  sdf [b]sdlkfj[/b] skldf AAAA sdf sd
fsd
fs
dfs jdklflsj dlfkjs dlfk sjdlfk  [plain]AAAA[/plain]dfg[b]sdlkfj[/b]AAAA"$
    AddBackgroundPanels
End Sub


Sub MainForm_Resize (Width As Double, Height As Double)
    AddBackgroundPanels
End Sub

Private Sub AddBackgroundPanels
    For Each x As B4XView In BBCodeView1.sv.ScrollViewInnerPanel.GetAllViewsRecursive
        If x.Tag = "background" Then
            x.RemoveViewFromParent
        End If
    Next
    Dim scale As Float = TextEngine.mScale
    For Each line As BCTextLine In BBCodeView1.Paragraph.TextLines
        For Each un As BCUnbreakableText In line.Unbreakables
            For Each s As BCSingleStyleSection In un.SingleStyleSections
                If WordsToHighlight.Contains(s.Run.Text) Then
                    Dim pnl As B4XView = xui.CreatePanel("")
                    pnl.Color = 0xFF00D2FF
                    pnl.Tag = "background"
                    BBCodeView1.sv.ScrollViewInnerPanel.AddView(pnl, BBCodeView1.Padding.Left + s.AbsoluteStartX / scale - 2dip, _
                     BBCodeView1.Padding.Top + (line.BaselineY - s.MaxHeightAboveBaseLine) / scale - 2dip, _
                        s.Width / scale + 4dip, (s.MaxHeightBelowBaseLine + s.MaxHeightAboveBaseLine) / scale + 4dip)
                    pnl.SendToBack
                End If
            Next
        Next
    Next
End Sub



[Erel]

Any matching string that is in a single "unit" will be highlighted with this code.

The purpose of the plain tag is to make sure that these strings are not merged with other units.



[Juan Perz]

This is a single unit and is not highlighted.



[Erel]

It is not a single unit because you haven't added the plain tag.

The last one is a single unit because of the bold text before it. The answer to the question in the first post was given in the second post. Feel free to start a new thread for any other question.
