Android Question B4X Drawer SlidingMenu

[Sinan Tuzcu]

Hi,
is there an option to change the Z-Order of LeftMenu?
Because I have created a dynamic scrollview on the Main Activity and if I open the Left menu, then the left menu slide under the scrollview.

BR
Sinan



[Jeffrey Cameron]

I've not used the control, but you could try something like

LeftMenu.GetBsae.Elevation = 20dip



[Sinan Tuzcu]

Unfortunately not.
there is only



[Alexander Stolte]

ExtraWidth is for the swipe area.



[Sinan Tuzcu]

Extrawidth responsible for width not for stay on top



[Alexander Stolte]

just "LeftPanel.Top = 10dip" ?



[Alexander Stolte]

Example project.



[Sinan Tuzcu]

That happens if I create the scroll view dynamic only

And this

Drawer.LeftPanel.BringToFront

doesn't works



[Alexander Stolte]

Does anyone have a crystal ball and can look into their code?



[Sinan Tuzcu]

#Region  Project Attributes
    #ApplicationLabel: B4A Example
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region
    #Extends: android.support.v7.app.AppCompatActivity
Sub Process_Globals

End Sub

Sub Globals
    Private ACToolBarLight1 As ACToolBarLight
    Private ToolbarHelper As ACActionBar
    Private Drawer As B4XDrawer
    Private ListView1 As ListView
    Private ScrollView1 As ScrollView
    Private Button1 As Button

End Sub

Sub Activity_Create(FirstTime As Boolean)
    Drawer.Initialize(Me, "Drawer", Activity, 300dip)
    Drawer.CenterPanel.LoadLayout("1")
    ToolbarHelper.Initialize
    ToolbarHelper.ShowUpIndicator = True 'set to true to show the up arrow
    Dim bd As BitmapDrawable
    bd.Initialize(LoadBitmap(File.DirAssets, "hamburger.png"))
    ToolbarHelper.UpIndicatorDrawable =  bd
    ACToolBarLight1.InitMenuListener
    Drawer.LeftPanel.LoadLayout("Left")
    For i = 1 To 30
        ListView1.AddSingleLine("Item " & i)
    Next

    ScrollView1.Initialize(100dip)
    ScrollView1.Color=Colors.White
    Activity.AddView(ScrollView1, 5dip, Button1.Top + Button1.Height, 70%x - 10dip, 70%y - (Button1.Top + Button1.Height))

    Drawer.LeftPanel.BringToFront
End Sub

Sub ACToolBarLight1_NavigationItemClick
    Drawer.LeftOpen = Not(Drawer.LeftOpen)
End Sub

Sub Activity_KeyPress (KeyCode As Int) As Boolean
    If KeyCode = KeyCodes.KEYCODE_BACK And Drawer.LeftOpen Then
        Drawer.LeftOpen = False
        Return True
    End If
    Return False
End Sub


Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

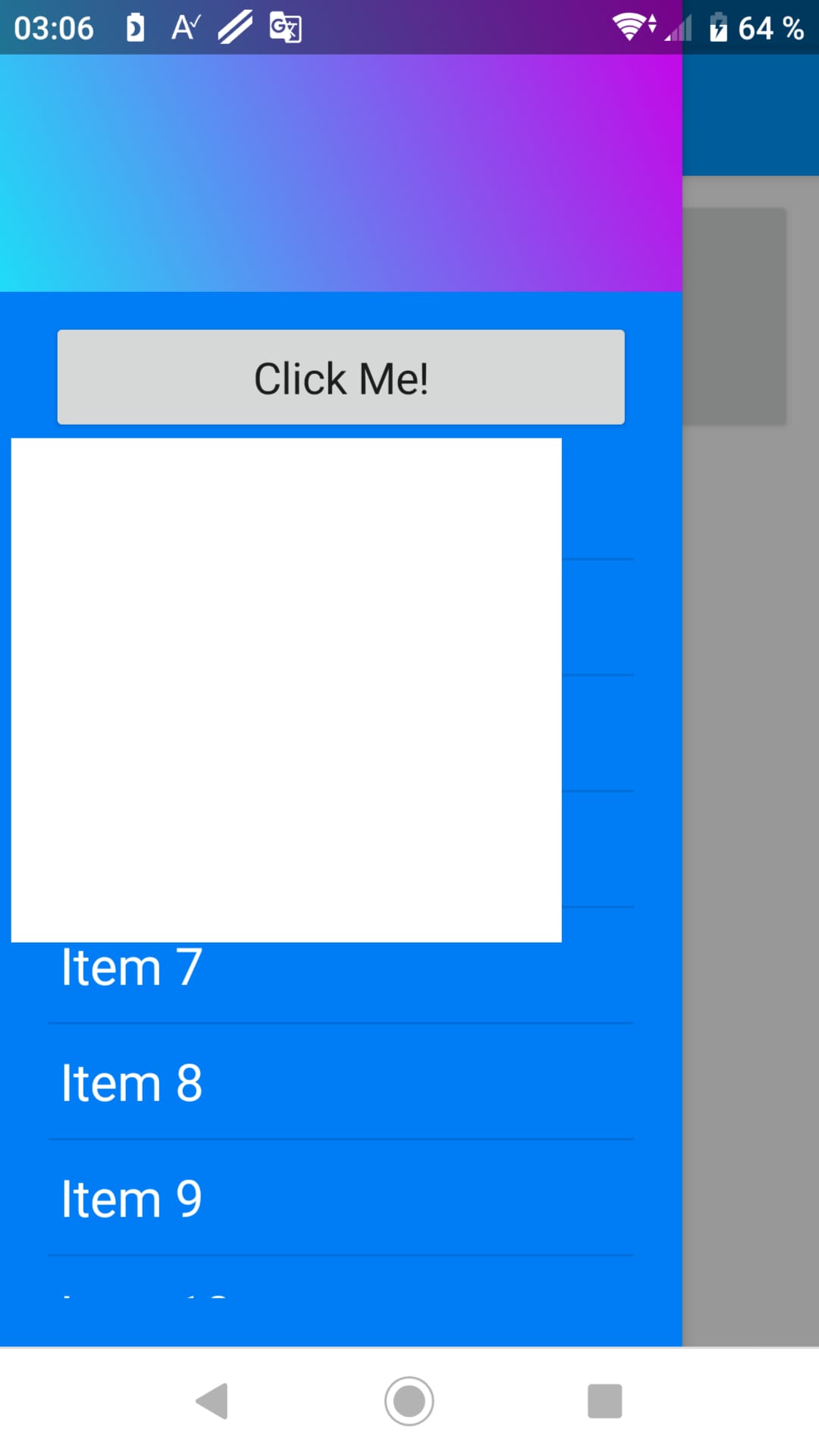

pls see in attachment



[Alexander Stolte]

Activity.AddView(ScrollView1, 5dip, Button1.Top + Button1.Height, 70%x - 10dip, 70%y - (Button1.Top + Button1.Height))

instead of this:

Activity.AddView(ScrollView1, 5dip, Button1.Top + Button1.Height, 70%x - 10dip, 70%y - (Button1.Top + Button1.Height))

make this:

Drawer.CenterPanel.AddView(ScrollView1, 5dip, Button1.Top + Button1.Height, 70%x - 10dip, 70%y - (Button1.Top + Button1.Height))



[Sinan Tuzcu]

thanks it works



[Sinan Tuzcu]

Hi,

how can do this in this case?

accord.Initialize(Me,"accord")
accord.AddToParent(Activity,0dip,Label1.height + Label1.Top,100%x,100%y - Panel1.height)
accord.addPanel(41dip, 290dip, createPanel("Settings",Colors.ARGB(255,255,255,255),0))

I have do this
Drawer.CenterPanel.Parent.AddView(accord,0dip,Label1.height + Label1.Top,100%x,100%y - Panel1.height)
but I get an error



[Sinan Tuzcu]

Nobody has an idea?



[Sinan Tuzcu]

ok is done



[Alexander Stolte]

and what was the problem?



[Sinan Tuzcu]

accord.AddToParent(Drawer.CenterPanel,0dip,Label1.height



[Chris Guanzon]

To move the scrollview under the drawer, just add scrollview.sendtoback



[Alexander Stolte]

To move the scrollview under the drawer, just add scrollview.sendtoback

thats false, because the drawer.centerpanel above the activity, a .sendtoback would not have helped in this case.



[Chris Guanzon]

thats false, because the drawer.centerpanel above the activity, a .sendtoback would not have helped in this case.

I already tried and tested it:
