Android Example AppCompat with ToolBar - minimal example

Discussion in 'Tutorials & Examples' started by Erel, May 24, 2017.

Thread Status:
Not open for further replies.
Page 1 of 3
  1. Erel

    Erel Administrator Staff Member Licensed User




    The project attached uses the powerful AppCompat library to replace the built-in ActionBar with a more robust ToolBar.

    The NavigationItemClick event is raised when the icon is clicked.

    You can set ToolbarHelper.ShowUpIndicator = True to show an up arrow instead. It will raise the same event.

    [​IMG]

    You can change the toolbar color in the manifest editor.

    Sliding side menu + dynamic menu items: https://www.b4x.com/android/forum/threads/appcompat-with-toolbar-minimal-example.79896/#post-509530

    [​IMG]

    Example based on B4ADrawer: https://www.b4x.com/android/forum/threads/class-b4adrawer-sliding-drawer.97828/#post-616518

    [​IMG]


    Attached Files:

    Last edited: Nov 17, 2019 at 6:17 AM
    Erel, May 24, 2017
    #1
    Watchkido1, Johan Hormaza, GIS and 14 others like this.
  2. Erel

    Erel Administrator Staff Member Licensed User

    Attached Files:

    Erel, May 24, 2017
    #2
    Watchkido1, RauchG, asales and 1 other person like this.
  3. vfafou

    vfafou Active Member Licensed User

    Hello!
    When I try to compile, I'm getting the following error:
    Code:
    B4A version: 7.01
    Parsing code.    (    0.00s)
    Compiling code.    (    0.15s)
    Compiling layouts code.    (    0.02s)
    Organizing libraries.    (    0.00s)
    Generating R     file.    Error
    C:\Users\VF\Desktop\AppCompatWithSlidingMenu\AppCompat\Objects\bin\extra\res3\res\values-v24\values-v24.xml:    3: error: Error retrieving parent for item: No resource found that matches the given name 'android:TextAppearance.Material.Widget.Button.Borderless.Colored'.
    C:\Users\VF\Desktop\AppCompatWithSlidingMenu\AppCompat\Objects\bin\extra\res3\res\values-v24\values-v24.xml:4: error: Error retrieving parent for item: No resource found that matches the given name 'android:TextAppearance.Material.Widget.Button.Colored'.
    Any suggestion?

    Thank you in advance!

    vfafou, May 30, 2017
    #3
  4. DonManfred

    DonManfred Expert Licensed User

    I guess you are using an Android.jar from Api below 24...

    Use a more recent android.jar (25 as of today) and set it under Tools->Configure Paths

    DonManfred, May 31, 2017
    #4
    Mashiane, MarcoRome, Peter Simpson and 1 other person like this.
  5. Erel

    Erel Administrator Staff Member Licensed User

    Erel, Jun 1, 2017
    #5
    vfafou and lemonisdead like this.
  6. Erel

    Erel Administrator Staff Member Licensed User

    A new example that shows how to update or add menu items at runtime.

    [​IMG]


    Attached Files:

    Last edited: Jun 8, 2017
    Erel, Jun 8, 2017
    #6
    jose luis gudino, ocalle, Hanhan Wijaya and 12 others like this.
  7. Peter Simpson

    Peter Simpson Expert Licensed User

    Works perfect as usual, thank you...

    Peter Simpson, Jun 9, 2017
    #7
    Erel likes this.
  8. Ivan Fernando Paz

    Ivan Fernando Paz Member Licensed User

    That's great

    Ivan Fernando Paz, Jun 9, 2017
    #8
  9. little3399

    little3399 Active Member Licensed User

    AppCompatWithDynamicMenuAndBadge DEMO program, can't seem to run? Are there any requirements for the Android version?

    because it run once , it will go back to the os ...

    little3399, Jun 10, 2017
    #9
  10. little3399

    little3399 Active Member Licensed User


    little3399, Jun 10, 2017
    #10
  11. woniol

    woniol Active Member Licensed User

    woniol, Jun 10, 2017
    #11
  12. little3399

    little3399 Active Member Licensed User

    @woniol ，TKS , it work fine !

    little3399, Jun 11, 2017
    #12
  13. Erel

    Erel Administrator Staff Member Licensed User

    Now with a more colorful popup menu:

    [​IMG]

    The color is set in the manifest editor:
    Code:
    <style name="ToolbarMenu" parent="Base.ThemeOverlay.AppCompat.ActionBar">
        <item name=    "android:textColorPrimary">#fff</item>
        <item name=    "android:colorBackground">#0098FF</item>
       </style>
    And is set with this code:
    Code:
    Dim jo As JavaObject = ACToolBarLight1
    Dim xl As XmlLayoutBuilder
    jo.RunMethod(    "setPopupTheme", Array(xl.GetResourceId("style", "ToolbarMenu")))


    Attached Files:

    Erel, Jun 11, 2017
    #13
    Ed Brown, Ivan Fernando Paz, SNOUHyhQs2 and 4 others like this.
  14. Cassie

    Cassie Member Licensed User

    Hi Guys,

    any idea what could this error be "invalid resource directory name: C:\Users\Admin\Documents\Tutorials And Samples\B4a Samples\AppCompatWithDynamicMenuAndBadge\AppCompat\Objects\bin\extra\res2\res/values-b+sr+Latn"

    Thanks

    Cassie, Jun 21, 2017
    #14
  15. DonManfred

    DonManfred Expert Licensed User

    Which B4A Version are you using?

    DonManfred, Jun 21, 2017
    #15
  16. Erel

    Erel Administrator Staff Member Licensed User

    Erel, Jun 21, 2017
    #16
  17. Cassie

    Cassie Member Licensed User

    Cassie, Jun 21, 2017
    #17
  18. Cassie

    Cassie Member Licensed User

    I'm using the latest version of B4A Version 7.01.

    Cassie, Jun 21, 2017
    #18
  19. lemonisdead

    lemonisdead Well-Known Member Licensed User

    lemonisdead, Jun 21, 2017
    #19
    DonManfred likes this.
  20. DonManfred

    DonManfred Expert Licensed User

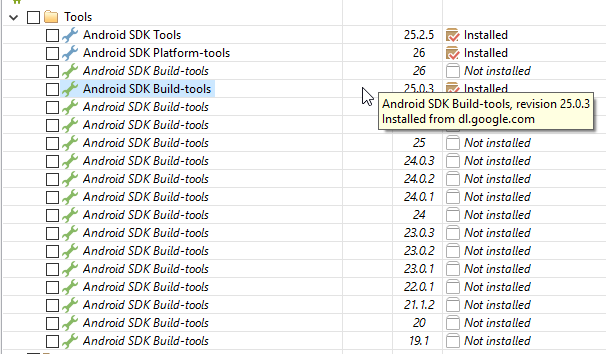

    Talking about B4A you are right. But Erel said that the issue is related to the installed Build-Tools. It should be a NEWER one than you are using.

    [​IMG]
    Install the newer 25.0.3.
    DEINSTALL all versions <25

    DonManfred, Jun 21, 2017
    #20
    lemonisdead likes this.
