B4A Library [B4X] [XUI] AS FloatingActionButton [Payware]

HeyHo,
this is a cross platform Floating Action Button.

Sub ASFloatingActionButton1_ButtonClicked(open As Boolean)
    If open = True Then
        ASFloatingActionButton1.Base.GetView(1).SetRotationAnimated(250,135)
    Else
        ASFloatingActionButton1.Base.GetView(1).SetRotationAnimated(250,0)
    End If
End Sub

Spoiler: Orientation declaration/tutorial/example

The orientation property is always based on the position of the view on your screen. That is, if you position the view at the bottom right, then use "BottomRight".

ASFloatingActionButton1.Orientation = ASFloatingActionButton1.Orientation_BottomRight

The menu opens from bottom to top and the text is flush on the left.

ASFloatingActionButton1.Orientation = ASFloatingActionButton1.Orientation_TopLeft

The menu opens from top to bottom and the text is flush on the right

Since 1.03 you can set FontAwesome and Material Icons to the view. Examples:

ASFloatingActionButton1.ButtonIconText.Font = xui.CreateMaterialIcons(24)'because the icon we want to display is an Material Icon
ASFloatingActionButton1.ButtonIconText.Text = Chr(0xE145)

ASFloatingActionButton1.ItemButtonProperties.IconText_Font = xui.CreateMaterialIcons(20)'because the next 2 item we want to add is a Material Icon
ASFloatingActionButton1.AddItem(Null,Chr(0xE859),"Test Text","")
ASFloatingActionButton1.AddItem(Null,Chr(0xE87D),"Test Text","")

ASFloatingActionButton1.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255,73, 98, 164)'the next item should be a blue button
ASFloatingActionButton1.ItemButtonProperties.IconText_Font = xui.CreateFontAwesome(20)'because the next item we want to add is a FontAwesome Icon
ASFloatingActionButton1.AddItem(Null,Chr(0xF179),"Test Text","")

ASFloatingActionButton
Author: Alexander Stolte
Version: 1.05

• ASFloatingActionButton
  • Events:
    • ButtonClicked (open As Boolean)
    • ItemClicked (index As Int, Value As Object)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • AddItem (Icon As B4XBitmap, IconText As String, Text As String, Value As Object) As String
      Adds a child button to the menu
      Icon - the bitmap for this item.
      IconText - set FontAwesome or MaterialIcons - dont forget to set the right font
      Text - the text for this item. Put a "" if you dont want to show a text label
    • Class_Globals As String
    • CloseMenu As String
      closes the menu if the menu is open
    • CreateASFloatingButton_ItemButtonProperties (BackgroundColor As Int, IconText_Font As B4XFont, IconText_Color As Int) As ASFloatingButton_ItemButtonProperties
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap


      FontAwesome To Bitmap

      Unlike an older "TextToBitmap" sub that you can find in the forum, this code vertically centers the icon. It can also be used in B4J and B4i (only need to change the font line). Sub Activity_Create(FirstTime As Boolean) 'usage example Activity.AddMenuItem3("Android", "Test"...

      www.b4x.com
    • getBackground As B4XView
      gets the background panel
    • getBase As B4XView
      gets the mbase
    • getButton As B4XView
      gets the main button panel
    • getButtonIconText As B4XView
      gets the main button label for FontAwesome- or Material-Icons
    • getItemButtonProperties As ASFloatingButton_ItemButtonProperties
      gets or sets the Item Button Properties
      BackgroundColor - the background color of the child buttons
    • GetItemPanel (index As Int) As B4XView
      gets the main panel of a item
      <code>ASFloatingButton1.GetItemPanel(0).GetView(0) 'xpnl_item_button - the round button panel</code>
      <code>ASFloatingButton1.GetItemPanel(0).GetView(1) 'xiv_item - the icon</code>
      <code>ASFloatingButton1.GetItemPanel(0).GetView(2) 'xlbl_item_text - the text label</code>
    • getItemTextProperties As ASFloatingButton_ItemTextProperties
      gets or sets the Item Text Properties
    • getMainButtonBackgroundColor As Int
      gets or sets the background color of the main button
    • getOrientation As String
    • getOrientation_BottomLeft As String
      view is on bottom, the items opens to the top and the text is right
    • getOrientation_BottomRight As String
      view is on bottom, the items opens to the top and the text is left
    • getOrientation_TopLeft As String
      view is on top, the items opens to the bottom and the text is right
    • getOrientation_TopRight As String
      view is on top, the items opens to the bottom and the text is left
    • Initialize (Callback As Object, EventName As String) As String
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • OpenMenu As String
      opens the menu if the menu is not open
    • RemoveAll As String
      removes all child items
    • RemoveAt (Index As Int) As String
      Removes a special child item
    • setButtonIcon (icon As B4XBitmap) As String
      sets the icon of the main button
    • setMainButtonBackgroundColor (clr As Int) As String
      gets or sets the background color of the main button
    • setOrientation (orient As String) As String
      gets or sets the orientation of the items if the menu is open
      <code>ASFloatingButton1.Orientation = ASFloatingButton1.Orientation_BottomRight</code>
  • Properties:
    • Background As B4XView [read only]
      gets the background panel
    • Base As B4XView [read only]
      gets the mbase
    • Button As B4XView [read only]
      gets the main button panel
    • ButtonIcon
      sets the icon of the main button
    • ButtonIconText As B4XView [read only]
      gets the main button label for FontAwesome- or Material-Icons
    • ItemButtonProperties As ASFloatingButton_ItemButtonProperties [read only]
      gets or sets the Item Button Properties
      BackgroundColor - the background color of the child buttons
    • ItemTextProperties As ASFloatingButton_ItemTextProperties [read only]
      gets or sets the Item Text Properties
    • MainButtonBackgroundColor As Int
      gets or sets the background color of the main button
    • Orientation As String
      gets or sets the orientation of the items if the menu is open
      <code>ASFloatingButton1.Orientation = ASFloatingButton1.Orientation_BottomRight</code>
    • Orientation_BottomLeft As String [read only]
      view is on bottom, the items opens to the top and the text is right
    • Orientation_BottomRight As String [read only]
      view is on bottom, the items opens to the top and the text is left
    • Orientation_TopLeft As String [read only]
      view is on top, the items opens to the bottom and the text is right
    • Orientation_TopRight As String [read only]
      view is on top, the items opens to the bottom and the text is left
• ASFloatingButton_ItemButtonProperties
  • Fields:
    • BackgroundColor As Int
    • IconText_Color As Int
    • IconText_Font As B4XFont
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
  • Functions:
    • Initialize
      Initializes the fields to their default value.
• ASFloatingButton_ItemTextProperties
  • Fields:
    • BackgroundColor As Int
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • TextAlignment_Horizontal As String
    • TextAlignment_Vertical As String
    • TextColor As Int
    • TextFont As B4XFont
  • Functions:
    • Initialize
      Initializes the fields to their default value.

Changelog

• 1.00
  • Release
• 1.01
  • BugFixes
  • AddItem - New Value Parameter
  • ItemClicked - New Value Parameter
  • Adds get and set Orientation and Designer Property
  • Adds Orientation enums
    • Orientation_BottomRight
    • Orientation_BottomLeft
    • Orientation_TopRight
    • Orientation_TopLeft
• 1.02
  • ButtonClicked-Event-Value Open is now always True if no childs exists
  • Add RemoveAt - removes a special child item
  • Add RemoveAll - removes all child items
• 1.03
  • Detailed Informations about the update, you find here
  • Adds ButtonIconText - gets the main button label for FontAwesome- or Material-Icons
  • Adds the following parameter to ItemButtonProperties
    • IconText_Font
    • IconText_Color
  • Adds new parameter IconText to AddItem - set FontAwesome or MaterialIcons - dont forget to set the right font
• 1.04
  • Add Event ItemTextClicked - triggers if you click on a text item
• 1.05
  • Intern Function IIF renamed to iif2
• 1.06
  • B4J BugFixes
• 1.07
  • Add get isOpen
  • Add Event Open - is triggered when the button is opened
  • Add Event Closed - is triggered when the button is collasped again
  • BugFix
• 1.08
  • B4I Improvements - the entire screen is now used for the background shadow
    • When the navigation bar was hidden, there was an area at the top that did not go dark when the menu was opened
    • The height of the area is now determined and the gap closed
    • B4XPages is now required in B4I

Have Fun



[pliroforikos]

And where is the problem?

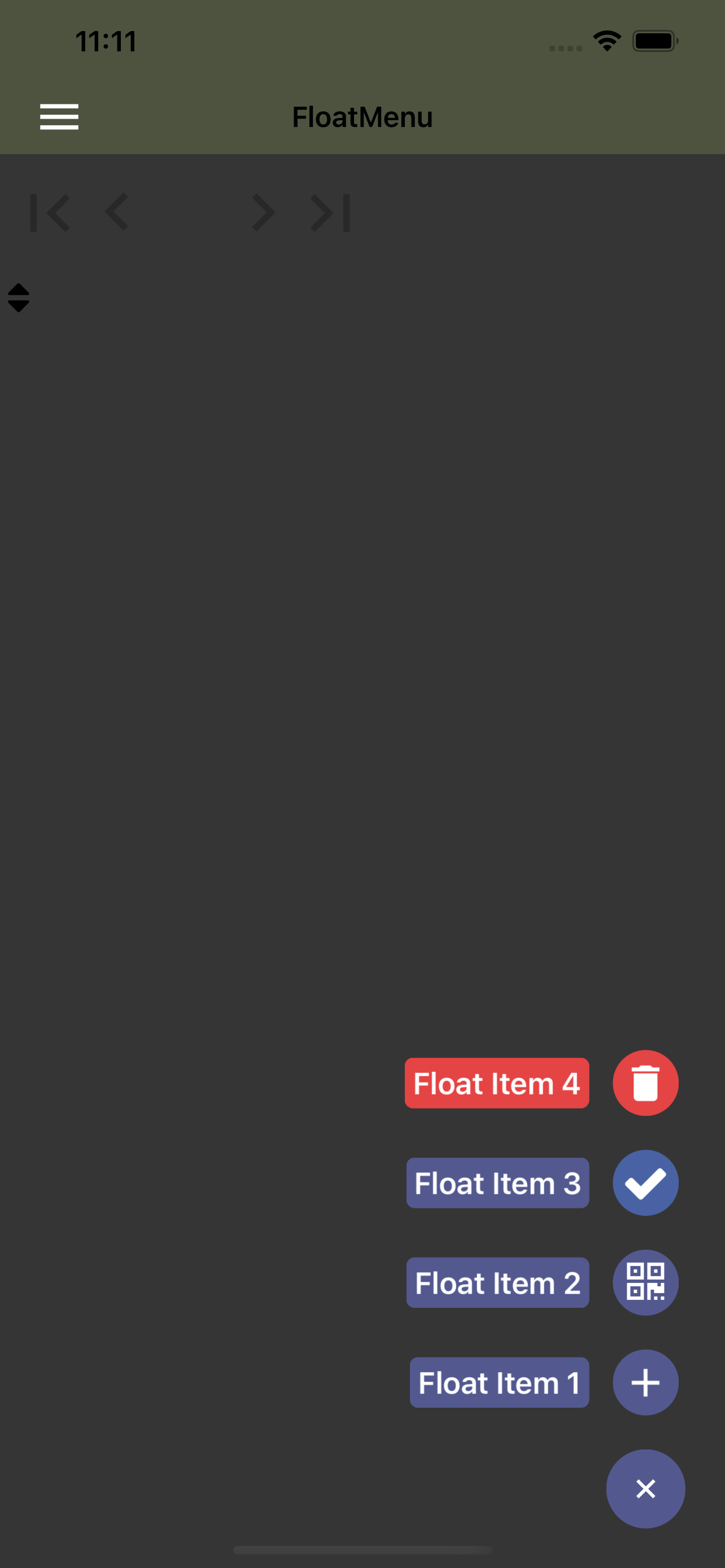

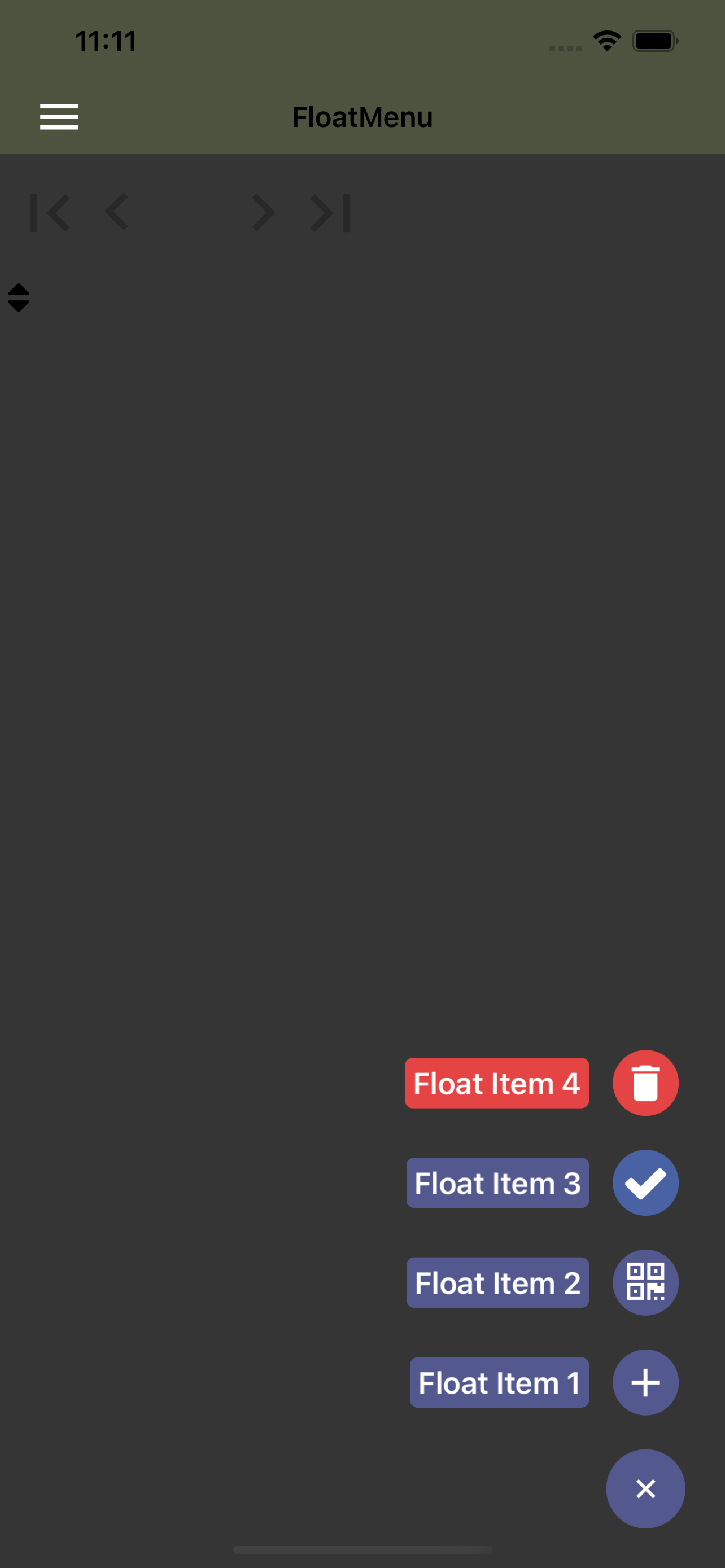

View attachment 133158

But...

This is screenshot from iphone or emulator? I'm using emulator from xcode. iPhone 13 ver. and nothing happens when i click it.



[Alexander Stolte]

This is screenshot from iphone or emulator? I'm using emulator from xcode. iPhone 13 ver. and nothing happens when i click it.

The screenshot is from the xcode emulator iphone 13.



[pliroforikos]

So maybe i need to search in b4i or imac.

Thank you

[Edit]
After imac update, reinstall B4iBuildServer finaly it works.
Also corrected some other visual bugs like a label that didn't want to become circle !
Thank you



[asales]

I made a donation:
Paypal ID transaction: 3G567785LA459060J



[asales]

Hello @Alexander Stolte, I get the component. Thanks!

2 things about the lib:
1 - The "Item But^ton Background" property has an accent ( ^ ) in the name (not a problem).

2 - When the user press the Back button, I check if is panels visible in my screen and hide it.
Is possible to check if is the ASFloatingActionButton is open to close it when press the Back button?

Thanks in advance.



[Alexander Stolte]

I no longer answer questions in the library threads. Please create a new thread for your questions. Then other users will also benefit in the future if they have the same problem. Thanks.



[Alexander Stolte]

Update

• 1.07
  • Add get isOpen
  • Add Event Open - is triggered when the button is opened
  • Add Event Closed - is triggered when the button is collasped again
  • BugFix



[Alexander Stolte]

Update

• 1.08
  • B4I Improvements - the entire screen is now used for the background shadow
    • When the navigation bar was hidden, there was an area at the top that did not go dark when the menu was opened
    • The height of the area is now determined and the gap closed
    • B4XPages is now required in B4I

in due course i will update the view with new features and improvements.
