B4A Library [B4X] [XUI] AS FloatingActionButton [Payware]

HeyHo,
this is a cross platform Floating Action Button.

This library is not free, because, it cost a lot of time and gray hair to create such views.
Thanks for your understanding. :)

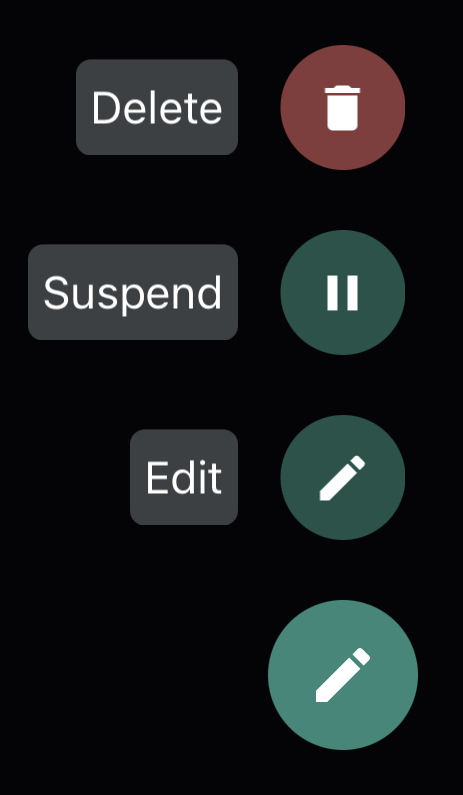

2021-02-02 20.13.08.jpg

Example of the icon rotation animation:
Sub ASFloatingActionButton1_ButtonClicked(open As Boolean)
    If open = True Then
        ASFloatingActionButton1.Base.GetView(1).SetRotationAnimated(250,135)
    Else
        ASFloatingActionButton1.Base.GetView(1).SetRotationAnimated(250,0)
    End If
End Sub
The orientation property is always based on the position of the view on your screen. That is, if you position the view at the bottom right, then use "BottomRight".
B4X:
ASFloatingActionButton1.Orientation = ASFloatingActionButton1.Orientation_BottomRight
The menu opens from bottom to top and the text is flush on the left.
B4X:
ASFloatingActionButton1.Orientation = ASFloatingActionButton1.Orientation_TopLeft
The menu opens from top to bottom and the text is flush on the right
Since 1.03 you can set FontAwesome and Material Icons to the view. Examples:
Set Main Button a Material Icon:
ASFloatingActionButton1.ButtonIconText.Font = xui.CreateMaterialIcons(24)'because the icon we want to display is an Material Icon
ASFloatingActionButton1.ButtonIconText.Text = Chr(0xE145)
Add Item Buttons with Font Icons:
ASFloatingActionButton1.ItemButtonProperties.IconText_Font = xui.CreateMaterialIcons(20)'because the next 2 item we want to add is a Material Icon
ASFloatingActionButton1.AddItem(Null,Chr(0xE859),"Test Text","")
ASFloatingActionButton1.AddItem(Null,Chr(0xE87D),"Test Text","")

ASFloatingActionButton1.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255,73, 98, 164)'the next item should be a blue button
ASFloatingActionButton1.ItemButtonProperties.IconText_Font = xui.CreateFontAwesome(20)'because the next item we want to add is a FontAwesome Icon
ASFloatingActionButton1.AddItem(Null,Chr(0xF179),"Test Text","")
ASFloatingActionButton
Author: Alexander Stolte
Version: 1.05

  • ASFloatingActionButton
    • Events:
      • ButtonClicked (open As Boolean)
      • ItemClicked (index As Int, Value As Object)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • AddItem (Icon As B4XBitmap, IconText As String, Text As String, Value As Object) As String
        Adds a child button to the menu
        Icon - the bitmap for this item.
        IconText - set FontAwesome or MaterialIcons - dont forget to set the right font
        Text - the text for this item. Put a "" if you dont want to show a text label
      • Class_Globals As String
      • CloseMenu As String
        closes the menu if the menu is open
      • CreateASFloatingButton_ItemButtonProperties (BackgroundColor As Int, IconText_Font As B4XFont, IconText_Color As Int) As ASFloatingButton_ItemButtonProperties
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap
      • getBackground As B4XView
        gets the background panel
      • getBase As B4XView
        gets the mbase
      • getButton As B4XView
        gets the main button panel
      • getButtonIconText As B4XView
        gets the main button label for FontAwesome- or Material-Icons
      • getItemButtonProperties As ASFloatingButton_ItemButtonProperties
        gets or sets the Item Button Properties
        BackgroundColor - the background color of the child buttons
      • GetItemPanel (index As Int) As B4XView
        gets the main panel of a item
        <code>ASFloatingButton1.GetItemPanel(0).GetView(0) 'xpnl_item_button - the round button panel</code>
        <code>ASFloatingButton1.GetItemPanel(0).GetView(1) 'xiv_item - the icon</code>
        <code>ASFloatingButton1.GetItemPanel(0).GetView(2) 'xlbl_item_text - the text label</code>
      • getItemTextProperties As ASFloatingButton_ItemTextProperties
        gets or sets the Item Text Properties
      • getMainButtonBackgroundColor As Int
        gets or sets the background color of the main button
      • getOrientation As String
      • getOrientation_BottomLeft As String
        view is on bottom, the items opens to the top and the text is right
      • getOrientation_BottomRight As String
        view is on bottom, the items opens to the top and the text is left
      • getOrientation_TopLeft As String
        view is on top, the items opens to the bottom and the text is right
      • getOrientation_TopRight As String
        view is on top, the items opens to the bottom and the text is left
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • OpenMenu As String
        opens the menu if the menu is not open
      • RemoveAll As String
        removes all child items
      • RemoveAt (Index As Int) As String
        Removes a special child item
      • setButtonIcon (icon As B4XBitmap) As String
        sets the icon of the main button
      • setMainButtonBackgroundColor (clr As Int) As String
        gets or sets the background color of the main button
      • setOrientation (orient As String) As String
        gets or sets the orientation of the items if the menu is open
        <code>ASFloatingButton1.Orientation = ASFloatingButton1.Orientation_BottomRight</code>
    • Properties:
      • Background As B4XView [read only]
        gets the background panel
      • Base As B4XView [read only]
        gets the mbase
      • Button As B4XView [read only]
        gets the main button panel
      • ButtonIcon
        sets the icon of the main button
      • ButtonIconText As B4XView [read only]
        gets the main button label for FontAwesome- or Material-Icons
      • ItemButtonProperties As ASFloatingButton_ItemButtonProperties [read only]
        gets or sets the Item Button Properties
        BackgroundColor - the background color of the child buttons
      • ItemTextProperties As ASFloatingButton_ItemTextProperties [read only]
        gets or sets the Item Text Properties
      • MainButtonBackgroundColor As Int
        gets or sets the background color of the main button
      • Orientation As String
        gets or sets the orientation of the items if the menu is open
        <code>ASFloatingButton1.Orientation = ASFloatingButton1.Orientation_BottomRight</code>
      • Orientation_BottomLeft As String [read only]
        view is on bottom, the items opens to the top and the text is right
      • Orientation_BottomRight As String [read only]
        view is on bottom, the items opens to the top and the text is left
      • Orientation_TopLeft As String [read only]
        view is on top, the items opens to the bottom and the text is right
      • Orientation_TopRight As String [read only]
        view is on top, the items opens to the bottom and the text is left
  • ASFloatingButton_ItemButtonProperties
    • Fields:
      • BackgroundColor As Int
      • IconText_Color As Int
      • IconText_Font As B4XFont
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASFloatingButton_ItemTextProperties
    • Fields:
      • BackgroundColor As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextAlignment_Horizontal As String
      • TextAlignment_Vertical As String
      • TextColor As Int
      • TextFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
Changelog
  • 1.00
    • Release
  • 1.01
    • BugFixes
    • AddItem - New Value Parameter
    • ItemClicked - New Value Parameter
    • Adds get and set Orientation and Designer Property
    • Adds Orientation enums
      • Orientation_BottomRight
      • Orientation_BottomLeft
      • Orientation_TopRight
      • Orientation_TopLeft
  • 1.02
    • ButtonClicked-Event-Value Open is now always True if no childs exists
    • Add RemoveAt - removes a special child item
    • Add RemoveAll - removes all child items
  • 1.03
    • Detailed Informations about the update, you find here
    • Adds ButtonIconText - gets the main button label for FontAwesome- or Material-Icons
    • Adds the following parameter to ItemButtonProperties
      • IconText_Font
      • IconText_Color
    • Adds new parameter IconText to AddItem - set FontAwesome or MaterialIcons - dont forget to set the right font
  • 1.04
    • Add Event ItemTextClicked - triggers if you click on a text item
  • 1.05
    • Intern Function IIF renamed to iif2
  • 1.06
    • B4J BugFixes
  • 1.07
    • Add get isOpen
    • Add Event Open - is triggered when the button is opened
    • Add Event Closed - is triggered when the button is collasped again
    • BugFix
Have Fun :)


Attachments

  • AS FloatingActionsButton Example.zip
    179.1 KB · Views: 863
  • ASFloatingActionButton.zip
    5.1 KB · Views: 143
Last edited:

Alexander Stolte

Expert
Licensed User
Longtime User
Update
V1.03

  • Adds ButtonIconText - gets the main button label for FontAwesome- or Material-Icons
  • Adds the following parameter to ItemButtonProperties
    • IconText_Font
    • IconText_Color
  • Adds new parameter IconText to AddItem - set FontAwesome or MaterialIcons - dont forget to set the right font
Breaking Change: AddItem have now a new paramter "IcontText"
Breaking Change: The Event "ItemClicked" has a new parameter, change the event to this "ItemClicked(index as int,Value as Object)"

You can now customize each item before you add it. Example:
Adds a new item with blue background and Font Awesome Icon
B4X:
ASFloatingActionButton1.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255,73, 98, 164)'the next item should be a blue button
ASFloatingActionButton1.ItemButtonProperties.IconText_Font = xui.CreateFontAwesome(20)'because the next item we want to add is a FontAwesome Icon
ASFloatingActionButton1.AddItem(Null,Chr(0xF179),"Test Text","")

You can now set FontAwesome- or Material-Icons, instead of images.
Example:
B4X:
ASFloatingActionButton1.AddItem(Null,Chr(0xE859),"Test Text","")'set the image parameter to Null
2021-02-02 20.13.08.jpg

Last edited:

Rubsanpe

Active Member
Licensed User
Hi, great update. I have tried the new example and I get the following error:

*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
Call B4XPages.GetManager.LogEvents = True to enable logging B4XPages events.
** Activity (main) Resume **
ASFloatingActionButton1_ButtonClicked: true
Error occurred on line: 0 (ASFloatingActionButton)
java.lang.Exception: Sub asfloatingactionbutton1_itemclicked signature does not match expected signature.
public static anywheresoftware.b4a.pc.RemoteObject com.stoltex.floatingbutton.b4xmainpage_subs_0._asfloatingactionbutton1_itemclicked(anywheresoftware.b4a.pc.RemoteObject,anywheresoftware.b4a.pc.RemoteObject) throws java.lang.Exception
class anywheresoftware.b4a.pc.RemoteObject, class anywheresoftware.b4a.pc.RemoteObject, class java.lang.String,

The new signature is Private Sub EventName_ItemClicked(index as int,Value as Object)

If i change it then it works.

Rubén


Alexander Stolte

Expert
Licensed User
Longtime User
Oh sorry, I have not considered this dependence.
The Event "ItemClicked" has a new parameter.
change the event to this:
_ItemClicked(index as int,Value as Object)


Daica

Active Member
Licensed User
I'm finally trying this out now and its awesome so far. Do you think you could capture the text click as well?


Sandman

Expert
Licensed User
Longtime User
Hi Alexander, this works great in B4A (and in B4i I assume, haven't tried it yet), but I'm getting no action in B4J.

The button with the plus shows up but nothing happens when I click it. Do I need to do something special to get it working in B4J?


Mashiane

Expert
Licensed User
Longtime User
AS, do you have a consolidated thread that showcases all your amazing stuff here so that one can see everything, whether images or gifs?

I want to check the components you have used in one place so that I can decide what I can use in my projects and how.

Thanks again, keep changing the world!


Alexander Stolte

Expert
Licensed User
Longtime User
AS, do you have a consolidated thread that showcases all your amazing stuff here so that one can see everything, whether images or gifs?

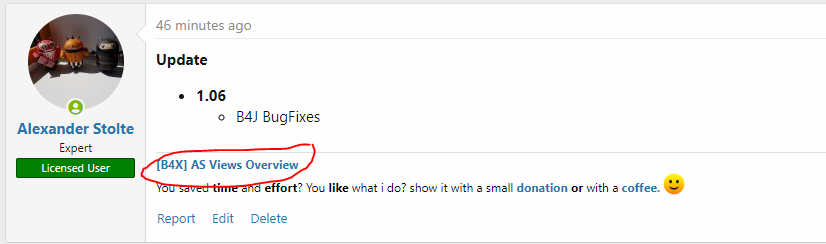

For years in my signature :p

Thanks again, keep changing the world!
:)


pliroforikos

Active Member
Licensed User
Hello,

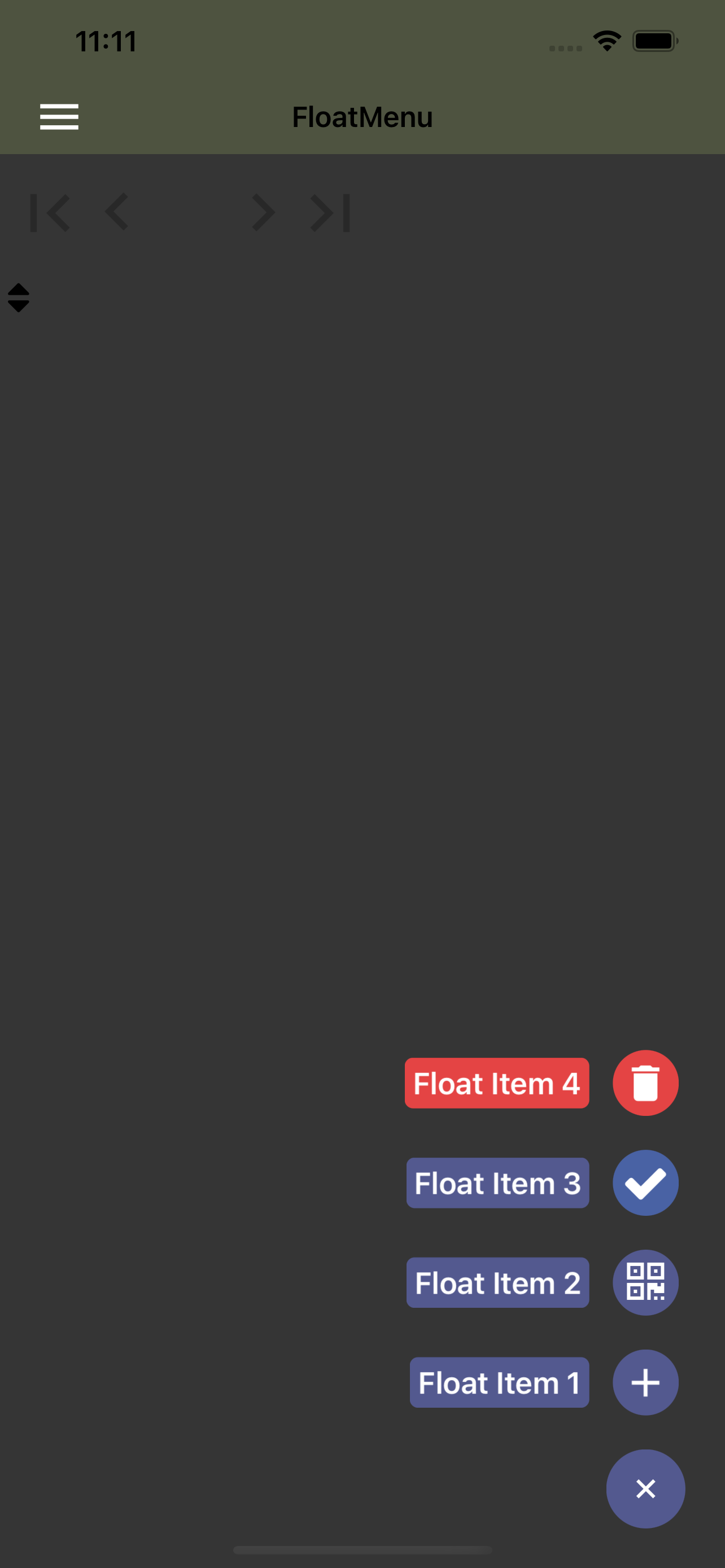

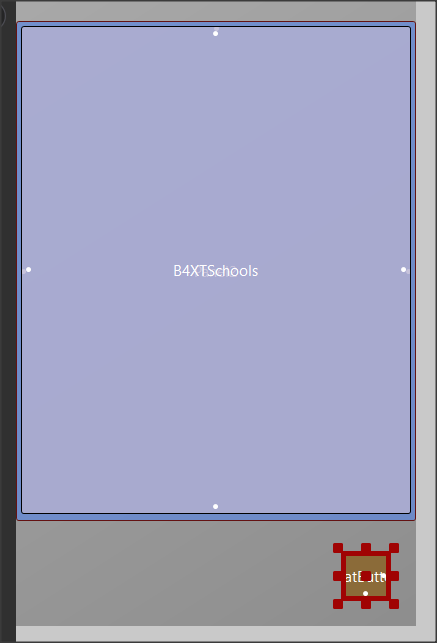

I'm facing a problem with B4i. I have a simple form with 1 panel with a b4xtable inside and a float menu outside of panel. Also the app uses drawerMenu.

When i click in float menu ASFloatingActionButton1_ButtonClicked event fires and shows the log. But menu doesn't show.

The same code works in B4A and i cant reproduce the error in other projects. Your example also works in B4i.

this is the corresponding code:

B4X:
'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1

    ' ''''''''''''''''''' Drawer '''''''''''''''''''''''''''''''''
    drManager.Initialize(Me, "Drawer", Root, 200dip)
    drManager.Drawer.CenterPanel.LoadLayout("frmSettings2")
    drManager.Drawer.LeftPanel.LoadLayout("drawerMenu")
    createMenu
    ' ''''''''''''''''''' Drawer '''''''''''''''''''''''''''''''''

    createFloatMenu
end sub

Private Sub createFloatMenu
    floatButtons.ButtonIconText.Font = xui.CreateMaterialIcons(24)'because the icon we want to display is an Material Icon
    floatButtons.ButtonIconText.Text = Chr(0xE145)
    floatButtons.ItemButtonProperties.IconText_Font = xui.CreateMaterialIcons(20)'because the next 2 item we want to add is a Material Icon
    floatButtons.AddItem(Null,Chr(0xE145),"Insert","")

    floatButtons.ItemButtonProperties.IconText_Font = xui.CreateFontAwesome(20)'because the next item we want to add is a FontAwesome Icon
'    floatButtons.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255, 255, 159, 71)'the next item should be a blue button
'    floatButtons.ItemTextProperties.BackgroundColor =  xui.Color_ARGB(255, 255, 159, 71)
    floatButtons.AddItem(Null,Chr(0xF029),"Scan","")

    floatButtons.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255,73, 98, 164)'the next item should be a blue button
    floatButtons.ItemButtonProperties.IconText_Font = xui.CreateFontAwesome(20)'because the next item we want to add is a FontAwesome Icon
'    floatButtons.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255, 29, 100, 59)'the next item should be a blue button
'    floatButtons.ItemTextProperties.BackgroundColor = xui.Color_ARGB(255, 29, 100, 59)
    floatButtons.AddItem(Null,Chr(0xF00C),"Set","")

    floatButtons.ItemButtonProperties.BackgroundColor = xui.Color_ARGB(255,228, 68, 68)'the next item should be a blue button
    floatButtons.ItemTextProperties.BackgroundColor = xui.Color_ARGB(255,228, 68, 68)
    floatButtons.ItemButtonProperties.IconText_Font = xui.CreateMaterialIcons(20)'because the next 2 item we want to add is a Material Icon
    floatButtons.AddItem(Null,Chr(0xE872),"Remove","")
#end if

End Sub

Sub ASFloatingActionButton1_ItemClicked(index As Int,Value As Object)
    Log("ASFloatingActionButton1_ItemClicked: " & index)
    'ASFloatingActionButton1.CloseMenu
End Sub

Sub ASFloatingActionButton1_ButtonClicked(open As Boolean)
    Log("ASFloatingActionButton1_ButtonClicked: " & open)
    'works only if you set a image as icon
'    If open = True Then
'        ASFloatingActionButton1.Base.GetView(1).SetRotationAnimated(250,135)
'    Else
'        ASFloatingActionButton1.Base.GetView(1).SetRotationAnimated(250,0)
'    End If

    If open = True Then
        ASFloatingActionButton1.ButtonIconText.SetRotationAnimated(250,135)
    Else
        ASFloatingActionButton1.ButtonIconText.SetRotationAnimated(250,0)
    End If
End Sub



I forgot to say that this menu was working fine until July.

Last edited:

Alexander Stolte

Expert
Licensed User
Longtime User
I forgot to say that this menu was working fine until July.
There was no update, so the error is probably yours.
and i cant reproduce the error in other projects. Your example also works in B4i.
And how am I supposed to find a presumptive error if it cannot be reproduced?
Sorry.


pliroforikos

Active Member
Licensed User
Sometimes it helps only to describe the problem and the solution comes out! But now nothing happens :)

But i managed to reproduce the problem in the bellow project. It runs in B4i. Not tested on B4A.

In this project i'm using a drawermenu, a b4xtable and an AS FloatingActionButton.


Attachments

  • Project.zip
    444.3 KB · Views: 220
Top
