B4A Library [B4X] [XUI] AS FlowTabMenu

The last custom view, for this year,
a month ago, I felt like creating this view, but had been reluctant to publish it because there is still too little space used for the tabs.

I spend a lot of time in creating views, some views i need by my self, but some views not and to create a high quality view cost a lot of time. If you want to support me, then you can do it here by Paypal.

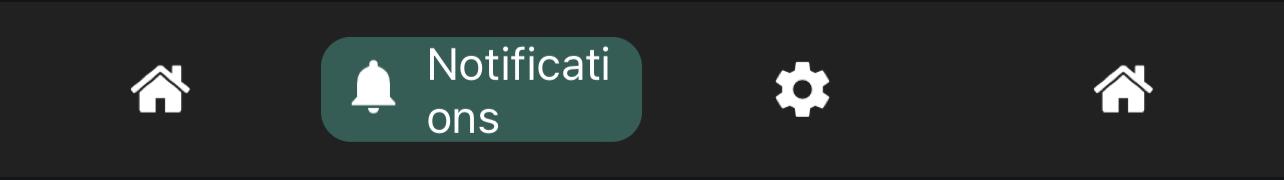

It use multi line, if required.

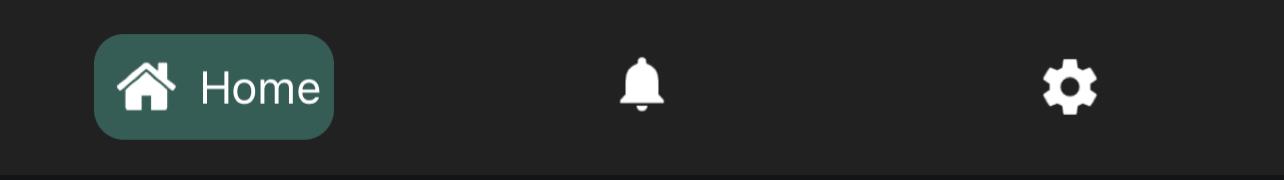

But if you are using 3 tabs, then it fits perfect

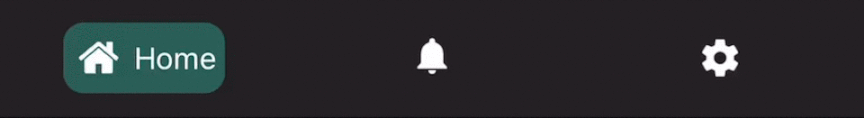

Looks better than on the gif

ASFlowTabMenu1.AddTab(ASFlowTabMenu1.FontToBitmap(Chr(0xF015),False,20,xui.Color_White),"Home")
ASFlowTabMenu1.AddTab(ASFlowTabMenu1.FontToBitmap(Chr(0xE7F4),True,20,xui.Color_White),"Notifications")
ASFlowTabMenu1.AddTab(ASFlowTabMenu1.FontToBitmap(Chr(0xE8B8),True,20,xui.Color_White),"Settings")
'ASFlowTabMenu1.AddTab(ASFlowTabMenu1.FontToBitmap(Chr(0xF015),False,20,xui.Color_White),"Test 4")

ASFlowTabMenu
Author: Alexander Stolte
Version: 1.00

Spoiler: Properties, Functions, Events, etc.

• ASFlowTabMenu
  • Events:
    • TabClick (index As Int)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • AddTab (Icon As B4XBitmap, Text As String) As String
      Add a new tab
    • Class_Globals As String
    • CreateASFlowTabMenu_Tab (Index As Int, Icon As B4XBitmap, Text As String, TextColor As Int, xFont As B4XFont) As ASFlowTabMenu_Tab
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap


      FontAwesome To Bitmap

      Unlike an older "TextToBitmap" sub that you can find in the forum, this code vertically centers the icon. It can also be used in B4J and B4i (only need to change the font line). Sub Activity_Create(FirstTime As Boolean) 'usage example Activity.AddMenuItem3("Android", "Test"...

      www.b4x.com
    • getCurrentIndex As Int
      Gets or sets the current index
      Sets the current index without animation
    • getGlobalTabProperties As ASFlowTabMenu_Tab
      Change this properties before you add tabs
    • getIconHeight As Float
      Gets or sets the icon Width and Height
    • getSize As Int
    • GetTabPropertiesAt (Index As Int) As ASFlowTabMenu_Tab
    • Initialize (Callback As Object, EventName As String) As String
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • RefreshTabProperties As String
      If you change Tab Properties then call this function to apply this
    • RemoveTab (Index As Int) As String
      Removes a tab from a certain index
    • setCurrentIndex (Index As Int) As String
    • setCurrentIndexAnimated (Index As Int) As String
      Sets the current index with animation
    • setIconHeight (Height As Float) As String
      Gets or sets the icon Width and Height
    • SetTabProperties (Index As Int, TabProperties As ASFlowTabMenu_Tab) As String
      Call RefreshTabProperties after this
  • Properties:
    • CurrentIndex As Int
      Gets or sets the current index
      Sets the current index without animation
    • CurrentIndexAnimated
      Sets the current index with animation
    • GlobalTabProperties As ASFlowTabMenu_Tab [read only]
      Change this properties before you add tabs
    • IconHeight As Float
      Gets or sets the icon Width and Height
    • Size As Int [read only]
• ASFlowTabMenu_Tab
  • Fields:
    • Icon As B4XBitmap
    • Index As Int
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • Text As String
    • TextColor As Int
    • xFont As B4XFont
  • Functions:
    • Initialize
      Initializes the fields to their default value.

Changelog

• 1.00
  • Release
• 1.01
  • BugFix on RemoveTab

Github: github.com/StolteX/AS_FlowTabMenu

Have Fun



[Rubsanpe]

Donated



[Alexander Stolte]

Donated

Thanks and have a happy new year



[Unobtainius]

Look I'm sorry mate, I love your stuff, but when PayPal want my donation to you plus 50% for themselves, I just couldn't do it. I hope you keep up the great work and sharing as generously I as you do, I know we all really appreciate your time and effort.



[Alexander Stolte]

but when PayPal want my donation to you plus 50% for themselves,

The fees are for example at 6.80€ = 0.72€.
But I have also received a few where no fees were in it, apparently the people have transferred as a friend, without buyer protection.

I hope you keep up the great work and sharing as generously I as you do, I know we all really appreciate your time and effort.

Thank you for the kind words, I also hope that I can continue the work. Happy New Year to you!



[yiankos1]

The fees are for example at 6.80€ = 0.72€.
But I have also received a few where no fees were in it, apparently the people have transferred as a friend, without buyer protection.


Thank you for the kind words, I also hope that I can continue the work. Happy New Year to you!

Happy new year Alexander. I think it's about EU and non-EU donations.

BTW great job. New donation is about to come!



[Alexander Stolte]

Happy new year Alexander.

Thanks you too!!

I think it's about EU and non-EU donations

This could be true

BTW great job. New donation is about to come!

Thank you very much!



[Unobtainius]

Yeah kiwi dollars pretty much suck



[Soheyl]

Just for archiving purposes, there is a bug after the removal of the tab.
The library has been fixed and attached.

Update

• 1.01
  • RemoveTab Fixed



[Alexander Stolte]

Update

• 1.01
  • BugFix on RemoveTab



[Kope]

How do i change the font color



[Alexander Stolte]

How do i change the font color

Change it before you add a tab.

ASFlowTabMenu1.GlobalTabProperties.TextColor = xui.Color_Red



[Kope]

Change it before you add a tab.

ASFlowTabMenu1.GlobalTabProperties.TextColor = xui.Color_Red

The font color is still white



[Alexander Stolte]

The font color is still white

you need to change it, before you add tabs
