B4A Library [B4X] [XUI] AS ViewPagerNative based on AHViewPager and iTabstrip

The goal was to create a cross-platform viewpager based on existing viewpagers. Since AHViewPager and iTabstrip are very different, the view helps to create a unified interface.

I spend a lot of time in creating views, some views i need by my self, but some views not and to create a high quality view cost a lot of time. If you want to support me, then you can do it here by Paypal. :)

This library is compatible and tested with B4A and B4I.
B4J is currently not compatible, maybe this will change in the future.
B4a: XUi,AHViewPager
B4i: iXUI,iTabStrip
B4A: Make sure you have the AHViewPager V3.00
B4I: Make sure you have the ButtonCell.xib in the Special folder
B4A and B4I

ASViewPagerNative
Author: Alexander Stolte
Version: 1.01

  • ASViewPagerNative
    • Events:
      • PageChanged (Index As Int)
      • ReachEnd
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • AddPages (ListOfPanels As List, Text As String) As String
      • Base_Resize (Width As Double, Height As Double) As String
      • Class_Globals As String
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • getCurrentIndex As Int
        gets or sets the current index
      • getNativeViewPager As de.amberhome.viewpager.AHViewPager
      • getSize As Int
        Gets the number of pages
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • NextPage As String
        Smooth goes to next page
      • PreviousPage As String
        Smooth goes to previous page
      • setCurrentIndex (Index As Int) As String
        gets or sets the current index
      • setCurrentIndexAnimated (Index As Int) As String
        sets the current index animated
    • Properties:
      • CurrentIndex As Int
        gets or sets the current index
      • CurrentIndexAnimated
        sets the current index animated
      • NativeViewPager As de.amberhome.viewpager.AHViewPager [read only]
      • Size As Int [read only]
        Gets the number of pages
Changelog
  • 1.00
    • Add Event ReachEnd - Triggers if the last page is selected
    • Add get NativeViewPager - Gets the native ViewPager View in B4A: AHViewPager B4I: iTabstrip
    • Add get CurrentIndex - Gets the current index
    • Add set CurrentIndexAnimated - Sets the current index animated
    • BreakingChange set CurrentPage renamed to set CurrentIndex
    • Add get Size - Gets the number of pages
    • Base_Resize is now Public
    • Add NextPage - Smooth goes to next page
    • Add PreviousPage - Smooth goes to previous page
  • 1.01
    • AddPages - Remove "Text" Parameter
Have Fun :)


Attachments

  • ASViewPagerNative Example.zip
    11.3 KB · Views: 562
  • ASViewPagerNative.b4xlib
    3.3 KB · Views: 521
Last edited:

sultan87

Active Member
Licensed User
Longtime User
good evening
I would like to follow your project as an example

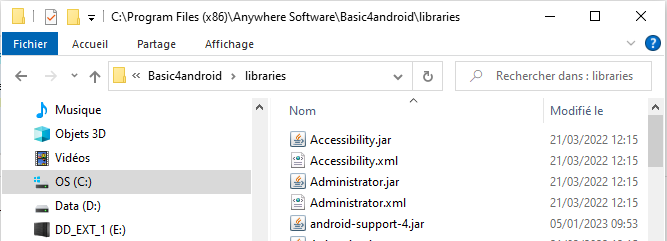

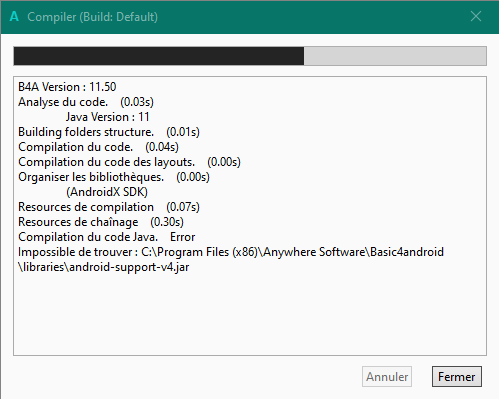

When compiling I got this error message

can you help me
Pierre


Alexander Stolte

Expert
Licensed User
Longtime User
I would like to follow your project as an example
When compiling I got this error message
Read the installation guide:


james_sgp

Active Member
Licensed User
Longtime User
HI, using this in a B4X app, in B4a I set the background as transparent without issues. But in B4i I have also set it transaprent, when it first appears it is correct, but after the 'resize' event the background becomes black?

Can anyone help?

Thanks, james
