Android Tutorial B4XTable - Photos Album

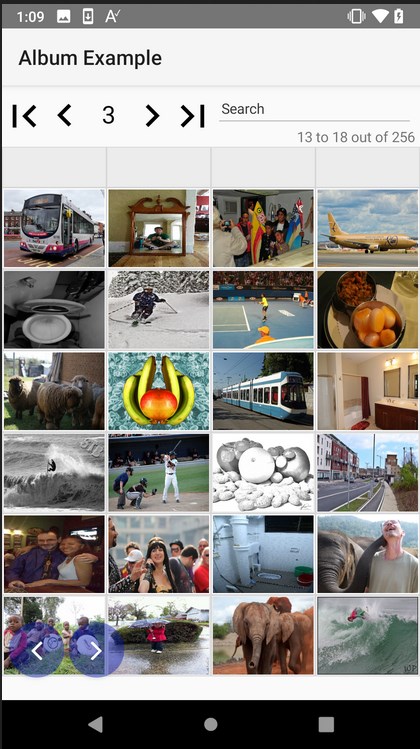

In this example the table is used to show the camera roll photos.

Main steps:
1. Get permission to access the external storage.
2. Collect the image files from several folders.
3. Add the columns and add ImageViews to all cells.
4. Load the images when the table is updated.
5. Show a dialog with a large image when an image is clicked.



[GMan]

Just-in-Time



[little3399]

running error ...

Edit (Erel): I've removed the large image. You should never post code or error messages as images.



[GMan]

You need the B4XTable lib and the Formatter lib, too
https://www.b4x.com/android/forum/t...ortable-searchable-customizable-table.102322/



[Myr0n]

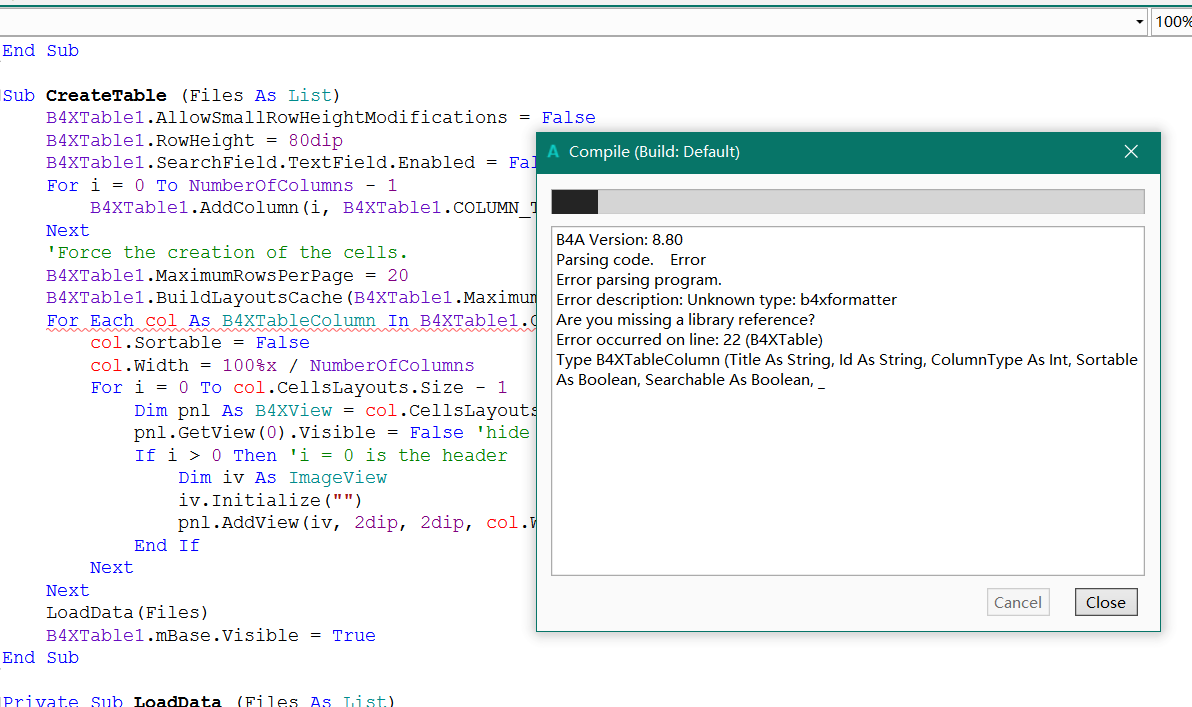

running error ... View attachment 77935

You need to add the required libs see this post please



[GMan]

As i see: there is not the photoalbum example included



[Erel]

As i see: there is not the photoalbum example included

?



[sz4t4n]

I have error with missing .jar

B4A Version: 8.80
Parsing code.    (0.13s)
Building folders structure.    (0.09s)
Compiling code.    (0.57s)
Compiling layouts code.    (0.01s)
Organizing libraries.    (0.00s)
Generating R file.    (0.43s)
Compiling generated Java code.    Error
Cannot find: D:\Basic4android\libraries\b4xformatter.jar

But b4xformatter is a .b4xlib. Did I missed something?



[Erel]

Make sure that there is no file named B4XFormatter.xml in the libraries folders. You should only have a b4xlib file.



[sz4t4n]

Ok its working fine. I have to close and open again program and its OK. Sorry for trouble



[GMan]

?

In the Table-Example is not the Photoalbum example, but another Table-Example

    'create the columns
    B4XTable1.AddColumn("US County", B4XTable1.COLUMN_TYPE_NUMBERS)
    B4XTable1.AddColumn("Name", B4XTable1.COLUMN_TYPE_TEXT)
    Dim StateColumn As B4XTableColumn = B4XTable1.AddColumn("State", B4XTable1.COLUMN_TYPE_TEXT)
    StateColumn.Width = 80dip
    NumberColumn = B4XTable1.AddColumn("Interesting Number", B4XTable1.COLUMN_TYPE_NUMBERS)
    CreateCustomFormat(NumberColumn)

    'load the data
    Dim su As StringUtils
    Dim headers As List
    headers.Initialize 'the list is only used to skip the headers row
    Dim data As List = su.LoadCSV2(File.DirAssets, "us_counties.csv", ",", headers)
    B4XTable1.SetData(data)



[Erel]

The photo album example is attached to the first post.



[GMan]

The photo album example is attached to the first post.

Yo, i downloaded this and its the shown example with the Database Tables



[GMan]

I downloaded it again and now its the rigth one

OK, i downloaded the other Example before, too - the same name



[Jose Swett]

Hi
Were can I find B4Xtable library for B4J, need for Windows.
Thanks a lot



[Erel]

You are not posting in the correct place. Search for B4XTable. If you don't find it then start a new thread.
