Hello everyone
Finally, I implemented the decision I made in the previous message.
After the first project, which was a desk clock, at the following address
www.b4x.com
I ran another project that changed the desktop clock display and its address is in the line below.
www.b4x.com

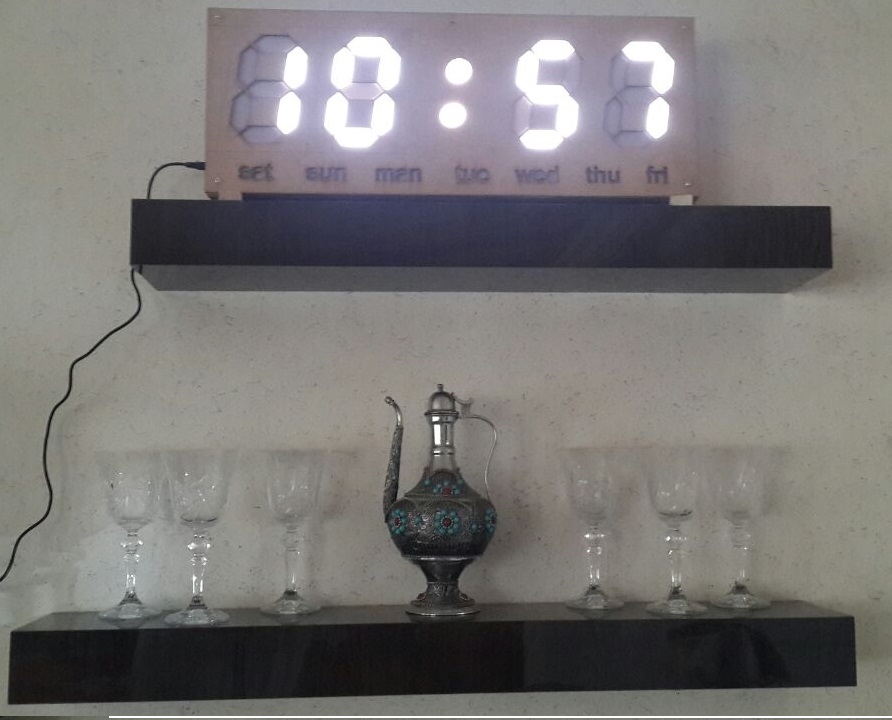

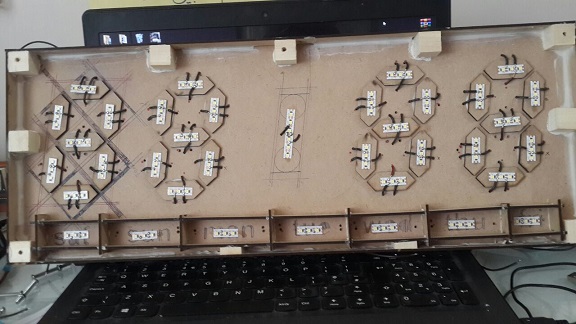

Finally, by combining these two projects, I made a wall clock measuring 56 x 21 cm.
Finally, I implemented the decision I made in the previous message.
After the first project, which was a desk clock, at the following address
Clock
Hi all of you. This project is a Clock that can set current time and wake up time. We can select mode with one push button.(clock setting mode or wake up setting mode) and can change in with two push button. one of that for hour and another for minute. finally there is a push button for enable...
www.b4x.com
I ran another project that changed the desktop clock display and its address is in the line below.
4 seven segment with 74HC595 multiplexer IC
Hi all of you. in this project I can use 4 seven segment with 4 74HC595 multiplexer IC. my project wiring is shown below picture. in each time I show a number in left seven segment and then shift it to next seven segment in right side. I repeat up line 3 time. I will be create a big clock and...
www.b4x.com
Finally, by combining these two projects, I made a wall clock measuring 56 x 21 cm.
