iOS Question Black background on iOS 13 for Large Titles

[LucianDesign]

Hello,

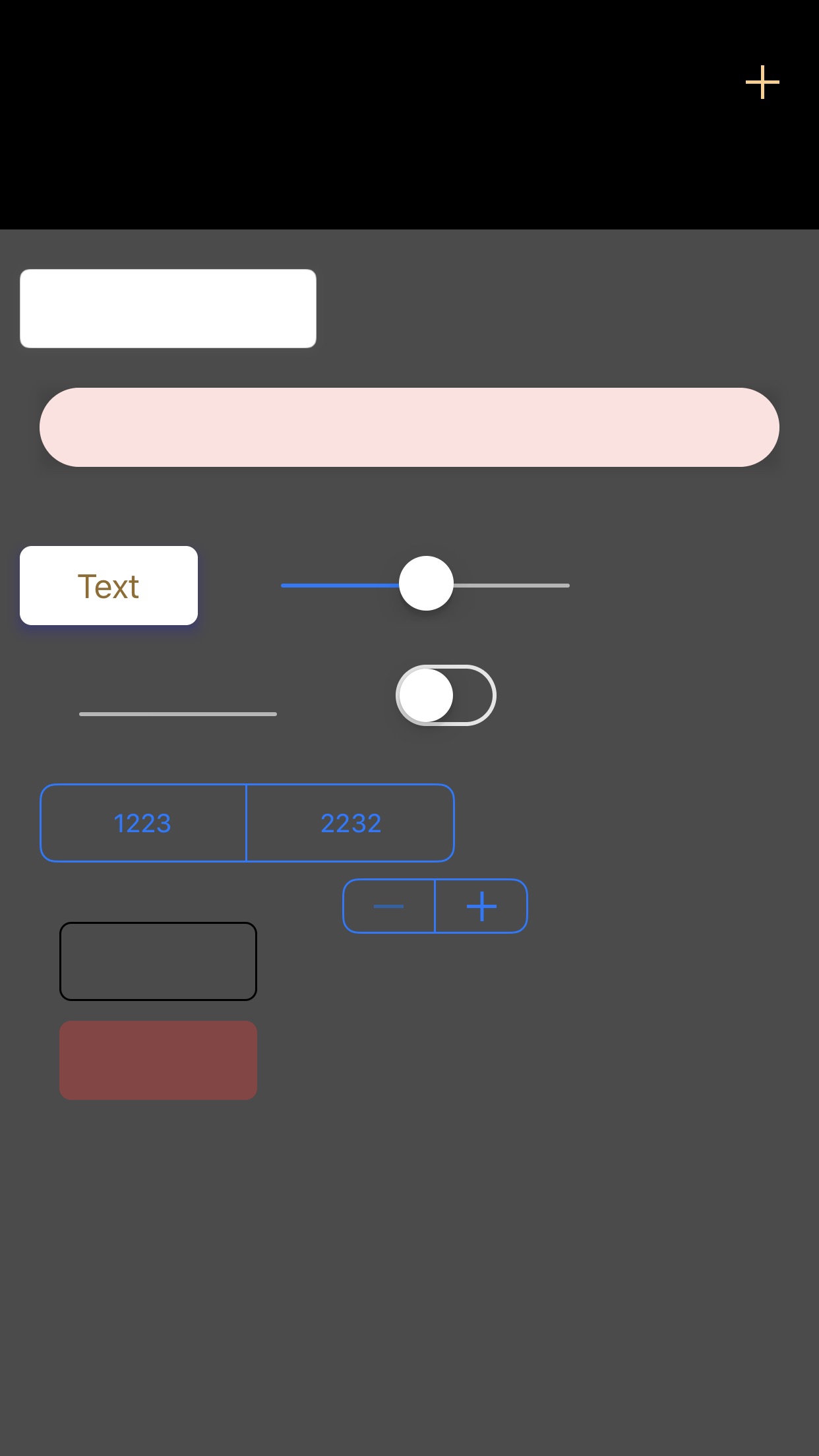

I've used the code bellow to set the large title on iOS ... but starting with iOS13 I get a black background.
Anyone has an idea how to fix it?

If App.OSVersion >= 11 Then
        Dim NObj As NativeObject = NavControl
        Log(NObj.GetField("navigationBar"))

        NObj.GetField("navigationBar").SetField("prefersLargeTitles", True)
        NObj.GetField("navigationBar").SetField("BarTintColor", NObj.ColorToUIColor(Colors.White))
        NObj.GetField("navigationBar").SetField("TintColor", NObj.ColorToUIColor(Colors.White))
        NObj.GetField("navigationBar").SetField("translucent", False)
        NObj = Page1
        NObj.GetField("navigationItem").SetField("largeTitleDisplayMode", 1) 'always

 End If



[Erel]

Is your device set to dark mode: https://www.b4x.com/android/forum/t...fixes-issue-with-xcode-11.110719/#post-690922
?



[LucianDesign]

Hello,
No, I don't have the dark theme ON.
I've also added the PlistExtra and still the same result.

P.S. I'm using the cloud builder.

#PlistExtra: <key>UIUserInterfaceStyle</key><string>Light</string>



[Semen Matusovskiy]

You need to look UINavigationBarAppearance.
As I understood, you want black title on white background.
Try this

If App.OSVersion >= 11 Then
        Dim noNavigationBar As NativeObject
        noNavigationBar = NavControl
        noNavigationBar = noNavigationBar.GetField ("navigationBar")
        noNavigationBar.SetField ("prefersLargeTitles", True)

        If App.OSVersion >= 13 Then
            Dim noNavigationBarAppearance As NativeObject
            noNavigationBarAppearance =    noNavigationBarAppearance.Initialize ("UINavigationBarAppearance").RunMethod ("new", Null)
            noNavigationBarAppearance.RunMethod ("configureWithOpaqueBackground", Null)
            noNavigationBarAppearance.SetField ("backgroundColor", noNavigationBarAppearance.ColorToUIColor (Colors.White))

            Dim mapInstance As Map
            mapInstance.Initialize
            mapInstance.Put ("NSColor", noNavigationBarAppearance.ColorToUIColor (Colors.Black))
            noNavigationBarAppearance.SetField ("titleTextAttributes", mapInstance.ToDictionary)
            noNavigationBarAppearance.SetField ("largeTitleTextAttributes", mapInstance.ToDictionary)

            noNavigationBar.SetField ("standardAppearance", noNavigationBarAppearance)
            noNavigationBar.SetField ("scrollEdgeAppearance", noNavigationBarAppearance)
        Else
              noNavigationBar.SetField ("barTintColor", noNavigationBar.ColorToUIColor (Colors.White))
            noNavigationBar.SetField ("tintColor",     noNavigationBar.ColorToUIColor (Colors.White))
            noNavigationBar.SetField ("translucent",   False)
        End If

        Dim noViewController As NativeObject = Page1
        noViewController.GetField ("navigationItem").SetField ("largeTitleDisplayMode", 1) 'always
    End If



[LucianDesign]

You need to look UINavigationBarAppearance.

Hello... Yes! That worked perfectly. Thanks a lot!
