Border Button

[Slacker]

Hello Folks, question is pretty simple:

How can i set quickly a rounded border in a button ? I have used this simply routine to set Gradient ...if i want a rounded border too ?

Sub DrawButtonGraphic(pCol1 As Int, pCol2 As Int)
   Dim canvas1 As Canvas
   Dim Clrs(2) As Int
   canvas1.Initialize(LoginBt)
   Dim r As Rect
   Dim btnRect As Rect

   btnRect.Initialize(0, 0, LoginBt.Width, LoginBt.Height)

   Clrs(0) = pCol1
   Clrs(1) = pCol2
   GradientButton.Initialize("BOTTOM_TOP", Clrs)
   GradientButton.CornerRadius = 6
   canvas1.DrawDrawable(GradientButton, btnRect)


   Activity.Invalidate()

End Sub



[Erel]

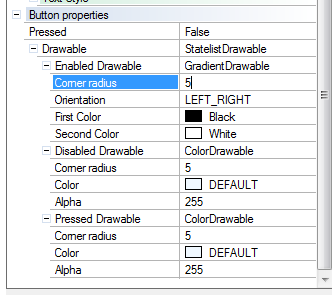

You can set the corners in the visual designer:



[klaus]

You already have it in your routine !!!

GradientButton.CornerRadius = 6

But it's better to use dip values GradientButton.CornerRadius = 6dip.

Or with Erels suggestion.

Best regards.



[Slacker]

Sorry, i was meaning an extra rounded border OF A DIFFERENT COLOR....i guess i can use an extra rectangle, with larger dimensions as ColorDrawable...



[klaus]

I think that in this case you'll need a bitmap.
You should also have a look at nine patch images.

Best regards.



[Slacker]

That's what i looking for, thanks a lot !:icon_clap:
