B4J Tutorial Bouncing a single ray inside an equilateral triangle (100 simultaneous rays in Post #2)

A bit more tricky than what I thought but then my math is a bit rusted. First challenge is to figure out if the moving point has breached the perimeter of the triangle (from inside to outside) and then correct for it and then bounce/reflect it correctly.

For the attached project the start angle is 135 degrees from the centre point of the triangle. It is moving 1 vector length at a time.

    Dim startAngle As Double = 135

Making use of Barycentric coordinates to determine if the moving point is inside or outside the triangle.

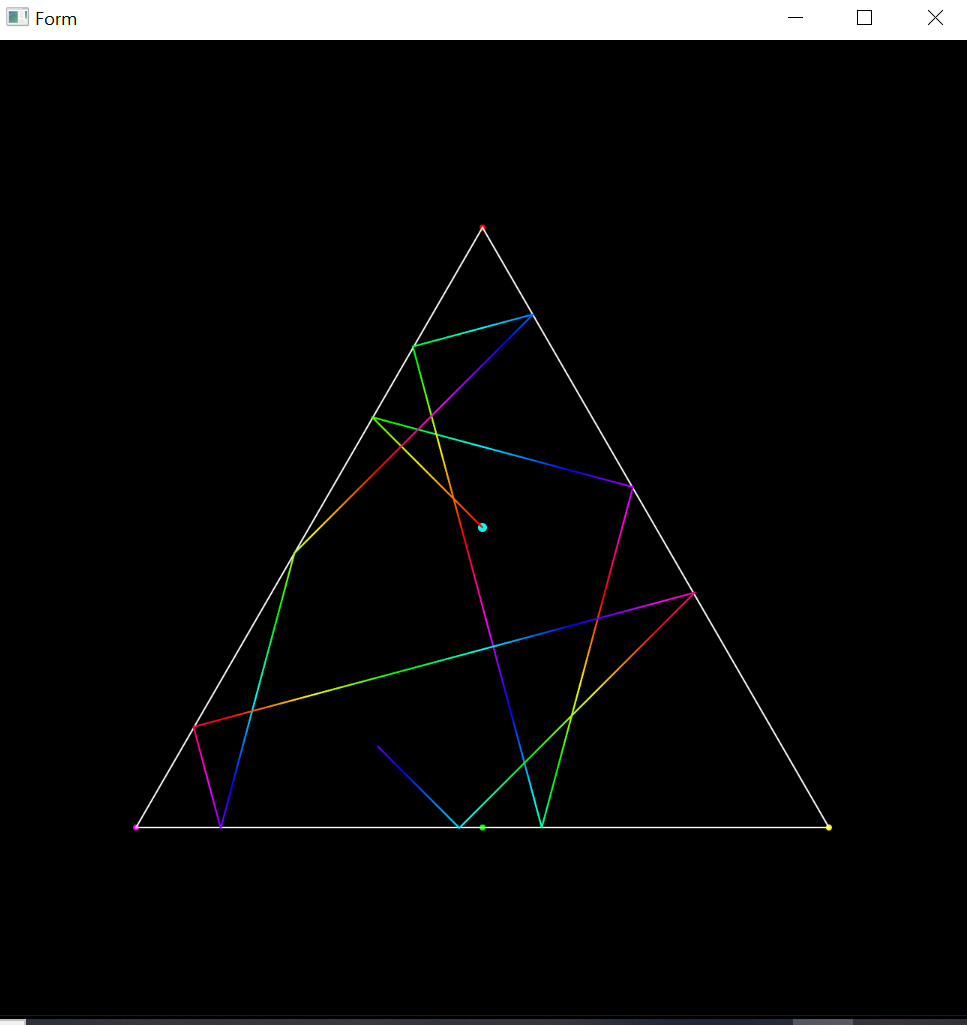

First 10 bounces

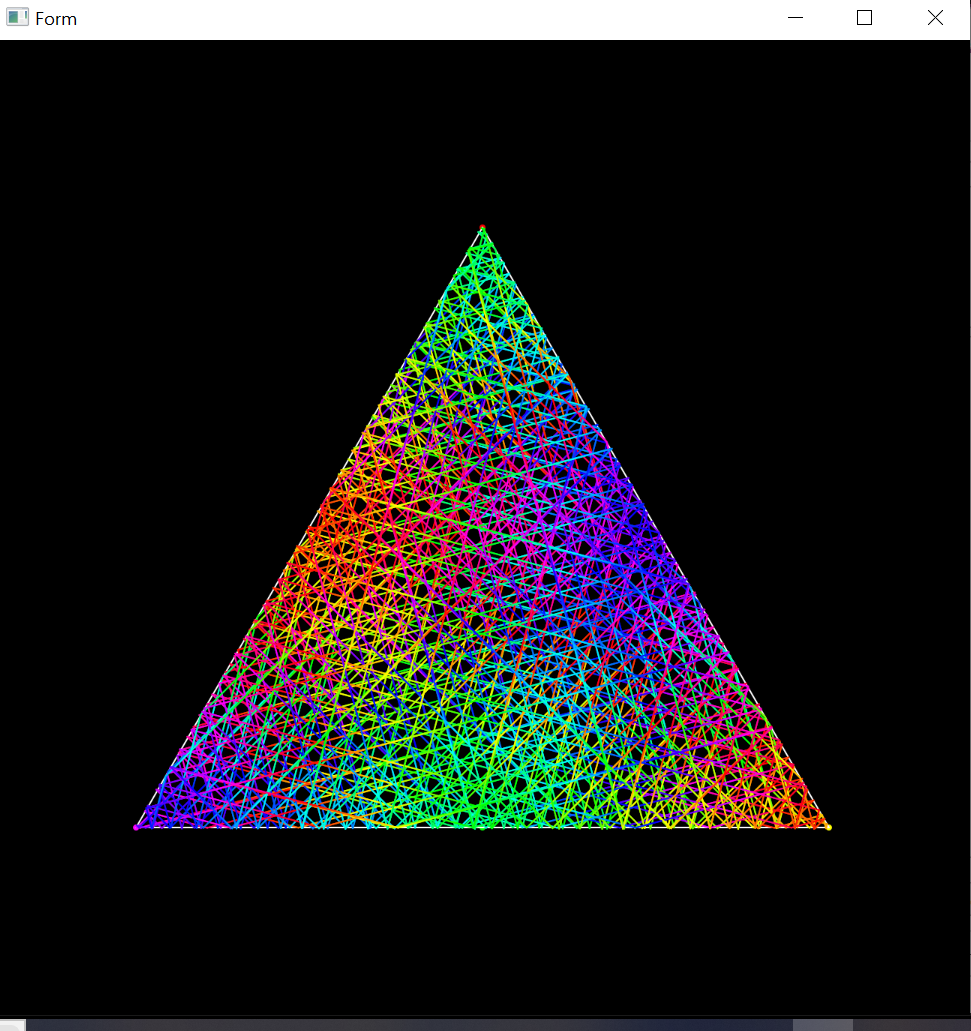

Many bounces later.

Change the "Sleep" at the end of "Sub draw" to Sleep(0) to speed up the drawing.

Sleep (0)

The code can in all probability be massively improved but this is what my small brain came up with for now.



[Johan Schoeman]

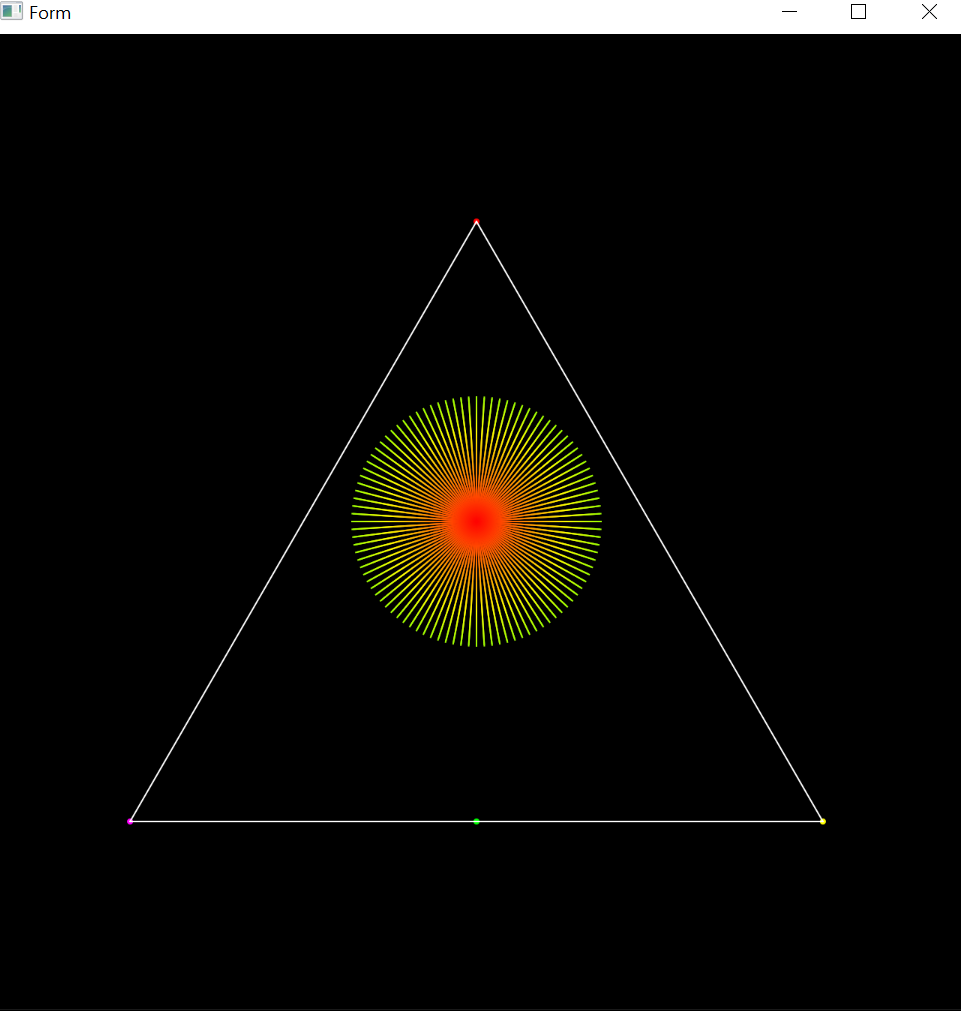

100 simultaneous rays
Change this line of code to increase/decrease the number or rays

numrays = 100

Change this if you want to do more than 500 simultaneous rays

    Dim pos(500) As PVector
    Dim speed(500) As PVector
    Dim oldPos(500) As PVector

    Dim jump As Int

    Dim slope(500) As Double
    Dim startAngle(500) As Double
    Dim outAngle(500) As Double



[Johan Schoeman]

A correction for the rays that are emitted to 0 and 180 degrees (a bit of an oversight by me)
