Android Question Button text not scaling correctly

[ginsh]

Hi,

I have tried the below code and it works fine with Samsung S5 even if I increase the font size on the phone. But when I am testing the same in Samsung S6 & S7 it is not working. The text on the buttons are not scaled correctly.

Please anyone help me out.

Sub Process_Globals
   Dim access As Accessiblity
End Sub

Sub Globals

End Sub

Sub Activity_Create(FirstTime As Boolean)
   ResetUserFontScale(Activity)
End Sub

Sub ResetUserFontScale(p As Panel)
   For Each v As View In p
     If v Is Panel Then
       ResetUserFontScale(v)
     Else If v Is Label Then
       Dim lbl As Label = v
       lbl.TextSize = lbl.TextSize / access.GetUserFontScale
     Else If v Is Spinner Then
       Dim s As Spinner = v
       s.TextSize = s.TextSize / access.GetUserFontScale
     End If
   Next
End Sub



[klaus]

Could you post a small project, as a zip file, showing the problem so we could test it.



[ginsh]

Hi,

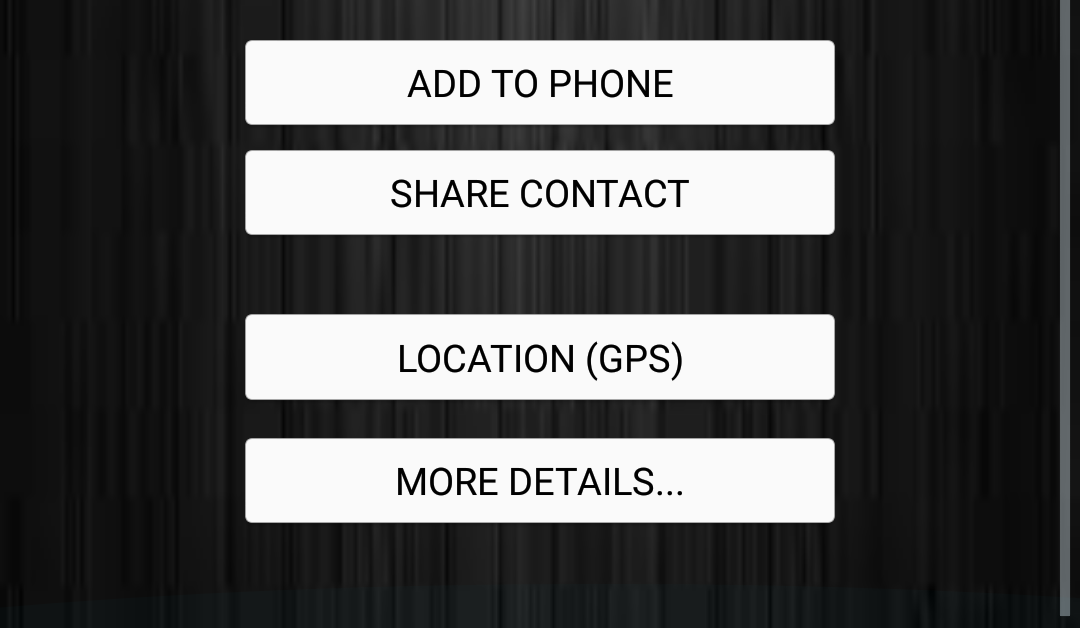

Find attached the simple test code. I have tested this code in S6 & S7 and the
text on the buttons are not showing completely. But works fine with Samsung s5.



[klaus]

The problem is that the height of 28 of the buttons is too small.
Set their height to 40 and it will work OK !



[ginsh]

Hi Klaus,

Thanks for your advice. What if i want to have a smaller size button?



[klaus]

You need to decrease the TextSize !
For a height of 28dip you need a TextSize of 8 to get the text displayed correctly.
To me, 28 dip on my Samsung S6, looks awfully small.



[Anser]

For a height of 28dip you need a TextSize of 8 to get the text displayed correctly.

Is there a specific ratio or formula for this so that we could follow this as a guideline while developing app.

Regards
Anser



[An Schi]

You can also use java object to remove the padding of the button to make more text fit in. Search the forum for button padding.
