B4J Tutorial Creating Excel Reports with jPOI - Part I

Discussion in 'B4J Tutorials' started by DMW, Jan 24, 2017.

  1. DMW

    DMW Member Licensed User

    This tutorial should be viewed as an additional resource to the already published tutorials by Erel.

    Introduction
    The real power for using MS Excel workbooks as reports lays in the fact that we can create templates. A template in MS Excel is saved with the file extension *.xltx (*.xlt for older versions, 2007 and earlier) where the “t” stands for template. The key feature with it is that whenever we open it via code we create a copy of the template and the copy is also created with the file extension *.xlsx, i e the standard file format.

    For me, professional MS Excel reports, starts with templates and ends with templates. So when I approached the objective to use the library jPOI to create MS Excel reports I started out with a template. It quickly turned out to not be doable. JPOI open the *.xltx file as expected but when upon saving the file a corrupted *.xlsx is created. Although I see this as a major limitation in jPOI we can overcome it :)

    So instead of using a true template we are forced to use the native file format *.xlsx. It means that we must save the template file, in the code, under a different unique name.

    Reports are usually built with one or more charts. JPOI does not support MS Excel’s chart object model. When diving into the Java library Apache POI, jPOI is based on it, I became quite confused and never managed to find a solution.

    Advanced reports in MS Excel usually include Pivot table(s) and Pivot chart(s). These are two powerful built-in tools that can give us a holistic view of the information. Unfortunately JPOI does not support these tools.

    So in order to use charts, Pivot tables and Pivot charts we must built them manually in the templates files. Not a difficult task itself as long as we know what we are doing.

    For me it was difficult to accept that I in code must create and initialize every single cell in use. That convinced me even more to use templates in order to reduce the developing process and the code writing.

    I have created two reports, each of them based on their own template file. Given the process the code mainly focus on retrieving data and adding data to the template files. Both templates present various techniques to work with cells and to populate chart Pivot table and Pivot chart.

    Because the Pivot table and chart are updated when the file is opened in MS Excel the worksheet protection cannot be turned on. For me it’s more of a limitation with MS Excel then with jPOI.

    Report Table - Chart

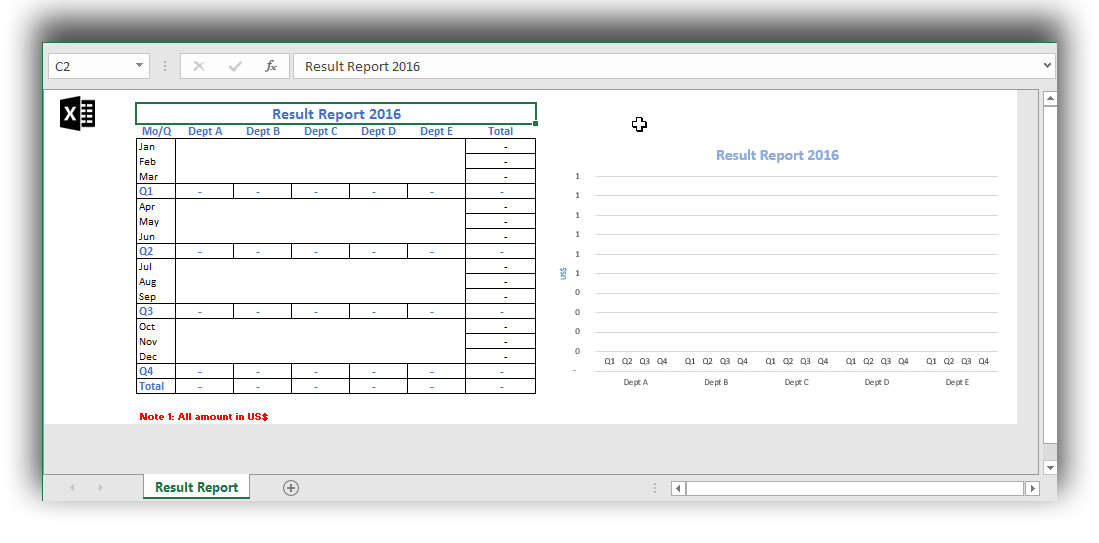

    The attached screen shot - chartreport.png - shows the template file in use:


    The following code is used:
    Code:
    #Region Project Attributes

    #MainFormWidth: -1

    #MainFormHeight: -1

    #AdditionalJar: sqlite-jdbc-3.7.2
    #End Region

    Sub Process_Globals

    Private fx As JFX

    Private MainForm As Form

    Private xlChartButton As Button

    Private xlPivotButton As Button

    Private btnClose As Button


    Private stTitle As String


    Private cutils As ControlsUtils


    Private gSQL As SQL

    Private Cursor As ResultSet


    'POI Variables
        Private wbData As PoiWorkbook

    Private wsData As PoiSheet

    Private row As PoiRow

    Private rnCell As PoiCell
    End Sub

    Sub AppStart (Form1 As Form, Args() As String)
        MainForm = Form1
        MainForm.RootPane.LoadLayout(
    "Start")
        stTitle =
    "Result Report"
        MainForm.Title =stTitle
        MainForm.Show
    End Sub

    Sub xlChartButton_Action


    Dim stDateTime As String

    Dim stMonth As String

    Dim sqlReport As String =  _

    "SELECT Month, Result AS Amount FROM Prod_Output Order By Month;"


    Dim inRow As Int

    Dim inCounter As Int = 3


    Try


    If gSQL.IsInitialized=False Then
                gSQL.InitializeSQLite(
    File.DirApp, "Production.db"True

    End If

            wbData.InitializeExisting(
    File.DirApp,"ChartReport.xlsx","")
            wsData = wbData.GetSheet(
    0)


    Cursor = gSQL.ExecQuery(sqlReport)


    Do While Cursor.NextRow
                stMonth =
    Cursor.GetString("Month")


    Select Case stMonth

    Case "January"    :inRow = 3

    Case "February"    :inRow = 4

    Case "Mars"        :inRow = 5

    Case "April"    :inRow = 7

    Case "May"        :inRow = 8

    Case "June"        :inRow = 9

    Case "July"        :inRow = 11

    Case "Augusti"    :inRow = 12

    Case "September":inRow = 13

    Case "October"    :inRow = 15

    Case "November"    :inRow = 16

    Case "December"    :inRow = 17

    End Select


    If inCounter = 8 Then inCounter = 3

                row = wsData.GetRow(inRow)
                row.IsInitialized

                rnCell = row.GetCell(inCounter)
                rnCell.IsInitialized
                rnCell.ValueNumeric =
    Cursor.GetInt("Amount")

                inCounter = inCounter +
    1

    Loop

            For i = 6 To 18 Step 4
                row = wsData.GetRow(i)
                row.IsInitialized

    For j = 3 To 7
                    row.GetCell(j).IsInitialized
                    row.GetCell(j).ValueFormula = row.GetCell(j).ValueFormula

    Next

    Next

            row = wsData.GetRow(
    19)
            row.IsInitialized

    For j = 3 To 7
                row.GetCell(j).IsInitialized
                row.GetCell(j).ValueFormula = row.GetCell(j).ValueFormula

    Next


    For i = 3 To 19
                row = wsData.GetRow(i)
                row.IsInitialized
                row.GetCell(
    8).IsInitialized
                row.GetCell(
    8).ValueFormula = row.GetCell(8).ValueFormula

    Next


    Dim stSecret As String = "TopSecret"

    Dim jo As JavaObject = wsData
            jo.RunMethod(
    "protectSheet",Array As Object(stSecret))
    '
            'Creating an unique date and time stamp as part of the filename.
            DateTime.DateFormat= "MMddyy"

    DateTime.TimeFormat="HHmmss"
            stDateTime=
    "_" & DateTime.Date(DateTime.Now) & "_" & DateTime.Time(DateTime.now)

            wbData.Save(
    File.DirApp,"Chart Report" & stDateTime & ".xlsx")

            wbData.Close

            cutils.ShowNotification3(stTitle,
    "Successfully created the report!", cutils.ICON_INFORMATION, _
            MainForm,
    "CENTER"2000)


    Catch

    Log(LastException.Message)
            cutils.ShowNotification3(stTitle,
    "Unable to execute the process!", cutils.ICON_ERROR, _
            MainForm,
    "CENTER"2000)


    End Try

    End Sub

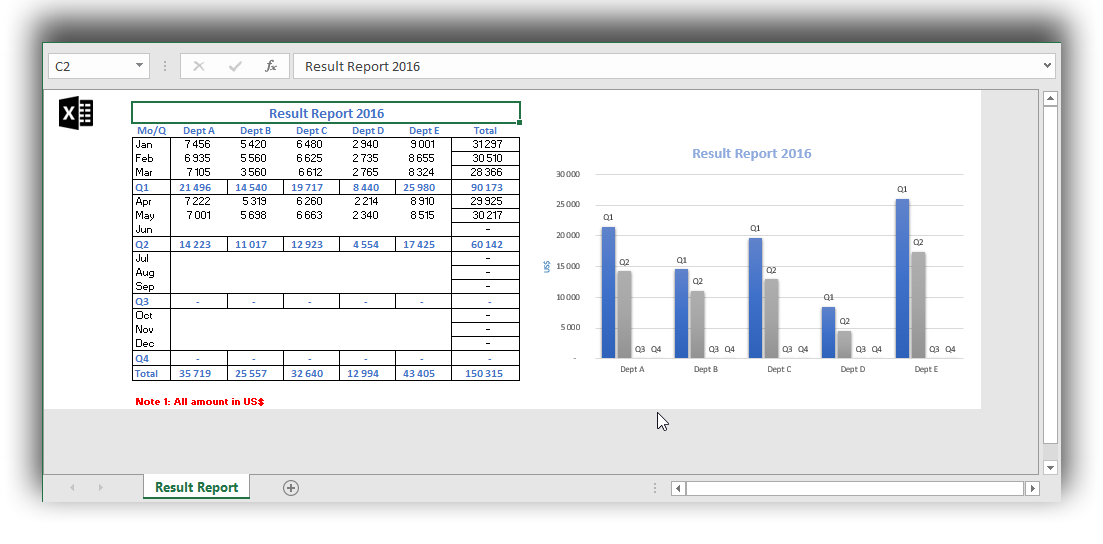

    Finally, the attached screen shot - chartreport.png - shows the created report:


    Kind regards,
    Dennis
