CustomListView - A flexible list based on ScrollView

Status
Not open for further replies.
Tayfur

Tayfur

Well-Known Member
Licensed User
Longtime User
Hello;
I used your costumview code. and I added 1label + 2spinner +1 checkbox in every panel.
So, I cant detecet /divide spinner1 or spinner2. And I want works spinner click each one.
How can I?

B4X:
Sub Button1_Click
    ' scrool vieww için hazırlanmış
    '  https://www.b4x.com/android/forum/threads/class-customlistview-a-flexible-list-based-on-scrollview.19567/#content
    'https://www.b4x.com/android/forum/threads/scrollview-examples-summary.8423/#content

    ProgressDialogShow("Rehberiniz okunuyor ve listeleniyor...")

    Dim xcall As PhoneCalls
    Dim xsms As PhoneSms
    'xsms.Send("+905335135121","2 sistemm çalıstı")
    'StartActivity( xcall.Call("02127711379"))
    Dim c As Contact
    Dim cs As Contacts2
    '-------------Liste düzenleme-------------------
    clv3.Initialize(Me, "clv3")
    Activity.AddView(clv3.AsView, 0, 30%y, 100%x, 70%y)
    Dim phonelist As List
    phonelist.Initialize
    '----------------------------------
          Dim l As List
          l = cs.GetAll(True,True)
        Dim telf As Map
        'Msgbox(l.Size, "kişi sayısı")
          For i = 0 To l.Size - 1
            c = l.Get(i)
            telf= c.GetPhones
            Log(c.DisplayName)
            'phonelist.AddAll(telf.Keys)
            phonelist.Clear
            For z=0 To telf.size-1
                phonelist.Add(telf.GetKeyAt(z))
                'Log(z&". numara : " & telf.GetValueAt(z))
            Next

            'clv3.Add(CreateListItem2(c.DisplayName, clv3.AsView.Width, 80dip,phonelist), 80dip, "Item #" & i)
            clv3.Add(CreateListItem2(c.DisplayName, clv3.AsView.Width, 80dip,phonelist), 80dip, c.Id)
        Next
    ProgressDialogHide
End Sub


B4X:
'---- never run
Sub spn2_ItemClick (Position As Int, Value As Object)
    Msgbox("2 ci","")
End Sub
'always run it
Sub spn_ItemClick (Position As Int, Value As Object)
    Dim index As Int
    index = clv3.GetItemFromView(Sender)
    Dim pnl As Panel
    pnl = clv3.GetPanel(index)
    Dim spn,spn2 As Spinner

    Dim lbl As Label
    Dim chk As CheckBox

    lbl = pnl.GetView(1)
    spn = pnl.GetView(2)
    chk = pnl.GetView(0)
    spn2 = pnl.GetView(3)
    lbl.Text = "telfon!"
    Msgbox("Item value: " & clv3.GetValue(index) & CRLF & "spinner value: " & spn.GetItem(Position), "")
End Sub

B4X:
Sub CreateListItem2(Text As String, Width As Int, Height As Int, phonelist As List) As Panel
    Dim p As Panel
    p.Initialize("")
    p.Color = Colors.Black
    Dim b As Button
    b.Initialize("button") 'all buttons click events will be handled with Sub Button_Click
    Dim chk As CheckBox
    chk.Initialize("chk")
    Dim lbl As Label
    lbl.Initialize("")

    Dim spn As Spinner
    Dim spn2 As Spinner
    spn.Initialize("spn")
    spn2.Initialize("spn")
    spn.AddAll(phonelist)
    spn2.AddAll(Array As String("Bey","Hanım","Amcacağım","Dayıcığım","Halacığım","Teyzeciğim", "Yengeciğim","Dedeciğim","Nineciğim","Ablacağım","Abiciğim","Kardeşim","Kuzenim","Yeğenim","babananeciğim", "anneanneciğim"))
    lbl.Gravity = Bit.OR(Gravity.CENTER_VERTICAL, Gravity.LEFT)
    lbl.Text = Text
    lbl.TextSize = 16
    lbl.TextColor = Colors.White
    b.Text = "Click"
    'p.AddView( l - T w- h
    p.AddView(chk, 5dip, 2dip, 50dip, Height - 4dip) 'view #0
    p.AddView(lbl, 55dip, 2dip, 165dip, Height - 4dip) 'view #1
    p.AddView(spn, 220dip, 2dip, 170dip, Height - 4dip) 'view #2
    p.AddView(spn2, 390dip, 2dip, 150dip, Height - 4dip) 'view #3
    Return p
End Sub

Martin Larsen

Martin Larsen

Active Member
Licensed User
Longtime User
There is a bug: DefaultTextBackgroundColor has no effect. It's because DefaultTextBackground = base.Background in DesignerCreateView() and later in InsertAtTextItem() the panel color is only set if DefaultTextBackground = Null.

A fix is to make DefaultTextBackground public and setting that to null in Activity_Create().

I also have a couple of questions:

1.
How can I remove the border (the white line) between the items?

2.
Is it possible to create a panel in the visual designer and use that panel in the CustomListView? I tried and got the exception:

java.lang.IllegalStateException: The specified child already has a parent. You must call removeView() on the child's parent first.

As I read it, the panel I created already has a parent and hence cannot be added in the InsertAt() sub. But there is no Activity.removeView() so how can I remove the view? Or is it simply not possible to design the panel visually? (It would be awesome if it was!)




Last edited:
MaFu

MaFu

Well-Known Member
Licensed User
Longtime User
1.
B4X:
Dim sv As ScrollView = yourcustomlistview.AsView
sv.Color = ? 'insert here the same color used for your item panel and the divider will be invisible
or make "dividerHeight" public in CustomListView.bas and set it to 0.

2.
B4X:
Dim pnl As Panel
pnl.Initialize("")
pnl.LoadLayout("yourlayout")
yourcustomlistview.InsertAdd(pnl, ...

Martin Larsen

Martin Larsen

Active Member
Licensed User
Longtime User
Thanks, MaFu. #1 works fine!

#2:

A few questions:

A.
Do you mean .InsertAt() ?

B.
Should the designer actually contain a panel with the sub elements (labels, buttons etc) which is then loaded into pnl, or should I just add the elements directly to the designer since it ends up in pnl anyway?

C.
Do I need to create, initialize and load the layout for each element I need to add to the CLV? Or is it possible to sort of clone the panel and the just change the values of its child controls?

MaFu

MaFu

Well-Known Member
Licensed User
Longtime User
Martin Larsen said:
Thanks, MaFu. #1 works fine!

#2:

A few questions:

A.
Do you mean .InsertAt() ? yes, InsertAdd() was a typo.

B.
Should the designer actually contain a panel with the sub elements (labels, buttons etc) which is then loaded into pnl, or should I just add the elements directly to the designer since it ends up in pnl anyway?
panel is not needed, add the elements directly.

C.
Do I need to create, initialize and load the layout for each element I need to add to the CLV? Or is it possible to sort of clone the panel and the just change the values of its child controls?
yes, for each element.
Click to expand...

Martin Larsen

Martin Larsen

Active Member
Licensed User
Longtime User
I am still struggling with adding the the panel designed in the visual designer. It does not show up in the custom listview. This is what I do:

B4X:
Sub Globals
    ...
    private clv As CustomListView
    ---
End Sub

Sub Activity_Create(FirstTime As Boolean)
    ...
    For i = 0 To 10
        AddMyItem(i)
    Next
    ...
End Sub

Sub AddMyItem(i as integer)
        Dim p As Panel
        p.Initialize("")
        p.LoadLayout("5")
        clv.Add(p, 30, i)
End Sub

The Layout 5 simple consists of a single button with the text "Test" on.

If I click on the listview I can see the items get highlighted, but they don't show up. Like if the panel's layout is not loaded correctly or something.

If I instead create the panel manually, like this

B4X:
Sub AddMyItem(i As integer)
        Dim p As Panel
        p.Initialize("")
        Dim btn As Button
        btn.Initialize("")
        btn.Gravity = Bit.Or(Gravity.CENTER_VERTICAL, Gravity.LEFT)
        btn.Text = "Test"
        btn.TextColor= Colors.Black
        p.AddView(btn, 0, 0, clv.AsView.Width, 50dip)
        btn.Height=50dip
        clv.Add(p, 50dip, i)
End Sub

it works.

So clearly I am missing something, but what?

I know I could just create the panel manually, but it's much more complicated than a single button :)

Martin Larsen

Martin Larsen

Active Member
Licensed User
Longtime User
Are you using anchors or a script in this layout?
Click to expand...

Anchors. Is that a problem?

It is not recommended to load a layout file to a panel with unknown size. Try to first add the panel to another panel just to set its size and then load the layout file.
Click to expand...

Erel, I don't understand what you mean with that.

Edit: I am not sure if this is want you meant, but you gave me an idea and it seems to work!

B4X:
Activity.AddView(p, 0,0,100%x,100%y)
p.LoadLayout("5")
p.RemoveView()
clv.Add(p, 75dip, item)

Adding the panel to the Activity and removing it again seems to do the trick. And I understand from you say that it will first get its dimensions when it's added to an activity or another panel.

Is this approach OK?

Last edited:
Martin Larsen

Martin Larsen

Active Member
Licensed User
Longtime User
MaFu said:
To change the order should work:
Click to expand...

Yes, it does! Wow, I have spent ours trying to get it right, and all I needed was to change the order a bit :)

The good thing is that I learned from it, and I understand why the order is important: by adding the panel to the custom list view first, we ensure that it has a parent and hence also a fixed size. Precisely as Erel said. It's just a more clean way to simply add it to the clv to achieve this.

MaFu

MaFu

Well-Known Member
Licensed User
Longtime User
Martin Larsen said:
Yes, it does! Wow, I have spent ours trying to get it right, and all I needed was to change the order a bit :)
Click to expand...
My fault, sorry for that. I've wrote my first example wrong.

khosrwb

khosrwb

Active Member
Licensed User
Longtime User
hi
I checked the StringUtilse (version: 1.02) library , but I can't use this code :
B4X:
Dim clv3 As CustomListView
what's problem on my app?

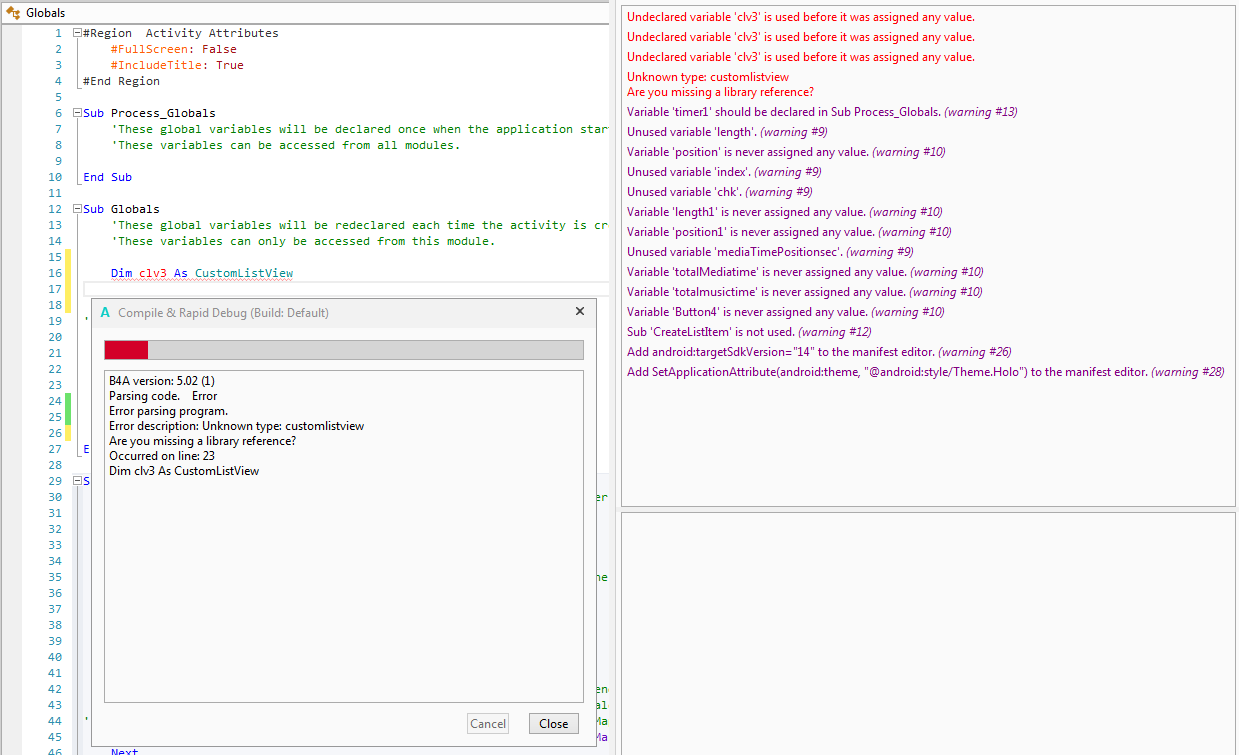

Attachments

  • Capture.PNG
    91.9 KB · Views: 174
Last edited:
khosrwb

khosrwb

Active Member
Licensed User
Longtime User
thanks MaF u:)
solved my problem
:Dactually I need add CustomListView.bas to the project file for use from CustomListView:D
thanks

ANSA

ANSA

Member
Licensed User
Longtime User
Hi,
is there is a way to disable the whole list (make the items unclickable)?
I am using "clv1" only in my program.

thank you
