Disable buttom panel of Android tablet

[TomY032713]

I have built an application to be used in a warehouse on an Android tablet utilizing this software. I would like to be able to disable all the options on the bottom of the screen such as the back button, minimize, date, and wifi options. Our user's have accidentally clicked on these while using our software on the tablet, which resulted in them losing what they were currently working on. I have a close button for this application, and I would like this button to be the only option for closing the application.

Does anyone know if this is possible either in the code or tablet itself?

Thank you for any help you can provide.



[Erel]

It is not possible to disable this panel. You can disable the back key.

Our user's have accidentally clicked on these while using our software on the tablet, which resulted in them losing what they were currently working on.

This should not happen. You are doing something wrong...



[TomY032713]

Thank you

Erel,

Thank you for answering my question.

So, when a user pushes the back button, and reenters the application, the application should resume with all the information on the screen if I coded it correctly? To include selected information in spinner's and the data grid?

I shouldn't be required to save the attributes of everything on the screen in activity_pause?

Thank you



[Erel]

See StateManager module it will help you with this task.

Pressing on the back key means that the user wants to exit the current task. Normally you should reset the fields in this case. Rotating the screen is a different case which you should handle. StateManager will help you with that.



[Harris]

Sub Activity_KeyPress (KeyCode As Int) As Boolean

    If KeyCode = KeyCodes.KEYCODE_BACK Then

            Return True

    End If


End Sub

This sub will disable the back key.
I try and keep control buttons away from the (back, home) keys to prevent accidental activation.



[tchart]

It is not possible to disable this panel.

Erel,

Slightly off topic but on my Galaxy Tablet (running ICS) when I watch something in the video player the on screen buttons (back, home etc) are "dimmed" and replaced with gray dots.

Do you know how this is done? Is this an Android feature or a TouchWiz customization?

I dont think it would help the topic starter since pressing the "dots" still activates the button (eg home).

Thanks



[Erel]

It can be done with reflection. Note that it is a hint to the system that a low profile mode is requested.

Dim p As Phone
If p.SdkVersion >= 14 Then
   Dim r As Reflector
   r.Target = Activity
   r.RunMethod2("setSystemUiVisibility", 1, "java.lang.int") '1 = SYSTEM_UI_FLAG_LOW_PROFILE
End If



[TomY032713]

Thank you for the code

I will use this code to atleast disable the back button, I believe that should help a little bit. My screen is so full of what needs to be displayed that I unfortunately can't move any of the buttons. It is a busy screen, but we don't want to upgrade to larger tablets because employees are carrying them around as they pick stock.
I do appreciate this code!

Sub Activity_KeyPress (KeyCode As Int) As Boolean

    If KeyCode = KeyCodes.KEYCODE_BACK Then

            Return True

    End If


End Sub

This sub will disable the back key.
I try and keep control buttons away from the (back, home) keys to prevent accidental activation.



[Gianluca Esposito]

My need is to block users unchecked exploration.
With the first method the buttons are hidden but then reactivated by touching.
With the second method, not all the buttons are located.

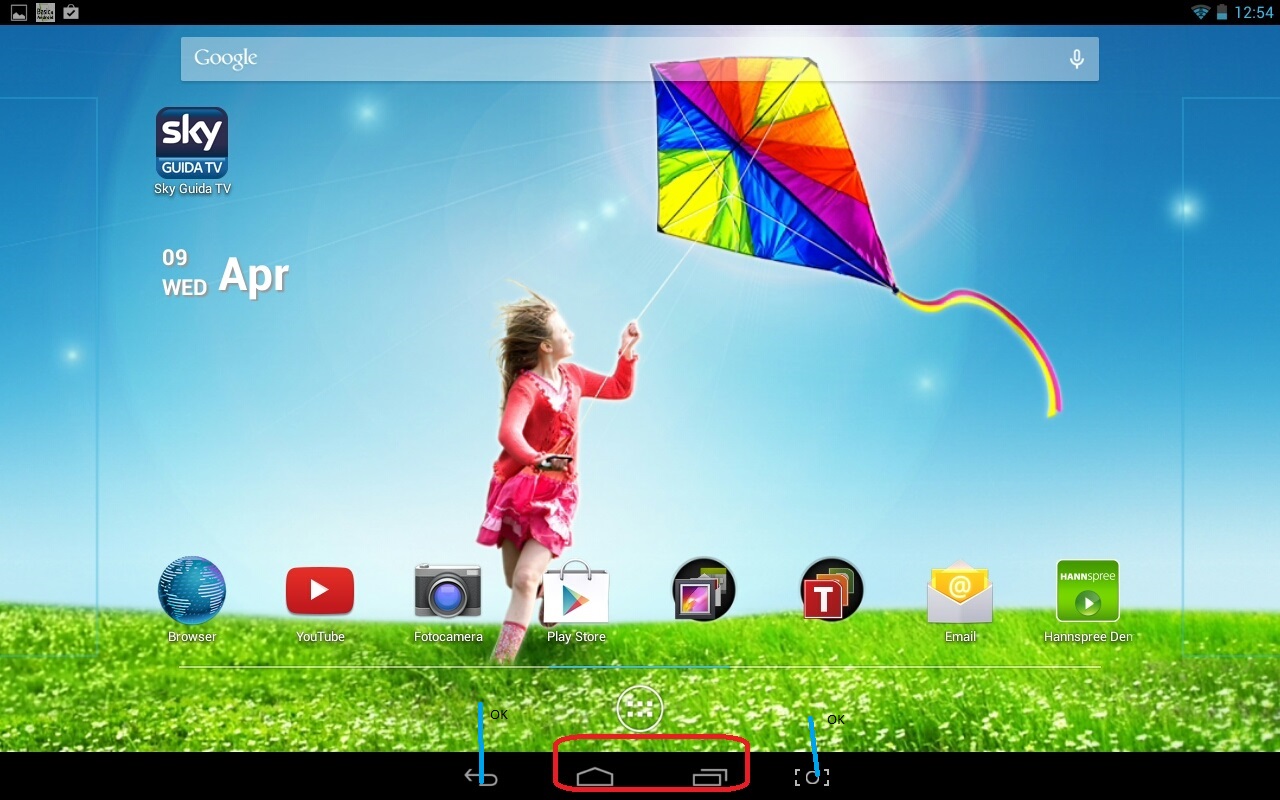

For example, in the screen shot the two middle keys are not identified.
Is there a way to hide the taskbar without re-enable it?
Thanks



[Erel]

It is not possible to disable these buttons. See the thread: Android "Kiosk mode" tutorial



[Hans- Joachim Krahe]

... I am not shure. Lookat app 'zenbrush'. They disfuncioned back butten and put function to menu... -very usefull by the way



[Erel]

You can catch the Back button. You cannot catch the home button and the recent apps button.



[Hans- Joachim Krahe]

o.k., got it. Need to shell activity inside another Main but activity is lost then, would like to hold it an use backbutton for another task



[pauleffect]

@tchart margret has a lib for that. ics control(s). it does exactly the stuff you mentioned.
