Android Code Snippet External Storage Extras

Hi all,

Now that ExternalStorage is the only way to access a shared file in an app that need to be released on Google Play Store, I mixed this:

ExternalStorage - Access SD cards and USB sticks

Before we start: External storage means a real sd card or a connected mass storage USB device. This class can also be used to access the secondary storage (File.DirRootExternal). This becomes relevant with newer versions of Android that restrict direct access. It has nothing to do with runtime...
www.b4x.com www.b4x.com
with this:

Text files

Many applications require access to a persistent storage. The two most common storage types are files and databases. We will cover text files in this tutorial. The predefined Files object has several utility methods for working with text files which are pretty easy to use. Files locations -...
www.b4x.com www.b4x.com

adding these methods to original ExternalStorage class:

File.WriteString - Writes the given text to a new file.
File.ReadString - Reads a file and returns it content as a string.
File.WriteList - Writes all values stored in a list to a file. All values are converted to string type if required. Each value will be stored in its own line.
Note that if a value contains the new line character it will saved over more than one line and when you read it, it will be read as multiple items.
File.ReadList - Reads a file and stores each line as an item in a list.
File.WriteMap - Takes a map object which holds pairs of key and value elements and stores it in a text file. The file format is known as Java Properties file: .properties - Wikipedia, the free encyclopedia
The file format is not too important unless the file is supposed to be edited manually. This format makes it easy to edit it manually.
One common usage of File.WriteMap is to save a map of "settings" to a file.
File.ReadMap - Reads a properties file and returns its key/value pairs as a Map object. Note that the order of entries returned might be different than the original order.

Note that the class is inline in the project (taken from ExternalStorage b4xlib), if you like it you can put in the b4xlib.

If you do not need to release app on Google Play Store consider this that is a better option:
https://www.b4x.com/android/forum/t...cess-internal-external-storage-sdk-30.130411/

I've attached the example project that works as in the second link but with ExternalStorage.

I even added an useful method to copy files to external storage:
B4X:
'Copy a file to External Storage.
'Dir:   The current input file directory, eg. File.DirAssets etc.
'Name:   The current input file name
'Parent:   External Storage parent name (Directory where place a file)
'Rename:   Optionally rename the output file. Pass "" to mantain original name.
Public Sub CopyFileToExternalStorage (Dir As String, Name As String, Parent As ExternalFile, Rename As String) As Boolean
    If File.Exists(Dir, Name) = False Then
        Log("File do not exist while copy to External Storage: " & Name)
        Return False
    End If

    Dim iStream As InputStream, oStream As OutputStream
    Dim oFile As ExternalFile

    If Rename <> "" Then
        oFile = FindFileOrCreate(Parent, Rename)  ' Optionally rename output file, pass "" to Rename argument will mantain original name
    Else
        oFile = FindFileOrCreate(Parent, Name)
    End If

    If oFile.IsInitialized Then
        iStream = File.OpenInput(Dir, Name)
        oStream = OpenOutputStream(oFile)
        File.copy2(iStream, oStream)
        iStream.Close
        oStream.Close
        Return True
    Else
        Log("Cannot create file on External Storage: " & Name)
        Return False
    End If
End Sub

I have 2 questions here, I know that the class store a file with URIs in DirInternal, but how to know these at runtime ?

- If user not already granted a permisson (so we can show a messagebox to explain that need to select a folder, only if no permisson granted and before Storage.SelectDir)
- If permisson already granted, but user removed the Root folder, eg with a file manager.

Please, reply to my questions
and enjoy with this code.

Here a full class code:
B4X:
#Event: ExternalFolderAvailable
Private Sub Class_Globals
    Private ion As Object
    Private PersistantUri As String
    Public PreviousUriFileName As String = "PersistantUri"
    Private ctxt As JavaObject
    Private mCallback As Object
    Private mEventName As String
    Public Root As ExternalFile
    Type ExternalFile (Name As String, Length As Long, LastModified As Long, IsFolder As Boolean, Native As JavaObject)
End Sub

Public Sub Initialize (Callback As Object, EventName As String)
    mCallback = Callback
    mEventName = EventName
    ctxt.InitializeContext
End Sub

'Lets the user pick a folder.
'Optionally using the previously selected folder.
Public Sub SelectDir (UsePreviouslySelectedIfAvailable As Boolean)
    If UsePreviouslySelectedIfAvailable And File.Exists(File.DirInternal, PreviousUriFileName) Then     ' ORIGINALE
        PersistantUri = File.ReadString(File.DirInternal, PreviousUriFileName)
        Dim list As List = ctxt.RunMethodJO("getContentResolver", Null).RunMethod("getPersistedUriPermissions", Null)
        If list.IsInitialized Then
            For Each uripermission As JavaObject In list
                Dim u As Uri = uripermission.RunMethod("getUri", Null)
                Dim temp As Object = u
                Dim s As String = temp
                If s = PersistantUri And uripermission.RunMethod("isWritePermission", Null) = True Then
                    Log("Can use persistant uri!")
                    SetPickedDir
                    Return
                End If
            Next
        End If
    End If
    Dim i As Intent
    i.Initialize("android.intent.action.OPEN_DOCUMENT_TREE", "")
    i.PutExtra("android.content.extra.SHOW_ADVANCED", True)
    StartActivityForResult(i)
End Sub

'List all files in the given folder.
Public Sub ListFiles (Folder As ExternalFile) As List
    Dim files() As Object = Folder.Native.RunMethod("listFiles", Null)
    Dim res As List
    res.Initialize
    For Each o As Object In files
        Dim f As JavaObject = o
        res.Add(DocumentFileToExternalFile(f))
    Next
    Return res
End Sub
'Finds the file with the given name.
'Returns an uninitialized ExternalFile if not found.
Public Sub FindFile (Parent As ExternalFile, Name As String) As ExternalFile
    Dim f As JavaObject = Parent.Native.RunMethod("findFile", Array(Name))
    Return DocumentFileToExternalFile(f)
End Sub

'Creates a new file.
Public Sub CreateNewFile (Parent As ExternalFile, Name As String) As ExternalFile
    Return DocumentFileToExternalFile(Parent.Native.RunMethod("createFile", Array("", Name)))
End Sub

'Creates a new folder.
Public Sub CreateNewDir (Parent As ExternalFile, Name As String) As ExternalFile
    Return DocumentFileToExternalFile(Parent.Native.RunMethod("createDirectory", Array(Name)))
End Sub

'Deletes the file.
Public Sub DeleteFile (EF As ExternalFile) As Boolean
    If EF.IsInitialized = False Then Return False
    Return EF.Native.RunMethod("delete", Null)
End Sub

'Open an output stream that writes to the file.
Public Sub OpenOutputStream(EF As ExternalFile) As OutputStream
    Return ctxt.RunMethodJO("getContentResolver", Null).RunMethod("openOutputStream", Array(EF.Native.RunMethod("getUri", Null)))
End Sub
'Open an input stream that reads from the file.
Public Sub OpenInputStream(EF As ExternalFile) As InputStream
    Return ctxt.RunMethodJO("getContentResolver", Null).RunMethod("openInputStream", Array(EF.Native.RunMethod("getUri", Null)))
End Sub

'Finds the file with the given name. If not found creates a new file.
Public Sub FindFileOrCreate (Parent As ExternalFile, Name As String) As ExternalFile
    Dim f As ExternalFile = FindFile(Parent, Name)
    If f.IsInitialized = False Then
        Return CreateNewFile(Parent, Name)
    Else
        Return f
    End If
End Sub

'Finds a file or folder with the given name. Creates a new folder if not exists.
Public Sub FindDirOrCreate(Parent As ExternalFile, Name As String) As ExternalFile
    Dim f As ExternalFile = FindFile(Parent, Name)
    If f.IsInitialized = False Then
        Return CreateNewDir(Parent, Name)
    Else
        Return f
    End If
End Sub

#Region Private Subs
Private Sub DocumentFileToExternalFile (DocumentFile As JavaObject) As ExternalFile
    Dim ef As ExternalFile
    If DocumentFile.IsInitialized = False Then
        Return ef
    End If
    ef.Initialize
    ef.Name = DocumentFile.RunMethod("getName", Null)
    ef.Length = DocumentFile.RunMethod("length", Null)
    ef.IsFolder = DocumentFile.RunMethod("isDirectory", Null)
    ef.Native = DocumentFile
    ef.LastModified = DocumentFile.RunMethod("lastModified", Null)
    Return ef
End Sub

Private Sub SetPickedDir
    Root = DocumentFileToExternalFile(GetPickedDir(PersistantUri))
    CallSubDelayed(mCallback, mEventName & "_ExternalFolderAvailable")
End Sub

Private Sub ion_Event (MethodName As String, Args() As Object) As Object
    If -1 = Args(0) Then 'resultCode = RESULT_OK
        Dim i As Intent = Args(1)
        Dim jo As JavaObject = i
        Dim treeUri As Uri = jo.RunMethod("getData", Null)
        Dim takeFlags As Int = Bit.And(i.Flags, 3)
        ctxt.RunMethodJO("getContentResolver", Null).RunMethod("takePersistableUriPermission", Array(treeUri, takeFlags))
        Dim temp As Object = treeUri
        PersistantUri = temp
        File.WriteString(File.DirInternal, PreviousUriFileName, PersistantUri)
        Log(PersistantUri)
        SetPickedDir
    End If
    Return Null
End Sub

Private Sub GetPickedDir (uri As String) As JavaObject
    Dim DocumentFileStatic As JavaObject
    Dim treeUri As Uri
    treeUri.Parse(uri)
    Dim PickedDir As JavaObject = DocumentFileStatic.InitializeStatic("android.support.v4.provider.DocumentFile").RunMethod("fromTreeUri", Array(ctxt, treeUri))
    Return PickedDir
End Sub

Private Sub StartActivityForResult(i As Intent)
    Dim jo As JavaObject = GetBA
    ion = jo.CreateEvent("anywheresoftware.b4a.IOnActivityResult", "ion", Null)
    jo.RunMethod("startActivityForResult", Array As Object(ion, i))
End Sub

Private Sub GetBA As Object
    Dim jo As JavaObject = Me
    Return jo.RunMethod("getBA", Null)
End Sub
#End Region

'-------------------- MY ADDONS TO ORIGINAL CLASS ----------------------

'    External Storage text file addons.
'
'    Storage.ReadString - Reads a file and returns it content as a string. (OK)
'    Storage.WriteString - Writes the given text to a new file. (OK)
'
'    Storage.ReadList - Reads a file and stores each line as an item in a list.  (OK)
'    Storage.WriteList - Writes all values stored in a list to a file. (OK)
'                     All values are converted to string type if required.
'                          Each value will be stored in its own line.
'                     Note that if a value contains the new line character it will saved over more than one line and when you read it,
'                          it will be read as multiple items.
'
'  Storage.ReadMap - Reads a properties file and returns its key/value pairs as a map object. Note that the order of entries returned might be different than the original order.
'    Storage.WriteMap - Takes a map object which holds pairs of key and value elements and stores it in a text file.
'                    The file format is known as Java Properties file: .properties - Wikipedia, the free encyclopedia
'                  The file format is not too important unless the file is supposed to be edited manually.
'                  This format makes it easy to edit it manually.
'                  One common usage of File.WriteMap is to save a map of "settings" to a file.

'Reads the file and returns its content as a string.
'Example:<code>
'Dim text As String = Storage.ReadString(Storage.Root, "myfile.txt")</code>
Public Sub ReadString (Parent As ExternalFile, Name As String) As String
    If Parent.IsInitialized Then
        Parent = FindFile(Parent, Name)  'FindFileOrCreate(Parent, Name)
        If Parent.IsInitialized Then
            Dim iStream As InputStream = OpenInputStream(Parent)
            Dim b() As Byte = Bit.InputStreamToBytes(iStream)
            Return BytesToString(b, 0, b.Length, "UTF-8")
        Else
            LogColor("CANNOT READ STRING FROM FILE", Colors.Red)
            Return ""
        End If
    Else
        LogColor("WRONG FOLDER WHILE READ STRING FROM FILE", Colors.Red)
        Return ""
    End If
End Sub

'Writes the given text to an existing or new file.
'Example:<code>
'Storage.WriteString(Storage.Root, "myfile.txt", "Some text here")</code>
Public Sub WriteString (Parent As ExternalFile, Name As String, Text As String)
    If Parent.IsInitialized Then
        Parent = FindFileOrCreate(Parent, Name)
        If Parent.IsInitialized Then
            Dim iStream As InputStream
            Dim oStream As OutputStream
            Dim b() As Byte = Text.GetBytes("UTF8")
            iStream.InitializeFromBytesArray(b, 0, b.Length)
            oStream = OpenOutputStream(Parent)
            File.Copy2(iStream, oStream)
        Else
            LogColor("CANNOT WRITE STRING TO FILE", Colors.Red)
        End If
    Else
        LogColor("WRONG FOLDER WHILE WRITE STRING TO FILE", Colors.Red)
    End If
End Sub

'Reads the entire file and returns a List with all lines (as strings).
'Example:<code>
'Dim List1 As List = Storage.ReadList(Storage.Root, "mylist.txt")  ' Use FindDirOrCreate to point another directory
'For i = 0 to List1.Size - 1
'   Log(List1.Get(i))
'Next </code>
Public Sub ReadList (Parent As ExternalFile, Name As String) As List
    If Parent.IsInitialized Then
        Parent = FindFile(Parent, Name)  ' FindFileOrCreate(Parent, Name)
        If Parent.IsInitialized Then
            Dim iStream As InputStream = OpenInputStream(Parent)
            Dim b() As Byte = Bit.InputStreamToBytes(iStream)
            Dim s As String = BytesToString(b, 0, b.Length, "UTF-8")
            Dim components() As String = Regex.Split(CRLF, s) ' Split lines
            Dim lineList As List
            lineList.Initialize2(components)
            Return lineList
        Else
            LogColor("CANNOT READ LIST FROM FILE", Colors.Red)
            Return Null
        End If
    Else
        LogColor("WRONG FOLDER WHILE READ LIST FROM FILE", Colors.Red)
        Return Null
    End If
End Sub

'Writes each item in the list as a single line.
'Note that a value containing CRLF will be saved as two lines (which will return two item when read with ReadList).
'All values will be converted to strings.
'Example:<code>
'Storage.WriteList(Storage.Root, "mylist.txt", List1)  ' Use FindDirOrCreate to point another directory</code>
Public Sub WriteList (Parent As ExternalFile, Name As String, List As List)
    If Parent.IsInitialized Then
        Parent = FindFileOrCreate(Parent, Name)
        If Parent.IsInitialized Then
            Dim sb As StringBuilder
            sb.Initialize
            For Each line As String In List
                sb.Append(line).Append(CRLF)
            Next

            Dim iStream As InputStream
            Dim oStream As OutputStream
            Dim b() As Byte = sb.ToString.GetBytes("UTF8")
            iStream.InitializeFromBytesArray(b, 0, b.Length)
            oStream = OpenOutputStream(Parent)
            File.Copy2(iStream, oStream)
        Else
            LogColor("CANNOT WRITE LIST TO FILE", Colors.Red)
        End If
    Else
        LogColor("WRONG FOLDER WHILE WRITE LIST TO FILE", Colors.Red)
    End If
End Sub

'Reads the file and parses each line as a key-value pair (of strings).
'See this link for more information about the actual format: <link>Properties format|http://en.wikipedia.org/wiki/.properties</link>.
'You can use Storage.WriteMap to write a map to a file.
'Note that the order of items in the map may not be the same as the order in the file.
Public Sub ReadMap (Parent As ExternalFile, Name As String) As Map
    If Parent.IsInitialized Then
        Parent = FindFile(Parent, Name)  ' FindFileOrCreate(Parent, Name)
        If Parent.IsInitialized Then
            Dim iStream As InputStream = OpenInputStream(Parent)
            Dim b() As Byte = Bit.InputStreamToBytes(iStream)
            Dim str As String = BytesToString(b, 0, b.Length, "UTF-8")
            Dim components() As String = Regex.Split(CRLF, str) ' Split lines

            Dim lineMap As Map
            lineMap.Initialize
            For i = 0 To components.Length-1
                Dim s As String = components(i)
                Dim keyval() As String = Regex.Split("=", s) ' Split key-val
                If keyval.Length = 2 Then
                    lineMap.Put(keyval(0), keyval(1))
                Else
                    LogColor("CANNOT EVALUTATE KEY-VALUE PAIRS WHILE READ MAP FROM FILE: " & Parent.Name, Colors.Red)
                End If
            Next
            Return lineMap
        Else
            LogColor("CANNOT READ MAP FROM FILE", Colors.Red)
            Return Null
        End If
    Else
        LogColor("WRONG FOLDER WHILE READ MAP FROM FILE", Colors.Red)
        Return Null
    End If
End Sub

'Uses existing file or creates a new file and writes the given map. Each key value pair is written as a single line.
'All values are converted to strings.
'See this link for more information about the actual format: <link>Properties format|http://en.wikipedia.org/wiki/.properties</link>.
'You can use Storage.ReadMap to read this file.
Public Sub WriteMap (Parent As ExternalFile, Name As String, Map As Map)
    If Parent.IsInitialized Then
        Parent = FindFileOrCreate(Parent, Name)
        If Parent.IsInitialized Then
            Dim sb As StringBuilder
            sb.Initialize
            For Each Key As String In Map.Keys
                sb.Append(Key).Append("=").Append(Map.Get(Key)).Append(CRLF)
            Next
            Dim iStream As InputStream
            Dim oStream As OutputStream
            Dim b() As Byte = sb.ToString.GetBytes("UTF8")
            iStream.InitializeFromBytesArray(b, 0, b.Length)
            oStream = OpenOutputStream(Parent)
            File.Copy2(iStream, oStream)
        Else
            LogColor("CANNOT WRITE MAP TO FILE", Colors.Red)
        End If
    Else
        LogColor("WRONG FOLDER WHILE WRITE MAP TO FILE", Colors.Red)
    End If
End Sub

'Copy a file to External Storage.
'Dir:   The current input file directory, eg. File.DirAssets etc.
'Name:   The current input file name
'Parent:   External Storage parent name (Directory where place a file)
'Rename:   Optionally rename the output file. Pass "" to mantain original name.
Public Sub CopyFileToExternalStorage (Dir As String, Name As String, Parent As ExternalFile, Rename As String) As Boolean
    If File.Exists(Dir, Name) = False Then
        Log("File do not exist on DirAssets while copy to External Storage: " & Name)
        Return False
    End If

    Dim iStream As InputStream, oStream As OutputStream
    Dim oFile As ExternalFile

    If Rename <> "" Then
        oFile = FindFileOrCreate(Parent, Rename)  ' Optionally rename output file, pass "" to Rename argument will mantain original name
    Else
        oFile = FindFileOrCreate(Parent, Name)
    End If

    If oFile.IsInitialized = True Then
        iStream = File.OpenInput(Dir, Name)
        oStream = OpenOutputStream(oFile)
        File.copy2(iStream, oStream)
        iStream.Close
        oStream.Close
        Return True
    Else
        Log("Cannot create file on External Storage: " & Name)
        Return False
    End If
End Sub

'Need check. Probably call it FileExists, it use FindFile(Parent, Name) and I'm not sure if it is good for folders.
Public Sub Exists (Parent As ExternalFile, Name As String) As Boolean
    Dim ef As ExternalFile = FindFile(Parent, Name)
'    Log("ExternalStorage Exists: [" & Parent.Name & "/" & Name & "]     IsInitialized: " & tmp.IsInitialized)
    Return ef.IsInitialized
End Sub

'Create a folder
Public Sub MakeDir (Parent As ExternalFile, Name As String) As ExternalFile
    Log("MakeDir: [" & Parent.Name & "/" & Name & "]")
    Return CreateNewDir(Parent, Name)
End Sub

'Check if permission is already granted.
Public Sub HasPermission As Boolean  ' <<<<<< We need to check here if user removed root folder
    Return File.Exists(File.DirInternal, PreviousUriFileName) And File.ReadString(File.DirInternal, PreviousUriFileName).Length > 0
End Sub

'Public Sub IsStorageFolderSelected As Boolean
'    PersistantUri = File.ReadString(File.DirInternal, PreviousUriFileName)
'    If PersistantUri.Length > 0 Then
'        Root = DocumentFileToExternalFile(GetPickedDir(PersistantUri))
'        Log("Root.Length=" & Root.Length)
'    End If
'    Return File.Exists(File.DirInternal, PreviousUriFileName) And (Root.Length > 0)
'End Sub


Attachments

  • ExternalStorageExtras.zip
    19.8 KB · Views: 535
Last edited:
Click to expand...
max123

max123

Well-Known Member
Licensed User
Longtime User
Please reply to my questions, I marked bold.

Erel

Erel

B4X founder
Staff member
Licensed User
Longtime User
max123 said:
- If user not already granted a permisson (so we can show a messagebox to explain that need to select a folder, only if no permisson granted and before Storage.SelectDir)
- If permisson already granted, but user removed the Root folder, eg with a file manager.
Click to expand...
You cannot access an external folder before the user has explicitly granted you access.
As demonstrated in the example: https://www.b4x.com/android/forum/threads/externalstorage-access-sd-cards-and-usb-sticks.90238/ there is an option to try to use the previously selected folder. If the folder no longer exist then the folder picker dialog will appear again.

max123

max123

Well-Known Member
Licensed User
Longtime User
Thanks for reply,

I know that if the folder no longer exist then the folder picker dialog will appear again, and in SelectDir there is an option to reuse or not the previous folder.

The picker will show, but I need to show a messagebox that explain user that need to create and select the app folder, just a first time if permissions not already granted or if permissions already granted but user removed manually the folder.

Last edited:
J

jjveloso

Member
Licensed User
Longtime User
Hello Max123
some days ago I opened a thread called

Problems with SQL, external storage and Android 14​

After having some tipical problems of access to the external storage I read your thead and the one of Erel
https://www.b4x.com/android/forum/threads/externalstorage-access-sd-cards-and-usb-sticks.90238/
As a result of this, my problem was solved.

Looking both threads, I could see that they are complementary, so I thought that could be a good idea putting them thogether (with some small code from my side) and convert all in a Library that anyone could use.
I contacted Erel and he agreed to include his code into that possible library, now a would like to contact you, to check if you also agree introducing your code into this library.
The library could have the name all you want (externalstorage2.b4xlib, for example, or whatever you want).
The only thing I could add is a code to make exactly the opposite of one of yours
its name is Copyfilefromexternalstorage.
Personaly I only want to mix codes to make a libray that anybody can use. Yours (both of you) is the 99% of code.

Please tell me your opinion about

Sorry, as I do not know how to contact directly with you, I use your thread.

Thanks

max123

max123

Well-Known Member
Licensed User
Longtime User

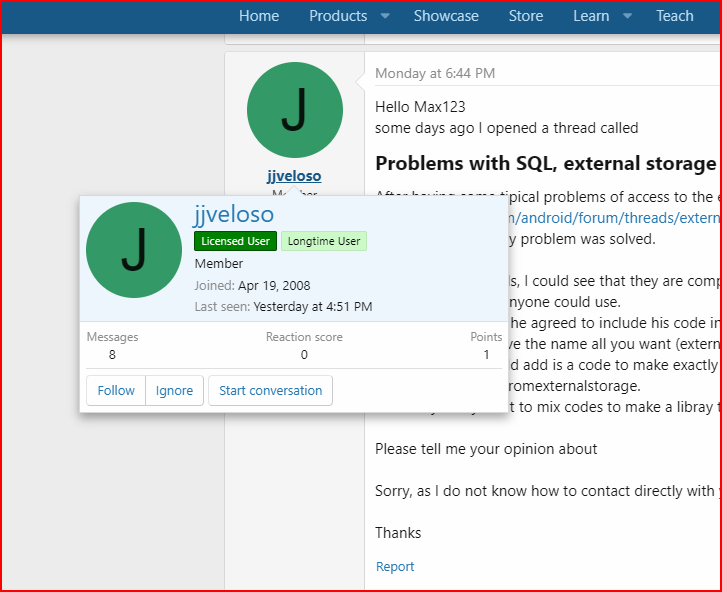

Hi @jjveloso , please send me a private message.
On my user icon just do a 'Start conversation'.


Attachments

  • Today.png
    56.5 KB · Views: 123
Last edited:
You must log in or register to reply here.
Top
