B4R Code Snippet GFX and Bitmaps

Discussion in 'B4R Code Snippets' started by Erel, May 25, 2017.

  1. Erel

    Erel Administrator Staff Member Licensed User

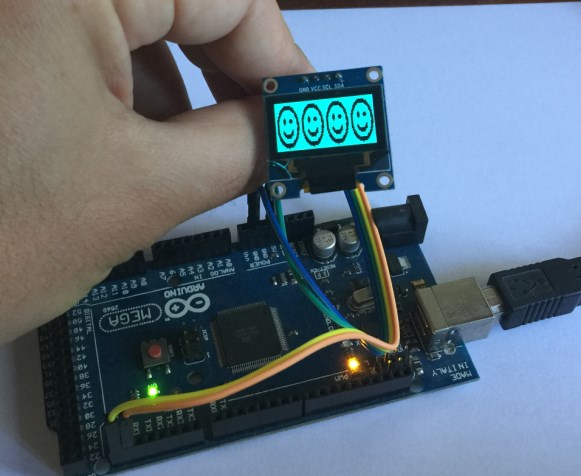

    This code uses inline C to store 1-bit bitmaps in the program code (PROGMEM) and draws them with the rAdafruitGFX library.

    You can use this tool to generate the bitmaps data: https://github.com/ehubin/Adafruit-GFX-Library/blob/master/Img2Code/Image2Code.jar

    [​IMG]

    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private ssd As AdafruitSSD1306

    Private bmpx, bmpy As Int 'ignore
       Private imageWidth, imageHeight As Int 'ignore
    End Sub


    Private Sub AppStart
       Serial1.Initialize(
    115200)

    Log("AppStart")
       ssd.InitializeI2C(
    40x3c)
       ssd.ClearDisplay

    For i = 0 To 3
         DrawBitmap(
    32 * i, 03232)

    Next
    End Sub

    Private Sub DrawBitmap(x As Int, y As Int, Width As Int, Height As Int)
       bmpx = x
       bmpy = y
       imageWidth = Width
       imageHeight = Height
       RunNative(
    "drawBitmap", ssd.GFX)
       ssd.Display
    End Sub

    #if C
    #include <avr/pgmspace.h>

    static const unsigned char PROGMEM bmp1[] =
    {
    0xff,0xff,0xff,0xff,
    0xff,0xff,0xff,0xff,
    0xff,0xe0,0x7,0xff,
    0xff,0x80,0x0,0xff,
    0xfe,0x0,0x0,0x7f,
    0xfc,0xf,0xf0,0x3f,
    0xf8,0x3f,0xfc,0x1f,
    0xf8,0x7f,0xff,0xf,
    0xf0,0xff,0xff,0x87,
    0xe1,0xff,0xff,0x87,
    0xe3,0xe7,0xff,0xc3,
    0xc3,0xc3,0xc3,0xe3,
    0xc7,0xc3,0x81,0xe3,
    0xc7,0xc3,0xc3,0xe1,
    0xc7,0xe7,0xff,0xe1,
    0xc7,0xff,0xff,0xf1,
    0xc7,0xff,0xff,0xf1,
    0xc7,0xff,0xff,0xe1,
    0xc7,0xdf,0xf9,0xe1,
    0xc7,0x8f,0xf1,0xe3,
    0xc3,0x87,0xe1,0xe3,
    0xe3,0xc0,0x1,0xc3,
    0xe1,0xe0,0x7,0xc7,
    0xf0,0xf8,0xf,0x87,
    0xf0,0x7f,0xff,0xf,
    0xf8,0x3f,0xfc,0x1f,
    0xfc,0xf,0xf8,0x3f,
    0xfe,0x0,0x0,0x7f,
    0xff,0x80,0x0,0xff,
    0xff,0xe0,0x3,0xff,
    0xff,0xfe,0x7f,0xff,
    0xff,0xff,0xff,0xff
    };

    void drawBitmap(B4R::Object* o) {
       B4R::B4RAdafruitGFX* bgfx = (B4R::B4RAdafruitGFX*)o->data.PointerField;
       bgfx->gfx->drawBitmap(b4r_main::_bmpx, b4r_main::_bmpy, bmp1,b4r_main::_imagewidth
          , b4r_main::_imageheight, 1);
    }
    #End If
    If you need to draw different bitmaps then duplicate the drawBitmap C method and change bmp1.

  2. Peter Simpson

    Peter Simpson Expert Licensed User

    Cheer for this code @Erel.
    I was using "LCDAssistant.exe" for converting monochromatic bitmaps files to data arrays. But after trying Image2Code.jar I've decided swapped over to it :)

    Mostez likes this.
  3. Erel

    Erel Administrator Staff Member Licensed User

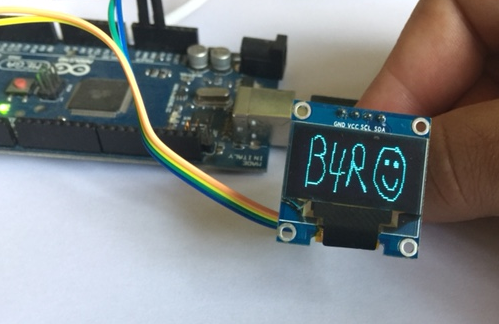

    Now with a better image:
    [​IMG]

    Johan Hormaza, gvoulg, Mostez and 3 others like this.
  4. Peter Simpson

    Peter Simpson Expert Licensed User

    The perfect image, cheers...

    demasi and Erel like this.
  5. Cableguy

    Cableguy Expert Licensed User

    Can this same approach be used with 256 Color bitmaps?
    I have found a few online converters but can't get them to compile

  6. Erel

    Erel Administrator Staff Member Licensed User

    Cableguy likes this.
