B4J Question How? Correct crossplatform mouse object moving (dragging) by _Touch event

peacemaker

Expert
Licensed User
Longtime User
HI, All

Please, help to understand how to just make correct dragging the B4XView-object manually by a mouse.
The project is attached. It will be shared to any forummates when ready - it's the template of the vector objects editor.

How to make smooth dragging along the cursor ? And without going out the parent (screen).
Now coordinates during the dragging is sometimes changed back.


Attachments

  • b4xVectEdit_v0.11.zip
    14 KB · Views: 96
Last edited:
Solution
And now with grid and boundaries:
B4X:
#if B4A
Private Sub mRoot_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean
#else
Private Sub mRoot_Touch (Action As Int, X As Float, Y As Float)
#end if
    If Action = mRoot.TOUCH_ACTION_DOWN Then
        Dragging = True
        DownX = X
        DownY = Y
    Else If Action = mRoot.TOUCH_ACTION_UP Then
        Dragging = False
    Else If Dragging And Action = mRoot.TOUCH_ACTION_MOVE Then
        mRoot.Left = Max(0, Min(mRoot.Parent.Width - mRoot.Width, ApplyGrid(mRoot.Left + X - DownX)))
        mRoot.Top = Max(0, Min(mRoot.Parent.Height - mRoot.Height, ApplyGrid(mRoot.Top + Y - DownY)))
    End If
    #if B4A
    Return True
    #end if
End Sub

Private Sub...

Erel

B4X founder
Staff member
Licensed User
Longtime User
There are several libraries in the forum that handle dragging.

You will get smooth movement with this code:
B4X:
Private Sub mRoot_Touch (Action As Int, X As Float, Y As Float)
    If Action = mRoot.TOUCH_ACTION_DOWN Then
        Dragging = True
        DownX = X
        DownY = Y
    Else If Action = mRoot.TOUCH_ACTION_UP Then
        Dragging = False
    Else If Dragging And Action = mRoot.TOUCH_ACTION_MOVE Then
        'If mRoot.Left + mRoot.Width <= mParent.Width Then
        mRoot.Left = mRoot.Left + X - DownX
        mRoot.Top = mRoot.Top + Y - DownY
    End If
End Sub

Upvote 0

peacemaker

Expert
Licensed User
Longtime User
Thanks, Erel. But this code works only in B4J smoothly.
In B4A - it's strange circled dragging.

Upvote 0

peacemaker

Expert
Licensed User
Longtime User
Hmm, so _Touch event is not cross-platform ? But it works, in whole...

I see that Android sub signature is different
B4X:
Private Sub Panel1_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean

Or what the trouble here to make similar crossplatform working ?

Upvote 0

Erel

B4X founder
Staff member
Licensed User
Longtime User
B4X:
    #if B4A
    Dim r As Reflector
    r.Target = mRoot
    r.SetOnTouchListener("mRoot_Touch")
    #end if
End Sub


#if B4A
Private Sub mRoot_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean
#else
Private Sub mRoot_Touch (Action As Int, X As Float, Y As Float)
#end if
    If Action = mRoot.TOUCH_ACTION_DOWN Then
        Dragging = True
        DownX = X
        DownY = Y
    Else If Action = mRoot.TOUCH_ACTION_UP Then
        Dragging = False
    Else If Dragging And Action = mRoot.TOUCH_ACTION_MOVE Then
        'If mRoot.Left + mRoot.Width <= mParent.Width Then
        mRoot.Left = mRoot.Left + X - DownX
        mRoot.Top = mRoot.Top + Y - DownY
    End If
    #if B4A
    Return True
    #end if
End Sub

Upvote 0

Erel

B4X founder
Staff member
Licensed User
Longtime User
And now with grid and boundaries:
B4X:
#if B4A
Private Sub mRoot_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean
#else
Private Sub mRoot_Touch (Action As Int, X As Float, Y As Float)
#end if
    If Action = mRoot.TOUCH_ACTION_DOWN Then
        Dragging = True
        DownX = X
        DownY = Y
    Else If Action = mRoot.TOUCH_ACTION_UP Then
        Dragging = False
    Else If Dragging And Action = mRoot.TOUCH_ACTION_MOVE Then
        mRoot.Left = Max(0, Min(mRoot.Parent.Width - mRoot.Width, ApplyGrid(mRoot.Left + X - DownX)))
        mRoot.Top = Max(0, Min(mRoot.Parent.Height - mRoot.Height, ApplyGrid(mRoot.Top + Y - DownY)))
    End If
    #if B4A
    Return True
    #end if
End Sub

Private Sub ApplyGrid (x As Int) As Int
    If GridSize > 0 Then
        Return x - (x Mod GridSize)
    End If
    Return x
End Sub

Private GridSize As Int = 10dip

Upvote 0
Solution

peacemaker

Expert
Licensed User
Longtime User

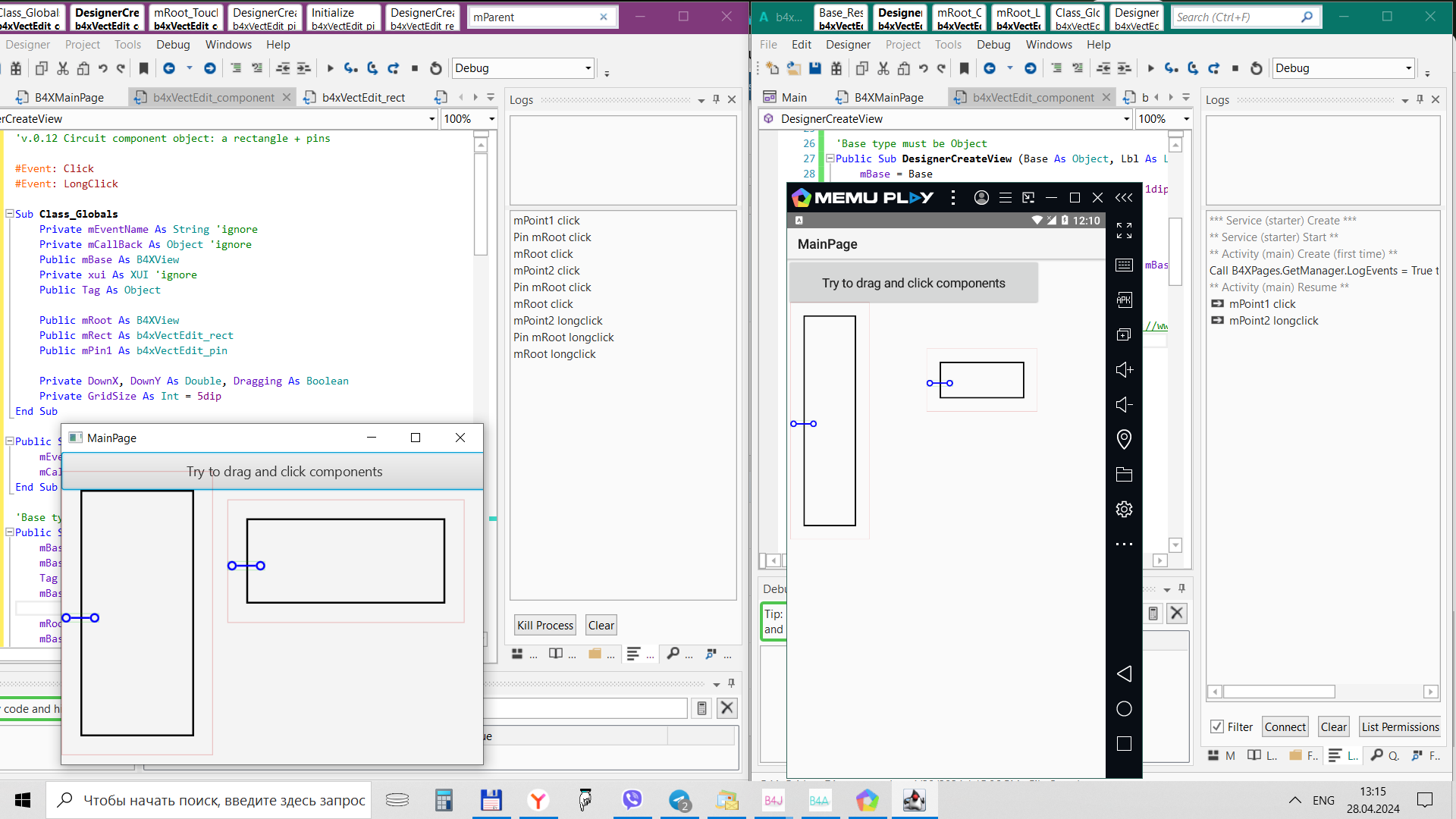

So, draggin is solved.

p.s. but in B4A, it seems, mRoot_Click and mRoot_LongClick are broken now, solving


Attachments

  • TempDownload.png
    207.6 KB · Views: 86
Last edited:
  • Like
Reactions: byz
Upvote 0

peacemaker

Expert
Licensed User
Longtime User
The final (for dragging, clicks) project v.0.13 is attached.


B4X:
Sub Class_Globals
...
    Private DownX, DownY As Double, Dragging As Boolean, DraggingStart As Long
    Private GridSize As Int = 5dip
End Sub

#if B4A
Private Sub mRoot_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean
#else
Private Sub mRoot_Touch (Action As Int, X As Float, Y As Float)
#end if
    If Action = mRoot.TOUCH_ACTION_DOWN Then
        Dragging = True
        DraggingStart = DateTime.Now
        DownX = X
        DownY = Y
    Else If Action = mRoot.TOUCH_ACTION_UP Then
        Dragging = False
        #if B4A
            If (DateTime.Now - DraggingStart) > 500 Then
                mRoot_LongClick
            Else
                mRoot_Click
            End If
        #end if
    Else If Dragging And Action = mRoot.TOUCH_ACTION_MOVE Then
        mRoot.Left = Max(0, Min(mRoot.Parent.Width - mRoot.Width, ApplyGrid(mRoot.Left + X - DownX)))
        mRoot.Top = Max(0, Min(mRoot.Parent.Height - mRoot.Height, ApplyGrid(mRoot.Top + Y - DownY)))
    End If
    #if B4A
    Return True
    #end if
End Sub

Private Sub ApplyGrid (x As Int) As Int
    If GridSize > 0 Then
        Return x - (x Mod GridSize)
    End If
    Return x
End Sub


Attachments

  • b4xVectEdit_v0.13.zip
    14.2 KB · Views: 106
Upvote 0
