Android Question How crop with b4xcanvas and a trasparent color?

Discussion in 'Android Questions' started by Alejandro Moyano, Aug 3, 2019.

  1. Alejandro Moyano

    Alejandro Moyano Member Licensed User

    Hi i'm developing a function to mask the sides of a panel.

    The idea is have a function to choose wich corner will be rounded and round it trow a mask, and use it on my projects like this one:


    As you see are three XUIImageButtons (my customview, with the left corner line on) and should be rounded by a mask, i could use the Erel code direcly but im trying to build styling functions to use in all my projects.

    EDIT: as i figure now, it may work for another cases but not like this as the mask will cover the back panel. Anyway the ask remains.

    Im using b4j for kick b4x function develop, it will be used on b4a.

    After start to work base on this Erel code base: https://www.b4x.com/android/forum/threads/panel-views-rounded-corners.69949/ but i can't apply the transparent color.

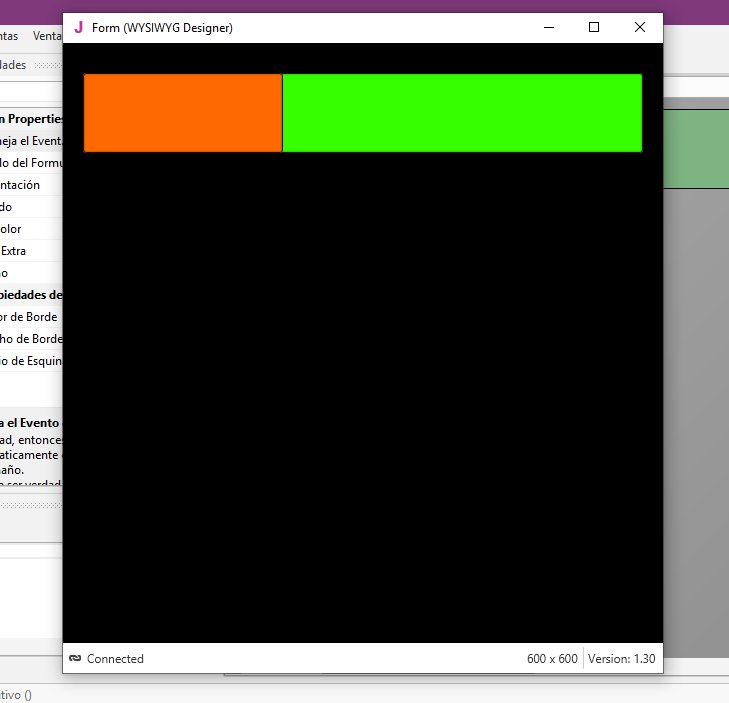

    This is the form image:

    and on execution:

    It should show an orange arc one the top corner but doesn't , am i doing somethig bad?

    Here is the code:
    Code:
    Sub Class_Globals

    Private fx As JFX

    Private xui As XUI

    Private mBase As B4XView

    Private canvas As B4XView

    Private radius As Int = 20dip

    Private BackgroundColor As Int = xui.Color_Red

    'Private mask As B4XCanvas
    End Sub

    'Initializes the object. You can add parameters to this method if needed.
    Public Sub Initialize(base As B4XView)
        mBase = base
        mBase.LoadLayout(
    "1")

    canvas.AddView(CreateMask(canvas.Height,canvas.Width),0,0,canvas.Width,canvas.Height)
    End Sub


    'returns the equivalente an imageview witha bmp
    Private Sub CreateMask(Height As Int, Width As Int) As B4XView

    Dim mask As B4XCanvas
        mask.Initialize(CreatePane)
        mask.Resize(Width,Height)


    'paint
        Dim p_left_top, p_left_bottom As B4XPath

    Dim r,r2 As B4XRect
        r.Initialize(
    00, Width, Height)
        r2.Initialize(
    00, Width, Height)


    'background
        mask.DrawRect(r,BackgroundColor,True,1dip)
        mask.Invalidate


    'left-top corner
        p_left_top.InitializeArc(radius,radius,radius,180,90)
        mask.ClipPath(p_left_top)
        mask.DrawRect(r2,xui.Color_Transparent,
    True,1dip)

    'mask.DrawPath(p_left_top,xui.Color_Green,True,1dip)


    'commit painting, get the bitmap and create the imageview
        mask.Invalidate

    Dim bmp As B4XBitmap = mask.CreateBitmap

    Dim pane As B4XView = CreateImagePane(Height,Width)

    pane.SetBitmap(bmp)

    Return pane
    End Sub

    'create a pane from the primitives
    Private Sub CreatePane As B4XView

    #If b4a

    'nada
        #Else if b4j

    Dim pane As Pane

    pane.Initialize("")

    Return pane

    #End If
    End Sub

    'create a pane from the primitives width sizes
    Private Sub CreateImagePane(Height As Int, Width As Int) As B4XView

    #If b4a

    'nada
        #Else if b4j

    Dim pane As ImageView

    pane.Initialize("")

    pane.SetSize(Width,Height)

    Return pane

    #End If
    End Sub


    Attached Files:

    Last edited: Aug 3, 2019
    swamisantosh likes this.
  2. Erel

    Erel Administrator Staff Member Licensed User

    1. Remove CreatePane and use XUI.CreatePanel.

    2. Post an example of an input image and the expected output.

  3. Alejandro Moyano

    Alejandro Moyano Member Licensed User

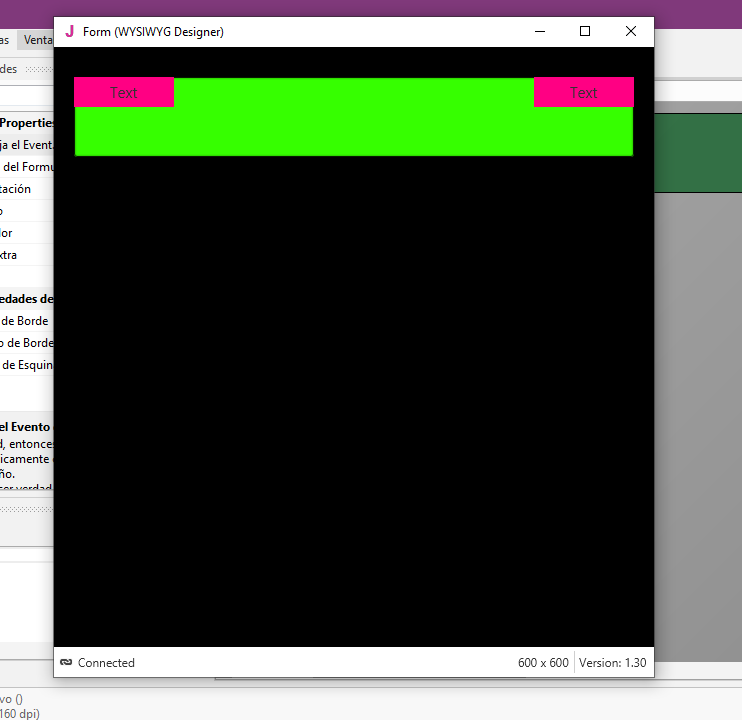

    The layout:

    How should looks:

    How looks at runtime:
    how _looks_at_runtime.PNG

    The function to be used to mask the panel:
    Code:
    Sub Class_Globals

    Private fx As JFX

    Private xui As XUI

    Private mBase As B4XView

    Private canvas As B4XView

    'Private mask As B4XCanvas
    End Sub

    'Initializes the object. You can add parameters to this method if needed.
    Public Sub Initialize(base As B4XView)
        mBase = base
        mBase.LoadLayout(
    "1")

    canvas.AddView(CreateMask(canvas.Height,canvas.Width,True,True,False,False, xui.Color_Black,20dip),0,0,canvas.Width,canvas.Height)
    End Sub


    'returns an imageview with a bmp mask of the selected corners
    'size of the canvas, the selected corners, backgound color and the radius
    'doesn't work and when i resize the mask, in androy may work great as the activity is recreated, not in b4i and b4j
    Private Sub CreateMask(Height As Int, Width As Int, top_left As Boolean, _
                            top_rigth
    As Boolean, bottom_left As Boolean, bottom_right As Boolean, BackgroundColor As Int, radius As Int) As B4XView

    Dim mask As B4XCanvas
        mask.Initialize(xui.CreatePanel(
    ""))
        mask.Resize(Width,Height)


    'paint
        Dim p_left_top, p_left_bottom, p_right_top, p_right_bottom, p_medium_square, p_larger_square As B4XPath

    Dim r, medium_square, larger_square As B4XRect
        r.Initialize(
    00, Width, Height)


    'background
        mask.DrawRect(r,BackgroundColor,True,1dip)


    'left-top corner
        If top_left Then
            p_left_top.InitializeArc(radius,radius,radius,
    180,90)
            mask.ClipPath(p_left_top)
    '<-- i Try To crop instead paint, but doesnt work.
            'mask.DrawPath(p_left_top,xui.Color_Green,True,1dip)
        Else
            p_left_top.InitializeArc(radius,radius,radius*
    2,180,90' <- i does this instead pain an square with rect
            mask.ClipPath(p_left_top) '<-- i Try To crop instead paint, but doesnt work.
            'mask.DrawPath(p_left_top,xui.Color_Green,True,1dip)
        End If


    'left-bottom
        If bottom_left Then
            p_left_bottom.InitializeArc(radius,Height-radius,radius,
    90,90)
            mask.ClipPath(p_left_bottom)
    '<-- i try to crop instead paint, but doesnt work.
            'mask.DrawPath(p_left_bottom,xui.Color_Green,True,1dip)
        Else
            p_left_bottom.InitializeArc(radius,Height-radius,radius*
    2,90,90)
            mask.ClipPath(p_left_bottom)
    ' <-- i try to crop instead paint, but doesnt work.
            'mask.DrawPath(p_left_bottom,xui.Color_Green,True,1dip)
        End If


    'right-top corner
        If top_rigth Then
            p_right_top.InitializeArc(Width-radius,radius,radius,
    270,90)
            mask.ClipPath(p_right_top)
    '<-- i try to crop instead paint, but doesnt work.
            'mask.DrawPath(p_right_top,xui.Color_Green,True,1dip)
        Else
            p_right_top.InitializeArc(Width-radius,radius,radius*
    2,270,90)
            mask.ClipPath(p_right_top)
    '<-- i try to crop instead paint, but doesnt work.
            'mask.DrawPath(p_right_top,xui.Color_Green,True,1dip)
        End If


    'right-bottom corner
        If bottom_right Then
            p_right_bottom.InitializeArc(Width-radius,Height-radius,radius,
    0,90)
            mask.ClipPath(p_right_bottom)
    '<-- i try to crop instead paint, but doesnt work.
            'mask.DrawPath(p_right_bottom,xui.Color_Green,True,1dip)
        Else
            p_right_bottom.InitializeArc(Width-radius,Height-radius,radius*
    2,0,90)
            mask.ClipPath(p_right_bottom)
    '<-- i try to crop instead paint, but doesnt work.
            'mask.DrawPath(p_right_bottom,xui.Color_Green,True,1dip)
        End If



    'medium square
        medium_square.Initialize(0,radius,Width,Height-radius)
        p_medium_square.Initialize(
    0,radius)
        p_medium_square.InitializeRoundedRect(medium_square,
    0)
        mask.ClipPath(p_medium_square)
    '<-- i try to crop instead paint, but doesnt work.
        'mask.DrawPath(p_medium_square,xui.Color_Green,True,1dip)


    'larger square
        larger_square.Initialize(radius,0,Width-radius,Height)
        p_larger_square.Initialize(radius,
    0)
        p_larger_square.InitializeRoundedRect(larger_square,
    0)
        mask.ClipPath(p_larger_square)
    '<-- i try to crop instead paint, but doesnt work.
        'mask.DrawPath(p_larger_square,xui.Color_Green,True,1dip)


    'commit painting, get the bitmap and create the imageview
        mask.Invalidate

    Dim bmp As B4XBitmap = mask.CreateBitmap

    Dim pane As B4XView = CreateImagePanel(Height,Width)

    pane.SetBitmap(bmp)

    Return pane
    End Sub

    'create a panel from the primitives width sizes
    Private Sub CreateImagePanel(Height As Int, Width As Int) As B4XView

    #If b4a

    'nada
        #Else if b4j

    Dim pane As ImageView

    pane.Initialize("")

    pane.SetSize(Width,Height)

    Return pane

    #End If
    End Sub
    Excuses my english, is not my main language but i'm working on it.


    Attached Files:

  4. Erel

    Erel Administrator Staff Member Licensed User

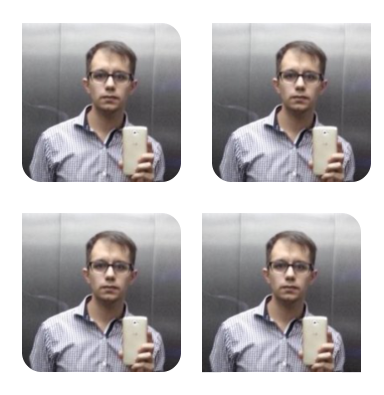

    I hope that this will help you:

    [​IMG]

    Code:
    Sub AppStart (Form1 As Form, Args() As String)
       MainForm = Form1
       MainForm.RootPane.LoadLayout(
    "1"'Load the layout file.
       MainForm.Show

    Dim bmp As B4XBitmap = xui.LoadBitmapResize(File.DirAssets, "114867.jpg", ImageView1.Width, ImageView1.Height, False)
       ImageView1.SetBitmap(MakeRoundCorners(bmp,
    FalseTrueTrueTrue20dip))
       ImageView2.SetBitmap(MakeRoundCorners(bmp,
    FalseTrueTrueTrue20dip))
       ImageView3.SetBitmap(MakeRoundCorners(bmp,
    FalseFalseTrueTrue20dip))
       ImageView4.SetBitmap(MakeRoundCorners(bmp,
    FalseTrueFalseFalse20dip))
    End Sub


    Sub MakeRoundCorners(bmp As B4XBitmap, TopLeft As Boolean, TopRight As Boolean, BottomLeft As Boolean, BottomRight As Boolean, Radius As Int) As B4XBitmap

    Dim bcbrush As BitmapCreator
       bcbrush.Initialize(bmp.Width, bmp.Height)
       bcbrush.CopyPixelsFromBitmap(bmp)

    Dim bc As BitmapCreator
       bc.Initialize(bmp.Width +
    1, bmp.Height + 1)

    Dim brush As BCBrush = bcbrush.CreateBrushFromBitmapCreator(bcbrush)

    Dim r As B4XRect
       r.Initialize(
    00, bc.mWidth - 1, bc.mHeight - 1)
       bc.DrawRectRounded2(r, brush,
    True0, Radius)

    If TopLeft = False Then
           r.Initialize(
    00, Radius, Radius)
           bc.DrawRect2(r, brush,
    True0)

    End If

    If TopRight = False Then
           r.Initialize(bc.mWidth - Radius,
    0 , bc.mWidth, Radius)
           bc.DrawRect2(r, brush,
    True0)

    End If

    If BottomRight = False Then
           r.Initialize(bc.mWidth - Radius, bc.mHeight - Radius , bc.mWidth, bc.mHeight)
           bc.DrawRect2(r, brush,
    True0)

    End If

    If BottomLeft = False Then
           r.Initialize(
    0, bc.mHeight - Radius, Radius, bc.mHeight)
           bc.DrawRect2(r, brush,
    True0)

    End If

    Return bc.Bitmap
    End Sub

    Alejandro Moyano and DonManfred like this.
  5. Alejandro Moyano

    Alejandro Moyano Member Licensed User

    TXS @Erel your support i amazing kickly i never got it i any other product!!

    Erel likes this.
