Games How does the x2 Object Type work in Tiled?

Discussion in 'Game Development' started by Computersmith64, Sep 27, 2018.

  1. Computersmith64

    Computersmith64 Well-Known Member Licensed User

    I don't understand how to use the x2 object type. I've created a new map (using a "roads" tileset that I have) & imported the x2 Object Type, but I can't figure out how to associate it with the map. When I look at the map that came with the example (map1.json) it shows an object layer (ObjectLayer1) with a sub-layer (x2) - but I can't seem to get that in my map.

    - Colin.

  2. Erel

    Erel Administrator Staff Member Licensed User

    It takes some time to get used to Tiled editor. Overall it is quite simple to use.

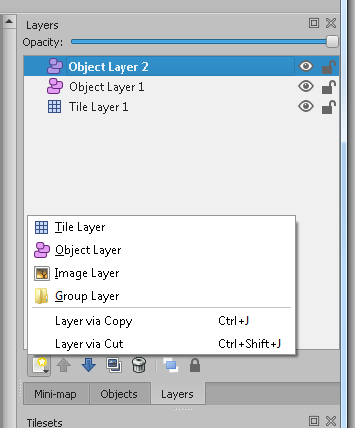

    1. Add an object layer:

    [​IMG]

    2. Add objects and change their type to x2.
    If everything is configured properly then you should now see the list of custom properties.

  3. Computersmith64

    Computersmith64 Well-Known Member Licensed User

    Thanks Erel - so every object on the map must be x2?

    - Colin.

  4. Erel

    Erel Administrator Staff Member Licensed User

    Yes*

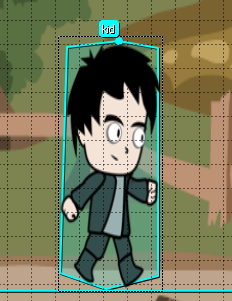

    * Other objects will be ignored. This is useful if you want to add objects based on Tile images and then add a x2 object with the same shape. You can see it in many of the examples.
    [​IMG]

    Computersmith64 likes this.
