B4J Question is Possible Jserver as Websocket Server for OCPP16 ?

[iyan]

Hi guys,

is it possible implement websocket-server for ocpp in b4j ?
info: client send non-standard map/json payload data b4j,

example pdu code (payload) client :

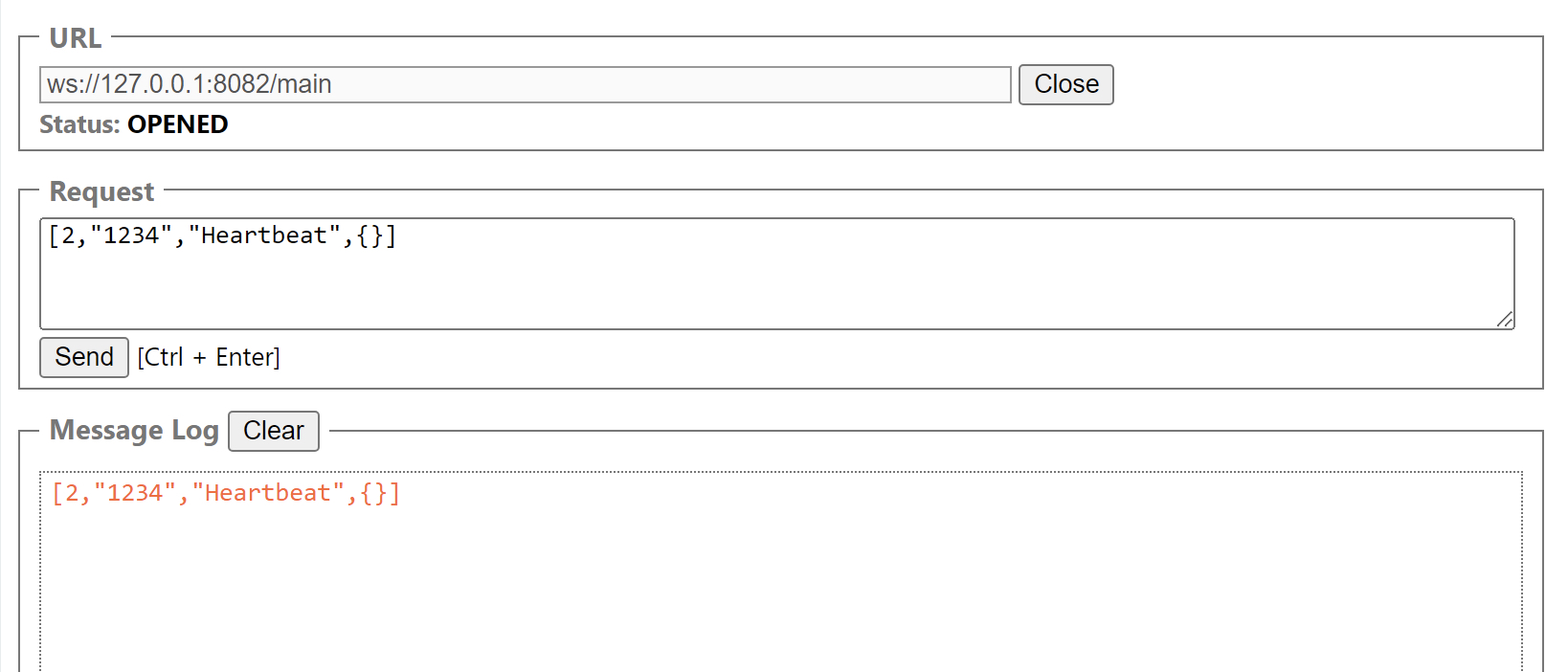

[2,"1234","Heartbeat",{}]

[2,"1235","BootNotification",{"chargePointVendor":"DELTA","chargePointModel":"ACMAX","chargePointSerialNumber":""}]

error test b4j server :

2022-12-26 11:01:19.865:INFO:oejs.Server:main: Started @1097ms
Emulated network latency: 100ms
java.lang.RuntimeException: JSON Object expected.
    at anywheresoftware.b4j.objects.collections.JSONParser.NextObject(JSONParser.java:67)
    at anywheresoftware.b4j.object.WebSocketModule$Adapter.onWebSocketText(WebSocketModule.java:110)
    at org.eclipse.jetty.websocket.common.events.JettyListenerEventDriver.onTextMessage(JettyListenerEventDriver.java:189)
    at org.eclipse.jetty.websocket.common.message.SimpleTextMessage.messageComplete(SimpleTextMessage.java:69)
    at org.eclipse.jetty.websocket.common.events.AbstractEventDriver.appendMessage(AbstractEventDriver.java:66)
    at org.eclipse.jetty.websocket.common.events.JettyListenerEventDriver.onTextFrame(JettyListenerEventDriver.java:158)
    at org.eclipse.jetty.websocket.common.events.AbstractEventDriver.incomingFrame(AbstractEventDriver.java:162)
    at org.eclipse.jetty.websocket.common.WebSocketSession.incomingFrame(WebSocketSession.java:476)
    at org.eclipse.jetty.websocket.common.extensions.AbstractExtension.nextIncomingFrame(AbstractExtension.java:183)
    at org.eclipse.jetty.websocket.common.extensions.compress.PerMessageDeflateExtension.nextIncomingFrame(PerMessageDeflateExtension.java:105)
    at org.eclipse.jetty.websocket.common.extensions.compress.CompressExtension.forwardIncoming(CompressExtension.java:143)
    at org.eclipse.jetty.websocket.common.extensions.compress.PerMessageDeflateExtension.incomingFrame(PerMessageDeflateExtension.java:85)
    at org.eclipse.jetty.websocket.common.extensions.ExtensionStack.incomingFrame(ExtensionStack.java:220)
    at org.eclipse.jetty.websocket.common.Parser.notifyFrame(Parser.java:220)
    at org.eclipse.jetty.websocket.common.Parser.parse(Parser.java:245)
    at org.eclipse.jetty.websocket.common.io.AbstractWebSocketConnection.readParse(AbstractWebSocketConnection.java:560)
    at org.eclipse.jetty.websocket.common.io.AbstractWebSocketConnection.onFillable(AbstractWebSocketConnection.java:391)
    at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:281)
    at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:102)
    at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:118)
    at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:760)
    at org.eclipse.jetty.util.thread.QueuedThreadPool$2.run(QueuedThreadPool.java:678)
    at java.lang.Thread.run(Thread.java:750)
java.lang.RuntimeException: JSON Object expected.
    at anywheresoftware.b4j.objects.collections.JSONParser.NextObject(JSONParser.java:67)
    at anywheresoftware.b4j.object.WebSocketModule$Adapter.onWebSocketText(WebSocketModule.java:110)
    at org.eclipse.jetty.websocket.common.events.JettyListenerEventDriver.onTextMessage(JettyListenerEventDriver.java:189)
    at org.eclipse.jetty.websocket.common.message.SimpleTextMessage.messageComplete(SimpleTextMessage.java:69)
    at org.eclipse.jetty.websocket.common.events.AbstractEventDriver.appendMessage(AbstractEventDriver.java:66)
    at org.eclipse.jetty.websocket.common.events.JettyListenerEventDriver.onTextFrame(JettyListenerEventDriver.java:158)
    at org.eclipse.jetty.websocket.common.events.AbstractEventDriver.incomingFrame(AbstractEventDriver.java:162)
    at org.eclipse.jetty.websocket.common.WebSocketSession.incomingFrame(WebSocketSession.java:476)
    at org.eclipse.jetty.websocket.common.extensions.AbstractExtension.nextIncomingFrame(AbstractExtension.java:183)
    at org.eclipse.jetty.websocket.common.extensions.compress.PerMessageDeflateExtension.nextIncomingFrame(PerMessageDeflateExtension.java:105)
    at org.eclipse.jetty.websocket.common.extensions.compress.CompressExtension.forwardIncoming(CompressExtension.java:143)
    at org.eclipse.jetty.websocket.common.extensions.compress.PerMessageDeflateExtension.incomingFrame(PerMessageDeflateExtension.java:85)
    at org.eclipse.jetty.websocket.common.extensions.ExtensionStack.incomingFrame(ExtensionStack.java:220)
    at org.eclipse.jetty.websocket.common.Parser.notifyFrame(Parser.java:220)
    at org.eclipse.jetty.websocket.common.Parser.parse(Parser.java:245)
    at org.eclipse.jetty.websocket.common.io.AbstractWebSocketConnection.readParse(AbstractWebSocketConnection.java:560)
    at org.eclipse.jetty.websocket.common.io.AbstractWebSocketConnection.onFillable(AbstractWebSocketConnection.java:391)
    at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:281)
    at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:102)
    at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:118)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.runTask(EatWhatYouKill.java:333)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.doProduce(EatWhatYouKill.java:310)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.tryProduce(EatWhatYouKill.java:168)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:126)
    at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:366)
    at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:760)
    at org.eclipse.jetty.util.thread.QueuedThreadPool$2.run(QueuedThreadPool.java:678)
    at java.lang.Thread.run(Thread.java:750)

Regards

iyan



[OliverA]

Where is the sample server code that is producing the error?



[iyan]

Where is the sample server code that is producing the error?

Here is the code :

Library : JServer3 v3.00, jCore v9.8 , jdk1.8.0_341

Sub Process_Globals
    Dim srvr As Server

End Sub

Sub AppStart (Args() As String)

     srvr.Initialize("Srvr")
     srvr.AddWebSocket("/main", "clsWsMain")
     srvr.Port = 8082
     srvr.Start


     StartMessageLoop

End Sub

clsWsMain :

'WebSocket class
Sub Class_Globals
    Private ws As WebSocket
End Sub

Public Sub Initialize

End Sub

Private Sub WebSocket_Connected (WebSocket1 As WebSocket)
    ws = WebSocket1
End Sub

Private Sub WebSocket_Disconnected

End Sub



[OliverA]

For a non-B4X client to communicate with a B4J WebSocket server, the JSON payload must be configured in a particular way. For more information, see Post in thread 'Websocket Server to server data to any websocket client(not b4x)' https://www.b4x.com/android/forum/t...y-websocket-client-not-b4x.124890/post-780000



[iyan]

For a non-B4X client to communicate with a B4J WebSocket server, the JSON payload must be configured in a particular way. For more information, see Post in thread 'Websocket Server to server data to any websocket client(not b4x)' https://www.b4x.com/android/forum/t...y-websocket-client-not-b4x.124890/post-780000

Client is EV (Electric Vehicle) with OCPP standardization, I can't change the format

But anyway, Thanks for the great answer & feedback.

Thanks
