Share My Creation JG USB powered steampunk clock

Discussion in 'Share Your Creations' started by freedom2000, Aug 5, 2018.

  1. freedom2000

    freedom2000 Well-Known Member Licensed User


    Hi,

    Here is my latest creation, yet another clock !

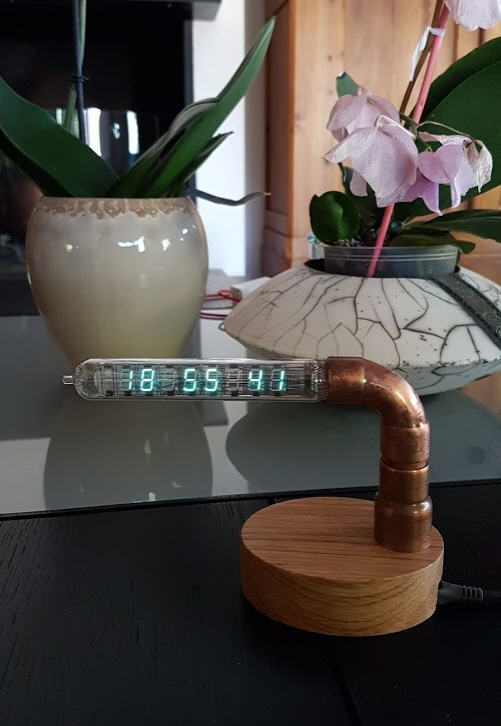

    This one is based on a IV18 VFD tube. You can find a lot of models on ebay.
    This one is a derivation of these !

    It is powered by a simple USB charger or any laptop USB plug. Then a boost converter increases the 5V up to 30V. And an ESP32 does the tricky multiplex of all the digits via an HV5812 driver.

    A B4A App is used to pilot the ESP32 with Bluetooth Low Energy.

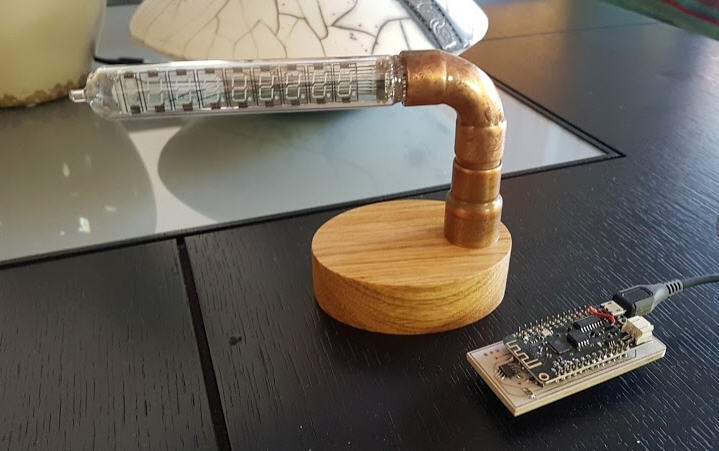

    The design is rather compact.

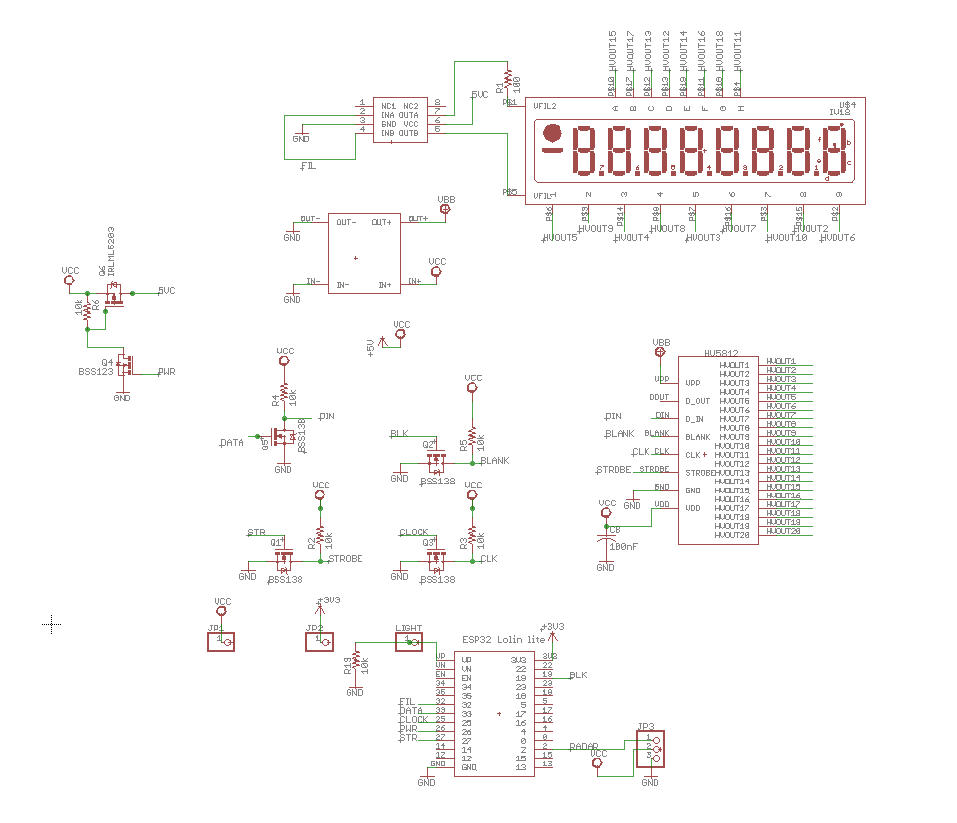

    And the schematics minimalistic !

    Last edited: Aug 5, 2018
    Peter Simpson, Erel, moster67 and 6 others like this.
  2. hookshy

    hookshy Well-Known Member Licensed User

    Nice to create stuffs with b4a

    freedom2000 likes this.
  3. freedom2000

    freedom2000 Well-Known Member Licensed User

    Hi all

    Here is a new design of the same clock.

    Now the IV18 tube is almost floating in the air just above the wooden base.
    A new pcb has been designed leading to a smaller form factor.

    full details here : JP IV18 clock on thingiverse


    Last edited: Feb 25, 2019
