Share My Creation Live Show Timer

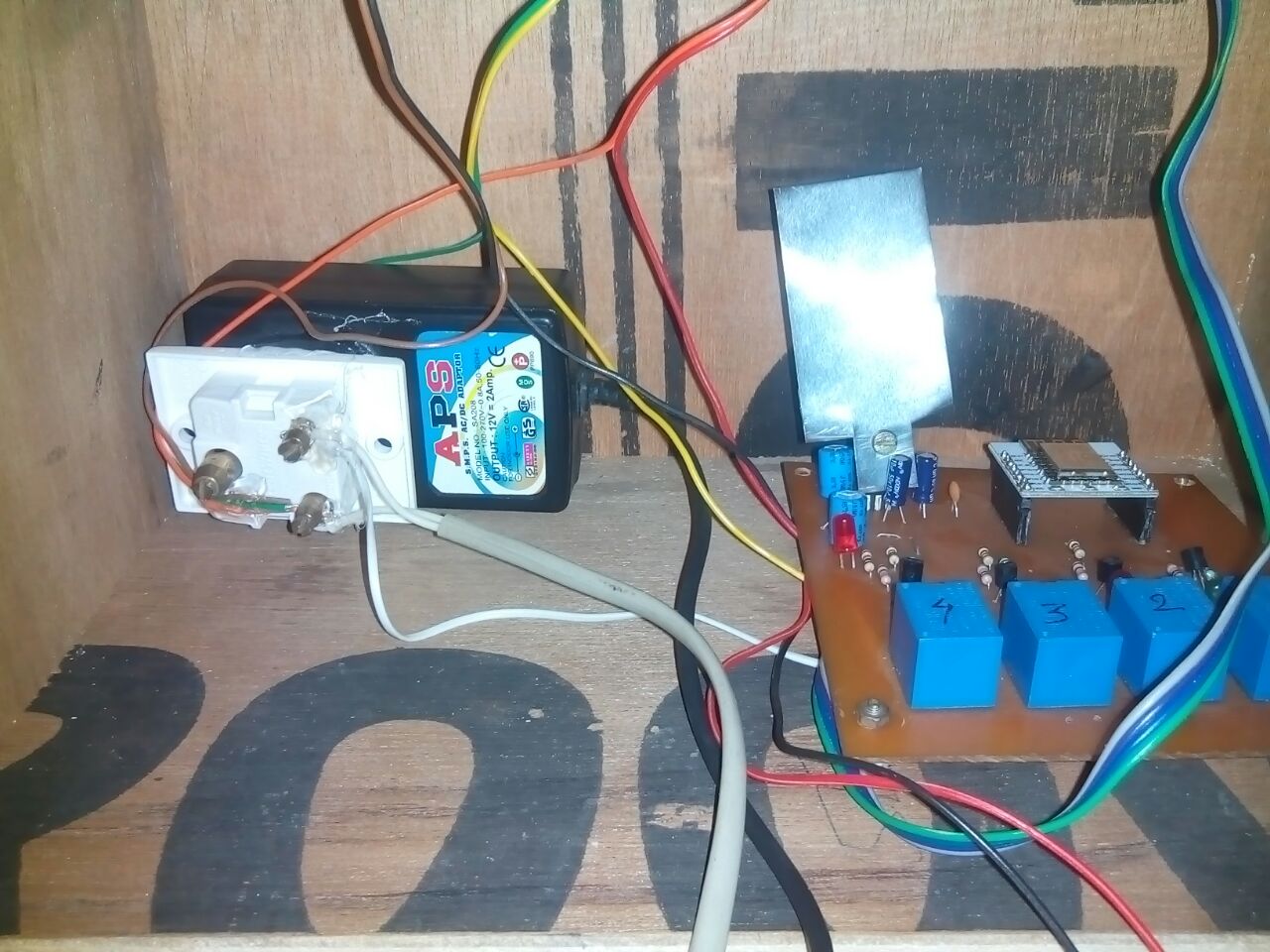

It has two part. One Application Software obviously using B4j & 2nd Hardware part based on Esp8266 12E.
It is used in College and School while organizing various event in which several team are going to be participate. Each event has fixed time given to each team AND THAT time was maintain this machine.

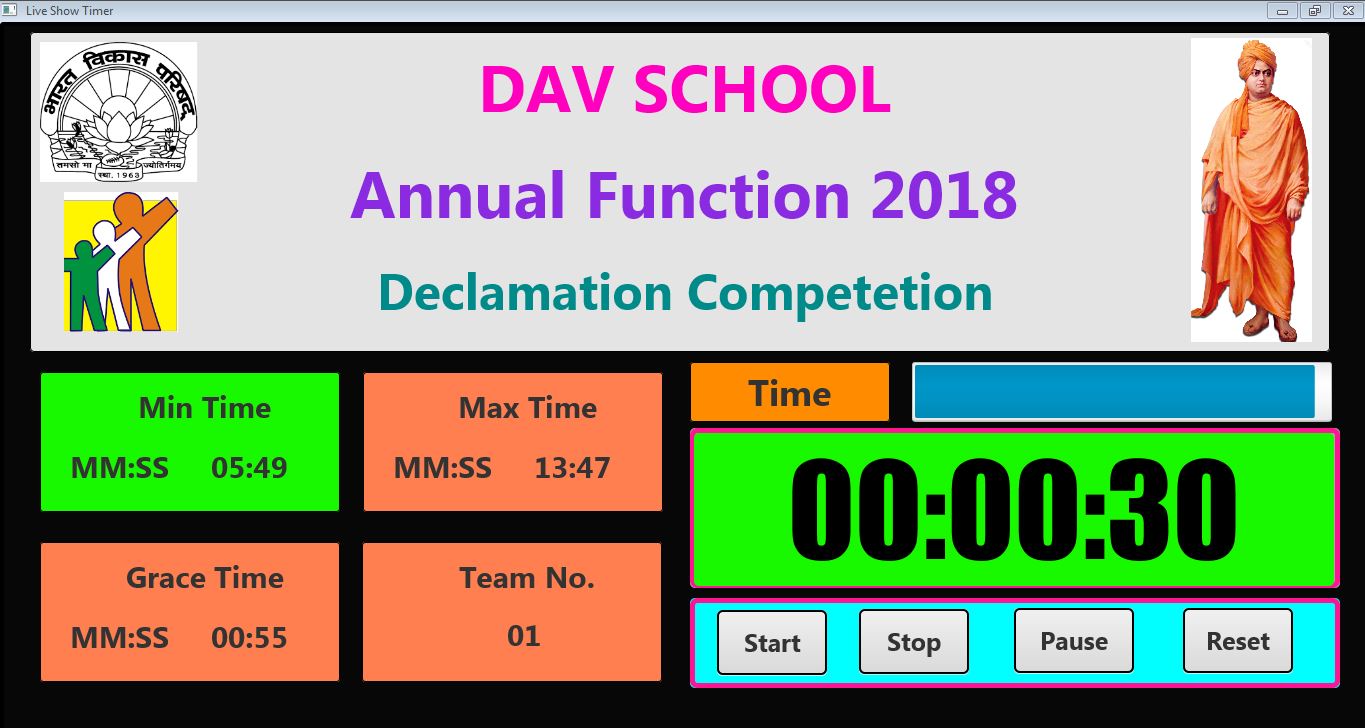

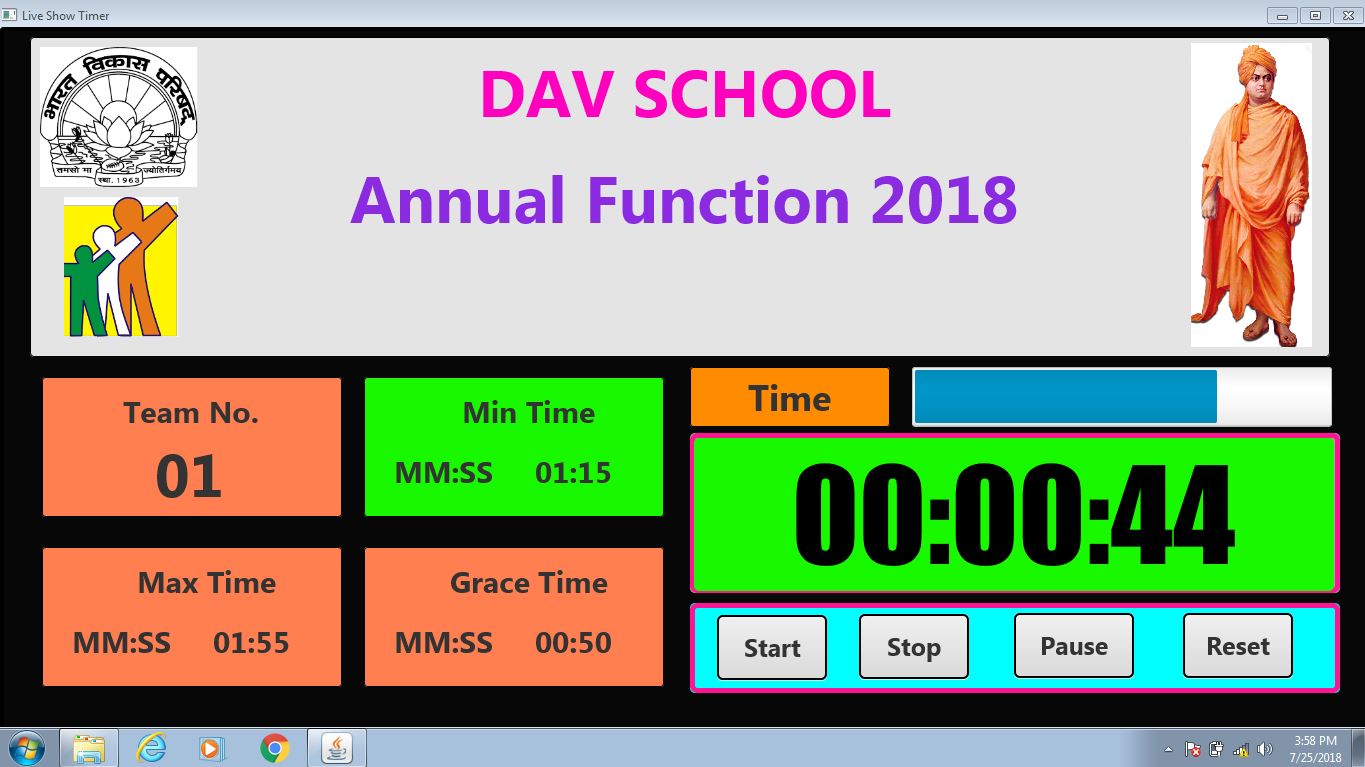

There are three bulb which give info about time by glowing red...yellow..green. On PC time is also displayed Which can be displayed more effectively using projector or LED TV.


Attachments

  • IMG3.jpg
    179.5 KB · Views: 298
  • liveshowtimer2.JPG
    139.8 KB · Views: 321
  • liveshowtimer5.JPG
    140.5 KB · Views: 302
