Android Question Panel As Dialog

[Mike1970]

Hi, i need to have a custom dialog.
I tried the Dialog library loaded with a layout (with a panel), but the dialog has the black borders.



If there is a way to remove the background color from this dialog, i think it's good, but if it's not possilble to do this, i need something that esthetically looks like a panel in front of everything



[Star-Dust]

Hi, i need to have a custom dialog.
I tried the Dialog library loaded with a layout (with a panel), but the dialog has the black borders.

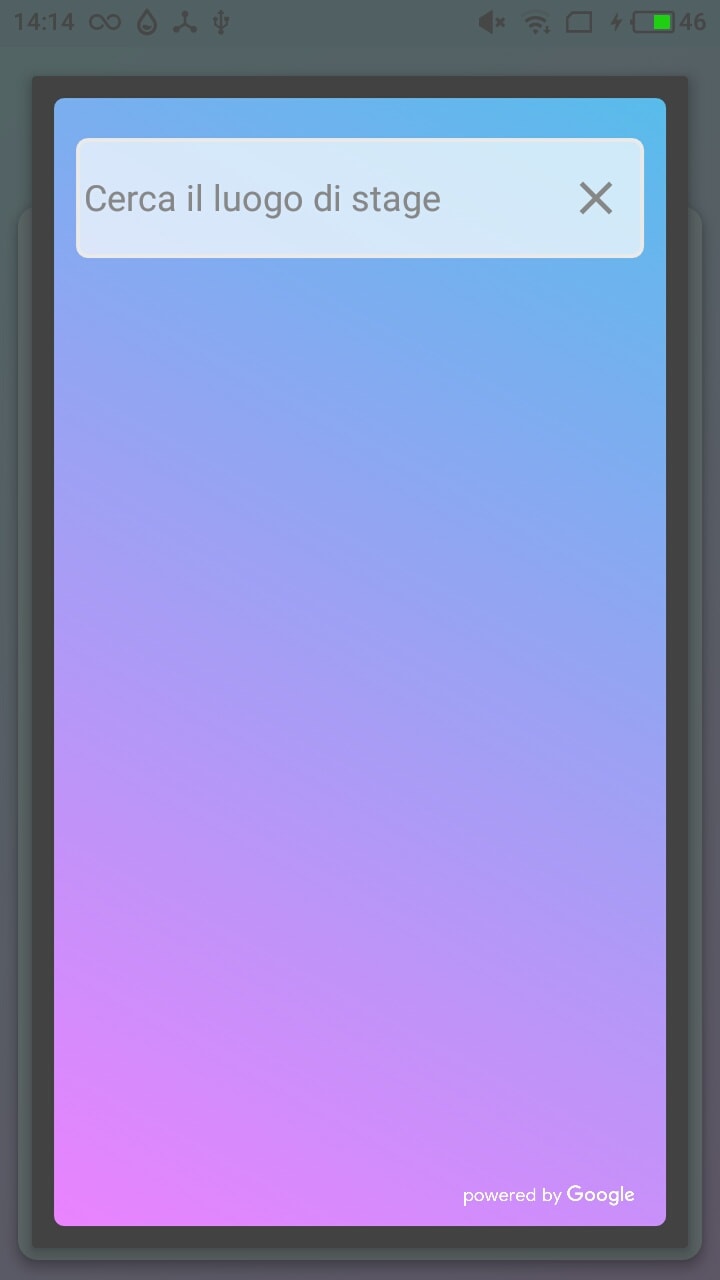

View attachment 80767

If there is a way to remove the background color from this dialog, i think it's good, but if it's not possilble to do this, i need something that esthetically looks like a panel in front of everything

The image is not well is too small, post an image if possible larger.

Anyway it is more useful to see the code you use to give you some suggestions



[Mike1970]

The image is not well is too small, post an image if possible larger.

Sorry, it's a screenshot i should have resize it somehow

Anyway it is more useful to see the code you use to give you some suggestions

Dim cd As CustomLayoutDialog

...

Sub btnImpostaLuogoAUTO_Click
    ShowGP
End Sub

...

Sub ShowGP
    cd.ShowAsync("", "", "", "", Null, True)
    cd.SetSize(100%x, 100%y)

    Wait For Dialog_Ready (DialogPanel As Panel)
    DialogPanel.LoadLayout("GooglePLaces")

    DialogPanel.Color = Colors.ARGB(0,0,0,0)
End Sub

It's technically the same code used in the example of the library:
https://www.b4x.com/android/forum/threads/customlayoutdialog-with-customlistview.82259/#content



[Erel]

Check B4XDialog. It is made of a panel with all kinds of features. You can customize it in many ways.



[DonManfred]

Please do NOT post big images! put it as attachment.



[Mike1970]

Please do NOT post big images! put it as attachment.

done



[Mike1970]

Check B4XDialog. It is made of a panel with all kinds of features. You can customize it in many ways.

I think i already tested in the past that object, but if i'm not wrong the problem was that it doesn't shows in front of everything, anyway I will take another look now



[Erel]

It will show above all other views unless you added a panel with an elevation higher than 4dip (in that case you can easily change the dialog elevation).



[Mike1970]

It will show above all other views unless you added a panel with an elevation higher than 4dip (in that case you can easily change the dialog elevation).

Ok Done! it's perfect i used the B4XDialog, the problem is that when i use the Backbutton it doesn't close the dialog but close the activity



[Star-Dust]

You have to intercept the BACK key in the activity



[Mike1970]

You have to intercept the BACK key in the activity

i tried, it closes anyway

Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
    If ((KeyCode = 269) Or (KeyCode = KeyCodes.KEYCODE_BACK)) And (pnlDialog.Tag == False) Then
        HandleBackKey
    Else If (pnlDialog.Tag == True) Then
        btnOkDialog_Click
        Return False
    Else
        Return True
    End If
End Sub

I saved in the pnlDialog.Tag if the dialog is shown or not (if false is it not shown, if true yes)
then in btnCloseDialog_Click i have:

Sub btnOkDialog_Click
    dialog.Close(DialogResponse.POSITIVE)
    pnlDialog.Tag = False
End Sub

Edit: Before you ask, the sub "HandleBackKey" works properly (it show a classic MsgBoxAsync, if i hit "No" or "Cancel" it doensn't go back), the problem is only with the B4XDialogs



[Star-Dust]

Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
    If ((KeyCode = 269) Or (KeyCode = KeyCodes.KEYCODE_BACK)) And (pnlDialog.Tag == False) Then
        HandleBackKey
        Return True  '<-------------------------------
    Else If (pnlDialog.Tag == True) Then
        btnOkDialog_Click
        Return False
    Else
        Return True
    End If
End Sub



[Mike1970]

Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
    If ((KeyCode = 269) Or (KeyCode = KeyCodes.KEYCODE_BACK)) And (pnlDialog.Tag == False) Then
        HandleBackKey
        Return True  '<-------------------------------
    Else If (pnlDialog.Tag == True) Then
        btnOkDialog_Click
        Return False
    Else
        Return True
    End If
End Sub

ohu, ok better, but now if the dialog is show and i press the backbutton it closes and then it runs the HandleBacKey sub immediatly

Like it pass through the KeyPress event two time, the first closes the dialog (so the tag now is False) and then it pass to the first condition



[Star-Dust]

do something like that, now I can't write you the exact code because I have something else on my hands that I can't leave

If DialogIsOpen=False then HandleBackKey



[Mike1970]

do something like that, now I can't write you the exact code because I have something else on my hands that I can't leave

If DialogIsOpen=False then HandleBackKey

yes, this is the functionality of this if:

 If ((KeyCode = 269) Or (KeyCode = KeyCodes.KEYCODE_BACK)) And (pnlDialog.Tag == False) Then
        HandleBackKey

but it fails



[Star-Dust]

Try it

Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
    If ((KeyCode = 269) Or (KeyCode = KeyCodes.KEYCODE_BACK)) Then
        If (pnlDialog.Tag == False) then
             ' Dialog is Close - Close Activity
             Activity.close
        Else
             ' Dialog is Open - Close Dialog
             btnOkDialog_Click
        End If
        Return True
    Else
        Return False
    End If
End Sub

If the BACK button is intercepted several times, then put a sleep (300) before closing the dialog box.



[Mike1970]

Try it

Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
    If ((KeyCode = 269) Or (KeyCode = KeyCodes.KEYCODE_BACK)) Then
        If (pnlDialog.Tag == False) then
             ' Dialog is Close - Close Activity
             Activity.close
        Else
             ' Dialog is Open - Close Dialog
             btnOkDialog_Click
        End If
        Return True
    Else
        Return False
    End If
End Sub

If the BACK button is intercepted several times, then put a sleep (300) before closing the dialog box.

It's not allowed to put Sleep and Wait For in Activity_KeyPress



[Star-Dust]

there are other methods ... cmq now you have to do it alone



[Mike1970]

there are other methods ... cmq now you have to do it alone

It doens't work, behave like before



[Johan Hormaza]

Try this

Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
    If KeyCode = KeyCodes.KEYCODE_BACK Then
        If dialog.Close(xui.DialogResponse_Cancel) Then Return True
    End If
    Return False
End Sub
