This is a wrap for a PDF-View which is based on PDFium.
It is based on these two Github-Projects: Pdfium and Android PDF-View
The PDF-View is based on Pdfium 1.9
The Library, resp. the Natives inside, are 64bit Compliant btw.
It supports Horizontal and Vertical scrolling, Pagesnap.
PDFium
Author: Bartosz Schiller (Pdfium), DonManfred(wrap)
Version: 1.0
Due to the Size of the native .so Files the library is big (18mb) and can be downloaded from my Dropbox.
The Example is to big (2mb) too so it is available on Dropbox too.
Please respect License if you want to use it in your project.
Linked Tutorials:
- Access to the PDF Pages and create a Bitmap containing a specific Page.
It is based on these two Github-Projects: Pdfium and Android PDF-View
The PDF-View is based on Pdfium 1.9
The Library, resp. the Natives inside, are 64bit Compliant btw.
It supports Horizontal and Vertical scrolling, Pagesnap.
PDFium
Author: Bartosz Schiller (Pdfium), DonManfred(wrap)
Version: 1.0
- Configurator
- Events:
- loadComplete (pages As Int)
- onInitiallyRendered (page As Int)
- onPageChanged (oldPage As Int, newPage As Int)
- PageNum (page As Int)
- Show()
- Functions:
- addLinkHandler As Configurator
- addOnDrawListener As Configurator
- addOnErrorListener As Configurator
- addOnLoadCompleteListener As Configurator
- addOnPageChangeListener As Configurator
- addOnPageErrorListener As Configurator
- addOnPageScrollListener As Configurator
- addOnRenderListener As Configurator
- addOnTapListener As Configurator
- addScrollHandle As Configurator
- autoSpacing (autoSpacing As Boolean) As Configurator
- defaultPage (defaultPage As Int) As Configurator
- enableAnnotationRendering (annotationRendering As Boolean) As Configurator
- enableAntialiasing (antialiasing As Boolean) As Configurator
- enableDoubletap (enableDoubletap As Boolean) As Configurator
- enableSwipe (enableSwipe As Boolean) As Configurator
- IsInitialized As Boolean
- load As Configurator
- nightMode (nightMode As Boolean) As Configurator
- pageFitPolicy (pageFitPolicy As com.github.barteksc.pdfviewer.util.FitPolicy) As Configurator
- pageFling (pageFling As Boolean) As Configurator
- pages (pageNumbers As Int) As Configurator
- pageSnap (pageSnap As Boolean) As Configurator
- password (password As String) As Configurator
- SetEventname (EventName As String)
- spacing (spacing As Int) As Configurator
- swipeHorizontal (swipeHorizontal As Boolean) As Configurator
- addLinkHandler As Configurator
- Events:
- PDFView
- Functions:
- BringToFront
- DesignerCreateView (base As Panel, lw As Label, props As Map)
- doAutoSpacing As Boolean
- doPageFling As Boolean
- doPageSnap As Boolean
- doRenderDuringScale As Boolean
- enableAnnotationRendering (annotationRendering As Boolean)
- enableAntialiasing (enableAntialiasing As Boolean)
- enableRenderDuringScale (renderDuringScale As Boolean)
- fitToWidth (page As Int)
- fromAsset (assetName As String) As com.github.barteksc.pdfviewer.PDFView.Configurator
Use an asset file as the pdf source - fromBytes (bytes As Byte()) As com.github.barteksc.pdfviewer.PDFView.Configurator
Use bytearray as the pdf source, documents is not saved - fromFile (path As String, filename As String) As com.github.barteksc.pdfviewer.PDFView.Configurator
Use a file as the pdf source
path:
filename: - fromSource (docSource As com.github.barteksc.pdfviewer.source.DocumentSource) As com.github.barteksc.pdfviewer.PDFView.Configurator
Use custom source as pdf source - fromStream (stream As java.io.InputStream) As com.github.barteksc.pdfviewer.PDFView.Configurator
Use stream as the pdf source. Stream will be written to bytearray, because native code does not support Java Streams - fromUri (path As String, filename As String) As com.github.barteksc.pdfviewer.PDFView.Configurator
Use URI as the pdf source, for use with content providers - getLinks (page As Int) As java.util.List
Will be empty until document is loaded - getPageAtPositionOffset (positionOffset As Float) As Int
Get page number at given offset
positionOffset: scroll offset between 0 and 1
Return type: @return
age number at given offset, starting from 0 - getPageSize (pageIndex As Int) As com.shockwave.pdfium.util.SizeF
- Initialize (EventName As String)
- Invalidate
- Invalidate2 (arg0 As android.graphics.Rect)
- Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
- IsInitialized As Boolean
- jumpTo (page As Int)
- jumpTo2 (page As Int, withAnimation As Boolean)
Go to the given page.
page: Page index. - loadPages
Load all the parts around the center of the screen,
taking into account X and Y offsets, zoom level, and
the current page displayed - moveRelativeTo (dx As Float, dy As Float)
Move relatively to the current position.
dx: The X difference you want to apply.
dy: The Y difference you want to apply. - moveTo (offsetX As Float, offsetY As Float)
- moveTo2 (offsetX As Float, offsetY As Float, moveHandle As Boolean)
Move to the given X and Y offsets, but check them ahead of time
to be sure not to go outside the the big strip.
offsetX: The big strip X offset to use as the left border of the screen.
offsetY: The big strip Y offset to use as the right border of the screen.
moveHandle: whether to move scroll handle or not - onBitmapRendered (part As com.github.barteksc.pdfviewer.model.PagePart)
Called when a rendering task is over and
a PagePart has been freshly created.
part: The created PagePart. - performPageSnap
Animate to the nearest snapping position for the current SnapPolicy - recycle
- RemoveView
- RequestFocus As Boolean
- resetZoom
- resetZoomWithAnimation
- SendToBack
- SetBackgroundImage (arg0 As android.graphics.Bitmap) As BitmapDrawable
- SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
- SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
- SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
- setPositionOffset2 (progress As Float, moveHandle As Boolean)
progress: must be between 0 and 1
moveHandle: whether to move scroll handle - SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
- stopFling
- toCurrentScale (size As Float) As Float
- toRealScale (size As Float) As Float
- useBestQuality (bestQuality As Boolean)
- zoomCenteredRelativeTo (dzoom As Float, pivot As android.graphics.PointF)
- zoomCenteredTo (zoom As Float, pivot As android.graphics.PointF)
Change the zoom level, relatively to a pivot point.
It will call moveTo() to make sure the given point stays
in the middle of the screen.
zoom: The zoom level.
pivot: The point on the screen that should stays. - zoomTo (zoom As Float)
Change the zoom level - zoomWithAnimation (scale As Float)
- zoomWithAnimation2 (centerX As Float, centerY As Float, scale As Float)
- BringToFront
- Properties:
- AnnotationRendering As Boolean [read only]
- Antialiasing As Boolean [read only]
- Background As android.graphics.drawable.Drawable
- BestQuality As Boolean [read only]
- Color As Int [write only]
- CurrentPage As Int [read only]
- CurrentXOffset As Float [read only]
- CurrentYOffset As Float [read only]
- documentFitsView As Boolean [read only]
Checks if whole document can be displayed on screen, doesn't include zoom - DocumentMeta As com.shockwave.pdfium.PdfDocument.Meta [read only]
Returns null if document is not loaded - Enabled As Boolean
- Height As Int
- Left As Int
- MaxZoom As Float
- MidZoom As Float
- MinZoom As Float
- NightMode As Boolean [write only]
- Padding As Int()
- PageCount As Int [read only]
- pageFillsScreen As Boolean [read only]
- PageFitPolicy As com.github.barteksc.pdfviewer.util.FitPolicy [read only]
- PageFling As Boolean [write only]
- PageSnap As Boolean [write only]
- Parent As Object [read only]
- PositionOffset As Float
Get current position as ratio of document length to visible area.
0 means that document start is visible, 1 that document end is visible - Recycled As Boolean [read only]
- SpacingPx As Int [read only]
- SwipeEnabled As Boolean
- SwipeVertical As Boolean [read only]
- TableOfContents As java.util.List [read only]
Will be empty until document is loaded - Tag As Object
- Top As Int
- Visible As Boolean
- Width As Int
- Zoom As Float [read only]
- Zooming As Boolean [read only]
- AnnotationRendering As Boolean [read only]
- Functions:
- PdfDocument
- Functions:
- hasPage (index As Int) As Boolean
- Initialize (doc As com.shockwave.pdfium.PdfDocument)
- IsInitialized As Boolean
- hasPage (index As Int) As Boolean
- Functions:
- PdfDocumentMeta
- Functions:
- IsInitialized As Boolean
- Properties:
- CreationDate As String [read only]
- Creator As String [read only]
- Keywords As String [read only]
- ModDate As String [read only]
- Producer As String [read only]
- Subject As String [read only]
- Title As String [read only]
- CreationDate As String [read only]
- Functions:
- PdfSize
- Functions:
- equals (obj As Object) As Boolean
- Initialize (width As Int, height As Int)
- IsInitialized As Boolean
- equals (obj As Object) As Boolean
- Properties:
- Height As Int [read only]
- Width As Int [read only]
- Height As Int [read only]
- Functions:
- PdfiumCore
- Functions:
- closeDocument (doc As com.shockwave.pdfium.PdfDocument)
Release native resources and opened file - getDocumentMeta (doc As com.shockwave.pdfium.PdfDocument) As com.shockwave.pdfium.PdfDocument.Meta
Get metadata for given document - getNumFd (fdObj As android.os.ParcelFileDescriptor) As Int
- getPageCount (doc As com.shockwave.pdfium.PdfDocument) As Int
Get total numer of pages in document - getPageHeight (doc As com.shockwave.pdfium.PdfDocument, index As Int) As Int
Get page height in pixels. <br>
This method requires page to be opened. - getPageHeightPoint (doc As com.shockwave.pdfium.PdfDocument, index As Int) As Int
Get page height in PostScript points (1/72th of an inch).<br>
This method requires page to be opened. - getPageLinks (doc As com.shockwave.pdfium.PdfDocument, pageIndex As Int) As java.util.List
Get all links from given page - getPageSize (doc As com.shockwave.pdfium.PdfDocument, index As Int) As com.shockwave.pdfium.util.Size
Get size of page in pixels.<br>
This method does not require given page to be opened. - getPageWidth (doc As com.shockwave.pdfium.PdfDocument, index As Int) As Int
Get page width in pixels. <br>
This method requires page to be opened. - getPageWidthPoint (doc As com.shockwave.pdfium.PdfDocument, index As Int) As Int
Get page width in PostScript points (1/72th of an inch).<br>
This method requires page to be opened. - getTableOfContents (doc As com.shockwave.pdfium.PdfDocument) As java.util.List
Get table of contents (bookmarks) for given document - Initialize (EventName As String)
- loadComplete (arg0 As Int)
- mapPageCoordsToDevice (doc As com.shockwave.pdfium.PdfDocument, pageIndex As Int, startX As Int, startY As Int, sizeX As Int, sizeY As Int, rotate As Int, pageX As Double, pageY As Double) As android.graphics.Point
Map page coordinates to device screen coordinates
doc: pdf document
pageIndex: index of page
startX: left pixel position of the display area in device coordinates
startY: top pixel position of the display area in device coordinates
sizeX: horizontal size (in pixels) for displaying the page
sizeY: vertical size (in pixels) for displaying the page
rotate: page orientation: 0 (normal), 1 (rotated 90 degrees clockwise),
2 (rotated 180 degrees), 3 (rotated 90 degrees counter-clockwise)
pageX: X value in page coordinates
pageY: Y value in page coordinate
Return type: @return:mapped coordinates - mapRectToDevice (doc As com.shockwave.pdfium.PdfDocument, pageIndex As Int, startX As Int, startY As Int, sizeX As Int, sizeY As Int, rotate As Int, coords As android.graphics.RectF) As android.graphics.RectF
Return type: @return:mapped coordinates - onPageChanged (arg0 As Int, arg1 As Int)
- onPageError (arg0 As Int, arg1 As Throwable)
- openPage (doc As com.shockwave.pdfium.PdfDocument, pageIndex As Int) As Long
Open page and store native pointer in {@link PdfDocument} - renderPage (doc As com.shockwave.pdfium.PdfDocument, surface As android.view.Surface, pageIndex As Int, startX As Int, startY As Int, drawSizeX As Int, drawSizeY As Int)
Render page fragment on {@link Surface}.<br>
Page must be opened before rendering. - renderPage2 (doc As com.shockwave.pdfium.PdfDocument, surface As android.view.Surface, pageIndex As Int, startX As Int, startY As Int, drawSizeX As Int, drawSizeY As Int, renderAnnot As Boolean)
Render page fragment on {@link Surface}. This method allows to render annotations.<br>
Page must be opened before rendering. - renderPageBitmap (doc As com.shockwave.pdfium.PdfDocument, bitmap As android.graphics.Bitmap, pageIndex As Int, startX As Int, startY As Int, drawSizeX As Int, drawSizeY As Int)
Render page fragment on {@link Bitmap}.<br>
Page must be opened before rendering.
<p>
Supported bitmap configurations:
<ul>
<li>ARGB_8888 - best quality, high memory usage, higher possibility of OutOfMemoryError
<li>RGB_565 - little worse quality, twice less memory usage
</ul> - renderPageBitmap2 (doc As com.shockwave.pdfium.PdfDocument, bitmap As android.graphics.Bitmap, pageIndex As Int, startX As Int, startY As Int, drawSizeX As Int, drawSizeY As Int, renderAnnot As Boolean)
Render page fragment on {@link Bitmap}. This method allows to render annotations.<br>
Page must be opened before rendering.
<p>
For more info see {@link PdfiumCore#renderPageBitmap(PdfDocument, Bitmap, int, int, int, int, int)}
- closeDocument (doc As com.shockwave.pdfium.PdfDocument)
- Functions:
B4X:
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Private btnFirst As Button
Private btnPrev As Button
Private lblPages As Label
Private btnNext As Button
Private btnLast As Button
Private glPages As Int
Dim pdf As PdfiumCore
Private PDFView1 As PDFView
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
Activity.LoadLayout("Layout1")
pdf.Initialize("PDFium")
File.Copy(File.DirAssets,"sample.pdf",File.DirInternal,"sample.pdf")
Dim cfg As Configurator = PDFView1.fromUri(File.DirInternal,"sample.pdf")
cfg.SetEventname("PDFium")
cfg.autoSpacing(True).enableSwipe(True).pageSnap(True).swipeHorizontal(False).addOnErrorListener.addOnLoadCompleteListener.addOnPageChangeListener.addOnPageErrorListener.addOnTapListener.load
End Sub
Sub PDFium_loadComplete(pages As Int)
Log($"PDFium_loadComplete(${pages})"$)
glPages = pages
lblPages.Text = $"${glPages}"$
End Sub
Sub PDFium_onInitiallyRendered(page As Int)Due to the Size of the native .so Files the library is big (18mb) and can be downloaded from my Dropbox.
The Example is to big (2mb) too so it is available on Dropbox too.
Please respect License if you want to use it in your project.
Linked Tutorials:
- Access to the PDF Pages and create a Bitmap containing a specific Page.
Last edited:

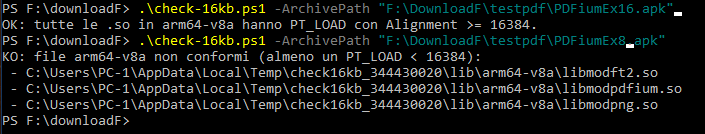

arm64-v8a
