Android Question Portrait/Landscape Variants on Main layout [Solved]

Roger Daley · Feb 1, 2020

Hi All

I am trying to add a Landscape variant to an existing App. The user chooses Portrait or Landscape as a setting, the default is portrait.
Been through the pain of creating the variant and now failing to get it to work.

The App starts in Portrait and all is good, click on the button to toggle to landscape it sort of works. [I need to do more work on the layout]

This Is The Question.
Click on the toggle button to go back to Portrait which it does but the layout is scrambled. What Happened?

Below is the essence of the code.

Toggle Portrait and Landscape:

Sub Process_Globals
    Private Phone1 As Phone
    Private ScrnOrientVal As Int    '1 = Portrait, 0 = Landscape
End Sub

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("main")
    ScrnOrientVal = StateManager.GetSetting2("ScrnOrientVal", 1)
    Phone1.SetScreenOrientation(ScrnOrientVal)
End Sub

Sub Activity_Pause (UserClosed As Boolean)
    StateManager.SetSetting ("ScrnOrientVal",ScrnOrientVal)
    StateManager.SaveSettings                                     'Saves the settings above
End Sub

Sub PortLand_Click
    ScrnOrientVal = 1 - ScrnOrientVal            'Toggles ScrnOrientVal between 1 and 0
    Phone1.SetScreenOrientation(ScrnOrientVal)    '1 = Portrait, 0 = Landscape
End Sub

It looks straight forward but something is missing.

Regards Roger

LucaMs · Feb 1, 2020

Tested your code and it works.

Without having your layout I don't think we can see the problem.

Roger Daley · Feb 1, 2020

LucaMs,

Thanks for the feedback. The puzzle deepens, the display is not entirely scrambled
On the first change Portrait to Landscape the screen orientation changes but it is still trying to use the Portrait variant.
On the change back to Portrait it is trying to use the Landscape variant. It seems to be out of step.

I've attached the main.bal file and the screenshots.

Regards Roger

LucaMs · Feb 1, 2020

Roger Daley said:
I've attached the main.bal file

It is very complex (also, I don't have your PNGs).

However, don't think it's enough to add so many views without having to adapt their position by writing Script code.

Roger Daley · Feb 1, 2020

LucaMs,

You are right it is complex and there is very lengthy script to position the views. A few by x&y the rest referenced to those.

I wasn't expecting anyone to go through the whole detail. I was expecting that my methodology was wrong and someone who knows what they are doing would spot it.

To restate and simplify the problem.
When I switch to landscape it tries to use the portrait variant and vice versa.
How do I force it to use the correct variant?

Perhaps I need to start a new post with that question. How to force the use of a variant.

LucaMs · Feb 2, 2020

Roger Daley said:
You are right it is complex and there is very lengthy script to position the views.

Sorry, I had only looked at the general script and I thought there was nothing else, instead there are the specific scripts.

Later (!) I'll try to look carefully at the layout - unfortunately I don't have PNGs, but we'll see if ...!

Roger Daley · Feb 2, 2020

LucaMs

PNGs attached. Not really sure how they help but I've tried every weird idea I could think of without success. B4A just want to use the wrong variant and there does not seem to be any option to override it.

Regards Roger

LucaMs · Feb 2, 2020

Roger Daley said:
PNGs attached. Not really sure how they help

The PNGs would have been necessary for me to load the layout; unfortunately I had to look for each assignment in the Designer and delete it

Roger Daley said:
B4A just want to use the wrong variant and there does not seem to be any option to override it.

It is not necessary to attempt an override, you have seen that in the test project that I have attached your code works.

Unfortunately, when I run the project with your layout it appears "confused", wrong from the beginning (portrait) in terms of the size of the views and their TextSizes.

~~Maybe you could~~

I am having a doubt. In the variant portrait if I'm not mistaken (I will reopen the project "soon") you have a couple of panels on the right; this fact I think influences the choice ... uhm, no, what matters is the size of the variant, based on these the most suitable is used.

LucaMs · Feb 2, 2020

LucaMs said:
Unfortunately, when I run the project with your layout it appears "confused", wrong from the beginning (portrait) in terms of the size of the views and their TextSizes.

Roger Daley · Feb 2, 2020

LucaMs

The complete project attached, I have been posting the source code for years as I update it so it's no secret. Due to file size the TTF file is in a separate zip and needs to be added to the FILES folder

It will make more sense if you are keen to look at the detail. [This was my first B4A project so contains many fine examples of how not to do things]

Regards Roger

rraswisak · Feb 2, 2020

For such complex layout, i would create layout separated by its orientation, so there are layout for portrait and landscape, and when app start it will load layout by it state.

Roger Daley · Feb 2, 2020

rasswisak,
This may be the correct solution. I am busy today but I will try it tomorrow. I will let you know the result.

Roger

Roger Daley · Feb 3, 2020

rraswisak said:
For such complex layout, i would create layout separated by its orientation, so there are layout for portrait and landscape, and when app start it will load layout by it state.

rraswisak,

I have created 2 layouts with interesting results. In the code below if I don't set the orientation in ActivityCreate it starts as Portrait and when I rotate the phone the layout changes to Landscape [I need to tidy up to be sure of all is correct] and switches back to Portrait OK. This not what I want of course, I want the user to set the orientation and have it stay that way.

I need to play around with the code and if need be re-ask the question so I will put this question O

B4X:

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("main")
    ScrnOrientVal = StateManager.GetSetting2("ScrnOrientVal", 1)
    'Phone1.SetScreenOrientation(ScrnOrientVal)
    If ScrnOrientVal = 1 Then

        Activity.LoadLayout("portrait")
        ScrnOrientVal = 0
    Else
        Activity.LoadLayout("landscape")
        ScrnOrientVal = 1
    End If
End Sub

Sub PortLand_Click

    If ScrnOrientVal = 0 Then
        Phone1.SetScreenOrientation(ScrnOrientVal)
        Activity.LoadLayout("landscape")
        ScrnOrientVal = 1
    Else
        Phone1.SetScreenOrientation(ScrnOrientVal)
        Activity.LoadLayout("portrait")
        ScrnOrientVal = 0
    End If
End Sub

emexes · Feb 4, 2020

Roger Daley said:
B4A just want to use the wrong variant and there does not seem to be any option to override it.

Yeah, the layout variant selection is pretty good usually, but... as I understand it, the decision is made based on both size and aspect ratio, and sometimes the weighting of those two criteria does not match the programmer's. I have often done the separate layout thing too.

LucaMs · Feb 4, 2020

You just need:

B4X:

Sub Activity_Create
    If 100%y > 100%x Then
        Activity.Loadlayout("portrait")
    Else
        Activity.Loadlayout("landscape")
    End If
End Sub

rraswisak · Feb 4, 2020

Roger, this is what i have done;

1. i duplicate main.bal with other file name say main1.bal
2. i remove landscape variant in main.bal, and so i remove potrait variant in main1.bal
3. change activity_create with:

B4X:

Sub Activity_Create(FirstTime As Boolean)
    ScrnOrientVal = StateManager.GetSetting2("ScrnOrientVal", 1)
    If ScrnOrientVal = 0 Then
        Activity.LoadLayout("main1") 'landscape
    Else
        Activity.LoadLayout("main") 'portrait
    End If

    Phone1.SetScreenOrientation(ScrnOrientVal)

    Canvas1.Initialize(Activity)
    ...
    ...
End Sub

4. no change with PortLand_Click sub, since orientation change will raise Activity_Create event and load correct layout
5. i change script in main1.bal to arrange the buttons

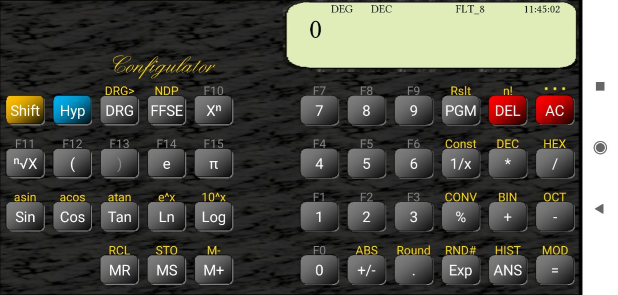

This is how it look on my real-device;

i believe there is another part which should be adapt with landscape layout like about, help, review etc...etc... and you know what it is

*the project EXCLUDE font file, so you must add manually

Roger Daley · Feb 4, 2020

rraswisak said:
Roger, this is what i have done;

1. i duplicate main.bal with other file name say main1.bal
2. i remove landscape variant in main.bal, and so i remove potrait variant in main1.bal
3. change activity_create with:

B4X:

Sub Activity_Create(FirstTime As Boolean) ScrnOrientVal = StateManager.GetSetting2("ScrnOrientVal", 1) If ScrnOrientVal = 0 Then Activity.LoadLayout("main1") 'landscape Else Activity.LoadLayout("main") 'portrait End If Phone1.SetScreenOrientation(ScrnOrientVal) Canvas1.Initialize(Activity) ... ... End Sub

4. no change with PortLand_Click sub, since orientation change will raise Activity_Create event and load correct layout
5. i change script in main1.bal to arrange the buttons

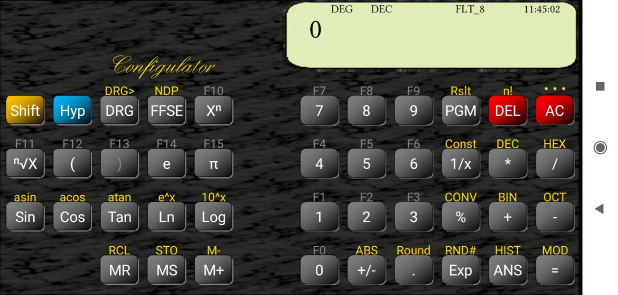

This is how it look on my real-device;

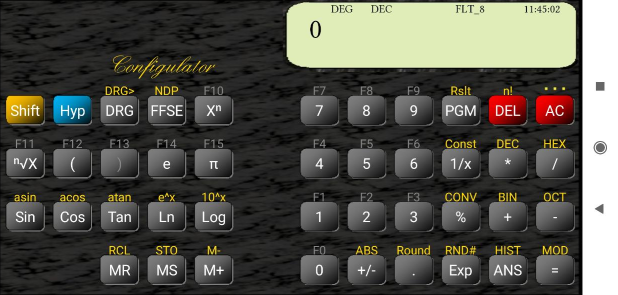

View attachment 88180

i believe there is another part which should be adapt with landscape layout like about, help, review etc...etc... and you know what it is

*the project EXCLUDE font file, so you must add manually

rraswisak,

Thanks for the feedback. With your changes all seems to work
I will keep working on it to tidy up.

Yes there are a lot of things to change after I get this bit sorted.

Roger
