Android Tutorial Remote Database Connector (RDC) - Connect to any remote DB

Status
Not open for further replies.
jRDC version 2 is available here: https://www.b4x.com/android/forum/t...ation-of-rdc-remote-database-connector.61801/

This tutorial covers a new framework named Remote Database Connector (RDC). The purpose of RDC is to make it simple to develop Android applications that interact with remote database servers.

There are two components in this framework: a lightweight Java web server (the middleware) and a B4A class named DBRequestManager that interacts with this web server.

The Java web server can connect to any database platform that provides a JDBC driver.

This includes: MySQL, SQL Server, Oracle, Sybase, DB2, postgreSQL, Firebird and many others.

You can also use the web server without a database server by connecting to a local SQLite database file.

The Java web-server is a simple server that connects to the database server and to the Android clients.
As this is a Java app you can run it on Linux or Windows computers. It requires Java JRE 6 or 7.

This solution is much more powerful than the PHP (MySQL) and ASP.Net (MS SQL) solutions that are already available.

Main advantages over previous solutions:
  • Support for many types of database platforms.
  • Significantly better performance.
  • SQL statements are configured in the server (safer).
  • Support for all types of statements, including batch statements.
  • Support for BLOBs.

Server Configuration

JDBC is a Java API that provides a standard method to access any database. A database driver (jar file) is required for each type of database. You will need to download the driver for your database and put it in the jdbc_driver folder.

The Java server configuration is saved in a file named config.properties.
This file includes two sections: general configuration and a list of SQL commands.

For example:



Note that the configuration fields are case sensitive.

DriverClass / JdbcUrl - The values of these two fields are specific to each database platform. You will usually find the specification together with the required driver jar file.

User / Password - Database user and password.

ServerPort - The Java server will listen to this provided port.

Debug - If Debug is set to true then the SQL commands list will be loaded on every request. This is useful during development as it allows you to modify the commands without restarting the server process.

SQL Commands - A list of commands. Each command starts with 'sql.'. The commands can include question marks (parameterised queries). Question marks will be replaced with the values provided by the Android clients. Note that the command name is case sensitive and it doesn't include the 'sql.' prefix.

Client Code
The client sends requests to the server. There are two types of requests: query requests (usually SELECT statements) and batch requests (any other statement).

Note that both the client and the server can manage multiple requests in parallel.
Usually you will only need a single DBRequestManager object.

Each request is made of a command (or a list of commands) and a tag. The tag can be any object you like. You can use it later when the result is ready. The tag is not sent to the server.

A command is an object of type DBCommand:
B4X:
Type DBCommand (Name As String, Parameters() As Object)
Name - The case sensitive command name as configured in the server configuration (without sql.).
Parameters - An array of objects that will be sent to the server and will replace the question marks in the command.

For example to send a SELECT request:
B4X:
Dim cmd As DBCommand
cmd.Initialize
cmd.Name = "select_animal"
cmd.Parameters = Array As Object("cat 1")
reqManager.ExecuteQuery(cmd, 0, "cat 1")
ExecuteQuery expects three parameters: the command, maximum number of rows to return or 0 if there is no limit and the tag value.

Under the hood DBRequestManager creates a HttpJob for each request. The job name is always "DBRequest".

You should handle the JobDone event in your activity or service:
B4X:
Sub JobDone(Job As HttpJob)
   If Job.Success = False Then
     Log("Error: " & Job.ErrorMessage)
   Else
     If Job.JobName = "DBRequest" Then
       Dim result As DBResult = reqManager.HandleJob(Job)
       If result.Tag = "cat 1" Then 'query tag
         For Each records() As Object In result.Rows
           Dim name As String = records(0) 'or records(result.Columns.Get("name"))
           Log(name)
         Next
       End If
     End If
   End If
   Job.Release
End Sub

As you can see in the above code, DBRequestManager.HandleJob method takes the Job and returns a DBResult object:
B4X:
Type DBResult (Tag As Object, Columns As Map, Rows As List)
Tag - The request tag.
Columns - A Map with the columns names as keys and the columns ordinals as values.
Rows - A list that holds an array of objects for each row in the result set.

Non-select commands are sent with ExecuteCommand (single command) or ExecuteBatch (any number of commands). It is significantly faster to send one request with multiple commands over multiple requests. Batch statements are executed in a single transaction. If one of the commands fail all the batch commands will be cancelled (roll-backed).

Note that for non-select requests, Rows field in the results will hold an array with a single int for each command. The int value is the number of affected rows (for each command separately).

Initializing DBRequestManager:
B4X:
Sub Activity_Create(FirstTime As Boolean)
   If FirstTime Then
     reqManager.Initialize(Me, "http://192.168.0.100:17178")
   End If
End Sub
The first parameter is the module that will handle the JobDone event.
The second parameter is the link to the Java server (with the port number).

DBRequestManager provides the following helper methods for common tasks related to BLOB fields: FileToBytes, ImageToBytes and BytesToImage.It also includes a method named PrintTable that prints DBTable objects to the logs.

Framework Setup
  1. Unpack the server zip file.
  2. You will need to download the driver for your database platform and copy the jar file to jdbc_driver folder.
  3. Edit config.properties as discussed above.
  4. Edit RunRLC.bat and set the path to java.exe. If you are running it on Linux then you need to create a similar script with the path to java. On Linux you should change the ';' separator to ':'.
  5. Run the server :)
    You should see something like:



    Note that the path to config.properties is printed in the second line.
  6. Add an exception for the server port in your firewall.
  7. Try to access the server from the browser:



    You will probably not see the above message on the first run :(. Instead you will need to check the server output and read the error message.
    If you are able to call the server from the local computer and not from other devices then it is a firewall issue.

Tips

  • MySQL driver is available here: http://dev.mysql.com/downloads/connector/j/
  • Google for <your database> JDBC Driver to find the required driver. For SQL Server you can use this open source project: http://jtds.sourceforge.net/
  • The server uses an open source project named c3p0 to manage the database connection pool. It can be configured if needed by modifying the c3p0.properties file.
  • Use a text editor such as Notepad++ to edit the properties file.
  • If you are running the server on Linux then you can run it with nohup to prevent the OS from killing the process when you log out.
  • Java doesn't need to be installed. You can just unpack the files.
The server is based on the two following open source projects:
Jetty - http://www.eclipse.org/jetty/
c3p0 - http://www.mchange.com/projects/c3p0/index.html
http://www.mchange.com/projects/c3p0/index.html

Last edited:

DonManfred

Expert
Licensed User
Longtime User
See #1 for description and sample.
I think it should be something like this
B4X:
Select * from table where field like '?%'

B4X:
Dim cmd As DBCommand
cmd.Initialize
cmd.Name = "select_with_like"
cmd.Parameters = Array As Object("searchvalue")
reqManager.ExecuteQuery(cmd, 0, "Tag")


Anser

Well-Known Member
Licensed User
Longtime User
Assuming I'm overlooking something... I'm trying to run a SQL statement similar to this:
Select * from table where field like 'x%'

How would I make this work? In my config file I have the "x" replaced with the ? and that doesn't work, I've put the ? after LIKE and have the program send "'x%' but that doesn't work either.
Thanks!
Chris

See the below given link
https://www.b4x.com/android/forum/t...necting-to-mysql-using-rdc.49518/#post-309914

You need to add/append the '%' character along with the parameter data and then pass it to RDC. For eg '%Your Search Value' OR '%Your Search Value%'


veranio79

Member
Licensed User
Longtime User
Hi all,
i'm trying to setup this connector un my win 2012 server with MSSQL server 2008r2.

Here is my RDC's config:

B4X:
#Lines starting with '#' are comments.
#Backslash character at the end of line means that the command continues in the next line.

#DriverClass=com.mysql.jdbc.Driver
#JdbcUrl=jdbc:mysql://localhost/test?characterEncoding=utf8

#SQL Server
DriverClass=net.sourceforge.jtds.jdbc.Driver
JdbcUrl=jdbc:jtds:sqlserver://VSERVER/GPSDB
User=test
Password=********
ServerPort=17178
#If Debug is true then this file will be reloaded on every query.
#This is useful if you need to modify the queries.
Debug=true

#commands
#sql.create_table=CREATE TABLE animals (\
#    id INT NOT NULL AUTO_INCREMENT,\
#   name CHAR(30) NOT NULL,\
#  image BLOB,\
# PRIMARY KEY (id))
#sql.insert_animal=INSERT INTO animals VALUES (null, ?,?)
#sql.select_animal=SELECT name, image FROM animals WHERE name = ?

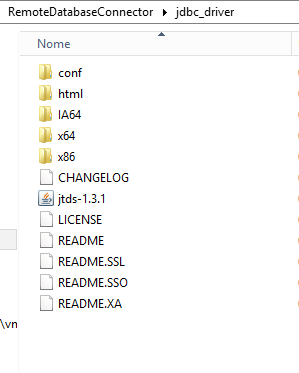

This is my driver:
B4X:
jtds-1.3.1.jar

launch 'RunRLC.bat' then call ther server in the browser and the browser response is:
B4X:
RemoteServer is running (Wed Oct 28 11:40:18 CET 2015)
java.sql.SQLException: An attempt by a client to checkout a Connection has timed out.

Obviously, the user and pass for my SQL server are right, i can use them to connect from other apps like visual studio...

Can anyone help me with this issue?
Thanks in advance


Attachments

  • upload_2015-10-28_11-51-28.png
    12.1 KB · Views: 457

veranio79

Member
Licensed User
Longtime User
VSERVER is the hostname of my server with MSSQL. i've tryed with the IP instead, but same response.
Thanks


veranio79

Member
Licensed User
Longtime User
Yes i'm using the default port, the firewall is down and MSSQL accept external connection. But the RDC and MSSQL are running on the same server (VSERVER)


vbmundo

Well-Known Member
Licensed User
Hi, What can I use in one APP to connect Android with remote MySQL Database WITHOUT Java web server ?

My App ask to the user for her credentials and then connect to this server.

Regards


killiak

Member
Licensed User
Longtime User
Hi, What can I use in one APP to connect Android with remote MySQL Database WITHOUT Java web server ?

My App ask to the user for her credentials and then connect to this server.

Regards

Pablo, "tocayo"
3 possible ways

1- RDC (jRDC or RDC same thing)
Pros: Fast, Easy and once you handle config.properties really easy to scale it
Cons: Java in the server, need to have the possibility to run in there

2- PHP "middleware" communication between you app and the Mysql Database
Pros: Easy PHP programming. Communication in no time with just a few lines. You can use a Web DB without permissions because is just like a Web
Cons: SLooooooow when you hit heavy DB. sometimes it hangs (happen to me a lot) so you need to control those Hangs (clientes are impatients). You need a good skill PHP+Mysql to avoid SQL injection.

3- Don Manfred "Cheapest ever" middleware (the link above)
Pros: Feels like ADO VB6 Stuff. really easy to use. And quite fast actually
Cons: The credentials to get into the DB are pretty easy to obtain, so you have to consider using this in a close system. I don't recommend it for Web applications

I don't know other
If you want the spanish version of this, PM. I'm from Argentina

Pablo Guevara
