B4J Tutorial [SERVER] Valid SSL certificate for localhost for your development machine

Discussion in 'B4J Tutorials' started by mindful, May 16, 2018.

  1. mindful

    mindful Active Member Licensed User

    So I was intrigued that I couldn't have a valid ssl cert for localhost so what I did might be useful to someone:


    1. Generate a RSA-2048 key and save it to a file localCA.key. This file will be used as the key to generate the Root SSL certificate. You will be prompted for a pass phrase which you’ll need to enter each time you use this particular key to generate a certificate.
    openssl genrsa -des3 -out localCA.key 2048
    2. You can use the key you generated to create a new Root SSL certificate. Save it to a file named localCA.pem. This certificate will have a validity of 1,024 days. Feel free to change it to any number of days you want.
    openssl req -x509 -new -nodes -key localCA.key -sha256 -days 1024 -out localCA.pem
    You’ll also be prompted for other optional information:
    Country Name (2 letter code) [XX]:US
    or Province Name (full name) []:Random
    Locality Name (eg, city) [Default City]:Random
    Organization Name (eg, company) [Default Company Ltd]:Random
    Organizational Unit Name (eg, section) []:Random
    Common Name (eg, your name
    or your server's hostname) []:Local Certificate
    Email Address []:example@domain.com
    Now you have 2 files localCA.key, localCA.pem

    3. Create a new OpenSSL configuration file localhost.csr.cnf so you can import these settings when creating a certificate instead of entering them on the command line.
    default_bits =
    prompt = no
    default_md = sha256
    distinguished_name = dn

    CN = localhost
    4. Create a v3.ext file in order to create a X509 v3 certificate.
    keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
    subjectAltName = @alt_names

    .1 = localhost
    5. Create a certificate key for localhost using the configuration settings stored in localhost.csr.cnf. This key is stored in localhost.key
    openssl req -new -sha256 -nodes -out localhost.csr -newkey rsa:2048 -keyout localhost.key -config <( cat localhost.csr.cnf )
    6. A certificate signing request is issued via the root SSL certificate we created earlier to create a domain certificate for localhost. The output is a certificate file called localhost.crt.
    openssl x509 -req -in localhost.csr -CA localCA.pem -CAkey localCA.key -CAcreateserial -out localhost.crt -days 500 -sha256 -extfile v3.ext
    7. Create a PKCS#12 file:
    openssl pkcs12 -export -name localhostcert -in localhost.crt -inkey localhost.key -out localhost.p12

    Now you have the following files: localCA.key, localCA.srl, localhost.csr, localhost.key, v3.ext, localCA.pem, localhost.crt, localhost.csr.cnf, localhost.p12

    Now you need to copy the localCA.pem and localhost.p12 to your windows development machine and follow the steps below:


    First we will add a Certification Authority:
    1. Open Microsoft Management Console (Start --> Run --> mmc.exe);
    2. Choose File --> Add/Remove Snap-in;
    3. In the Standalone tab, choose Add;
    4. Choose the Certificates snap-in, and click Add;
    5. In the wizard, choose the Computer Account, and then choose Local Computer. Press Finish to end the wizard;
    6. Close the Add/Remove Snap-in dialog;
    7. Navigate to Certificates (Local Computer)
    8. Choose a store to import:
      1. If you have the Root CA certificate for the company that issued the certificate, choose Trusted Root Certification Authorities;
    9. Right-click the store and choose All Tasks --> Import
    10. Follow the wizard and provide the certificate file you have (localCA.pem);

    After this you should see the Local Certificate in the Certificates List from Trusted Root Certification Authorities localca.png

    Next we need to generate the keystore that will be used in the B4J Server SSL Configuration.
    Let's say the path to localhost.p12 is C:\localhost.p12 and the path to your java bin folder is C:\Java\bin\, start the command line with Administrator privileges and run the following command and go to C:\Java\bin:
    cd C:\Java\bin
    keytool -importkeystore -srckeystore C:\localhost.p12 -srcstoretype PKCS12 -destkeystore C:\localhost.jks -srcstorepass YOUR_PASSWORD -deststorepass YOUR_PASSWORD -noprompt
    This will create a file localhost.jks located at C:\localhost.jks

    Now you can reference this file from B4J when starting the server.
    Private Sub ConfigureSSL (SslPort As Int)
    Dim ssl As SslConfiguration
       ssl.KeyStorePassword =
    'ssl.KeyManagerPassword ="xxx" ' I don't know what this is used for.
       ssl.EnableConscryptProvider '<-----------
       srvr.SetSslConfiguration(ssl, SslPort)
    End Sub

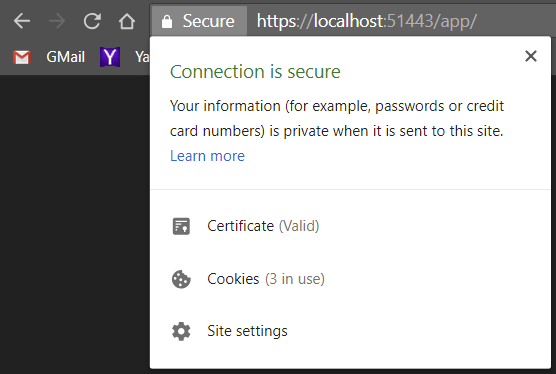

    And now you get this:

    Notice I am running on port 51443.

    *NOTE* If you are using FireFox then you need to import the localCA.pem there too by going to Options -> In the search box type Cert -> View Certificates -> Import the localCA.pem file. Now your localhost cert will be trusted.

    Resources I followed to get it done:
    1. How to get HTTPS working on your local development environment in 5 minutes (https://medium.freecodecamp.org/how...lopment-environment-in-5-minutes-7af615770eec)
    2. Install a trusted root CA or self-signed certificate (https://success.outsystems.com/Supp...a_trusted_root_CA__or_self-signed_certificate)
    3. How can i create keystore from an existing certificate (abc.crt) and abc.key files? (https://stackoverflow.com/questions...-existing-certificate-abc-crt-and-abc-key-fil)
    4. Conscrypt and Http/2 (https://www.b4x.com/android/forum/threads/server-conscrypt-and-http-2.93040/)
