Android Question [Solved] ACToolBarLight obscuring ImageView. How to resolve?

[Batman_]

I have a layout with an ACToolBarLight at the top and an B4X ImageViewbelow this.

When the layout loads the ACToolBarLight is obscuring the B4X ImageView (see link).

In Designer view I have tried this:

imageViewTop.Top=0%y
imageViewTop.Left=0%x
imageViewTop.Right=100%x

and also this:

imageViewTop.Top=ACToolBarLight1.Bottom
imageViewTop.Left=0%x
imageViewTop.Right=100%x

with no positive outcome. Note: I have applied the "AutoScaleAll" both on or off with no positive effect.

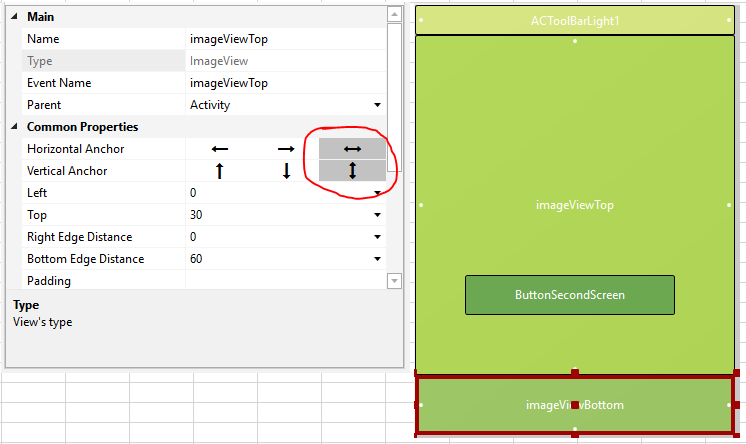

My anchor settings and layout for the ImageView are (use link).

I set the B4X imageview settings with the following code:

imageViewTop.SetBitmap(xui.LoadBitmapResize(File.DirAssets, Pics(Counter),imageViewTop.Width, imageViewTop.Height, False))    'False removes KeepAspectRatio

Any assistance appreciated.



[Erel]

Anchors are set incorrect (unless the bottom ImageView is inside a panel).

This is a common mistake, discussed in this tutorial: https://www.b4x.com/etp.html?vimeography_gallery=1&vimeography_video=254439386



[Brandsum]

imageViewTop.Top=ACToolBarLight1.Bottom

imageViewTop.Top=ACToolBarLight1.Height
imageViewTop.Height=100%y - ACToolBarLight1.Height - imageViewBottom.Height



[Batman_]

Hi.

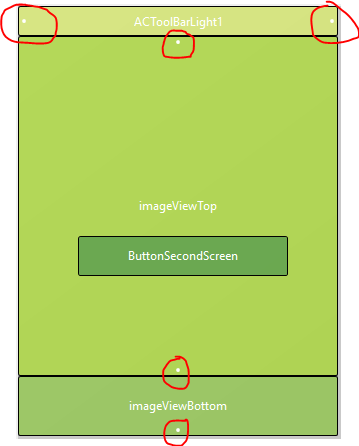

To help any future user who has a similar issue, attached is how I set the anchors (see attachment).

Here is the code I used in Designer Scripts:

imageViewTop.SetTopAndBottom(ACToolBarLight1.Bottom, 100%y-imageViewBottom.Height)
imageViewTop.Width=100%x
imageViewBottom.Width=100%x

Regards.



[Erel]

The designer script is not needed. Anchors will be enough here.
