Android Question [Solved or rather explained] Screenshot bitmap larger than screen??

Discussion in 'Android Questions' started by mark35at, Apr 6, 2015.

  1. mark35at

    mark35at Well-Known Member Licensed User

    I generate a full screen (in activity properties) map (OSMdroid) and make a screenshot. The screenshot is saved to a png file. Then I start a new activity and create an imageview with height 100%y and width 100%x. I load the png file into a bitmap and assign it to the imageview. There is no problem with any of the code.

    The problem is that in the subsequent imageview, the bitmap appears to be zoomed. Only a small portion is visible in the middle.

    This only happens on my smartphone (resolution 1280 x 720, 320 dpi), on my 10" tablet (1280 x 752, 160 dpi) everything is okay. The bitmap has resolution 1280 x 670 on the smartphone, according to ES Explorer.

    The solution is to use:

    Code:
    iv.Gravity=gravity.FILL
    but I would still like to know why. Am I missing something? Thanks for any help.

  2. Erel

    Erel Administrator Staff Member Licensed User

    Check Bitmap.Width and Height of the loaded image. It will probably be 2560 x 1440 because of the scale.

    The simplest solution is to use LoadBitmapSample with Gravity.Fill.

  3. mark35at

    mark35at Well-Known Member Licensed User

    Didn't think to do that. I thought the 1280 x 670 reported by ES Explorer would be correct. Will check.

  4. mark35at

    mark35at Well-Known Member Licensed User

    loaded the file into an imageview and checked bitmap height and width, it shows 1280 x 672!

    The solution is gravity.fill but I don't understand why a screenshot taken on a device and loaded on the same device should have a different size???

    Will try and make a screenshot from the device tonight.

  5. mark35at

    mark35at Well-Known Member Licensed User

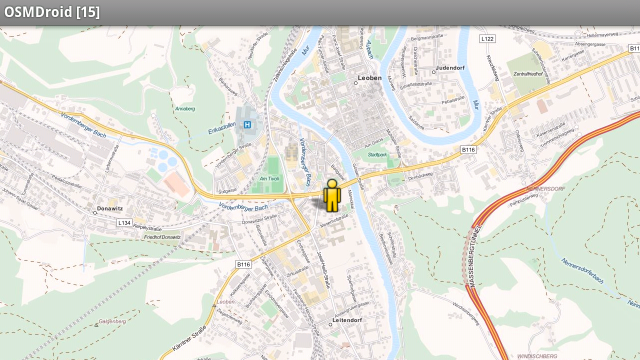

    Using the emulator, I created a small project to show what I mean. I have reduced the pictures by 50% to upload them here.

    The project code (without gravity.fill) is below.

    The Bitmap info from log:
    Height: 670, width: 1280


    Main:
    Code:
    #Region  Project Attributes

    #ApplicationLabel: Screenshot

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: landscape

    #CanInstallToExternalStorage: False
    #End Region

    #Region  Activity Attributes

    #FullScreen: True

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.
        Dim TileSource As String="MapquestOSM"                                        'Mapnik, OSMPublicTransport, MapquestOSM
        Dim dt As String="Maptemp"                                                            'Filename for screenshot
        Dim Timer1 As Timer                                                                    'Used to create a delay

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.
        Dim MapView1 As MapView

    Dim MapCenter As GeoPoint

    Dim TouchEventsOverlay1 As TouchEventsOverlay                                        'Allows click & long click events
        Dim SimpleLocationOverlay1 As SimpleLocationOverlay

    Dim MarkersOverlay1 As MarkersOverlay

    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        'Activity.LoadLayout("Layout1")
        Activity.AddMenuItem("Take Screenshot""MnuShot")

        Timer1.Initialize(
    "Timer1",500)


    '   pass an EventName when initializing the MapView
           '   MapView has two events: CenterChanged and ZoomChanged
        MapView1.Initialize("MapView1")

    Activity.AddView(MapView1, 00100%x100%y)

        MapView1.SetMultiTouchEnabled(
    True)
        MapView1.SetZoomEnabled(
    True)
        MapCenter.Initialize(
    47.3763900,15.0911300)    'Leoben as center

        MapView1.Zoom=
    15
        MapView1.SetCenter(
    47.3763900,15.0911300)
        MapView1.SetTileSource(TileSource)

    Activity.Title="OSMDroid ["&MapView1.Zoom&"]"


    'initialize the SimpleLocationOverlay and add it to the MapView
           SimpleLocationOverlay1.Initialize(MapView1)
           MapView1.AddOverlay(SimpleLocationOverlay1)


    'set the SimpleLocationOverlay to display it's icon at the map center
          SimpleLocationOverlay1.SetMyLocation3(MapView1.GetCenter)


    'initialize the MarkersOverlay and add it to the MapView
           'an EventName is required as we will listen for the two events that MarkersOverlay generates
        MarkersOverlay1.Initialize(MapView1, ""'No events
        MapView1.AddOverlay(MarkersOverlay1)


    'Add touch events to map
        TouchEventsOverlay1.Initialize("TouchEventsOverlay1")
        MapView1.AddOverlay(TouchEventsOverlay1)

        Timer1.Enabled=
    True    'Wait for a short period for map to finish drawing

    End Sub

    Sub Timer1_Tick

    'Need the timer to let the map finish drawing

        Timer1.Enabled=
    False

    End Sub

    Sub MnuShot_Click
        TakeScreenShot
    End Sub

    Sub TakeScreenShot

    ' Take a screenshot.
        Dim Obj1, Obj2 As Reflector

    Dim bmp As Bitmap

    Dim c As Canvas

        Obj1.Target = Obj1.GetActivityBA
        Obj1.Target = Obj1.GetField(
    "vg")
        bmp.InitializeMutable(
    Activity.Width, Activity.Height)
        c.Initialize2(bmp)

    Dim args(1As Object

    Dim types(1As String
        Obj2.Target = c
        Obj2.Target = Obj2.GetField(
    "canvas")
        args(
    0) = Obj2.Target
        types(
    0) = "android.graphics.Canvas"
        Obj1.RunMethod4(
    "draw", args, types)

    Dim Out As OutputStream
        Out =
    File.OpenOutput(File.DirRootExternal, dt & ".png"False)
        bmp.WriteToStream(Out,
    100"PNG")
        Out.Close


    StartActivity(ShowScreen)
    End Sub

    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub
    ShowScreen:
    Code:
    #Region  Activity Attributes

    #FullScreen: True

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.
        Dim b As Bitmap

    Dim iv As ImageView
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        'Activity.LoadLayout("Layout1")
        'Load screenshot into imageview
        iv.Initialize("")

    Activity.AddView(iv,0,0,100%x,100%Y)
        b.Initialize(
    File.DirRootExternal,Main.dt & ".png")
        iv.Bitmap=b
    End Sub

    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub


    Attached Files:

  6. Erel

    Erel Administrator Staff Member Licensed User

    Check the values of Activity.Width and Height. You will see that it is twice the size that you expect it to be because of the scale.

  7. mark35at

    mark35at Well-Known Member Licensed User

    Added to ShowScreen after loading bitmap:

    Code:
    Log("Bitmap Height: " & b.Height & ", width: " & b.Width)

    Log("Activity Height: " & Activity.Height & ", width: " & Activity.Width)
    Log reports:

    Bitmap Height: 670, width: 1280
    Activity Height: 670, width: 1280

  8. Erel

    Erel Administrator Staff Member Licensed User

    Have you tested it on your smartphone?

    What is the output of Log(GetDeviceLayoutValues)?

  9. mark35at

    mark35at Well-Known Member Licensed User

    Here is the data from my smartphone LG P880

    Bitmap Height: 640, width: 1280
    Activity Height: 640, width: 1280
    Device Layout Values: 1280 x 720, scale = 2.0 (320 dpi)

  10. Erel

    Erel Administrator Staff Member Licensed User

    These are the expected resolutions. The bitmap size is the same as the activity size. Now the bitmap density is set to 1. This is why you see a larger bitmap. You have two options:
    - Load the bitmap with LoadBitmapSample and Gravity.Fill
    - Use AcceleratedSurface library that allows you to load the bitmap and set the density.

    mark35at likes this.
  11. mark35at

    mark35at Well-Known Member Licensed User

    Thanks Erel, I am already using your first solution. I just wanted to understand why as in windows, a screenshot is only as big as the screen.
