Android Question [SOLVED] - View to display gauge or digital display for showing time

rleiman

Well-Known Member
Licensed User
Greetings,

Can this gauge library show time values? If not, did anyone write a class or library like it to do that? I plan on using the B4XSeekbar to populate the value property for the gauge or digital display in the view.

If it can, can you let me know how to do it?

Thanks.


rleiman

Well-Known Member
Licensed User
Thanks for the code and hint. I was able to get it to display text by creating these new lines of code in the class. This is the first time attempting anything like this. I still have more coding to add but at least I got it to display text which will be shown as hours and minutes. I will add coding later to convert the minutes to hours and minutes which will be populated into strTextValue when mCurrentValue changes.

Before any subroutines:
#DesignerProperty: Key: TextValue, DisplayName: Text Value, FieldType: String, DefaultValue:

Subroutine Class_Globals:
Private strTextValue As String

Subroutine DesignerCreateView:
strTextValue = Props.Get("TextValue")

Subroutine DrawIndicator:
If strTextValue <> "" Then
    mlbl.Text = strTextValue.ToUpperCase
Else
    mlbl.Text = s & NumberFormat2(Value, 2, 1, 1, True) & SuffixText
End If

This is a new subroutine.:
Public Sub SetTextValue (strTextValueIn As String)
    strTextValue = strTextValueIn
End Sub

Upvote 0

klaus

Expert
Licensed User
One suggestion:
Instead of:
B4X:
Public Sub SetTextValue (strTextValueIn As String)
    strTextValue = strTextValueIn
End Sub
use this with the first character "s" lower case:
B4X:
Public Sub setTextValue (strTextValueIn As String)
    strTextValue = strTextValueIn
End Sub
If you use SetTextValue, it is a method and you must use it like MyCustomView.SetTextValue(MyText)
if you use setTextValue, then it becomes a property and you use it like MyCustomView.TextValue = MyText

Last edited:
Upvote 0

rleiman

Well-Known Member
Licensed User
One suggestion:
Instead of:
B4X:
Public Sub SetTextValue (strTextValueIn As String)
    strTextValue = strTextValueIn
End Sub
use this with the first character "s" lower case:
B4X:
Public Sub setTextValue (strTextValueIn As String)
    strTextValue = strTextValueIn
End Sub
If you use SetTextValue, it is a method and you must use it like MyCustomView.SetTextValue(MyText)
if you use setTextValue, then it becomes a property and you use it like MyCustomView.TextValue = MyText
Thanks for the advice. I will make the change. Most likely I will rename it to prevent confusion.

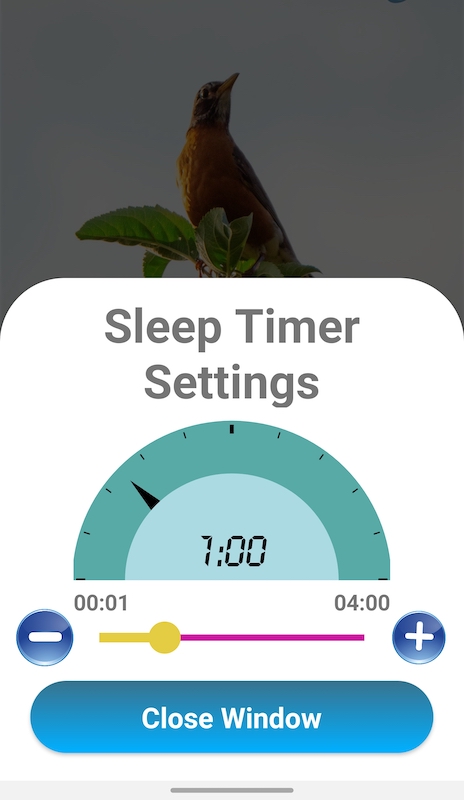

Here's the what the gauge looks like with the digital time in it.


Upvote 0

rleiman

Well-Known Member
Licensed User
Would be nice if you can share this code. Thanks.
I will try to reply with the code tomorrow. I'm assuming you also want to see the code that I send to the class I modified. I will also reply with the entire class so you can see the modified class module.

Upvote 0

rleiman

Well-Known Member
Licensed User
For anyone who is interested in how I implemented the suggestions from Erel, here's what I did. Later I will make the changes in the coding suggested by klaus.

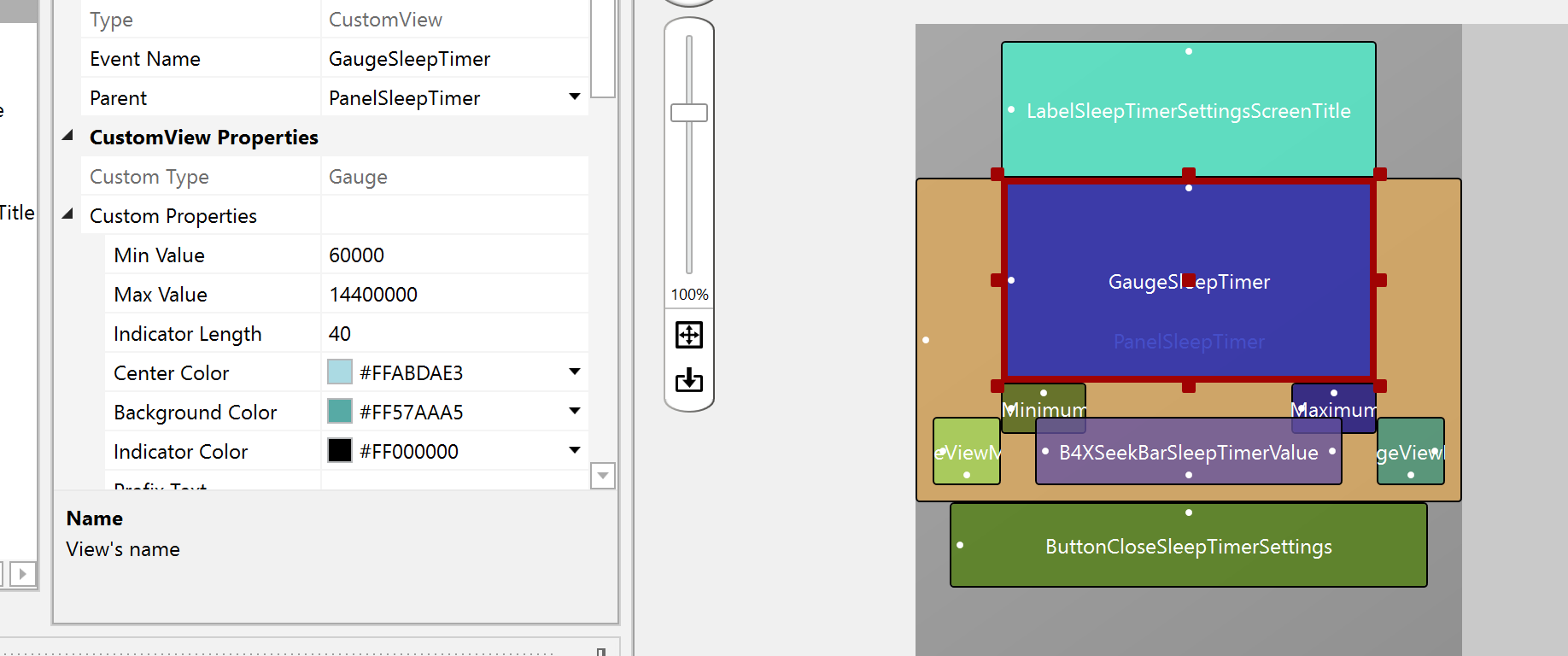

This is how I set up the gauge. It's set to hold up to 4 hours in ticks.

Screenshot 2020-12-26 at 11.46.43.png

This is the subroutine from Erel. I just commented out the parts I didn't need. I'm using it for just the hours and minutes.:
Sub ConvertMillisecondsToString(lngTicks As Long) As String
    Dim hours, minutes As Int
'    Dim seconds As Int
    hours = lngTicks / DateTime.TicksPerHour
    minutes = (lngTicks Mod DateTime.TicksPerHour) / DateTime.TicksPerMinute
'    seconds = (lngTicks Mod DateTime.TicksPerMinute) / DateTime.TicksPerSecond
'    Return $"$1.0{hours}:$2.0{minutes}:$2.0{seconds}"$
    Return $"$1.0{hours}:$2.0{minutes}"$
End Sub

Here's how I'm sending the ticks from the B4XSeekbar and incremental buttons to the gauge.:
Sub B4XSeekBarSleepTimerValue_TouchStateChanged (Pressed As Boolean)

    GaugeSleepTimer.SetTextValue(ConvertMillisecondsToString(B4XSeekBarSleepTimerValue.Value))
    GaugeSleepTimer.CurrentValue = B4XSeekBarSleepTimerValue.Value

    kvs.Put("SleepTimerTicks", GaugeSleepTimer.CurrentValue)

    If ServiceModule.blnScheduleIsPlayingSong = False Then
        CallSubDelayed(ServiceModule, "CancelTheSong")
        CallSubDelayed(ServiceModule, "PlayTheSong")
        CallSubDelayed(ServiceModule, "StartSleepTimer")
    End If
End Sub

Sub ImageViewPlus_Click

    B4XSeekBarSleepTimerValue.Value = B4XSeekBarSleepTimerValue.Value + 60000
    GaugeSleepTimer.SetTextValue(ConvertMillisecondsToString(B4XSeekBarSleepTimerValue.Value))
    GaugeSleepTimer.CurrentValue = B4XSeekBarSleepTimerValue.Value

    kvs.Put("SleepTimerTicks", GaugeSleepTimer.CurrentValue)

    If ServiceModule.blnScheduleIsPlayingSong = False Then
        CallSubDelayed(ServiceModule, "CancelTheSong")
        CallSubDelayed(ServiceModule, "PlayTheSong")
        CallSubDelayed(ServiceModule, "StartSleepTimer")
    End If
End Sub

Sub ImageViewMinus_Click

    B4XSeekBarSleepTimerValue.Value = B4XSeekBarSleepTimerValue.Value - 60000
    GaugeSleepTimer.SetTextValue(ConvertMillisecondsToString(B4XSeekBarSleepTimerValue.Value))
    GaugeSleepTimer.CurrentValue = B4XSeekBarSleepTimerValue.Value

    kvs.Put("SleepTimerTicks", GaugeSleepTimer.CurrentValue)

    If ServiceModule.blnScheduleIsPlayingSong = False Then
        CallSubDelayed(ServiceModule, "CancelTheSong")
        CallSubDelayed(ServiceModule, "PlayTheSong")
        CallSubDelayed(ServiceModule, "StartSleepTimer")
    End If
End Sub

Modified version of the gauge class. I added code for the designer and a new subroutine so I could access it from my coding. All new code is highlighted.:
'version 2.00
#DesignerProperty: Key: MinValue, DisplayName: Min Value, FieldType: Float, DefaultValue: 0
#DesignerProperty: Key: MaxValue, DisplayName: Max Value, FieldType: Float, DefaultValue: 100
#DesignerProperty: Key: IndicatorLength, DisplayName: Indicator Length, FieldType: Int, DefaultValue: 20
#DesignerProperty: Key: CenterColor, DisplayName: Center Color, FieldType: Color, DefaultValue: 0xFF7C7C7C
#DesignerProperty: Key: BackgroundColor, DisplayName: Background Color, FieldType: Color, DefaultValue: 0xFFFFFFFF
#DesignerProperty: Key: IndicatorColor, DisplayName: Indicator Color, FieldType: Color, DefaultValue: 0xFF000000
#DesignerProperty: Key: PrefixText, DisplayName: Prefix Text, FieldType: String, DefaultValue:
#DesignerProperty: Key: SuffixText, DisplayName: Suffix Text, FieldType: String, DefaultValue: °
#DesignerProperty: Key: Duration, DisplayName: Duration From 0 To 100, FieldType: Int, DefaultValue: 3000, Description: Milliseconds
#DesignerProperty: Key: GaugeType, DisplayName: Gauge Type, FieldType: String, DefaultValue: Half Circle, List:Half Circle|Full Circle
#DesignerProperty: Key: TextValue, DisplayName: Text Value, FieldType: String, DefaultValue:
Sub Class_Globals
    Private mEventName As String 'ignore
    Private mCallBack As Object 'ignore
    Private mBase As B4XView
    Private xui As XUI
    Private cvsGauge, cvsIndicator As B4XCanvas
    Private mlbl As B4XView
    Type GaugeRange (LowValue As Float, HighValue As Float, Color As Int)
    Private mRanges As List
    Private GaugePanel, IndicatorPanel As B4XView
    Private Radius, x, y As Float
    Private IndicatorLength As Int
    Private CenterColor, IndicatorColor As Int
    Private MinValue, MaxValue As Float
    Private IndicatorBaseWidth As Float
    Private mCurrentValue As Float
    Private PrefixText, SuffixText As String
    Private DurationFromZeroTo100 As Int
    Private HALF_CIRCLE = 1, FULL_CIRCLE = 2 As Int
    Private GaugeType As Int
    Private AngleRange As Int
    Private AngleOffset As Int
    Private BackgroundColor As Int
    Private strTextValue As String
End Sub

Public Sub Initialize (Callback As Object, EventName As String)
    mEventName = EventName
    mCallBack = Callback
    mRanges.Initialize
End Sub

'Base type must be Object
Public Sub DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
    IndicatorLength = DipToCurrent(Props.Get("IndicatorLength"))
    CenterColor = xui.PaintOrColorToColor(Props.Get("CenterColor"))
    IndicatorColor = xui.PaintOrColorToColor(Props.Get("IndicatorColor"))
    BackgroundColor = xui.PaintOrColorToColor(Props.GetDefault("BackgroundColor", xui.Color_White))
    Dim m As Map = CreateMap("Half Circle": HALF_CIRCLE, "Full Circle": FULL_CIRCLE)
    GaugeType = m.Get(Props.GetDefault("GaugeType", "Half Circle"))
    MinValue = Props.Get("MinValue")
    MaxValue = Props.Get("MaxValue")
    PrefixText = Props.Get("PrefixText")
    SuffixText = Props.Get("SuffixText")
    strTextValue = Props.Get("TextValue")
    DurationFromZeroTo100 = Props.Get("Duration")
    mBase = Base
    Dim NativeFont As Object
#if B4J
    Dim fx As JFX
    NativeFont = fx.LoadFont(File.DirAssets, "Crysta.ttf", 20)
    Lbl.Style = ""
#else if B4A
    NativeFont = Typeface.LoadFromAssets("Crysta.ttf")
#else if B4i
    NativeFont = Font.CreateNew2("Crystal", 20)
#End If
    GaugePanel = xui.CreatePanel("")

    mBase.AddView(GaugePanel, 0, 0, mBase.Width, mBase.Height)
    cvsGauge.Initialize(GaugePanel)
    IndicatorPanel = xui.CreatePanel("")
    mBase.AddView(IndicatorPanel, 0, 0, mBase.Width, mBase.Height)
    cvsIndicator.Initialize(IndicatorPanel)
    mlbl = Lbl
    mlbl.Font = xui.CreateFont(NativeFont, 30)
    mlbl.SetTextAlignment("CENTER", "CENTER")
    mlbl.TextColor = xui.Color_Black
    Dim lblheight As Float
    If PrefixText.Contains(CRLF) Then lblheight = 65dip Else lblheight = 35dip
    mBase.AddView(mlbl, 0, 0, 0, lblheight) 'label size
    Base_Resize(mBase.Width, mBase.Height)
End Sub

Private Sub Base_Resize (Width As Double, Height As Double)
     mlbl.SetLayoutAnimated(0, 0, Height - mlbl.Height - 5dip, Width, mlbl.Height)
    GaugePanel.SetLayoutAnimated(0, 0, 0, Width, Height)
    cvsGauge.Resize(Width, Height)
    IndicatorPanel.SetLayoutAnimated(0, 0, 0, Width, Height)
    cvsIndicator.Resize(Width, Height)

    DrawBackground
End Sub

Public Sub SetMinAndMax(NewMinValue As Float, NewMaxValue As Float)
    MinValue = NewMinValue
    MaxValue = NewMaxValue
    DrawBackground
End Sub

Private Sub DrawBackground
    cvsGauge.ClearRect(cvsGauge.TargetRect)
    Select GaugeType
        Case HALF_CIRCLE
            ConfigureHalfCircle
        Case FULL_CIRCLE
            ConfigureFullCircle
    End Select
    cvsGauge.DrawCircle(x, y, Radius + 1dip, BackgroundColor, True, 0)
    For Each gr As GaugeRange In mRanges
        Dim p As B4XPath
        Dim StartAngle As Float = ValueToAngle(gr.LowValue)
        p.InitializeArc(x, y, Radius, StartAngle, ValueToAngle(gr.HighValue) - StartAngle)
        cvsGauge.ClipPath(p)
        cvsGauge.DrawCircle(x, y, Radius, gr.Color, True, 0)
        cvsGauge.RemoveClip
    Next
    cvsGauge.DrawCircle(x, y, Radius - IndicatorLength, BackgroundColor, True, 0)
    If GaugeType = FULL_CIRCLE And PrefixText <> "" Then
        cvsGauge.DrawText(PrefixText, x, y - 30dip, xui.CreateDefaultFont(16), xui.Color_Black, "CENTER")
        'outer border
        cvsGauge.DrawCircle(x, y, Radius + 1dip, xui.Color_Gray, False, 1dip)
    End If
    DrawTicks
    cvsGauge.Invalidate
    DrawIndicator(mCurrentValue)
End Sub

Private Sub ConfigureHalfCircle
    Radius = Min(GaugePanel.Width / 2, GaugePanel.Height)
    x = cvsGauge.TargetRect.CenterX
    y = cvsGauge.TargetRect.Height
    AngleOffset = 180
    AngleRange = 180
    IndicatorBaseWidth = 20dip
End Sub

Private Sub ConfigureFullCircle
    Radius = Min(GaugePanel.Width, GaugePanel.Height) / 2 - 3dip
    x = cvsGauge.TargetRect.CenterX
    y = cvsGauge.TargetRect.CenterY
    AngleOffset = 135
    AngleRange = 270
    IndicatorBaseWidth = 6dip
    CenterColor = IndicatorColor

End Sub

Private Sub DrawTicks
    Dim r1 As Int = Radius - 2dip
    Dim LongTick As Int = r1 - 7dip
    Dim ShortTick As Int = r1 - 5dip
    Dim NumberOfTicks As Int
    If GaugeType = HALF_CIRCLE Then NumberOfTicks = 10 Else NumberOfTicks = 20
    For i = 0 To NumberOfTicks
        Dim thickness, r As Int
        Dim angle As Float = i * AngleRange / NumberOfTicks + AngleOffset
        If i Mod 5 = 0 Then
            thickness = 3dip
            r = LongTick
        Else
            thickness = 1dip
            r = ShortTick
        End If
        cvsGauge.DrawLine(x + r * CosD(angle), y + r * SinD(angle), x + r1 * CosD(angle), y + r1 * SinD(angle), xui.Color_Black, thickness)
    Next
End Sub



Private Sub DrawIndicator (Value As Float)
    cvsIndicator.ClearRect(cvsIndicator.TargetRect)
    Dim angle As Float = ValueToAngle(Value)
    Dim p As B4XPath
    p.Initialize(x + IndicatorBaseWidth * SinD(angle), y - IndicatorBaseWidth * CosD(angle))
    Dim length As Float = Radius - 0.3 * IndicatorLength
    p.LineTo(x + length * CosD(angle), y + length * SinD(angle))
    p.LineTo(x - IndicatorBaseWidth * SinD(angle), y + IndicatorBaseWidth * CosD(angle))
    cvsIndicator.ClipPath(p)
    cvsIndicator.DrawRect(cvsIndicator.TargetRect, IndicatorColor, True, 0)
    cvsIndicator.RemoveClip
    Dim CircleRadius As Float
    Dim s As String
    If GaugeType = HALF_CIRCLE Then
        s = PrefixText.ToUpperCase
        CircleRadius =  Radius - IndicatorLength
    Else
        CircleRadius = IndicatorBaseWidth
    End If
    cvsIndicator.DrawCircle(x, y, CircleRadius, CenterColor, True, 0)
    cvsIndicator.Invalidate

    ' Go here to display text in the gauge instead of numbers.
    '---------------------------------------------------------
    If strTextValue <> "" Then
        mlbl.Text = strTextValue.ToUpperCase
    Else ' Display the number along with the prefix and suffix text.
        mlbl.Text = s & NumberFormat2(Value, 2, 1, 1, True) & SuffixText
    End If
End Sub

Private Sub ValueToAngle (Value As Float) As Float
    Return (Value - MinValue) / (MaxValue - MinValue) * AngleRange + AngleOffset
End Sub

Public Sub SetRanges(Ranges As List)
    mRanges = Ranges
    For Each r As GaugeRange In Ranges
        r.Color = Bit.And(0x00ffffff, r.Color)
        r.Color = Bit.Or(0x88000000, r.Color)
    Next
    DrawBackground
End Sub

Public Sub CreateRange(LowValue As Float, HighValue As Float, Color As Int) As GaugeRange
    Dim r As GaugeRange
    r.Initialize
    r.LowValue = LowValue
    r.HighValue = HighValue
    r.Color = Color
    Return r
End Sub

Public Sub setCurrentValue (v As Float)
    Dim NewValue As Float = Min(MaxValue, Max(MinValue, v))
    AnimateValueTo(NewValue)
End Sub

Public Sub getCurrentValue As Float
    Return mCurrentValue
End Sub

' Populate the new string variable so the gauge can display text instead of a number.
'------------------------------------------------------------------------------------
Public Sub SetTextValue (strTextValueIn As String)
    strTextValue = strTextValueIn
End Sub

Private Sub AnimateValueTo(NewValue As Float)
    Dim n As Long = DateTime.Now
    Dim duration As Int = Abs(mCurrentValue - NewValue) / 100 * DurationFromZeroTo100 + 1000
    Dim start As Float = mCurrentValue
    mCurrentValue = NewValue
    Dim tempValue As Float
    Do While DateTime.Now < n + duration
        tempValue = ValueFromTimeEaseInOut(DateTime.Now - n, start, NewValue - start, duration)
        DrawIndicator(tempValue)
        Sleep(10)
        If NewValue <> mCurrentValue Then Return 'will happen if another update has started
    Loop
    DrawIndicator(mCurrentValue)
End Sub

'quartic easing in/out from http://gizma.com/easing/
Private Sub ValueFromTimeEaseInOut(Time As Float, Start As Float, ChangeInValue As Float, Duration As Int) As Float
    Time = Time / (Duration / 2)
    If Time < 1 Then
        Return ChangeInValue / 2 * Time * Time * Time * Time + Start
    Else
        Time = Time - 2
        Return -ChangeInValue / 2 * (Time * Time * Time * Time - 2) + Start
    End If
End Sub

Upvote 0

AnandGupta

Well-Known Member
Licensed User
If you use SetTextValue, it is a method and you must use it like MyCustomView.SetTextValue(MyText)
if you use setTextValue, then it becomes a property and you use it like MyCustomView.TextValue = MyText
I might have missed it in the booklet. Thanks for refreshing our memory.

Regards,

Anand

Upvote 0
Top
