B4J Question [Solved] Wand tool

Discussion in 'B4J Questions' started by jroriz, Sep 26, 2018.

  1. jroriz

    jroriz Active Member Licensed User

    to

    Is it possible to create something like a wand tool?

    I need to change all the yellow pixels, and then pixels "close to yellow", to black.
    Then all the rest to white.

    I was trying using BitmapCreator, and comparing pixel by pixel. But i could not figure out how to detect a range of pixels that are close to yellow.

    I think this is a hard one...

  2. Roycefer

    Roycefer Well-Known Member Licensed User

    There are a few ways to think about the "closeness" of a color to another color. A simple method that might work for you is to consider the RGB color space as a 3-dimensional euclidean space and just calculate distances using Pythagorean Theorem:
    Code:
    Dim colorDist As Double = Sqrt(Power(r1-r2,2)+Power(g1-g2,2)+Power(b1-b2,2))
    Then you can select a maximum permissible distance.

    There are more sophisticated ways that involve conversion to HSB color space or treating RGB color space as a vector space and taking inner products. If the Pythagorean Theorem method doesn't suit your needs, we can explore the more sophisticated solutions.

    Note that in the example picture you posted, the non-yellow pixels are all black. If this is representative of the real images you have to use, then it will be easier to just detect black pixels and turn them white and non-black pixels to black.

    jroriz and stevel05 like this.
  3. MarkusR

    MarkusR Well-Known Member Licensed User

    i answered in your other post.
    yellow is just red+green

  4. Sandman

    Sandman Well-Known Member Licensed User

    It might help more if you described how you plan to use the resulting image. I come from a Photoshop background (GIMP nowadays) so I tend to think more in that way than a strictly mathematical way that @Roycefer described.

    So, if you plan to use the resulting image as something you just display or perhaps place on top of another image, I would do this to get a perfect result.

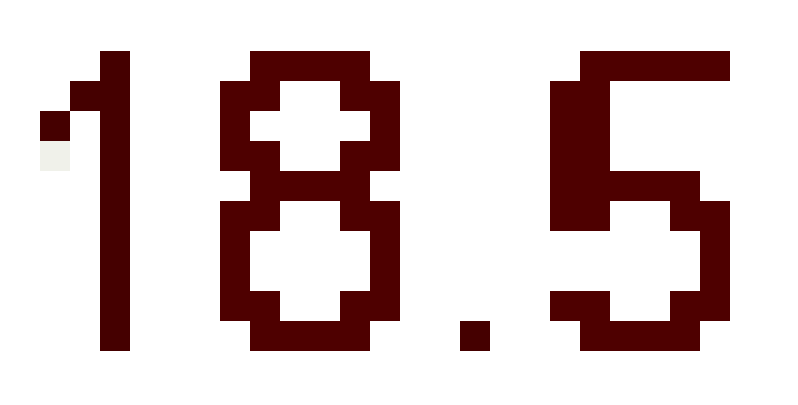

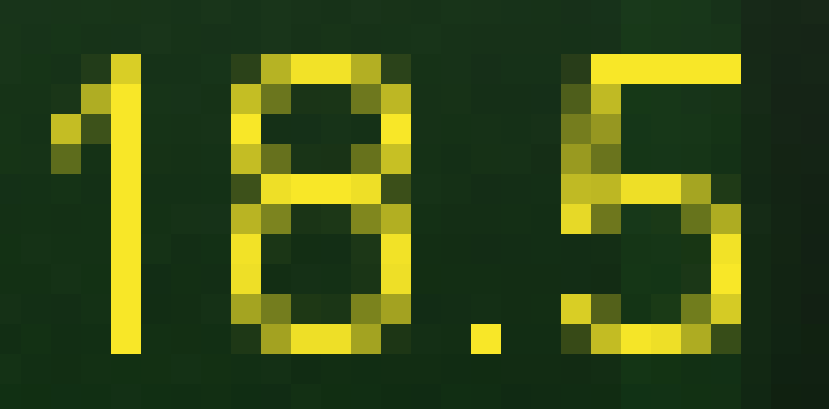

    1. Starting image
      [​IMG]

    2. Throw away all colour, making it grayscale

    3. Invert it

    4. Adjusting the Levels by setting the background to white (this is not same as working with brightness, the latter destroys image data, Levels ”stretches” the available data)
      (In this specific case I didn't have to set the blackpoint, the yellow was good enough to work with)

    5. And, if that's what you’re aiming for, multiplying the image into another picture:

    KMatle likes this.
  5. MarkusR

    MarkusR Well-Known Member Licensed User

    it would look better with a lossless format like png.
    grey = (r+g+b) / 3

    Code:
    Sub Process_Globals


    Private xui As XUI

    Private ImageView1 As ImageView

    Private ImageView2 As ImageView
      ...

    Sub Test


    Dim Bitmap1 As B4XBitmap = xui.LoadBitmap(File.DirAssets,"clock.png")

        ImageView1.SetImage(Bitmap1)
    '< a ImageView in layout


    Dim bc As BitmapCreator
        bc.Initialize(Bitmap1.Width,Bitmap1.Height)
        bc.CopyPixelsFromBitmap(Bitmap1)


    Dim x As Int

    Dim y As Int

    Dim pixel As ARGBColor

    For x = 0 To bc.mWidth-1

    For y = 0 To bc.mHeight-1
                bc.GetARGB(x,y,pixel)

    If pixel.r > 64 And pixel.b < 64 Then
                    pixel.r = pixel.r /
    2
                    pixel.g = pixel.g /
    4
                    pixel.b = pixel.b /
    4

    Else
                    pixel.r =
    255
                    pixel.g =
    255
                    pixel.b =
    255

    End If
                bc.SetARGB(x,y,pixel)

    Next

    Next

        ImageView2.SetImage(bc.Bitmap)
    '< a ImageView in layout

        Bitmap1 = bc.Bitmap

    Dim Out As OutputStream

    Log(File.DirTemp)
        Out =
    File.OpenOutput(File.DirTemp, "Output.png"False)
        Bitmap1.WriteToStream(Out,
    100"PNG")
        Out.Close

    End Sub

    Last edited: Sep 26, 2018
    peacemaker and Erel like this.
  6. jroriz

    jroriz Active Member Licensed User

    It was perfect, using the first suggestion (from Roycefer). I did not test the others, but I greatly appreciate it!
    The result was better than I expected.
    The code I got is below. If anyone can improve it, I'm grateful.
    Thank you all. This forum is simply fantastic!

    Final code:

    Code:
    Sub Clean(Whichcolor As Int, bc As BitmapCreator)


    Dim x, y As Int

    Dim ProtectedColor, ARGB As ARGBColor

        bc.ColorToARGB(Whichcolor, ProtectedColor)


    For x = 0 To bc.mWidth-1

    For y = 0 To bc.mHeight-1

                bc.GetARGB(x, y, ARGB)

    Dim colorDist As Double = Sqrt(Power(ProtectedColor.r-ARGB.r,2)+Power(ProtectedColor.g-ARGB.g,2)+Power(ProtectedColor.b-ARGB.b,2))


    If colorDist > 200 Then
                    bc.SetColor(x,y,xui.Color_White)

    Else
                    bc.SetColor(x,y,xui.Color_black)

    End If

    Next

    Next

    End Sub
    How to call: Clean(xui.Color_white, bc), where bc is bitmapcreator.

    Last edited: Sep 28, 2018
    hibrid0, Erel and MarkusR like this.
