B4J Tutorial Switch to shutdown RPI

Discussion in 'B4J Tutorials' started by inakigarm, Jun 1, 2017.

  1. inakigarm

    inakigarm Well-Known Member Licensed User

    The RPi hasn't a switch to shutdown the RPI; if you cut off power from the RPi, SD card could be corrupted easely.

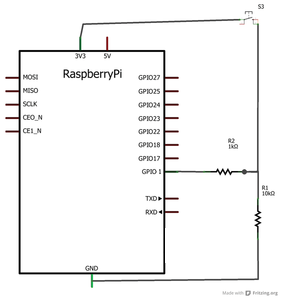

    An easy solution is to add a switch to shutdown the RPI connected to a GPIO pin and listening this pin to call shutdown command via B4J.

    Look full article at http://www.raspberry-pi-geek.com/Archive/2013/01/Adding-an-On-Off-switch-to-your-Raspberry-Pi

    Code:

    Code:
    'Non-UI application (console / server application)
    Sub Process_Globals


    Private controller AsGpioController

    Private Pin1 As GpioPinDigitalInput

    End Sub

    Sub AppStart (Args() As String)

        controller.Initialize
        Pin1.Initialize(
    "Pin1",1'GpioPinDigitalInput
        Pin1.SetPinPullResistance("PULL_DOWN")

        StartMessageLoop
    End Sub

    'Shutdown at Pin1 Change
    Sub Pin1_StateChange(State As Boolean)

    Log("Pin1 StateChange event: " & State)

    If Pin1.State=True Then

    Dim shl As Shell
            shl.Initialize(
    "shl""sudo",Array("shutdown","now"))
            shl.Run(-
    1)

    Log("Shutdown")

    End If
    End Sub


    jmon and Erel like this.
  2. Cableguy

    Cableguy Expert Licensed User

  3. jmon

    jmon Well-Known Member Licensed User

    Do you know if it would be possible to "suspend" the RPI, then wake it up when pressing again? I couldn't find anything like that anywhere

  4. Cableguy

    Cableguy Expert Licensed User

    No, it either does a shutdown sequence or a reset sequence, according to the python script, but I guess, being it a script, the reset function can perhaps be Modified to accommodate a different function

    jmon likes this.
