B4R Question Teensy with several Serial ports

[raphael75]

Will a future version of B4R support Arduino boards with several hardware Serial ports?

For instance Teensy board has 4 Serial ports:

• Serial = USB port ( https://www.pjrc.com/teensy/td_serial.html ).
• Serial1, Serial2 and Serial3 = UART ports ( https://www.pjrc.com/teensy/td_uart.html ).

https://www.pjrc.com/teensy/pinout.html



[Erel]

Note that you use SoftwareSerial library to turn (almost) any 2 pins to a serial port.

You can access hardware Serial2, 3 and 4 on supported devices with this code:

Sub Process_Globals
   Public Serial1 As Serial
   Private serial2 As Stream
End Sub

Private Sub AppStart
   Serial1.Initialize(115200)
   Log("AppStart")
   RunNative("SetSerial2", Null)
   'use AsyncStreams to work with serial2
End Sub

#if C
void SetSerial2(B4R::Object* unused) {
   ::Serial2.begin(9600);
   b4r_main::_serial2->wrappedStream = &::Serial2;
}
#end if



[jarda]

Can he develop on B4R for this teensy?



[Erel]

I haven't tried it with Teensy. It should probably work, maybe it will require a few modifications.



[jarda]

Ok..

wich select ?



[Erel]

Are you able to run a program from the Arduino IDE? This is the first step.



[jarda]

i don't know yet
I waiting on board



[jarda]

Hi Erel

So,
1. Teesy 3.2 working on Arduino v 1.68 (not v 1.69)
2. On B4R not working...

pls.. see image

Untitled2 = chose on Arduino 1.68
Untitled4 = I chose

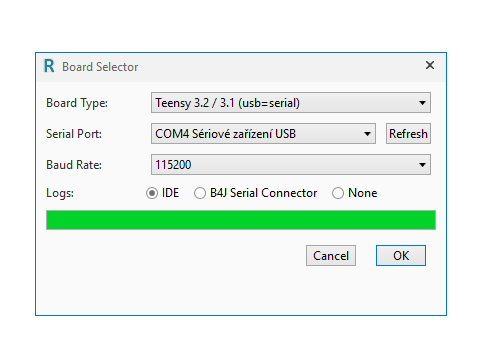

Untitled6 = Selection on B4R
Untitled8 = result
Untitled10 = compiling on Arduino 1.68

how to choose the procedure?

Jarek



[Erel]

The problem is in Serial.Initialize2 code. I decided to remove it from the core library as it is not supported on many boards.

You can either wait for B4R v1.10, the beta will be released in a day or two or copy the files from the attached zip file to rCore library.



[jarda]

Ok

Thanks
Jarek



[jarda]

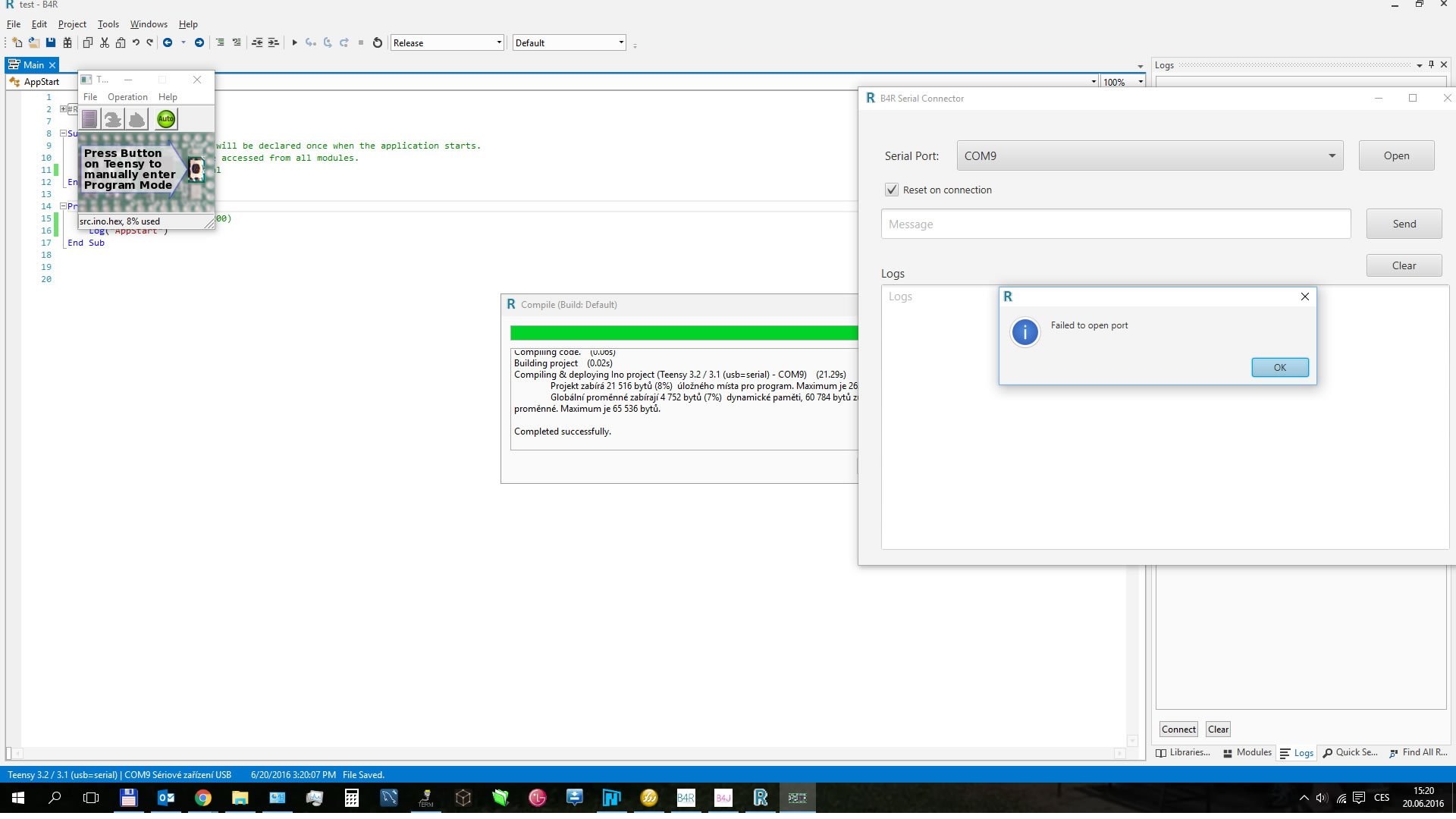

B4J Serial connector



[Erel]

Make sure that there is no other program (Arduino IDE for example) that opened the port.



[jarda]

Only this scenarios is Ok

1. Close COM port on B4J Serial connector
2. Run F5 on B4R my test
3 wait on pop up window
4. open COM port on B4J Serial Connector
5 AppStart15

otherwise : Failed to open port

this is not practical..

Jarek



[jarda]

SoftwareSerial do not work



Jarek



[jarda]

the rest looks great ...

Jarek



[Erel]

Only this scenarios is Ok

1. Close COM port on B4J Serial connector
2. Run F5 on B4R my test
3 wait on pop up window
4. open COM port on B4J Serial Connector
5 AppStart15

Have you set the Logs option to B4J Serial Connector?

You can use the multiple hardware serials instead: https://www.b4x.com/android/forum/threads/additional-hardware-serial-ports.67150/#content



[jarda]

Yes.. this is Ok

my code

#if C
void SerialNative1(B4R::Object* unused) {
::Serial1.begin(115200); //<--You can change the baud rate
b4r_main::_serialnative1->wrappedStream = &::Serial1;
}
#end if

#if C
void SerialNative2(B4R::Object* unused) {
::Serial2.begin(9600); //<--You can change the baud rate
b4r_main::_serialnative2->wrappedStream = &::Serial2;
}
#end if

#if C
void SerialNative3(B4R::Object* unused) {
::Serial3.begin(9600); //<--You can change the baud rate
b4r_main::_serialnative3->wrappedStream = &::Serial3;
}
#end if


Problem is B4J (Java) Serial connector and Teensy USB connector
Two devices and one port...
So.. after complile I must reinit B4J Serial connector

but i don't know as possible solve

Jarek



[amorosik]

Hi Jarda, have you solved the problem of communication with different serials?
I have the same problem and some advice could be very useful to me
