Share My Creation User Login + MySQL PHP API

Update: For B4J API Server and cross platform client apps, please check [B4X] User Login App + [B4J] MySQL API Server (Key + Token)

Android App






This is the 3rd version of login example I share in this forum.

The first version I shared when I started learning B4A is just a very simple login app.
Http Login example using HttpUtils2

Later, I have shared a tutorial in Code Snippet title:
Register User example using OKHttpUtils2

Both of the samples I shared are using very simple PHP with mysql_query function. I have later updated the 2nd sample with mysqli since mysql functions are deprecated in PHP.

Recently I am thinking to update the sample project with what I have learned in this few years. I have seen some members here are still using mysqli but I want to introduce the use of PDO in PHP. The sample I shared here is just intended for learning purpose. Anyone are welcome to extend it to become a production ready and more powerful app. For example, In my real app, I have a function to upload profile photo. I remove the feature to leave it to members here to find out how to do it. The answer is in this forum and the Internet.

In my previous code snippet, I use 6 digit security code but in this latest version, I have used a 32 characters MD5 string for the code in email confirmation.

The PHP app I share here is a cut down version of PHP backend I use in production. It is based on MVC concept where it provides a web application front-end and includes php session and some other security. I think I don't need to share much on the "View" part of the MVC. I just modified it to become the "API" to consume by the B4A app. However, I use the View part to show a documentation on how to use the API as you can see in the screenshots. For the "Model" part, I only include "User" and "Password". It is easy to extend to more models. For example, I could have add "Driver" and "Order" model for the e-hailing app or "Student" and "Courses" models to my e-learning app.
Last edited:


Licensed User
Very Nice.
That's what I'm also developing right now, only I don't want to use PHP, but everything with B4J.
Security plays a big role.
Please check this:


Well-Known Member
Licensed User
I can see there are 2 slashes before user in the url. Try edit the config file so it shows only 1 slash.

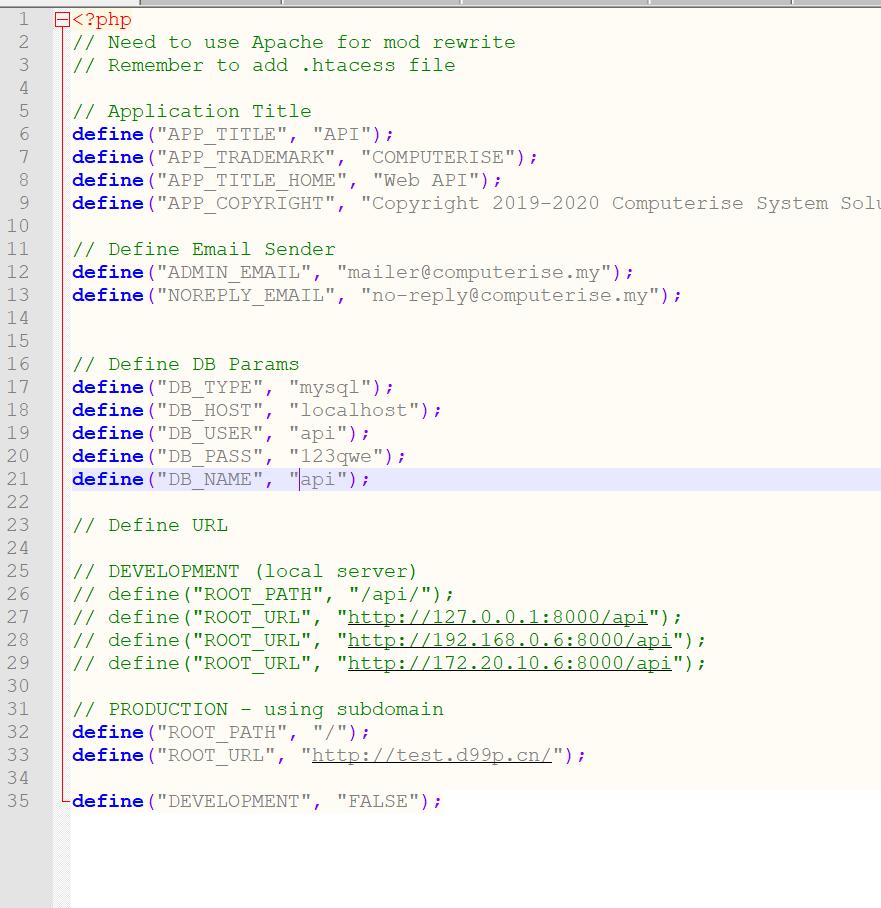

I removed the trailing slash in the config file for "root_url"
// PRODUCTION - using subdomain
define("ROOT_PATH", "/api/");
define("ROOT_URL", "");

That gave this link and this error:
Your code is installed in



Licensed User

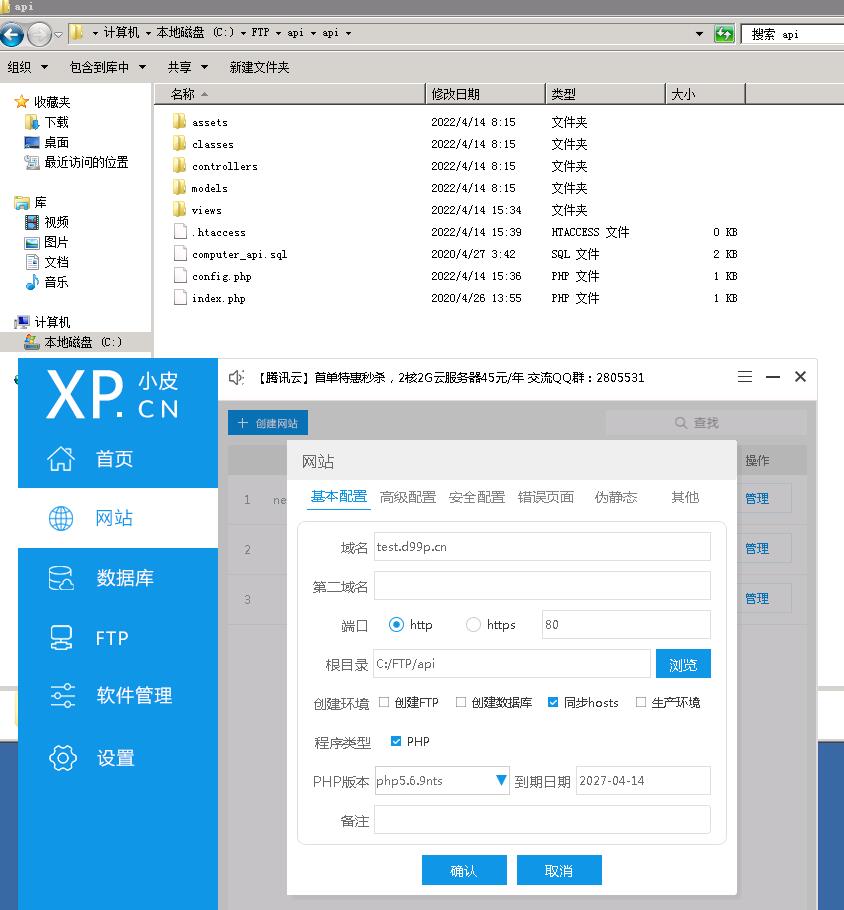

There are 2 cases. Do you (1) create a subdomain called "api" or (2) a sub folder in the root?
If you use cPanel to create subdomain, then the folder "api" will become your document root. In this case:
// PRODUCTION - using subdomain
define("ROOT_PATH", "/");
define("ROOT_URL", "");

If you just copy the folder into the root, try:
// PRODUCTION - using folder inside root
define("ROOT_PATH", "/api/");
define("ROOT_URL", "");
Very likely the second settings are the right for you.
Last edited:


Well-Known Member
Licensed User
Okay seems to be all sorted out thank you, and thank you for all your hard work here.
Is there a way to add phpmailer to your code so I can send emails from my gmail account?


Licensed User
Okay seems to be all sorted out thank you, and thank you for all your hard work here.
Is there a way to add phpmailer to your code so I can send emails from my gmail account?
Yes. You can replace the SendEmail function to following:
    private function SendEmail($user_name, $user_email, $activation_code)
        require 'PHPMailerAutoload.php';

        $mail = new PHPMailer;

        // $mail->SMTPDebug = 3;                               // Enable verbose debug output

        $mail->isSMTP();                                      // Set mailer to use SMTP
        $mail->Host = '';                          // Specify main SMTP servers
        $mail->SMTPAuth = true;                               // Enable SMTP authentication
        $mail->Username = '';       // SMTP username
        $mail->Password = 'xxxxxxxx';                         // SMTP password
        $mail->SMTPSecure = 'tls';                            // Enable TLS encryption, `ssl` also accepted
        $mail->Port = 587;                                    // TCP port to connect to

        $mail->setFrom('', 'Mailer');
        $mail->addAddress($user_email, $user_name);
        // $mail->addReplyTo('', 'Support');
        // $mail->addCC('');
        // $mail->addBCC(ADMIN_EMAIL); // copy to Admin

        $mail->isHTML(true);                                  // Set email format to HTML

        $body = "Hi ".$user_name.",<br/>";
        $body .= "Please click on this link to finish the registration process:<br/>";
        $body .= ROOT_URL."/user/activate/".$activation_code;

        $mail->Subject = APP_TRADEMARK;
        $mail->Body    = $body;
        $mail->AltBody = "Hi $user_name,\r\n";
        $mail->AltBody .= "Please click on this link to finish the registration process:\r\n";
        $mail->AltBody .= ROOT_URL."/user/activate/".$activation_code;

        if(!$mail->send()) {
            //echo 'Message could not be sent.';
            $msg_text = "[Mailer Error] ".$mail->ErrorInfo;
            $this->LogError("user/activate", $msg_text);
        } else {
            //echo 'Message has been sent';
            $msg_text = $eml;
            $this->LogUser("user/activate", "success", $msg_text, 0);

I get this guide:
Last edited:


Active Member
Licensed User
B4A User Login App (
Note: In Starter module, under Process_Globals, you can change the values to your own values.
    'Dim strURL As String = ""                         ' Local / Development (Hotspot)
    Dim strURL As String= ""                            ' Remote / Production
    Dim DEMO_EMAIL As String = ""
    Dim DEMO_PASSWORD As String = "mydemopass"
    Dim DEV As Boolean = True

SQL script to create the database is included in the zip file.
Note: In my shared hosting, I need to rename folders in views to start with capital letter. Example: wwwroot/api/views/Home.

View attachment 94217
Thank you for sharing!
