B4J Question [xGauges] Gauge Horizontal Border Bottom Missing

[rwblinn]

Hi,
I am working on a simple controller for a LEGO Train with BuWizz2 controller. Communication via BLE with PyBridge & Bleak.
The speed of the train is displayed using a gauge from the xGauges library.

Issue

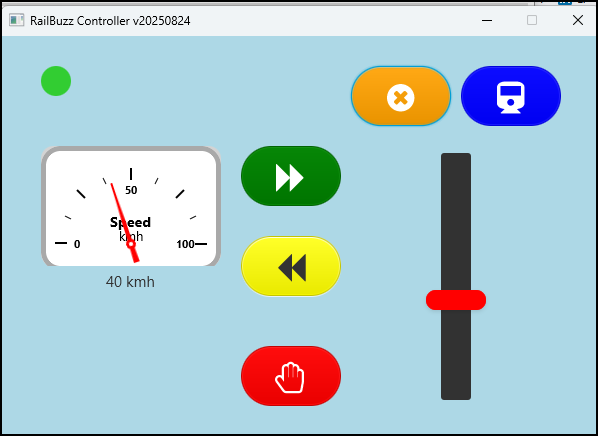

The gauge horizontal border at the bottom is not displayed.

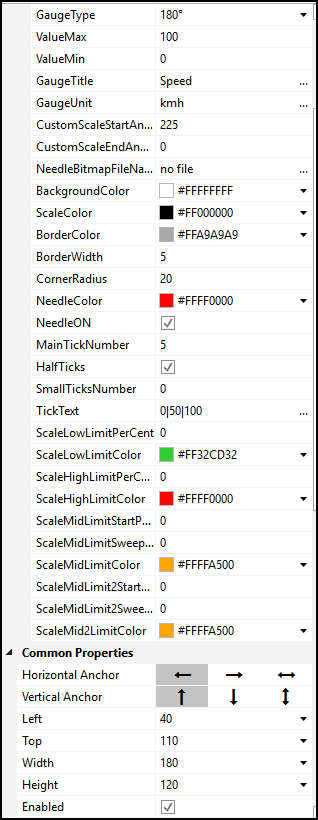

The border width and corner are set in the gauge properties. The designer border properties are set to 0.
The label below the gauge is not overlapping (have also removed that label and same result).
Tested with B4J 10.30, xGauges 2.0, Java JDK 19.

Pls advice what is missing in the settings using the B4J designer.



[klaus]

Can you post a small project showing the problem.
At the first look it seems that the Label below is overlapping.
Therefore without seeing your project it is impossible to give a concrete advice.



[rwblinn]

Thanks for help.
Pls find attached an extract of the RailBuzz Controller project - just to show the UI.



[teddybear]

Adjust the height of the xgaugeview in designer



[klaus]

Increase the height of GaugeSpeed to 130.
I will look deeper into this why it happens.



[klaus]

The library has been updated to version 2.1.



[rwblinn]

Klaus,
thanks a lot for the fix = appreciated.

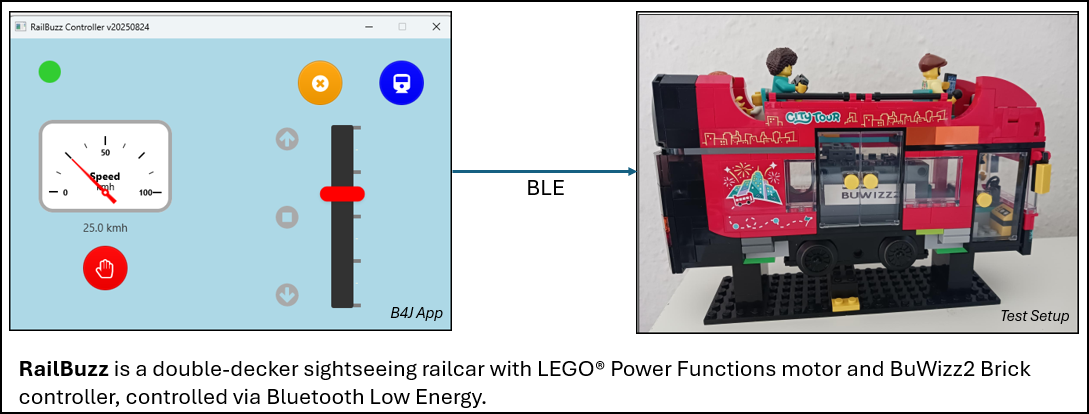

Screenshots of my fun project
