B4J Tutorial [ABMaterial] Creating a color grid container

Discussion in 'B4J Tutorials' started by Mashiane, May 29, 2018.

  1. Mashiane

    Mashiane Expert Licensed User

    Ola

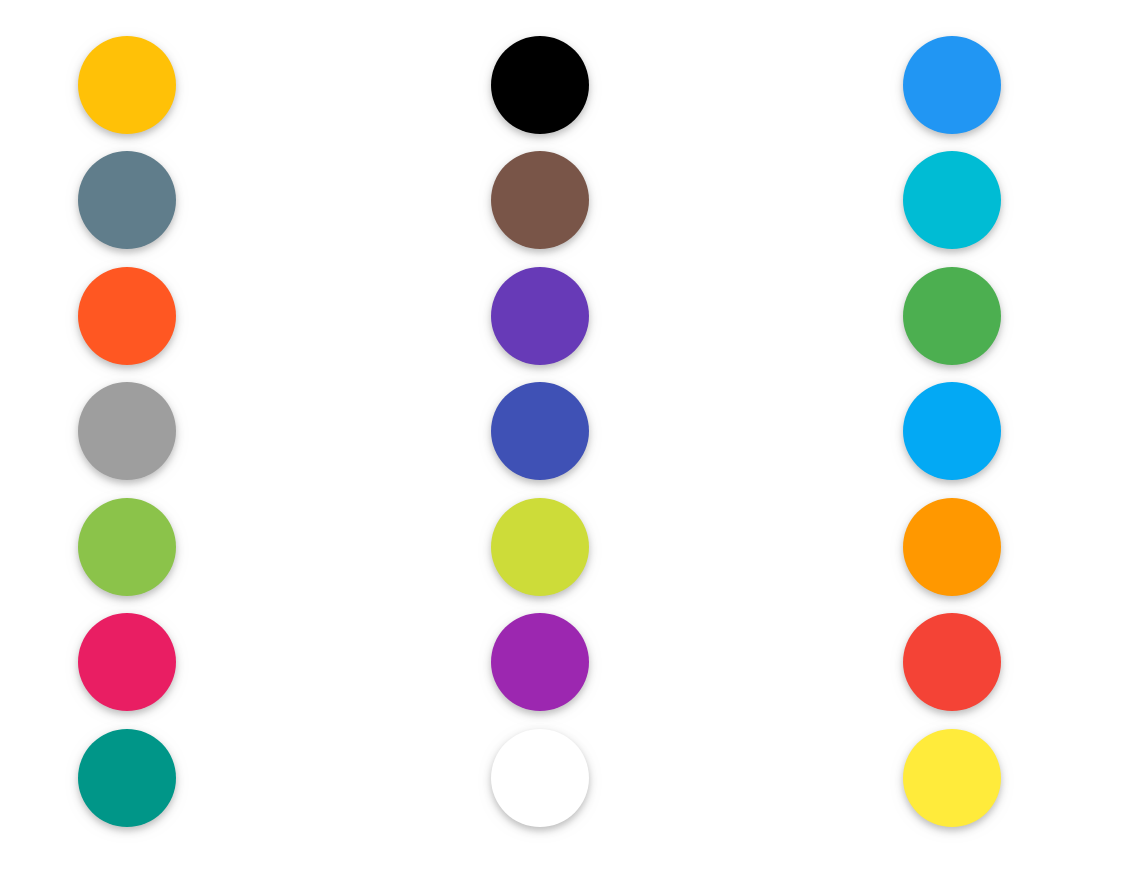

    Some thoughts are running in my head about implementing this for my color coded events management. So we have 21 colors. So me thinks a 7 row, 3 columns grid will do.

    Code:
    Sub ColorGrid(page As ABMPage, id As StringAs ABMContainer

    Dim ItemCont As ABMContainer
        ItemCont.Initialize(
    pageid"")
        ItemCont.AddRowsM(
    7,True,10,10"").AddCellsOSMP(3,0,0,0,4,4,4,0,0,0,0,"")
        ItemCont.BuildGrid
    'IMPORTANT once you loaded the complete grid AND before you start adding components


    Dim cols As List = CreateList(",","Amber,Black,Blue,Blue Grey,Brown,Cyan,Deep Orange,Deep Purple,Green,Grey,Indigo,Light Blue,Light Green,Lime,Orange,Pink,Purple,Red,Teal,White,Yellow")
        cols.Sort(
    True)


    Dim lstTot As Int

    Dim lstCnt As Int = 0

    Dim r As Int = 1

    Dim c As Int = 0
        lstTot = cols.Size -
    1

    For lstCnt = 0 To lstTot
            c = c +
    1

    If c > 3 Then
                c =
    1
                r = r +
    1

    End If

    Dim strColor As String = cols.Get(lstCnt)

    Dim strKey As String = strColor.Replace(" ","").tolowercase

    Dim strTheme As String = $"all${strKey}"$


    'add the button
            Dim btn As ABMButton
            btn.InitializeFloating(
    page,strTheme,"",strTheme)
            btn.Size = ABM.BUTTONSIZE_LARGE
            ItemCont.Cell(r,c).AddArrayComponent(btn,
    "colorPallete")
            ItemCont.Cell(r,c).UseTheme(
    "centercontent")

    Next

    Return ItemCont
    End Sub
    I decide to use buttons because I need to trap the click event, so the background color and forecolor of each of the buttons needs to be a color, so each of the button themes follow this approach..

    Code:
    MyTheme.AddButtonTheme("allindigo")
        MyTheme.Button(
    "allindigo").zdepth = ABM.ZDEPTH_1
        MyTheme.Button(
    "allindigo").forecolor = ABM.COLOR_INDIGO
        MyTheme.Button(
    "allindigo").backcolor = ABM.COLOR_INDIGO
    Ta!

    magi6162, DonManfred, Erel and 3 others like this.
  2. Mashiane

    Mashiane Expert Licensed User

    You can however decide that you want a combobox color picker. Tweak away!!!


    Code:
    Sub LoadColors(pg As ABMPage, abmc As ABMCombo)
        abmc.Clear

    Dim cols As List = CreateList(",","Amber,Black,Blue,Blue Grey,Brown,Cyan,Deep Orange,Deep Purple,Green,Grey,Indigo,Light Blue,Light Green,Lime,Orange,Pink,Purple,Red,Teal,White,Yellow")
        cols.Sort(
    True)

    For Each strColor As String In cols

    Dim strKey As String = strColor.Replace(" ","").tolowercase

    Dim strTheme As String = $"all${strKey}"$
            abmc.AddItem(strKey,strColor,BuildColorItem(pg,strKey,strColor,strTheme))

    Next
        abmc.Refresh
    End Sub

    Sub BuildColorItem(page As ABMPage, id As String, Title As String, theme As StringAs ABMContainer

    Dim ItemCont As ABMContainer
        ItemCont.Initialize(
    pageid"")
        ItemCont.AddRowsM(
    1,False,6,0"").AddCellsOSMP(1,0,0,0,3,2,2,0,0,20,0,"").AddCellsOS(1,0,0,0,9,10,10,"")
        ItemCont.BuildGrid
    'IMPORTANT once you loaded the complete grid AND before you start adding components


    Dim btn As ABMButton
        btn.InitializeFloating(
    page,id & "btn","",theme)
        ItemCont.Cell(
    1,1).AddComponent(btn)
        ItemCont.Cell(
    1,1).SetFixedHeight(48,False)


    Dim lbl1 As ABMLabel
        lbl1.Initialize(
    pageid & "lbl1", Title, ABM.SIZE_H6, False"")
        ItemCont.Cell(
    1,2).AddComponent(lbl1)

    Return ItemCont
    End Sub

    magi6162, joulongleu and alwaysbusy like this.
