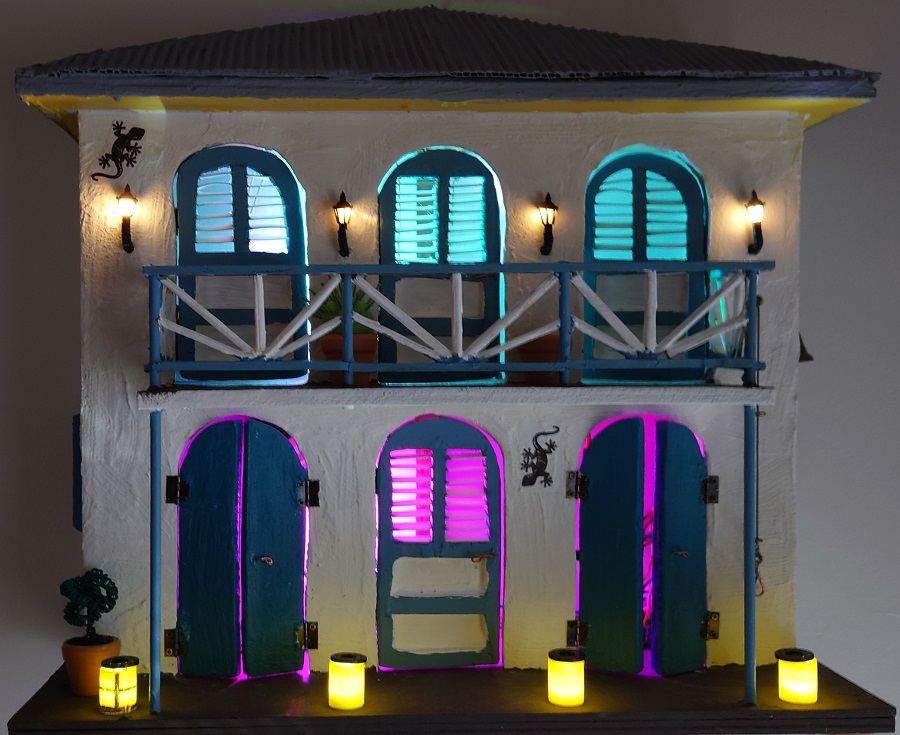

Animation of a Creole house

Marc DANIEL

Well-Known Member
Licensed User

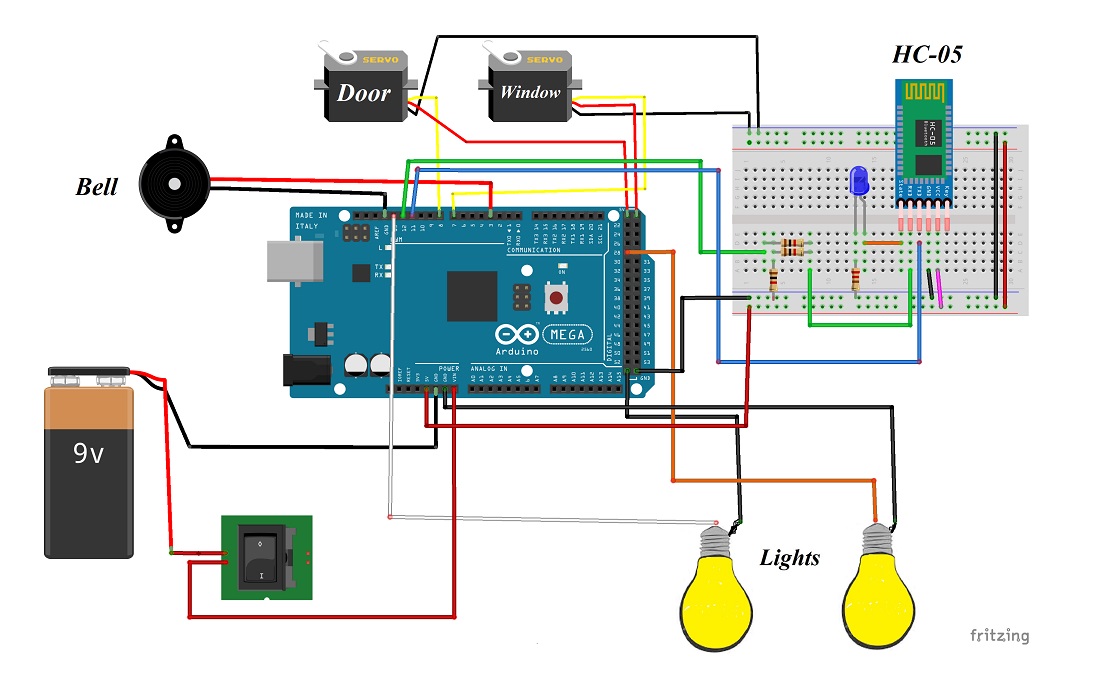

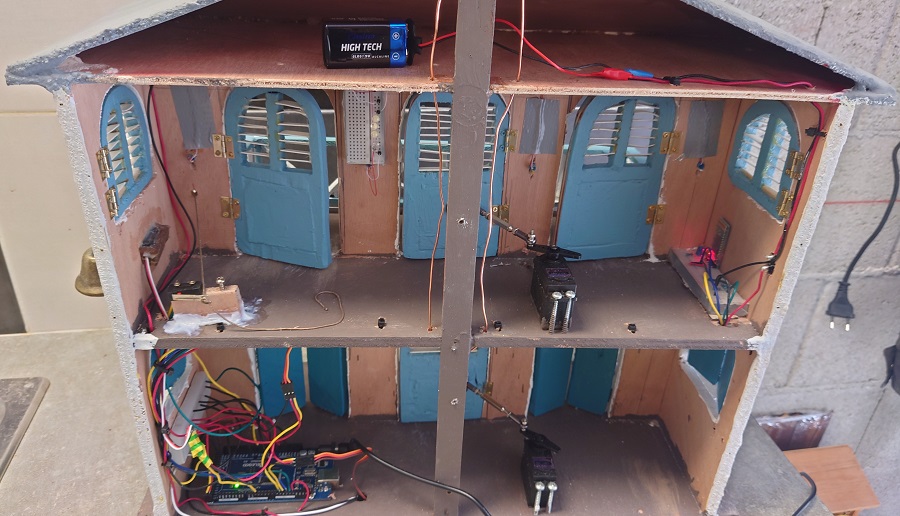

It involves animating a model of a colonial house with two applications: a B4A application on Smartphone to send Bluetooth commands to another B4R application installed in an ARDUINO MEGA2560 board located in the house.


(The French word "Case" can be translated as hut, cabin, small house ...)

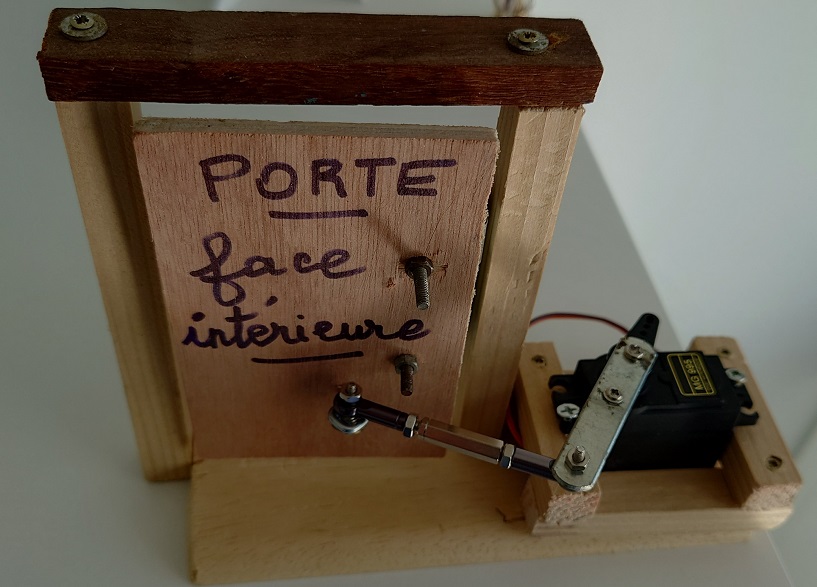

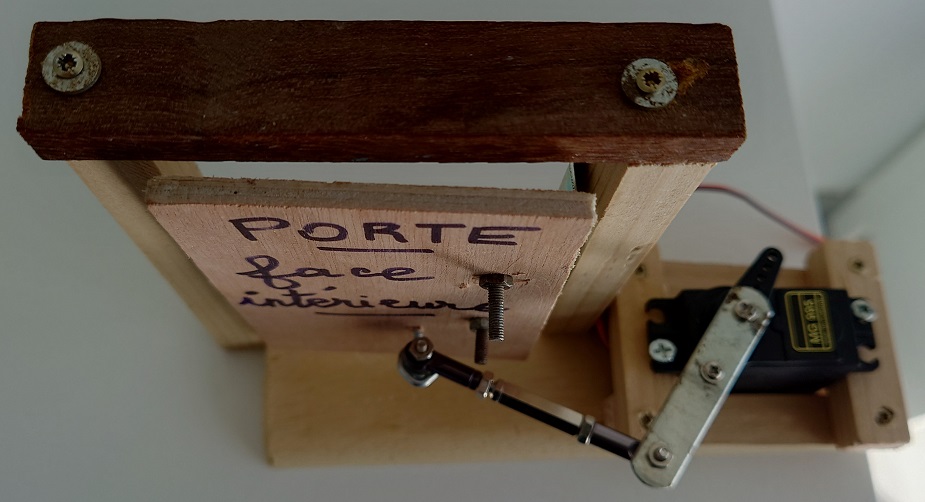

It is thus possible to open and close a door and a window, to light lamps inside or outside, to trigger a bell, etc ...

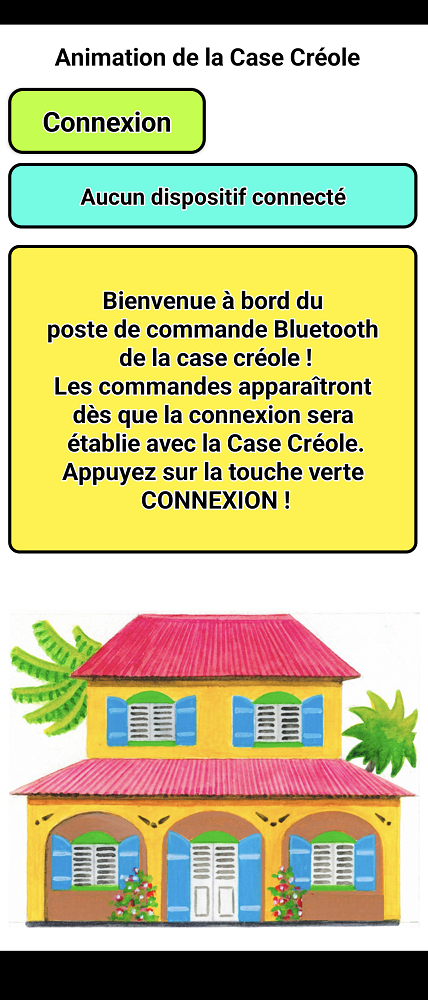

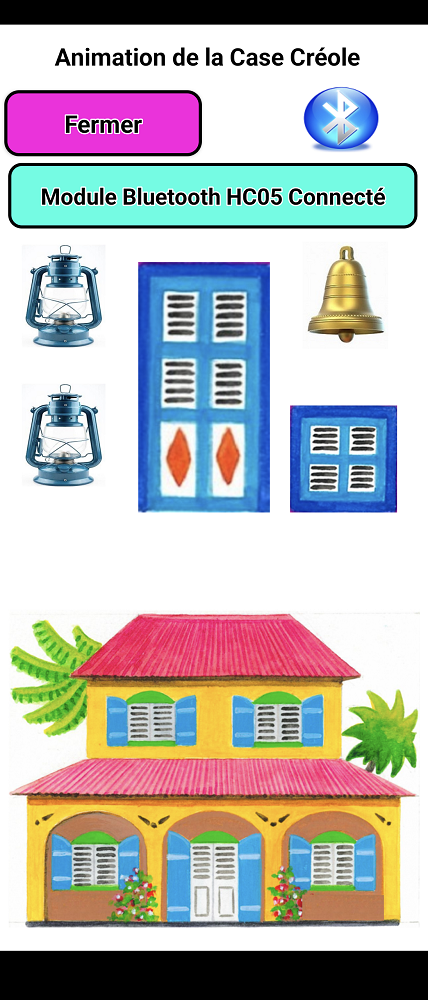

Smartphone Screenshots: Home Page and Command Buttons​

Last edited:

Marc DANIEL

Well-Known Member
Licensed User

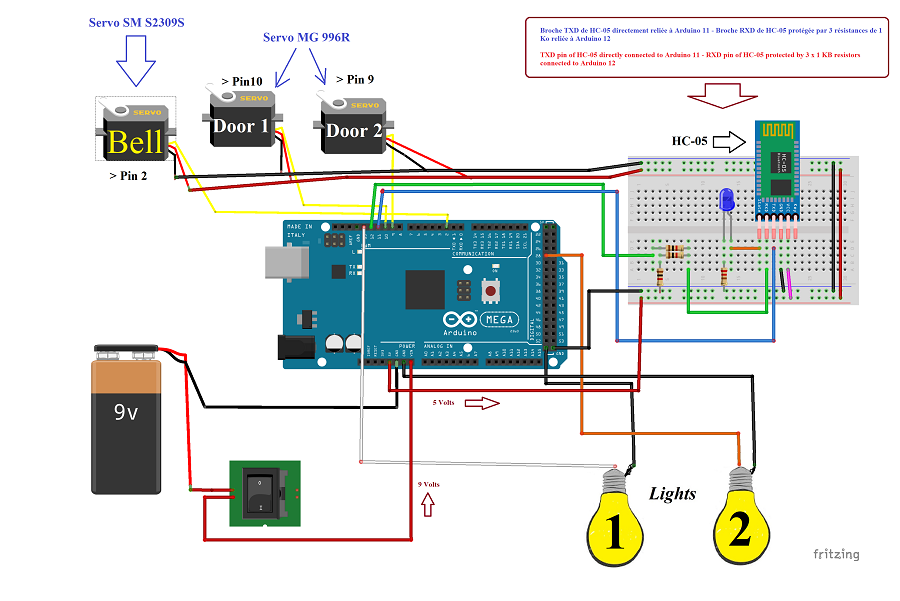

APK file - B4A File - B4R file

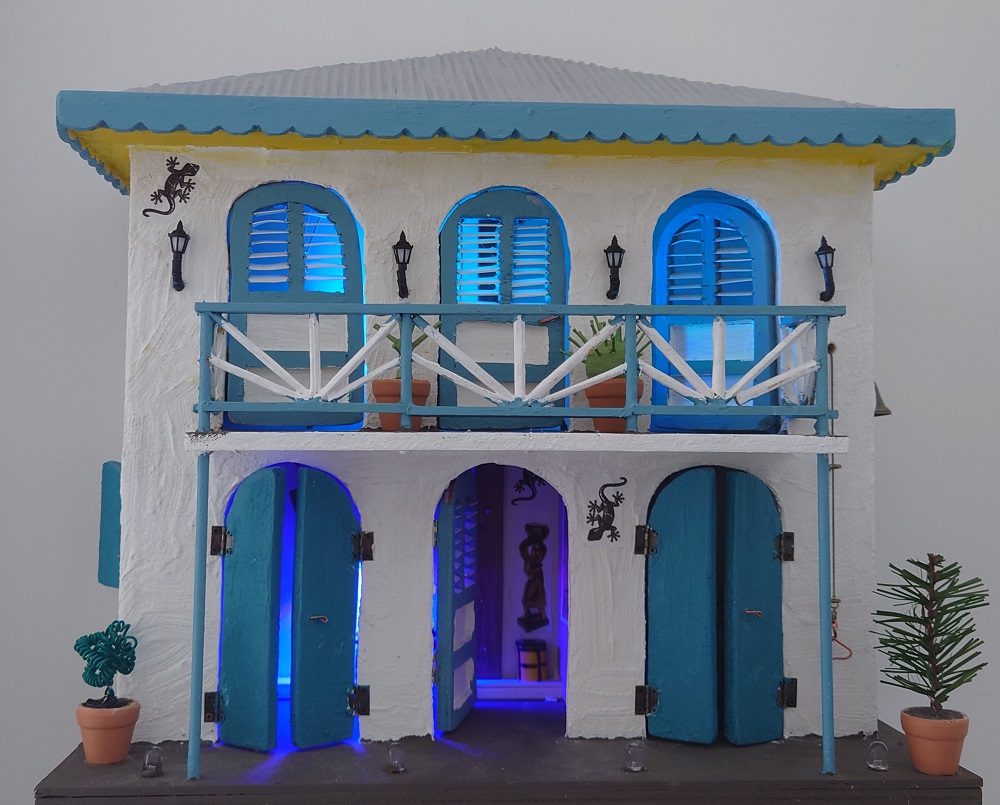

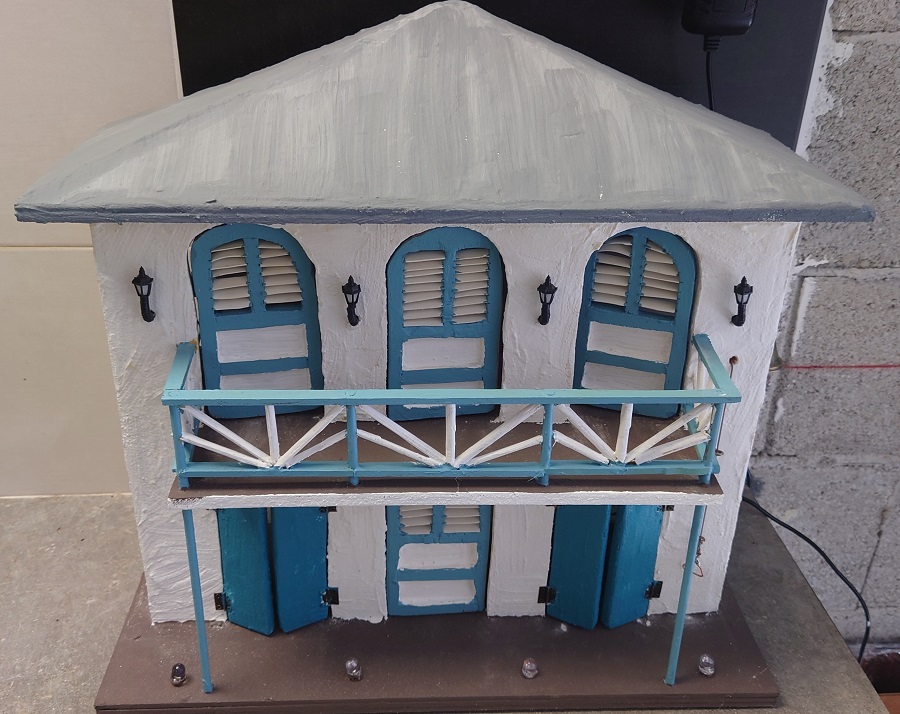

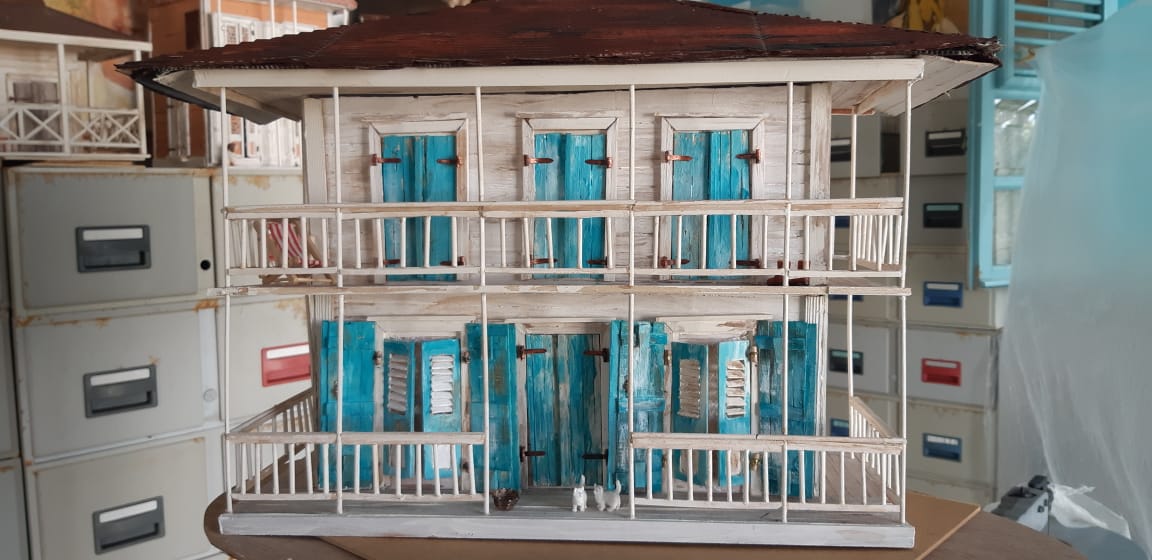

Exemples de maquettes de Case Créole réalisées par Aimée-Dominique DEBUC (Martinique - French West Indies)


Respect des conventions
: Les toitures sont soit en tôle ondulée soit recouvertes de tuiles, la construction est en bois, portes, volets, balustrades et balcons sont en bois, les jalousies sont en bois.

Respect for conventions: The roofs are either made of corrugated iron or covered with tiles, the construction is made of wood, doors, shutters, balustrades and balconies are made of wood, the blinds are made of wood.

Last edited:

Marc DANIEL

Well-Known Member
Licensed User
Non, c'est une cousine en Martinique qui construit de merveilleuses cases créoles et comme je lui ai montré mes bricolages, elle a voulu que je lui anime ses maisons. Le problème est que je dois lui envoyer les composants avec un solide mode d'emploi !!! Mais je lui ai demandé de m'envoyer les vidéos lorsqu'elle aura fini. En attendant, elle joue avec l'application B4A déjà sur son Smartphone ...
Moi, je suis rentré en France dimanche ...


Last edited:

derez

Expert
Licensed User
Longtime User
don't waste your time on software, just build those beautiful house and sell them !!!


Marc DANIEL

Well-Known Member
Licensed User

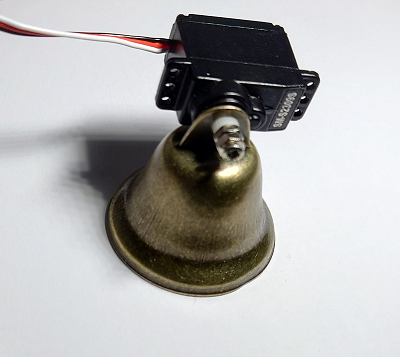

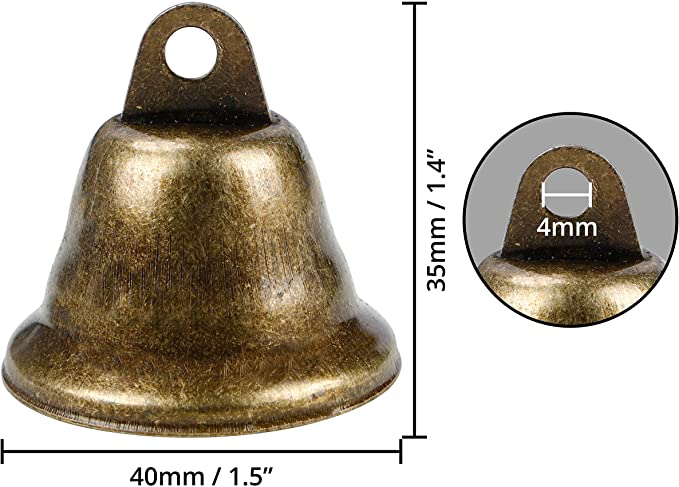

New B4R program with the use of a bell shaken by a mini-servomotor as well as the execution of automatic tests when starting the application offline Bluetooth with the Smartphone. The B4A application remains unchanged.


Nouveau programme B4R avec l'utilisation d'une clochette secouée par un mini-servomoteur ainsi que l'exécution de tests automatiques lors du démarrage de l'application hors connexion Bluetooth avec le Smartphone. L'application B4A reste sans changements.


Attachments

  • NewCaseCreole_B4R.zip
    2.3 KB · Views: 100
  • NewCaseCreole_B4R-ApplicationArduino.pdf
    160.3 KB · Views: 113
Last edited:

Marc DANIEL

Well-Known Member
Licensed User

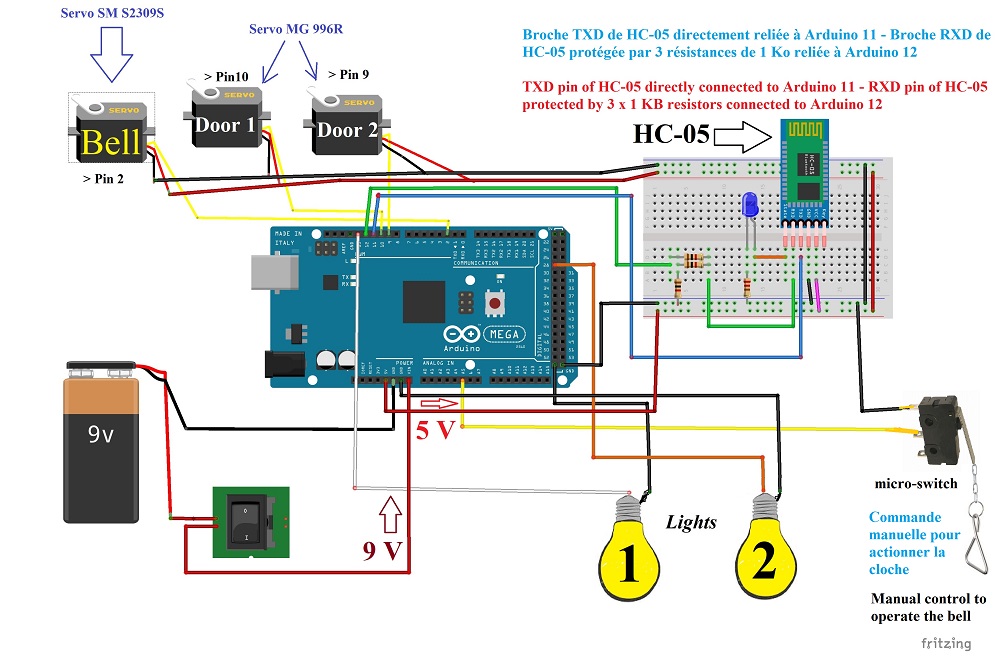

Dernière amélioration: Ajout d'un bouton pour déclencher manuellement la sonnerie de la cloche. Utilisation d'un micro interrupteur

Last improvement: Added a button to manually trigger the ringing of the bell. Using a micro switch



Attachments

  • NewCaseCreole_B4R.zip
    2.4 KB · Views: 101
  • NewCaseCreole_B4R-ApplicationArduino.pdf
    162.2 KB · Views: 113
Last edited:

Marc DANIEL

Well-Known Member
Licensed User

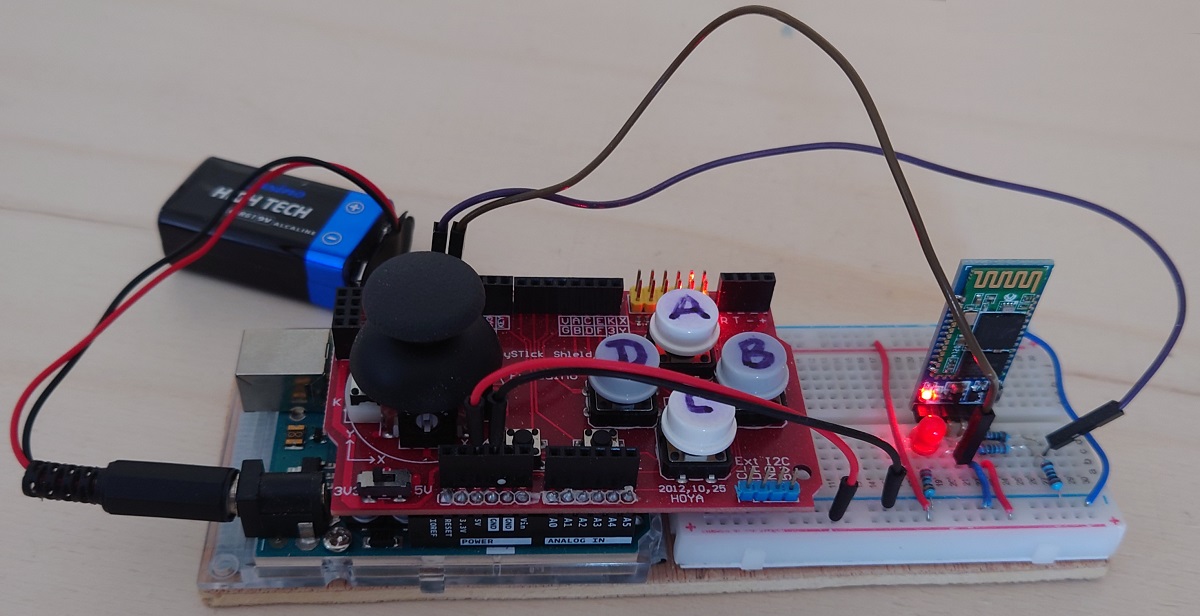

Autre possibilité de commander la maison créole: une télécommande B4R - Bluetooth
Another possibility of controlling the Creole house: a B4R - Bluetooth remote control

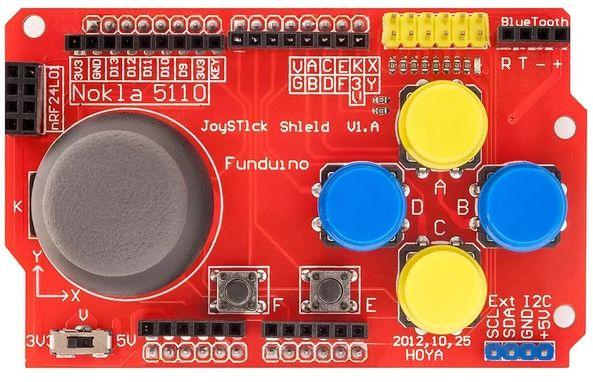

Manette de jeux.jpg





Attachments

  • CommandeMaisonCreole.zip
    1.9 KB · Views: 70
  • Commande_B4R_CaseCreole_Bluetooth.zip
    148.4 KB · Views: 74

Marc DANIEL

Well-Known Member
Licensed User

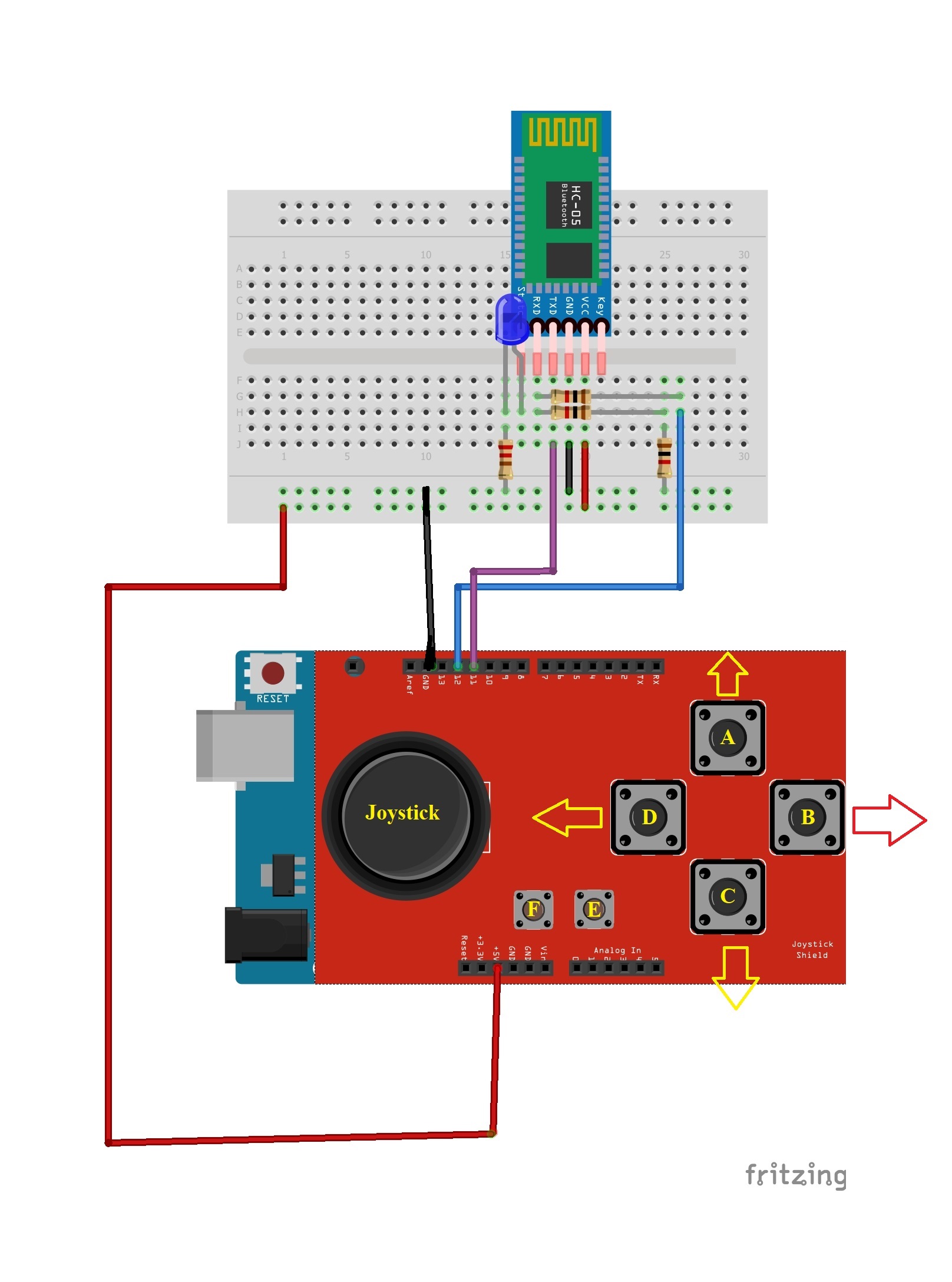

Matériel nécessaire : Une seconde carte ARDUINO UNO, une carte Joystick Shield clipée sur la carte Arduino Uno, un second module Bluetooth HC-05 que l'on va rendre "maître" et qui transmettra les valeurs à l'autre module Bluetooth installé dans la Case Créole qui est déjà programmée comme "esclave", une demi plaque de connexions, câbles et jumpers pour les connexions, 3 résistances de 1 Kohm, une résistance de 220 ohms, une LED pour visualiser la connexion Bluetooth avec la case créole.

Equipment required: A second ARDUINO UNO board, a Joystick Shield board clipped onto the Arduino Uno board, a second HC-05 Bluetooth module that we will make "master" and which will transmit the values to the other Bluetooth module installed on the house that is already programmed as a "slave", half a connection plate, cables and jumpers for the connections, 3 resistors of 1 Kohm, a 220 ohm resistor, an LED to display the Bluetooth connection with the “Case Créole”.





Last edited:

Marc DANIEL

Well-Known Member
Licensed User
for english speaking people


Attachments

  • MaisonCreoleRemote.zip
    1.9 KB · Views: 77
  • B4R_Bluetooth_remote_control.zip
    194.3 KB · Views: 77
