Android Question Appcompact with toolbar- error

StarinschiAndrei

Active Member
Licensed User
Hi everyone,
Based on Erel -AppCompat with ToolBar - minimal example, I'm trying to implement in my app, but i receive the following error.
B4X:
Error occurred on line: 27 (ChatActivity)
java.lang.NullPointerException: Attempt to invoke virtual method 'void android.support.v7.app.ActionBar.setDisplayHomeAsUpEnabled(boolean)' on a null object reference
   at de.amberhome.objects.appcompat.ACActionBar.setShowUpIndicator(ACActionBar.java:116)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity._activity_create(chatactivity.java:371)
   at java.lang.reflect.Method.invoke(Native Method)
   at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
   at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
   at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
   at java.lang.reflect.Method.invoke(Native Method)
   at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity.afterFirstLayout(chatactivity.java:104)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity.access$000(chatactivity.java:17)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity$WaitForLayout.run(chatactivity.java:82)
   at android.os.Handler.handleCallback(Handler.java:739)
   at android.os.Handler.dispatchMessage(Handler.java:95)
   at android.os.Looper.loop(Looper.java:158)
   at android.app.ActivityThread.main(ActivityThread.java:7225)
   at java.lang.reflect.Method.invoke(Native Method)
   at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1230)
   at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1120)
** Activity (chatactivity) Resume **

Manifest :

B4X:
AddManifestText(
<uses-sdk android:minSdkVersion="5" android:targetSdkVersion="21"/>
<supports-screens android:largeScreens="true"
    android:normalScreens="true"
    android:smallScreens="true"
    android:anyDensity="true"/>)
SetApplicationAttribute(android:icon, "@drawable/icon")
SetApplicationAttribute(android:label, "$LABEL$")
CreateResourceFromFile(Macro, Themes.LightTheme)
'End of default text.
SetApplicationAttribute(android:theme, "@style/MyAppTheme")
CreateResource(values, theme.xml,
<resources>
    <style name="MyAppTheme" parent="Theme.AppCompat.Light.NoActionBar">
        <item name="colorPrimary">#0098FF</item>
        <item name="colorPrimaryDark">#007CF5</item>
        <item name="colorAccent">#AAAA00</item>
        <item name="windowNoTitle">true</item>
        <item name="windowActionBar">false</item>
    </style>
</resources>
)
B4X:
Sub Activity_Create(FirstTime As Boolean)
   Activity.LoadLayout("2")
   ToolbarHelper.Initialize
   ToolbarHelper.ShowUpIndicator = False 'set to true to show the up arrow
   Dim bd As BitmapDrawable
   bd.Initialize(LoadBitmap(File.DirAssets, "hamburger.png"))
   ToolbarHelper.UpIndicatorDrawable =  bd
   ACToolBarLight1.InitMenuListener
   sm.Initialize("sm")
   Dim offset As Int = 100dip
   sm.BehindOffset = offset
   sm.Mode = sm.LEFT
   Dim lftMenu As Panel
   lftMenu.Initialize("")
   sm.Menu.AddView(lftMenu, 0, 0, 100%x - offset, 100%y)
   lftMenu.LoadLayout("Left")
   For i = 1 To 30
       ListView1.AddSingleLine("Item " & i)
   Next
End Sub

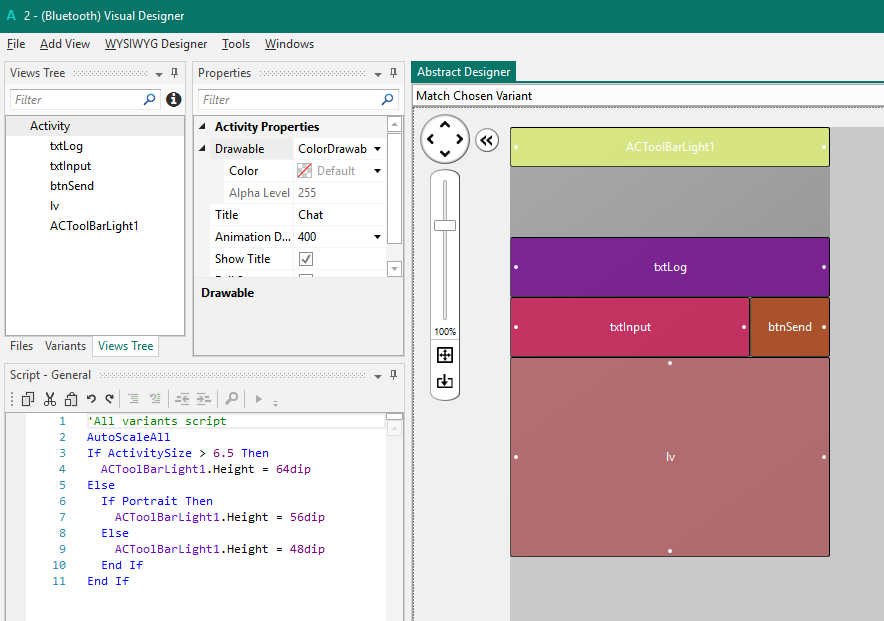

Attachments

StarinschiAndrei

Active Member
Licensed User
1. You should remove this line:
B4X:
CreateResourceFromFile(Macro, Themes.LightTheme)
2. Does the example work for you?
3. Have you added the #Extends line?
Hi Erel , Your exemple work fine.
I removed you mentioned line from manifest, and the error is the same.
Yes i added Extends line (#1 attachement):
B4X:
#Extends:android.support.v7.app.AppCompatActivity


StarinschiAndrei

Active Member
Licensed User
THANK YOU
Hi Erel, i found the missing line from manifest but i receviced below error. I attached the corected test project.
B4X:
** Activity (chatactivity) Create, isFirst = true **
Error occurred on line: 23 (ChatActivity)
java.lang.NullPointerException: Attempt to invoke virtual method 'void android.support.v7.app.ActionBar.setDisplayHomeAsUpEnabled(boolean)' on a null object reference
   at de.amberhome.objects.appcompat.ACActionBar.setShowUpIndicator(ACActionBar.java:116)
   at java.lang.reflect.Method.invoke(Native Method)
   at anywheresoftware.b4a.shell.Shell.runVoidMethod(Shell.java:777)
   at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:354)
   at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
   at java.lang.reflect.Method.invoke(Native Method)
   at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity.afterFirstLayout(chatactivity.java:104)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity.access$000(chatactivity.java:17)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity$WaitForLayout.run(chatactivity.java:82)
   at android.os.Handler.handleCallback(Handler.java:739)
   at android.os.Handler.dispatchMessage(Handler.java:95)
   at android.os.Looper.loop(Looper.java:158)
   at android.app.ActivityThread.main(ActivityThread.java:7225)
   at java.lang.reflect.Method.invoke(Native Method)
   at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1230)
   at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1120)
Error occurred on line: 23 (ChatActivity)
java.lang.NullPointerException: Attempt to invoke virtual method 'void android.support.v7.app.ActionBar.setDisplayHomeAsUpEnabled(boolean)' on a null object reference
   at de.amberhome.objects.appcompat.ACActionBar.setShowUpIndicator(ACActionBar.java:116)
   at java.lang.reflect.Method.invoke(Native Method)
   at anywheresoftware.b4a.shell.Shell.runVoidMethod(Shell.java:777)
   at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:354)
   at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
   at java.lang.reflect.Method.invoke(Native Method)
   at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity.afterFirstLayout(chatactivity.java:104)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity.access$000(chatactivity.java:17)
   at anywheresoftware.b4a.samples.bluetooth.chatactivity$WaitForLayout.run(chatactivity.java:82)
   at android.os.Handler.handleCallback(Handler.java:739)
   at android.os.Handler.dispatchMessage(Handler.java:95)
   at android.os.Looper.loop(Looper.java:158)
   at android.app.ActivityThread.main(ActivityThread.java:7225)
   at java.lang.reflect.Method.invoke(Native Method)
   at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1230)
   at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1120)
** Activity (chatactivity) Resume **


Attachments
