Android Example [B4X] AS DraggableBottomCard - Drag Indicator - Confirm Button

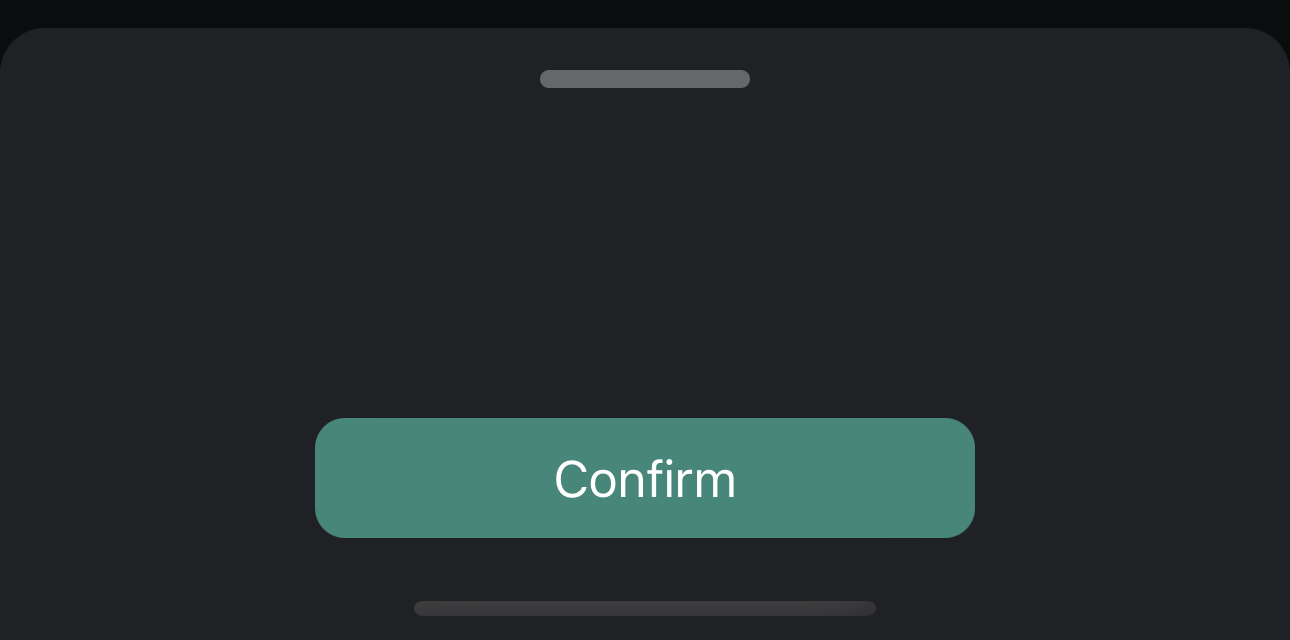

(43) mage.png


DragIndicator:
    'DragIndicator
    Dim xpnl_DragIndicator As B4XView = xui.CreatePanel("")
    BottomCard.HeaderPanel.AddView(xpnl_DragIndicator,Root.Width/2 - 70dip/2,HeaderHeight/2 - 6dip/2,70dip,6dip)
    xpnl_DragIndicator.SetColorAndBorder(xui.Color_ARGB(80,255,255,255),0,0,3dip)

ConfirmationButton:
    'ConfirmationButton
    Dim xlbl_ConfirmationButton As B4XView = CreateLabel("xlbl_ConfirmationButton")
    xlbl_ConfirmationButton.Text = "Confirm"
    xlbl_ConfirmationButton.TextColor = xui.Color_White
    xlbl_ConfirmationButton.SetColorAndBorder(xui.Color_ARGB(255,45, 136, 121),0,0,10dip)
    xlbl_ConfirmationButton.SetTextAlignment("CENTER","CENTER")
    Dim ConfirmationButtoHeight As Float = 40dip
    BottomCard.BodyPanel.AddView(xlbl_ConfirmationButton,Root.Width/2 - 220dip/2,BodyHeight - ConfirmationButtoHeight - SafeAreaHeight,220dip,ConfirmationButtoHeight)

Full Example:
Private Sub OpenDarkDatePicker

    Dim SafeAreaHeight As Float = 0
    Dim HeaderHeight As Float = 20dip
    Dim BodyHeight As Float = 150dip

    #If B4I
    SafeAreaHeight = B4XPages.GetNativeParent(B4XPages.MainPage).SafeAreaInsets.Bottom
    BodyHeight = BodyHeight + SafeAreaHeight
    #Else
    SafeAreaHeight = 20dip
    BodyHeight = BodyHeight + SafeAreaHeight
    #End If

    BottomCard.Initialize(Me,"BottomCard")
    BottomCard.BodyDrag = True
    BottomCard.Create(Root,BodyHeight,BodyHeight,HeaderHeight,Root.Width,BottomCard.Orientation_MIDDLE)
    BottomCard.CornerRadius_Header = 30dip/2

    'DragIndicator
    Dim xpnl_DragIndicator As B4XView = xui.CreatePanel("")
    BottomCard.HeaderPanel.AddView(xpnl_DragIndicator,Root.Width/2 - 70dip/2,HeaderHeight/2 - 6dip/2,70dip,6dip)
    xpnl_DragIndicator.SetColorAndBorder(xui.Color_ARGB(80,255,255,255),0,0,3dip)

    'ConfirmationButton
    Dim xlbl_ConfirmationButton As B4XView = CreateLabel("xlbl_ConfirmationButton")
    xlbl_ConfirmationButton.Text = "Confirm"
    xlbl_ConfirmationButton.TextColor = xui.Color_White
    xlbl_ConfirmationButton.SetColorAndBorder(xui.Color_ARGB(255,45, 136, 121),0,0,10dip)
    xlbl_ConfirmationButton.SetTextAlignment("CENTER","CENTER")
    Dim ConfirmationButtoHeight As Float = 40dip
    BottomCard.BodyPanel.AddView(xlbl_ConfirmationButton,Root.Width/2 - 220dip/2,BodyHeight - ConfirmationButtoHeight - SafeAreaHeight,220dip,ConfirmationButtoHeight)

    'Optional Code
    BottomCard.HeaderPanel.Color = xui.Color_ARGB(255,32, 33, 37)
    BottomCard.BodyPanel.Color = xui.Color_ARGB(255,32, 33, 37)

    BottomCard.Show(False)

End Sub

Private Sub CreateLabel(EventName As String) As B4XView
    Dim lbl As Label
    lbl.Initialize(EventName)
    Return lbl
End Sub

Private Sub xlbl_ConfirmationButton_Click
    Log("ConfirmationButton Clicked")
    BottomCard.Hide(False)
End Sub


Attachments

  • AS DraggableBottomCard ConfirmButton.zip
    11 KB · Views: 109
