B4A Library [B4X] [XUI] AS BottomActionMenu

This view combines 2 views and makes it quick and easy to let the user make an action.

You need:

• AS_DraggableBottomCard

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.

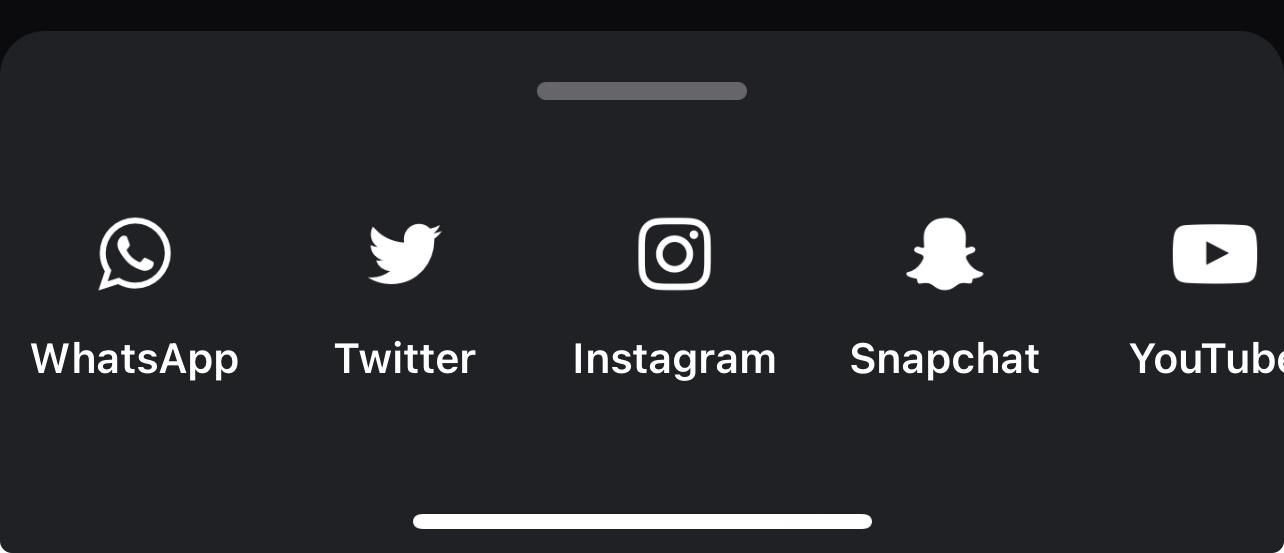

    BottomActionMenu.Initialize(Me,"BottomActionMenu",Root)

    BottomActionMenu.Color = xui.Color_ARGB(255,32, 33, 37)
    BottomActionMenu.DragIndicatorColor = xui.Color_White
    BottomActionMenu.ItemProperties.TextColor = xui.Color_White

    BottomActionMenu.AddItem("WhatsApp",BottomActionMenu.FontToBitmap(Chr(0xF232),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Twitter",BottomActionMenu.FontToBitmap(Chr(0xF099),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Instagram",BottomActionMenu.FontToBitmap(Chr(0xF16D),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Snapchat",BottomActionMenu.FontToBitmap(Chr(0xF2AC),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("YouTube",BottomActionMenu.FontToBitmap(Chr(0xF16A),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Stackoverflow",BottomActionMenu.FontToBitmap(Chr(0xF16C),False,30,BottomActionMenu.ItemProperties.TextColor),"")

    BottomActionMenu.ShowPicker

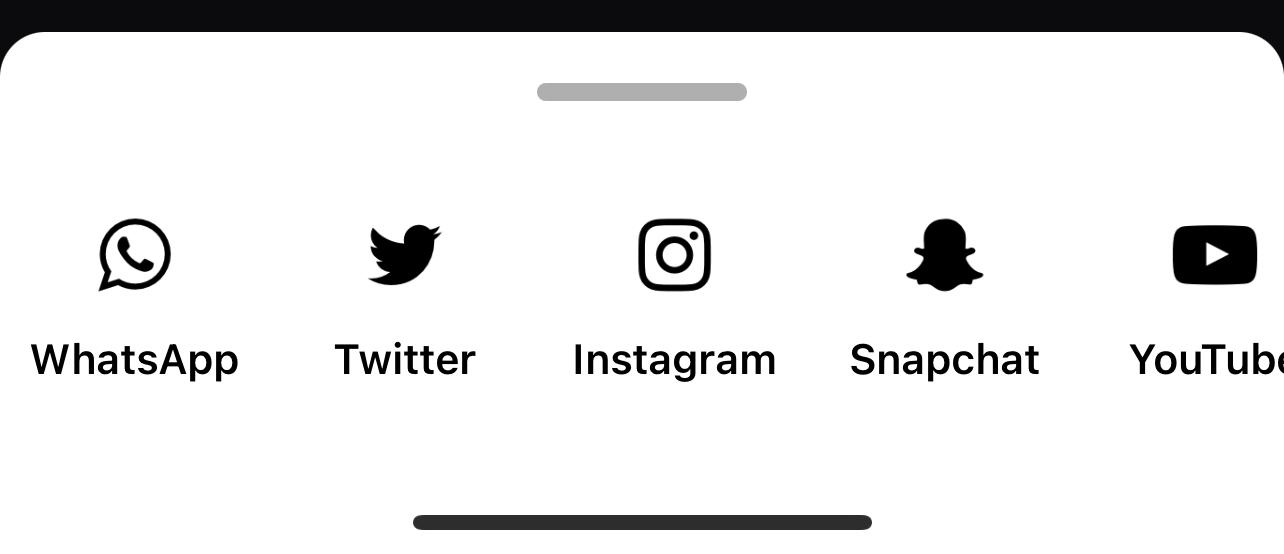

    BottomActionMenu.Initialize(Me,"BottomActionMenu",Root)

    BottomActionMenu.Color = xui.Color_White
    BottomActionMenu.DragIndicatorColor = xui.Color_Black
    BottomActionMenu.ItemProperties.TextColor = xui.Color_Black

    BottomActionMenu.AddItem("WhatsApp",BottomActionMenu.FontToBitmap(Chr(0xF232),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Twitter",BottomActionMenu.FontToBitmap(Chr(0xF099),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Instagram",BottomActionMenu.FontToBitmap(Chr(0xF16D),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Snapchat",BottomActionMenu.FontToBitmap(Chr(0xF2AC),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("YouTube",BottomActionMenu.FontToBitmap(Chr(0xF16A),False,30,BottomActionMenu.ItemProperties.TextColor),"")
    BottomActionMenu.AddItem("Stackoverflow",BottomActionMenu.FontToBitmap(Chr(0xF16C),False,30,BottomActionMenu.ItemProperties.TextColor),"")

    BottomActionMenu.ShowPicker

AS_BottomActionMenu
Author: Alexander Stolte
Version: 1.02

• AS_BottomActionMenu
  • Events:
    • ItemClick (Index As Int, Value As Object)
  • Fields:
    • Tag As Object
  • Functions:
    • AddItem (Text As String, Icon As B4XBitmap, Value As Object)
    • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap


      FontAwesome To Bitmap

      Unlike an older "TextToBitmap" sub that you can find in the forum, this code vertically centers the icon. It can also be used in B4J and B4i (only need to change the font line). Sub Activity_Create(FirstTime As Boolean) 'usage example Activity.AddMenuItem3("Android", "Test"...

      www.b4x.com
    • HidePicker
    • Initialize (Callback As Object, EventName As String, Parent As B4XView)
      Initializes the object. You can add parameters to this method if needed.
    • ShowPicker
  • Properties:
    • Color As Int
    • DragIndicatorColor As Int
    • isOpen As Boolean [read only]
    • ItemProperties As AS_BottomActionMenu_ItemProperties [read only]
      Defaults:
      TextColor - White
      Width - 90dip
      xFont - Bold 14

Changelog

• 1.00
  • Release
• 1.01
  • New HidePicker
  • New get isOpen
• 1.02
  • BreakingChange get and set TextColor renamed -> DragIndicatorColor
  • New AS_BottomActionMenu_ItemProperties type
  • New get ItemProperties
  • BugFixes
• 1.03
  • BugFix - Icon under B4A in wrong position

Github: github.com/StolteX/AS_BottomActionMenu

Have Fun



[Alexander Stolte]

Update

• 1.01
  • New HidePicker
  • New get isOpen



[Alexander Stolte]

Update

• 1.02
  • BreakingChange get and set TextColor renamed -> DragIndicatorColor
  • New AS_BottomActionMenu_ItemProperties type
  • New get ItemProperties
  • BugFixes

Examples updated

AS_BottomActionMenu_ItemProperties
The properties that are set when adding an item are taken for the item. This means that you can make individual settings for each item if you change something before adding it.

    BottomActionMenu.ItemProperties.Width = 150dip
    BottomActionMenu.ItemProperties.xFont = xui.CreateDefaultBoldFont(20)



[Alexander Stolte]

Update

• 1.03
  • BugFix - Icon under B4A in wrong position
