Android Question [B4X] BBListItem - BCTextEngine inside CLV (Help please)

[joko0124]

Hello! Can anybody help me with my problem regarding bblistitem?

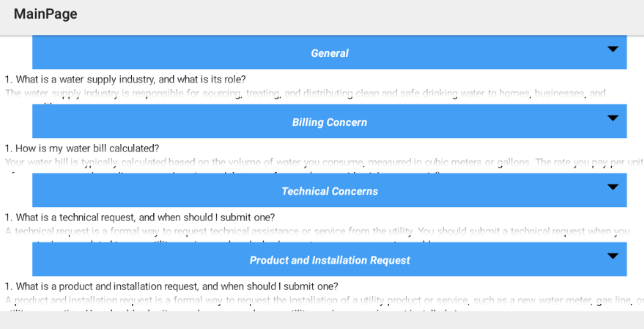

When I comment blocked line 13-14 it will run with no error, but it doesn't show the content (see attachment)

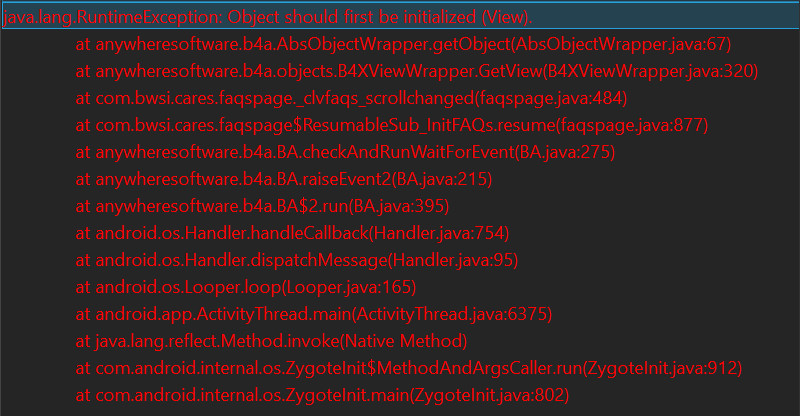

And removing comments from this line got an error (see attachment)

Private Sub clvFAQs_ScrollChanged (Offset As Int)
    For i = 0 To clvFAQs.Size - 1
        Dim pnl As B4XView = clvFAQs.GetPanel(i)
'        Log(pnl.GetView(0).NumberOfViews)
'        If pnl.GetView(0).NumberOfViews > 0 Then
'        For j = 0 To pnl.GetView(0).NumberOfViews - 1
'            Dim mView As View
'            mView = pnl.GetView(j)
'            Log(GetType(mView))
'        Next
'        End If
        If pnl.NumberOfViews = 0 Then Return
        Dim BB As BBListItem = pnl.GetView(1).GetView(1).GetView(BBListItemIndexInItems).Tag
        BB.ParentScrolled(Offset, clvFAQs.GetRawListItem(i).Offset, clvFAQs.AsView.Height, pnl.GetView(0).Height)
    Next

End Sub

Additional info... I am using two layouts
1 for category and 2 for the contents.



[William Lancee]

The first thing you should do is find out what is in the panel. Maybe there is only one view (at index 0).

'        Dim BB As BBListItem = pnl.GetView(1).GetView(1).GetView(BBListItemIndexInItems).Tag
'        BB.ParentScrolled(Offset, clvFAQs.GetRawListItem(i).Offset, clvFAQs.AsView.Height, pnl.GetView(0).Height)
For i = 0 to pnl.NumberOfViews - 1
    log(getType(pnl.GetView(i)) & TAB & pnl.GetView(i).NumberOfViews )
Next



[joko0124]

The first thing you should do is find out what is in the panel. Maybe there is only one view (at index 0).

'        Dim BB As BBListItem = pnl.GetView(1).GetView(1).GetView(BBListItemIndexInItems).Tag
'        BB.ParentScrolled(Offset, clvFAQs.GetRawListItem(i).Offset, clvFAQs.AsView.Height, pnl.GetView(0).Height)
For i = 0 to pnl.NumberOfViews - 1
    log(getType(pnl.GetView(i)) & TAB & pnl.GetView(i).NumberOfViews )
Next

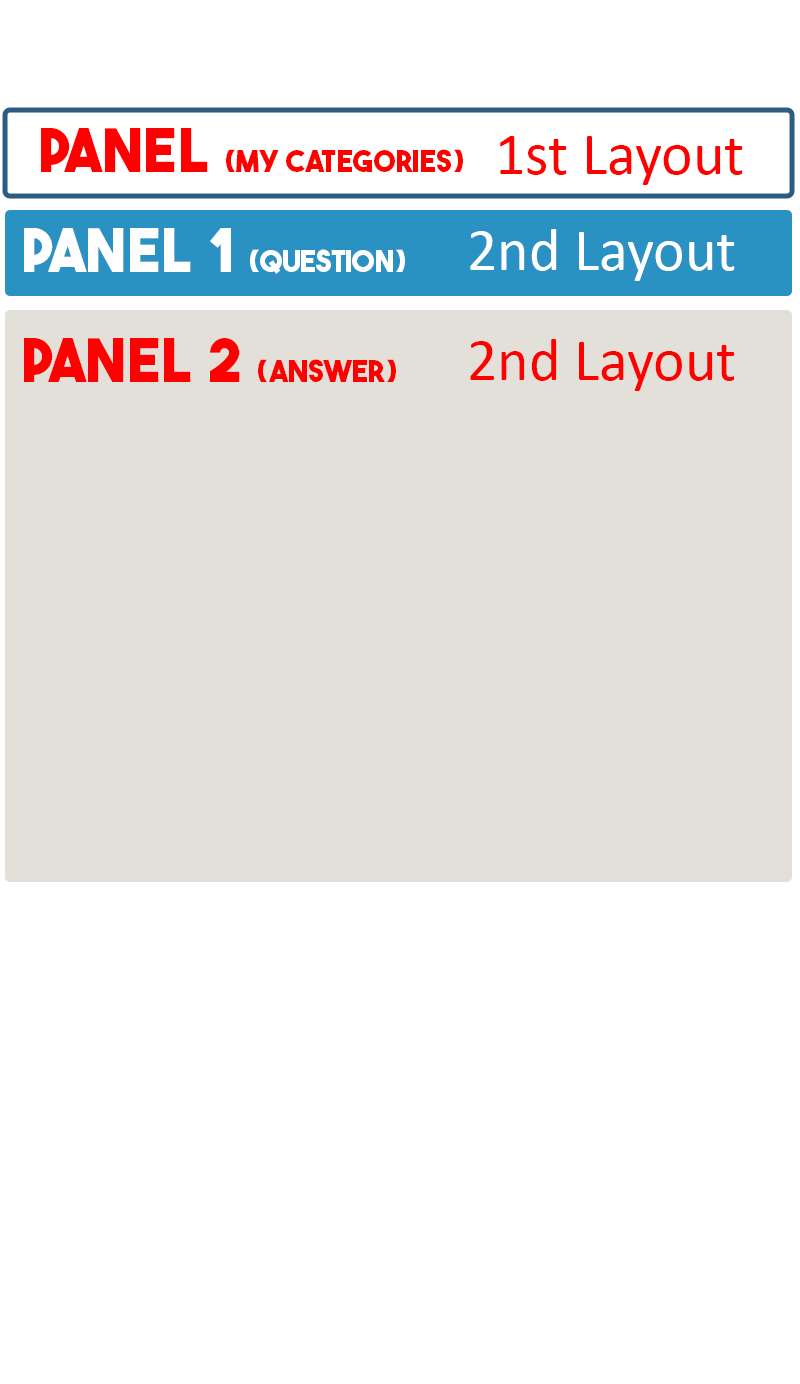

It hangs the app, but I get your point - it returns "anywheresoftware.b4a.BALayout 3" on the logs. Please see on attachment my layout.



[joko0124]

The first thing you should do is find out what is in the panel. Maybe there is only one view (at index 0).

'        Dim BB As BBListItem = pnl.GetView(1).GetView(1).GetView(BBListItemIndexInItems).Tag
'        BB.ParentScrolled(Offset, clvFAQs.GetRawListItem(i).Offset, clvFAQs.AsView.Height, pnl.GetView(0).Height)
For i = 0 to pnl.NumberOfViews - 1
    log(getType(pnl.GetView(i)) & TAB & pnl.GetView(i).NumberOfViews )
Next

Already did this, but I couldn't figure how to get the my BBListItem1 object.



[William Lancee]

So now you know that getView(0) is a layout.

Next,

Dim bx as B4XView = pnl.GetView(0)
log(getType(bx).GetView(0) & TAB & bx.NumberOfViews )



[William Lancee]

Custom views are objects but not views. The view is stored in the tag of the base of the object.
See:
https://www.b4x.com/android/forum/t...-here-from-clv-or-any-other-container.117992/



[William Lancee]

A zip file of a small sample project would help tremendously.
But perhaps @Mahares would already know the answer



[joko0124]

A zip file of a small sample project would help tremendously.
But perhaps @Mahares would already know the answer

Thank you so much @William Lancee
Here is my sample program.



[joko0124]

A zip file of a small sample project would help tremendously.
But perhaps @Mahares would already know the answer

Yes please @Mahares



[joko0124]

@Erel can you help me?
Here is my sample program. Thanks!



[joko0124]

If the link was not available due to Google restriction, you can see here. Thank you!



[William Lancee]

I am in a different time zone, so I didn't respond.
The link you posted is for a game. Not a small sample source program.

Write a small program that includes only the code and layout that causes the error, zip it and attach the zip file
to this thread.

I would need this for me to help you.

But you could find the problem yourself by tracking the tree of nodes in the CLV panels.
1. get the number of views of a view
2. iterate through them and see what they are (use try block to avoid crashes)

Repeat recursively if necessary.

Note: Avoid appealing to individual members for help.
(I mentioned @Mahares in jocular way, with deep respect for his skills with CLV)



[Mahares]

Can anybody help me with my problem regarding bblistitem

I could not follow your project, so based on a project I made a while back featuring xClv expanded and BBListItems, I used your database and your data in the attached project. It does a lot of what you want to do. Hopefully, when you run it you will be able to figure out what is causing the issue in your own project. Please note that I added a couple of methods to the CLVExpandable class that allows for expanding all or collapsing all with one button click. They are both marked by ‘Mahares’ next to them.
Thank you @William Lancee for the compliment, but you have forgotten more than I will ever know"



[Alain75]

Hello! Can anybody help me with my problem regarding bblistitem?
When I comment blocked line 13-14 it will run with no error, but it doesn't show the content (see attachment)
And removing comments from this line got an error (see attachment)

Private Sub clvFAQs_ScrollChanged (Offset As Int)
    For i = 0 To clvFAQs.Size - 1
        Dim pnl As B4XView = clvFAQs.GetPanel(i)
'        Log(pnl.GetView(0).NumberOfViews)
'        If pnl.GetView(0).NumberOfViews > 0 Then
'        For j = 0 To pnl.GetView(0).NumberOfViews - 1
'            Dim mView As View
'            mView = pnl.GetView(j)
'            Log(GetType(mView))
'        Next
'        End If
        If pnl.NumberOfViews = 0 Then Return
        Dim BB As BBListItem = pnl.GetView(1).GetView(1).GetView(BBListItemIndexInItems).Tag
        BB.ParentScrolled(Offset, clvFAQs.GetRawListItem(i).Offset, clvFAQs.AsView.Height, pnl.GetView(0).Height)
    Next

End Sub

Additional info... I am using two layouts
1 for category and 2 for the contents.

According to me, to get the views of a panel, you just have to code :

...
Dim pnl As B4XView = clvFAQs.GetPanel(i)
For Each v As View Inpnl.GetAllViewsRecursive
   [I]code for each view of the panel[/I]
Next



[joko0124]

I am in a different time zone, so I didn't respond.
The link you posted is for a game. Not a small sample source program.

Write a small program that includes only the code and layout that causes the error, zip it and attach the zip file
to this thread.

I would need this for me to help you.

But you could find the problem yourself by tracking the tree of nodes in the CLV panels.
1. get the number of views of a view
2. iterate through them and see what they are (use try block to avoid crashes)

Repeat recursively if necessary.

Note: Avoid appealing to individual members for help.
(I mentioned @Mahares in jocular way, with deep respect for his skills with CLV)

I appreciate your response to my question. I was very grateful for it.
Noted on your advices. Thank you!



[joko0124]

I could not follow your project, so based on a project I made a while back featuring xClv expanded and BBListItems, I used your database and your data in the attached project. It does a lot of what you want to do. Hopefully, when you run it you will be able to figure out what is causing the issue in your own project. Please note that I added a couple of methods to the CLVExpandable class that allows for expanding all or collapsing all with one button click. They are both marked by ‘Mahares’ next to them.
Thank you @William Lancee for the compliment, but you have forgotten more than I will ever know"

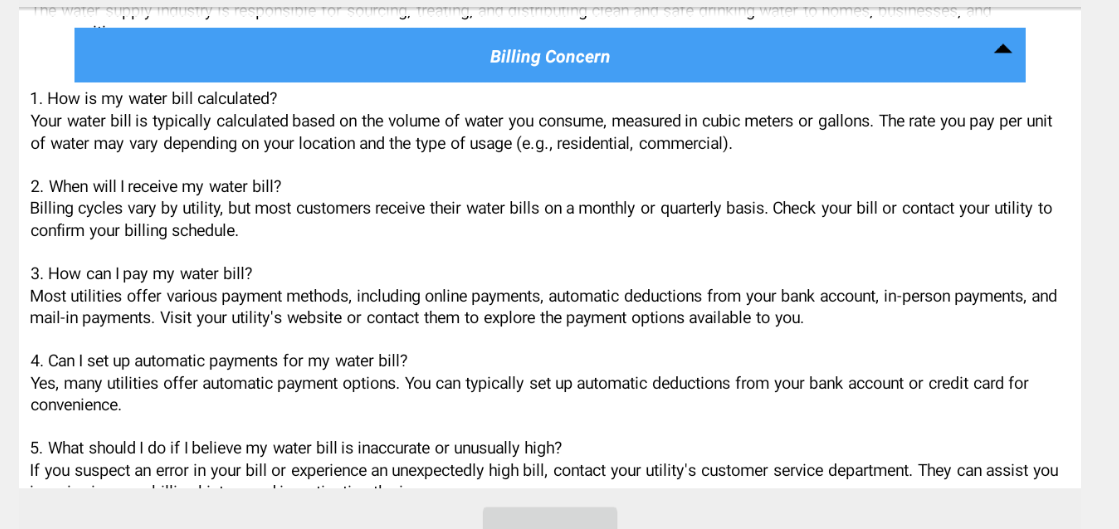

View attachment 147066

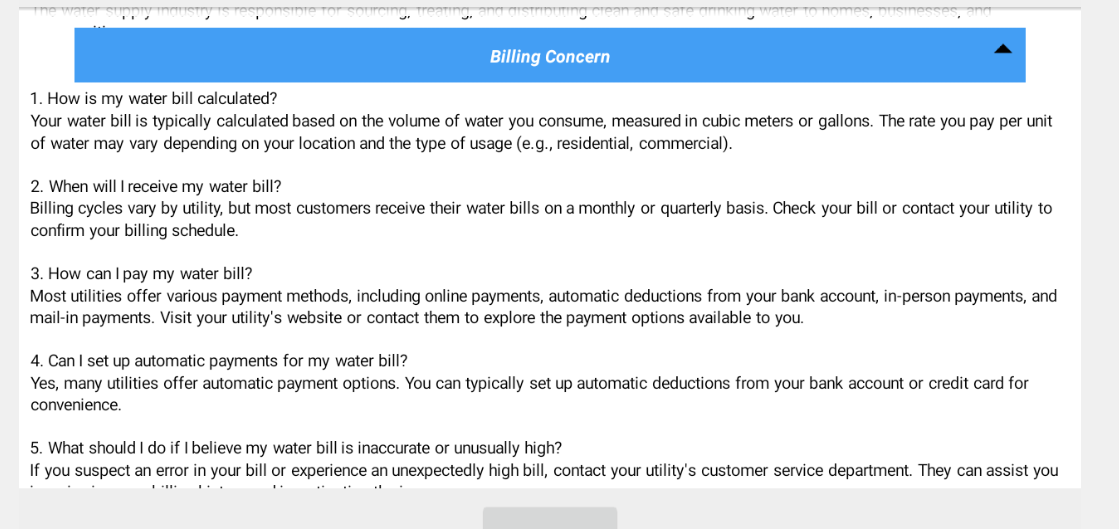

View attachment 147067

Thank you so much for your response! Thank you for using my database on your sample. I'll try to study your code.
