Android Question [B4x] Update clvitem with AnotherDatePicker: how?

fredo

Well-Known Member
Licensed User
Longtime User
Use case:
A clv contains several entries whose content depends on the date in the adp.

If the date is changed via adp, the contents on the affected clvitem will be recalculated. The new date and the new contents will be saved and the affected clvitem will be updated.​


The attached B4J-test project is an extract from a larger B4A project. The layout was transferred via copypaste in the designer.

Problems:
1. An error occurs which cannot be traced due to a lack of B4J experience.

B4X:
private Sub CreateItem_c4list(NameVal As String, DatVal As String, Index As Int, PanelHeight As Int) As B4XView
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, c0tabCLV_c4list.AsView.Width, 200dip)

    p.LoadLayout("clvitemdat") ' <---

    datPanelLabelName.Text = NameVal
    AnotherDatePicker1.Date = DateTime.DateParse(DatVal)

    Return p
End Sub


main._createitem_c4list (java line: 113)
java.lang.RuntimeException: java.lang.NullPointerException
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:120)
at anywheresoftware.b4j.objects.CustomViewWrapper.AfterDesignerScript(CustomViewWrapper.java:68)
at anywheresoftware.b4j.objects.LayoutBuilder.loadLayout(LayoutBuilder.java:93)
at anywheresoftware.b4j.objects.PaneWrapper.LoadLayout(PaneWrapper.java:84)
at anywheresoftware.b4a.objects.B4XViewWrapper.LoadLayout(B4XViewWrapper.java:486)
at b4j.example.main._createitem_c4list(main.java:113)
at b4j.example.main._appstart(main.java:94)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:78)
at b4j.example.main.start(main.java:37)
at com.sun.javafx.application.LauncherImpl.lambda$launchApplication1$161(LauncherImpl.java:863)
at com.sun.javafx.application.PlatformImpl.lambda$runAndWait$174(PlatformImpl.java:326)
at com.sun.javafx.application.PlatformImpl.lambda$null$172(PlatformImpl.java:295)
at java.security.AccessController.doPrivileged(Native Method)
at com.sun.javafx.application.PlatformImpl.lambda$runLater$173(PlatformImpl.java:294)
at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
at com.sun.glass.ui.win.WinApplication.lambda$null$147(WinApplication.java:177)
at java.lang.Thread.run(Thread.java:748)
Caused by: java.lang.NullPointerException
at b4j.example.anotherdatepicker$ResumableSub_DesignerCreateView.resume(anotherdatepicker.java:327)
at b4j.example.anotherdatepicker._designercreateview(anotherdatepicker.java:281)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
... 22 more

2. If the date of the adp was changed, the index of the affected clv item should be determined in order to persistently change the affected data record.

3. After the contents of the affected clv item have been recalculated, the display of the clv item should be updated.

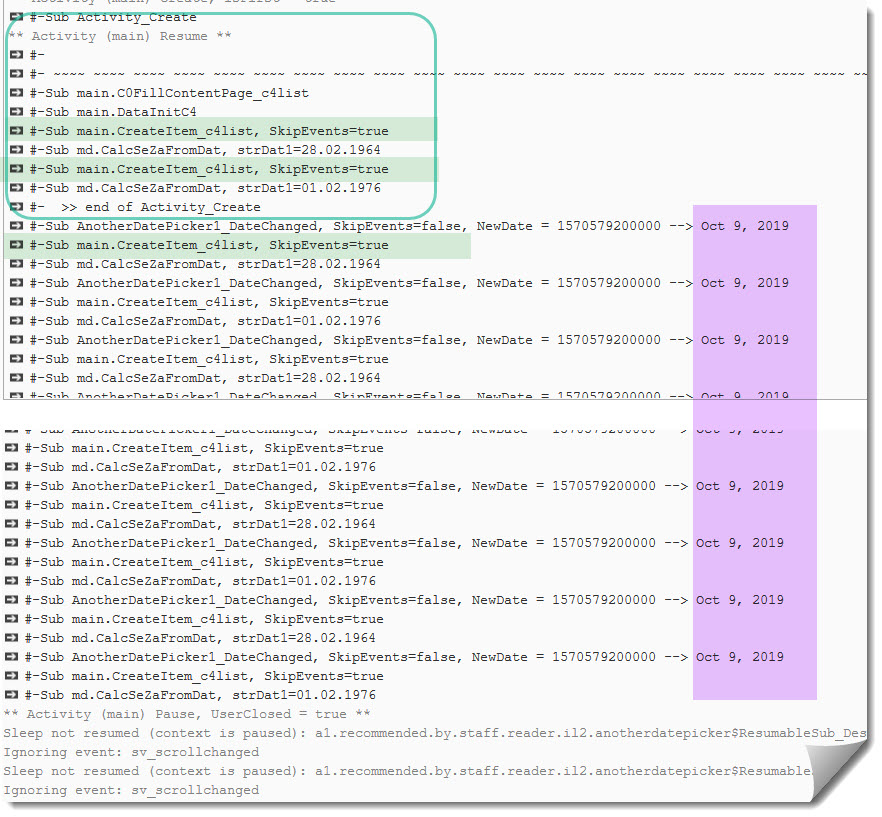

4. Own experiments in the B4A project led to endless updates, which could not be avoided even with a global "skipevent variable".
B4X:
Sub AnotherDatePicker1_DateChanged (NewDate As Long) As ResumableSub
    Log("#-Sub AnotherDatePicker1_DateChanged, SkipEvents=" & SkipEvents & ", NewDate = " & NewDate & $" --> $Date{NewDate}"$)
    If SkipEvents Then Return

    SkipEvents = True
    Dim x As AnotherDatePicker = Sender
    Dim xMap As Map = x.mBase.Tag
    Dim ClvIndex As Int = xMap.get("ClvIndex")
    Dim p As B4XView = CreateItem_c4list(xMap, ClvIndex) ' --> In AnotherDatePicker1_DateChanged
    c0tabCLV_c4list.ReplaceAt(ClvIndex, p, p.Height, "" )
    c0tabCLV_c4list.ScrollToItem(ClvIndex)
    SkipEvents = False
    Sleep(0)

End Sub


B4X:
#Region  Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 400
#End Region

' --> file:///.\Objects\src\b4j\example

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form

    Dim xui As XUI

    Private AnotherDatePicker1 As AnotherDatePicker

    Private c0tabCLV_c4list As CustomListView
    Private datPanelLabelName As B4XView

End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1

    MainForm.RootPane.LoadLayout("clvpanel") 'Load the layout file.
    MainForm.Show

    Dim DatMap As Map
    DatMap.Initialize
    DatMap.Put("Miller", "11.03.2005")
    DatMap.Put("Smith", "11.03.2005")

    Dim i As Int = 0
    For Each k As String In DatMap.Keys
        Dim p As B4XView = CreateItem_c4list(k, DatMap.Get(k), i, 300dip ) ' --> In C0FillContentPage_c4list
        c0tabCLV_c4list.Add(p, i)
        i = i +1
    Next
End Sub

private Sub CreateItem_c4list(NameVal As String, DatVal As String, Index As Int, PanelHeight As Int) As B4XView
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, c0tabCLV_c4list.AsView.Width, 200dip)
    p.LoadLayout("clvitemdat")

    datPanelLabelName.Text = NameVal
    AnotherDatePicker1.Date = DateTime.DateParse(DatVal)

    Return p
End Sub

Sub AnotherDatePicker1_DateChanged (NewDate As Long)
    Log($"New date $Date{NewDate}"$)
    Dim adpX As AnotherDatePicker = Sender


    ' ... get index of clvitem
    ' ... change underlaying data
    ' ... modify visible content on edited clvitem panel

End Sub


I'd appreciate it if someone here could help me back on the saddle.


(Small B4J Testproject attached)


Attachments

  • AdpOnClvItem.zip
    10.4 KB · Views: 142

Erel

B4X founder
Staff member
Licensed User
Longtime User
The B4J error is related to the way the old AnotherDatePicker is implemented. The parent panel must be added to the form:
B4X:
MainForm.RootPane.AddNode(p, 0, 0, c0tabCLV_c4list.AsView.Width, 200dip)
p.LoadLayout("clvitemdat")
p.RemoveViewFromParent

Two recommendations:
1. Check B4XPreferenceDialog: [B4X] B4XPreferencesDialog - Cross platform forms
2. Or use B4XDialog with B4XDateTemplate.

Upvote 0
