Android Code Snippet [B4X] Useful Features for PharmaCode Barcodes

These are some useful functions for Pharmacode barcodes.

1. Generate Digit Verifier

Public Sub PharmacodeDigitVerifier(Value As String) As String
    Dim Result As String

    If Not (Regex.IsMatch("[0-9]+", Value)) Then Return Result 'Invalid
    If Not (Value.Length < 9) Then Return Result 'too long

    Dim Base32Value As StringBuilder
    Base32Value.Initialize

    For Each s As String In Regex.Split("", Value)
        Base32Value.Append(s)
    Next

    'Fill with zeros
    For i = 1 To 8 - Base32Value.Length
        Base32Value.Insert(0,"0")
    Next

    ' Calculate digit
    Dim CheckValue() As String, CheckSum As Int, Checkpart As Int
    CheckValue = Regex.Split("", Base32Value.ToString)
    For i = 0 To 3
        Checkpart = CheckValue(i * 2)
        CheckSum  = CheckSum + Checkpart
        Checkpart = CheckValue((i * 2) + 1) * 2
        If Checkpart >= 10 Then
            CheckSum = CheckSum + (Checkpart - 10) + 1
        Else
            CheckSum = CheckSum + Checkpart
        End If
    Next

    ' Add digit
    Dim Digit As Int = CheckSum Mod 10
    Result = Base32Value.Append(Digit).ToString
    Return Result
End Sub

2. Convert Decimal to Base32

Public Sub DecimalToBase32(DecimalValue As Int) As String
    Dim Base32Chars As String = "0123456789BCDFGHJKLMNPQRSTUVWXYZ"
    Dim Base32Value As StringBuilder
    Base32Value.Initialize
    Do While DecimalValue > 0
        Dim Remainder As Int = DecimalValue Mod 32
        Base32Value.Insert(0,Base32Chars.CharAt(Remainder))
        DecimalValue = DecimalValue / 32
    Loop
    Return Base32Value.ToString
End Sub

3. Convert Base32 to Decimal

Public Sub Base32ToDecimal(Base32Value As String) As Long
    Dim Base32Chars As String = "0123456789BCDFGHJKLMNPQRSTUVWXYZ"
    Dim DecimalValue As Long
    Dim Exponent As Long
    For i = Base32Value.Length - 1 To 0 Step - 1
        DecimalValue = DecimalValue + (Base32Chars.IndexOf(Base32Value.CharAt(i)) * Power(32, Exponent))
        Exponent = Exponent + 1
    Next
    Return DecimalValue
End Sub

Test:

Public Sub TestBase32
    Dim Value As String = 123456

    Value = PharmacodeDigitVerifier(Value)
    Log("A" & Value)

    Value = DecimalToBase32(Value)
    Log(Value)

    Value = Base32ToDecimal(Value)
    Log(Value)
End Sub

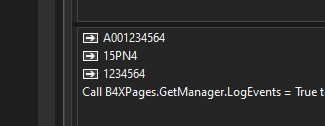

Result:

ref.

OkapiBarcode/src/main/java/uk/org/okapibarcode/backend/Code32.java at master · woo-j/OkapiBarcode

Open-source barcode encoding program written in Java - woo-j/OkapiBarcode

github.com

About Laetus/Pharmacodes

About Pharmacodes, the technical details of multicolor Pharmaceutical codes for packaging.

www.computalabel.com

Your comments will be welcome.
